Modular LED lamp

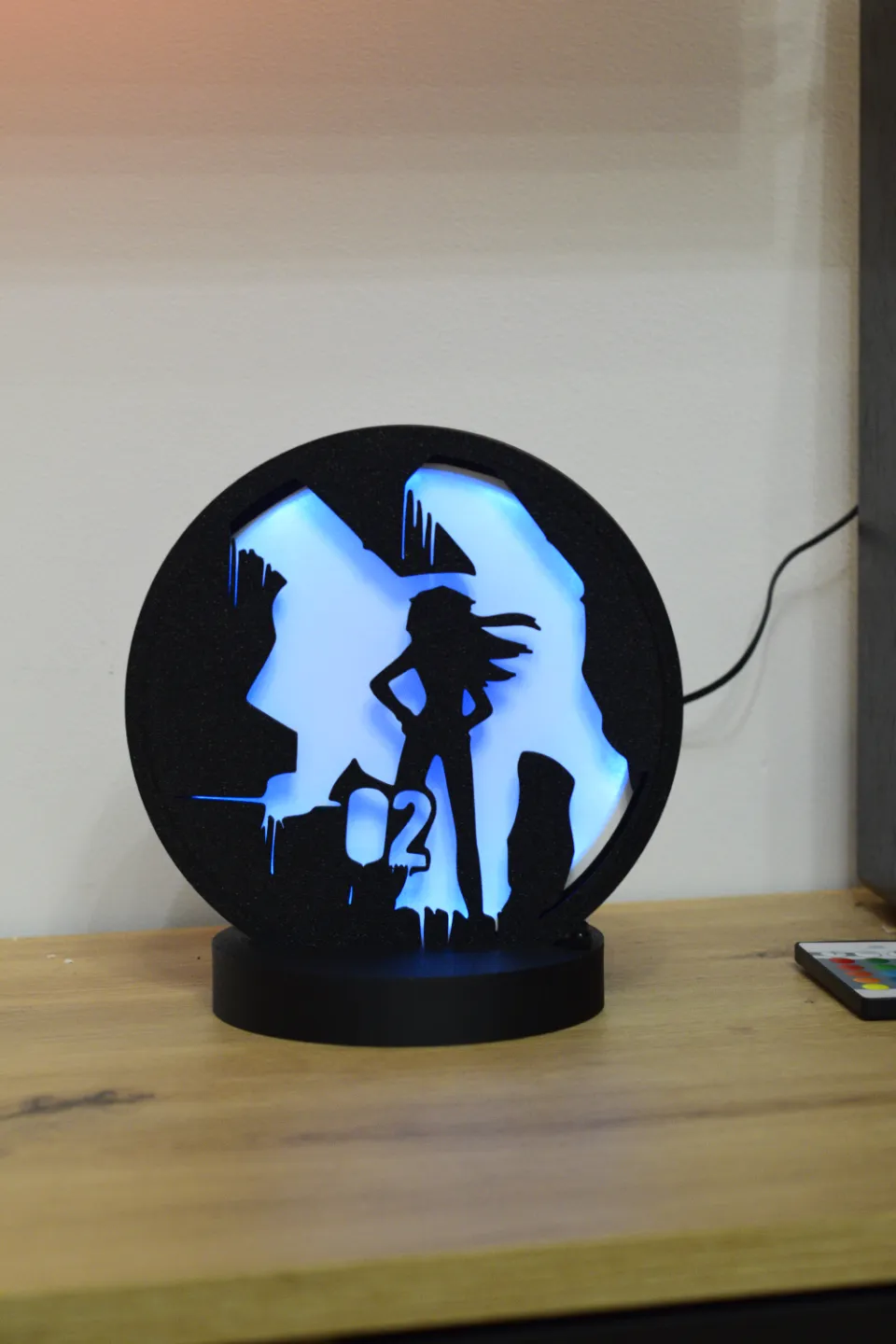

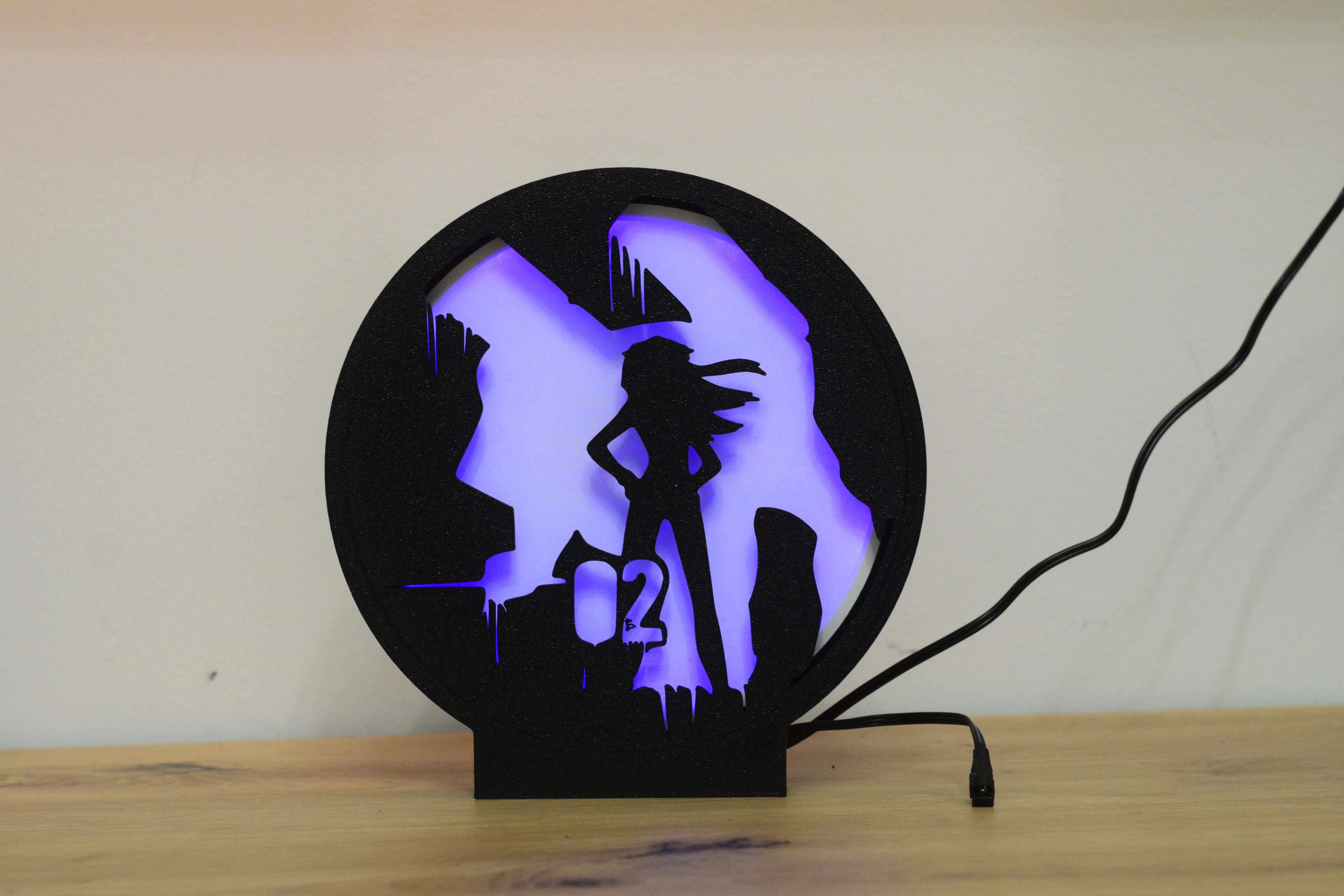

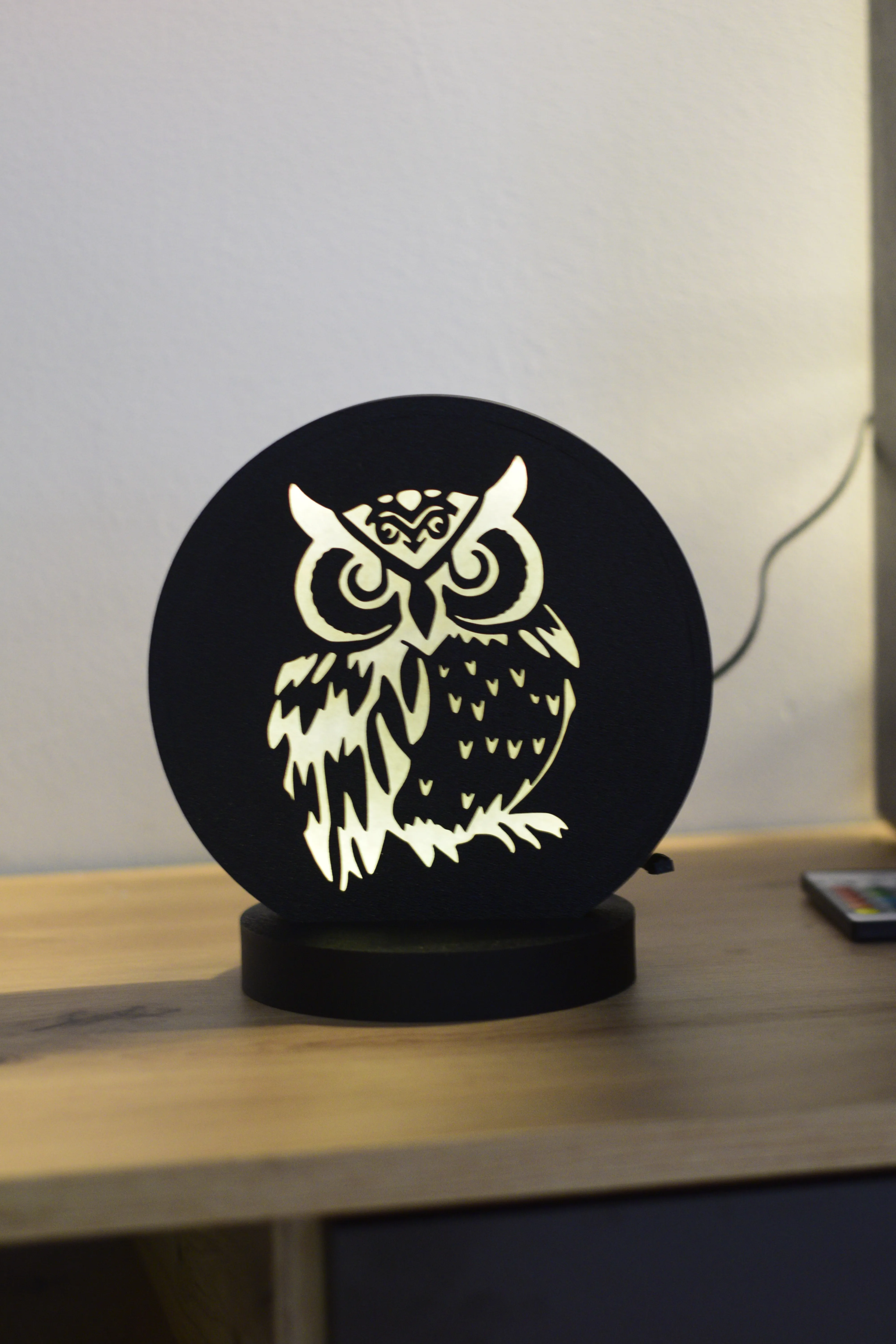

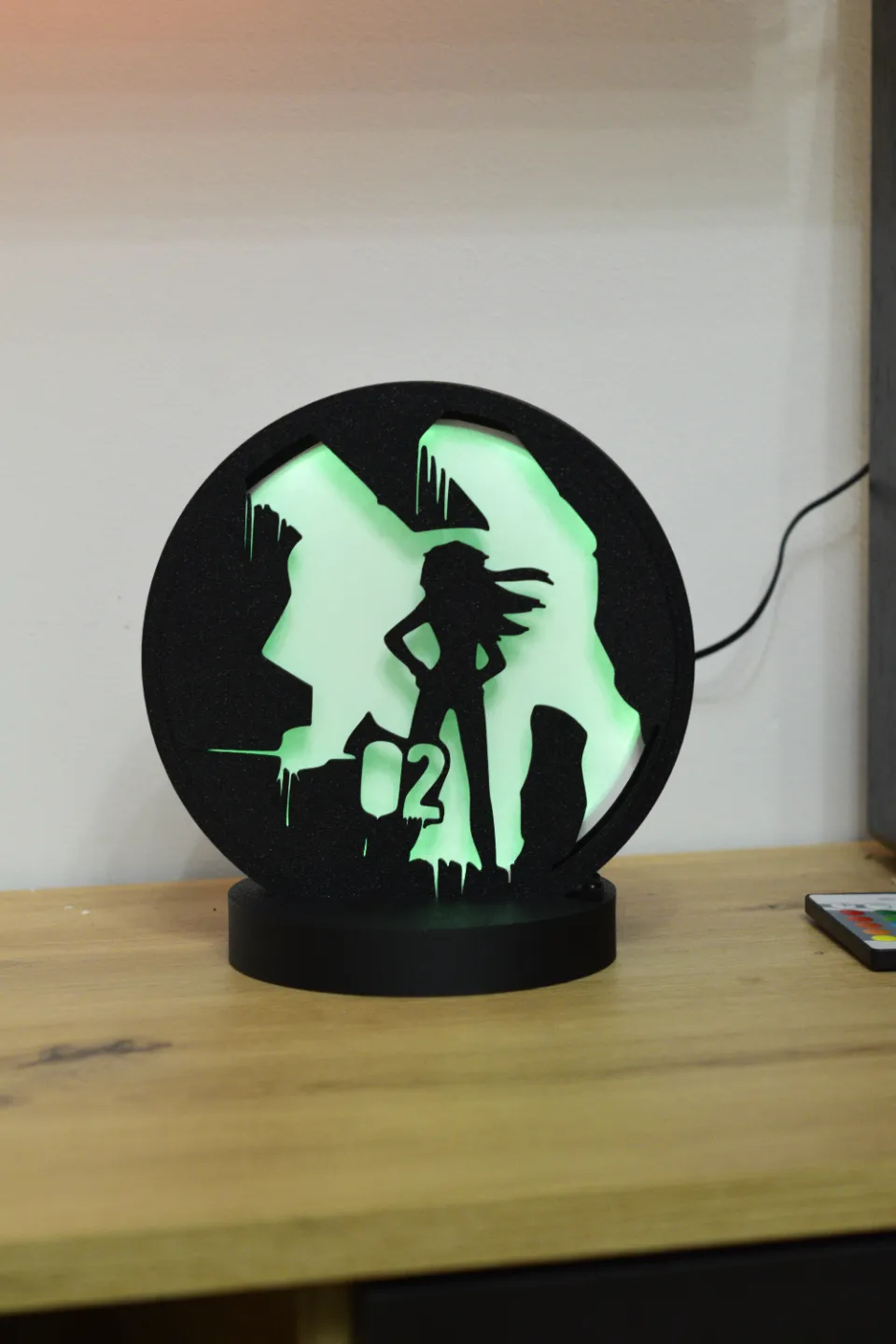

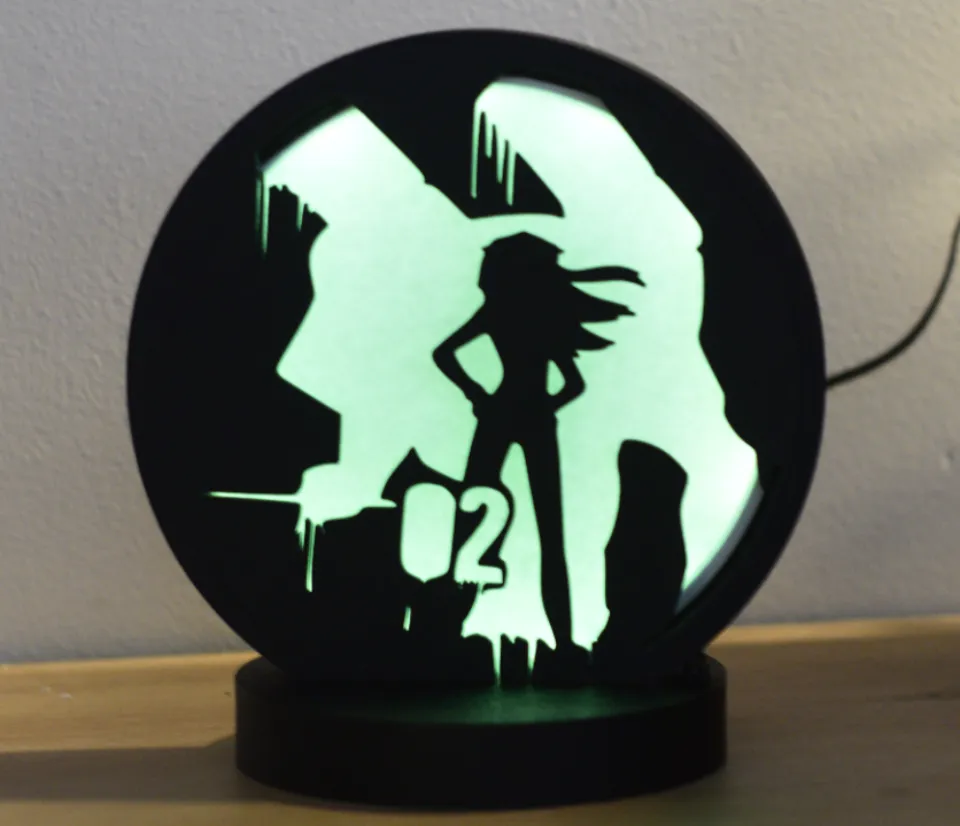

Modular led lamp designed to be easy to customize and modify. Custom plates can be easily created and used without changing any other lamp parts and with minimal filament consumption.

Custom plates need to have height of 3mm and diameter of around 156.5 mm

Assembly

1. (Optional) glue reflective material to back plate

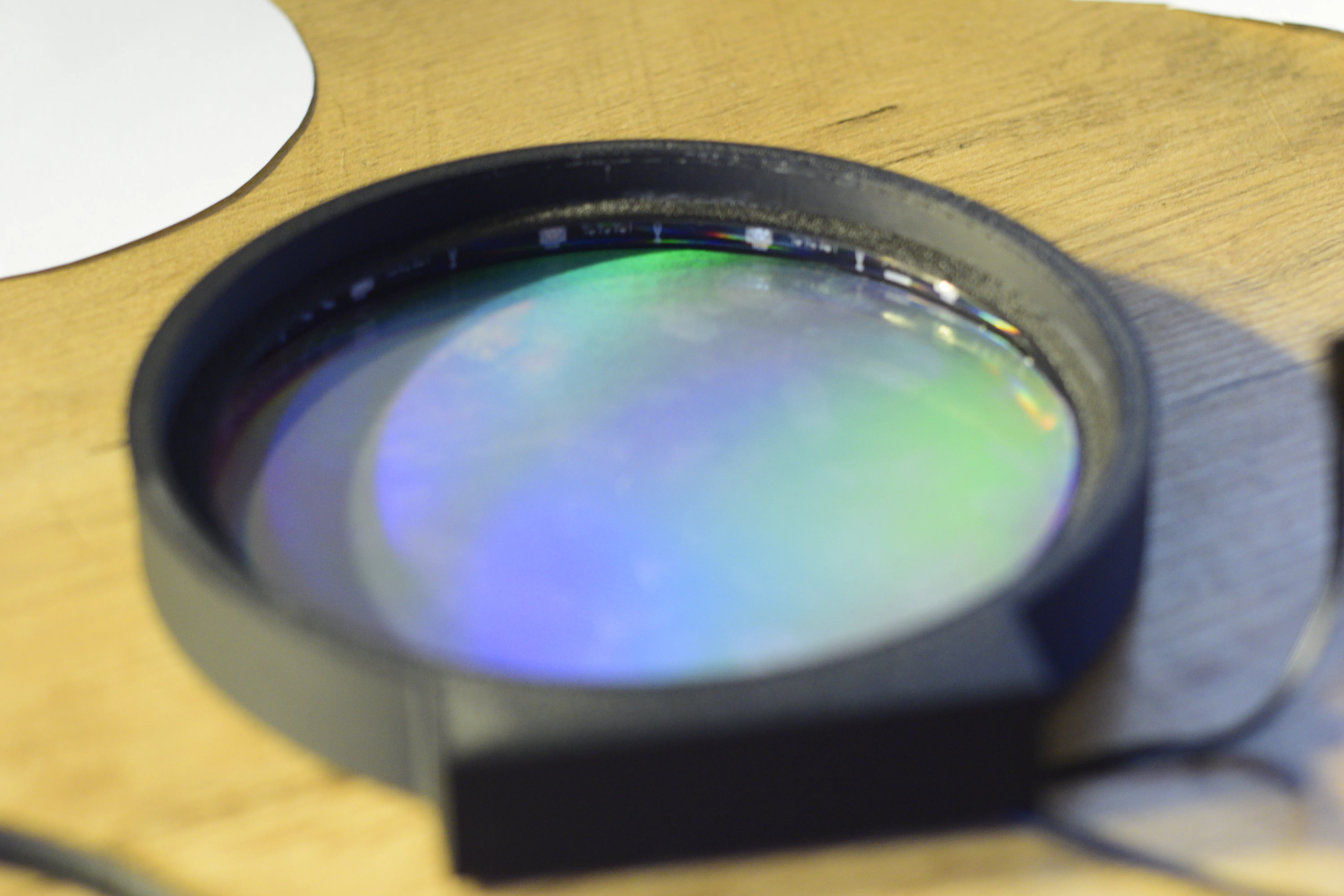

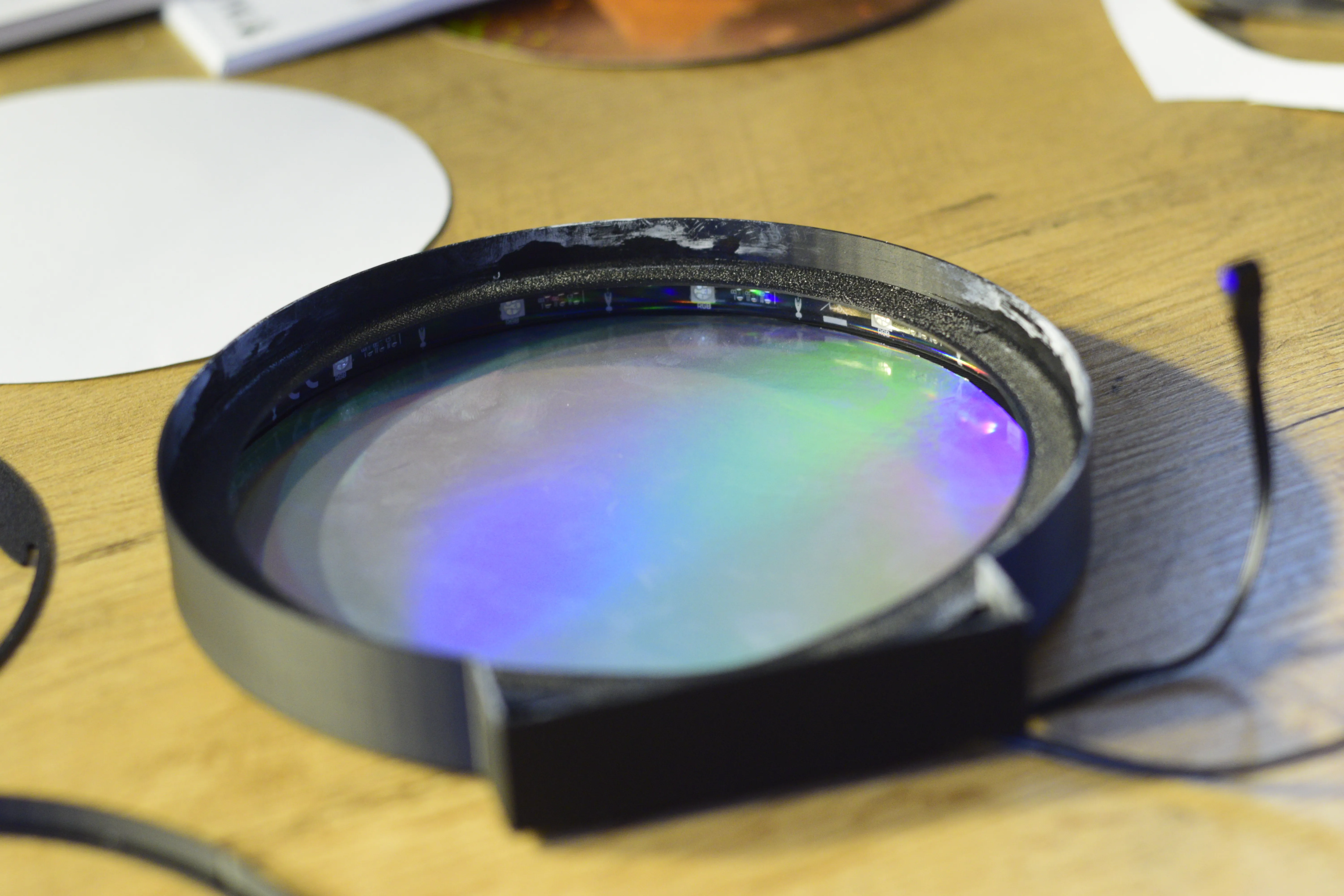

2. Stick led strip to inside of 03_led_holder part

3. Insert 03_led_holder into 02_back, remember about getting wires through hole in 02_back

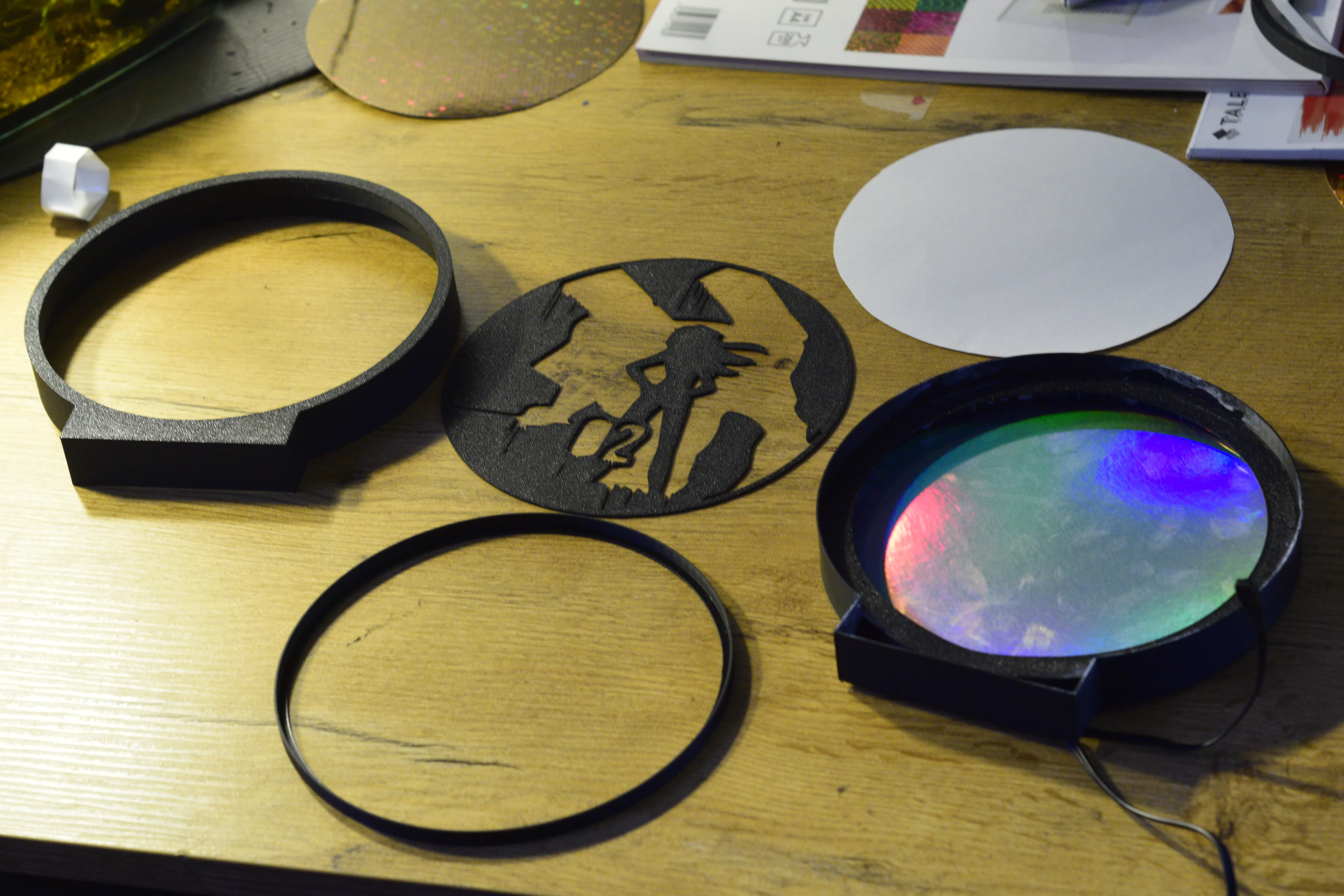

4. Place 01_front over 02_back

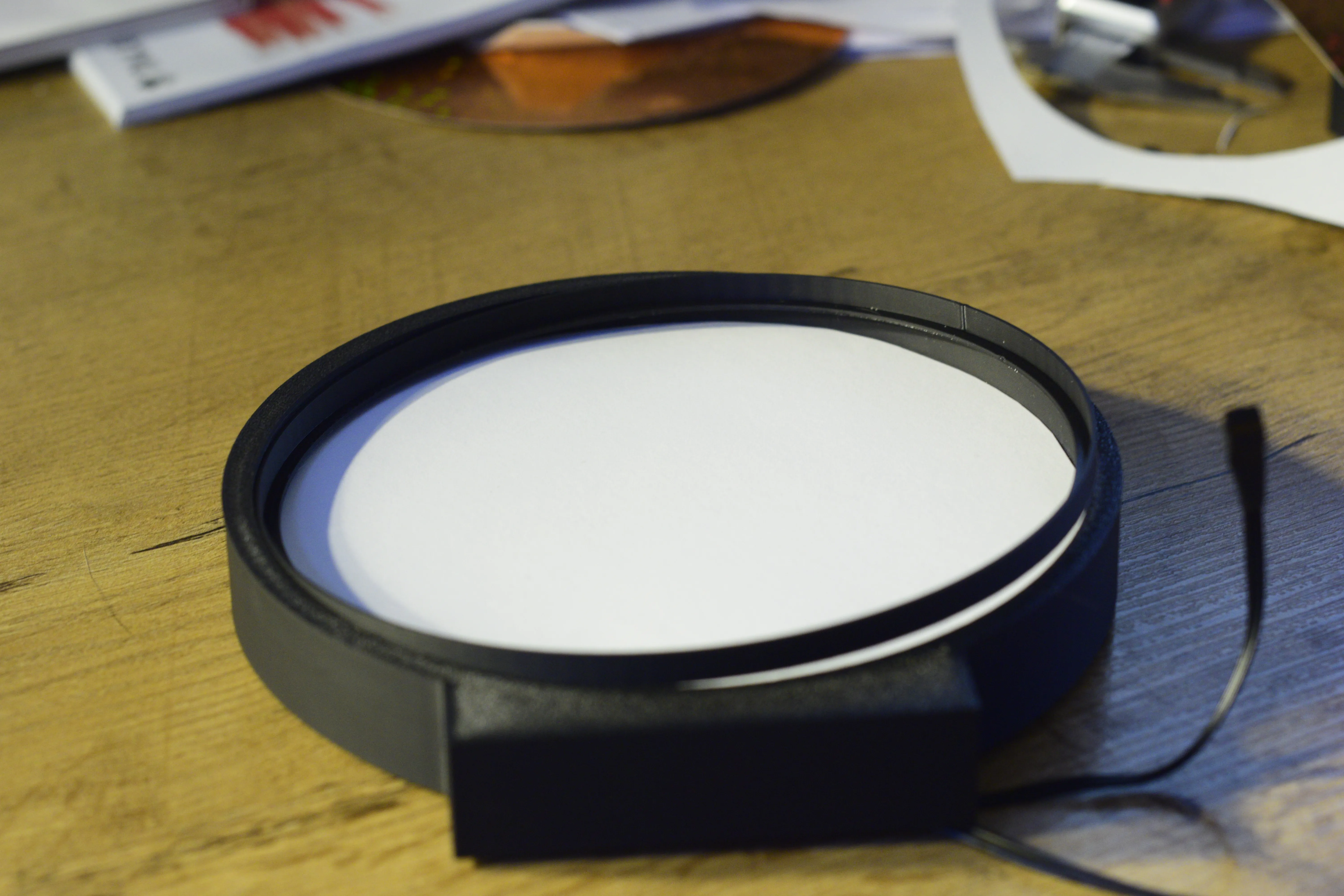

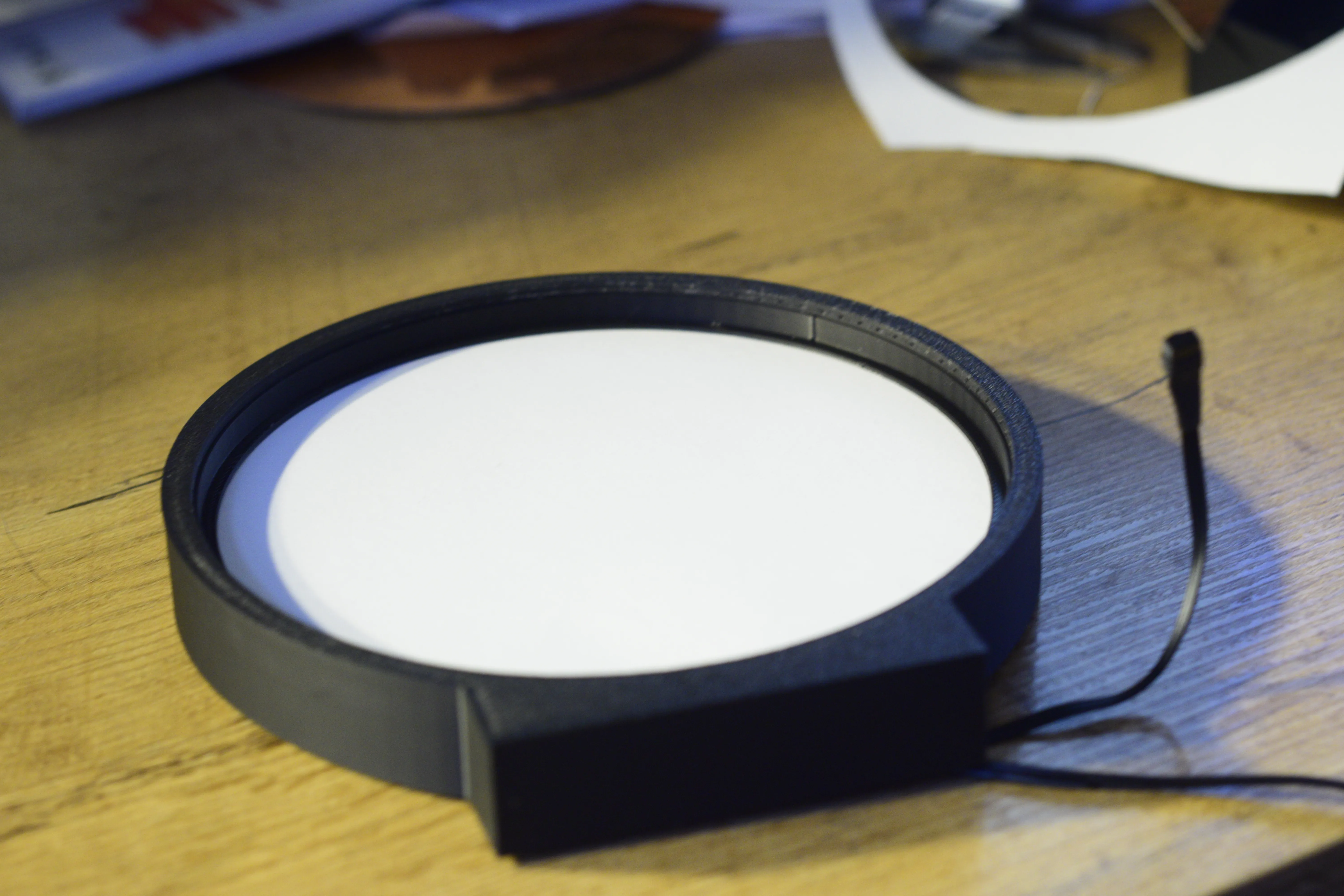

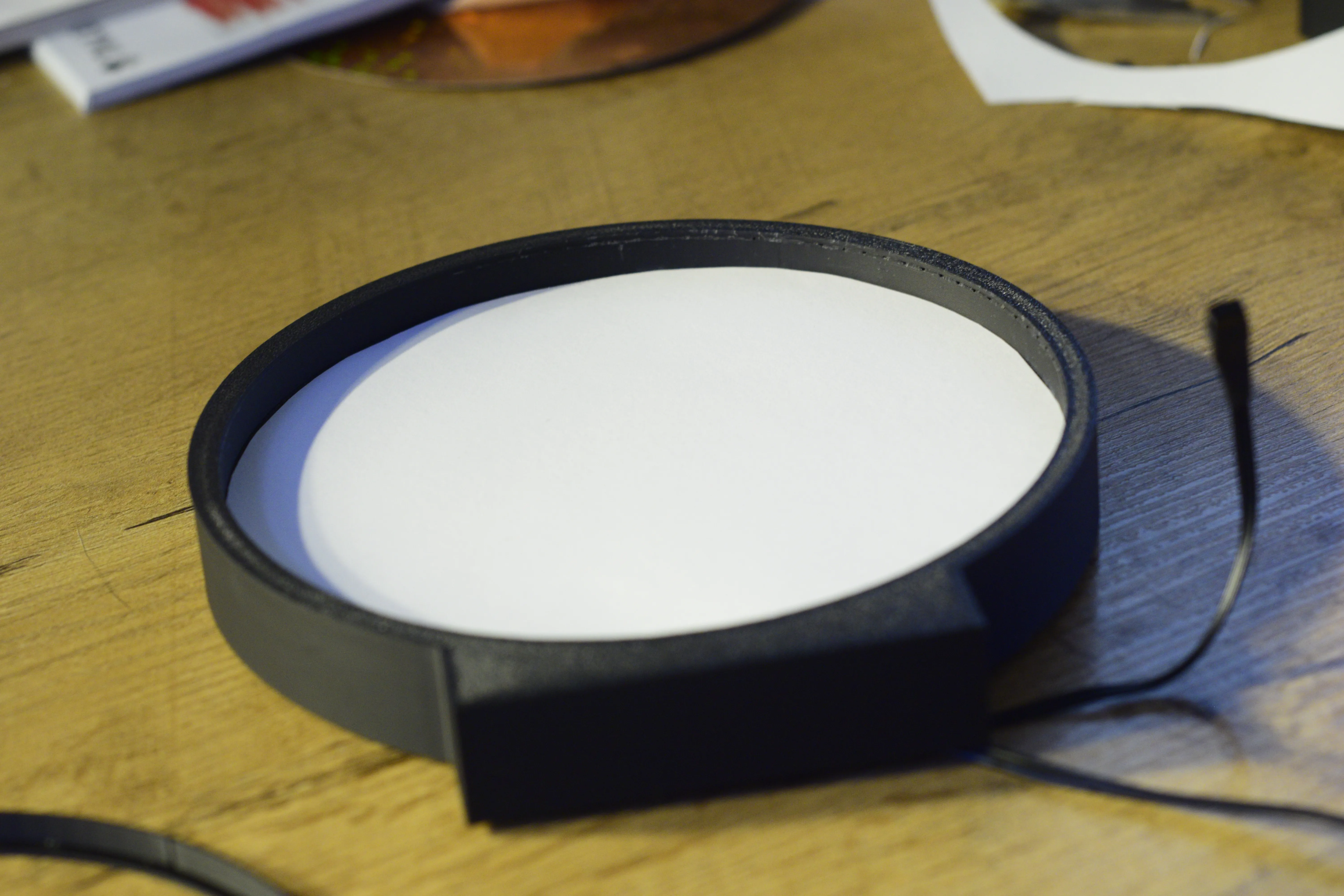

5. Place sheet of paper cut paper and place it inside lamp to act as diffuser




6. Place 04_separator inside 01_front. It should keep diffuser in place and will act as limiter of how far plates can be put inside lamp.

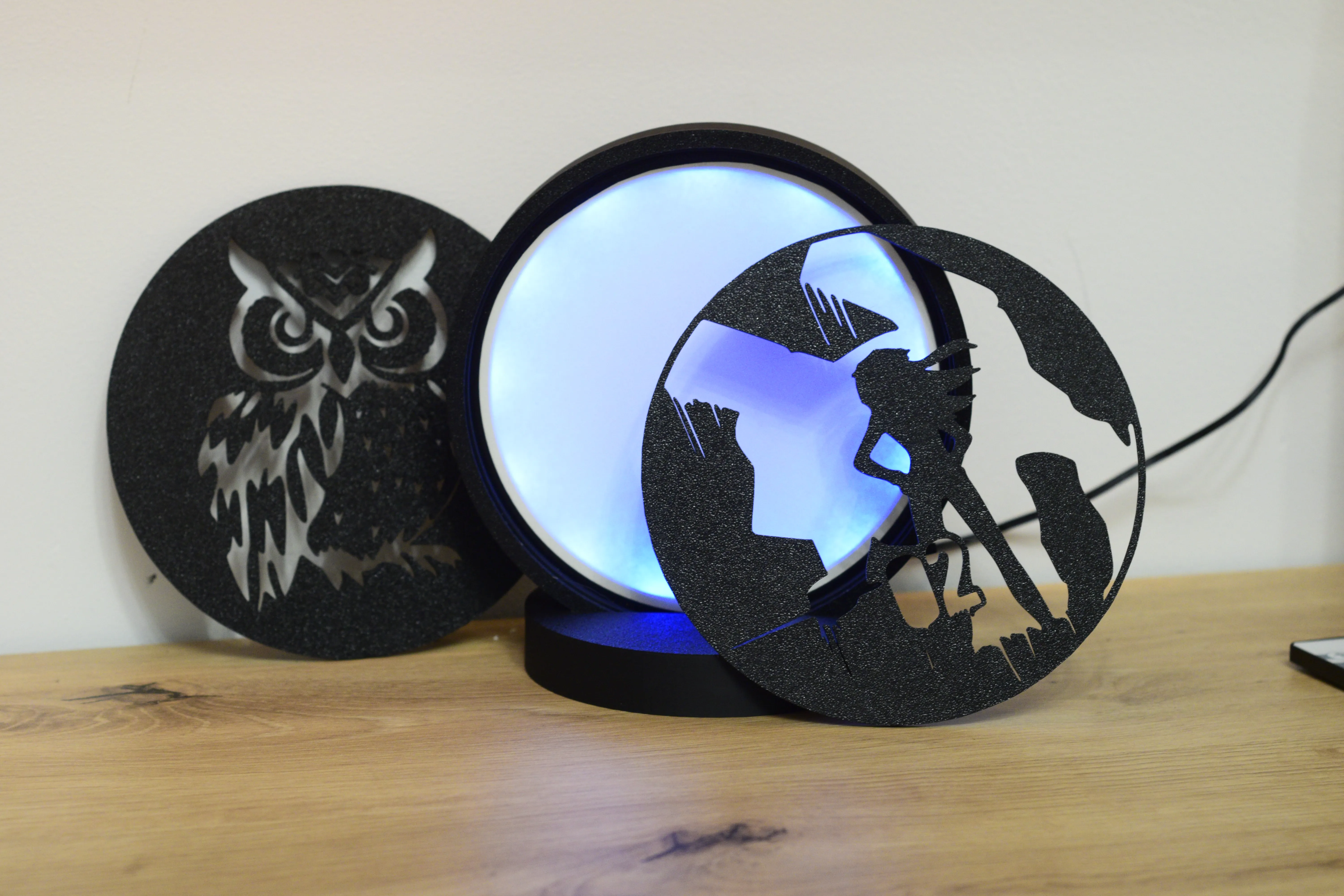

7. Place plate of your choice in lamp. It should click in place and fit securely.




8. Assembly stand and place lamp in it. Interior of stand can be used to house excess cable.
