IKEA Skadis Cable Clips
Print Profile(1)
Description

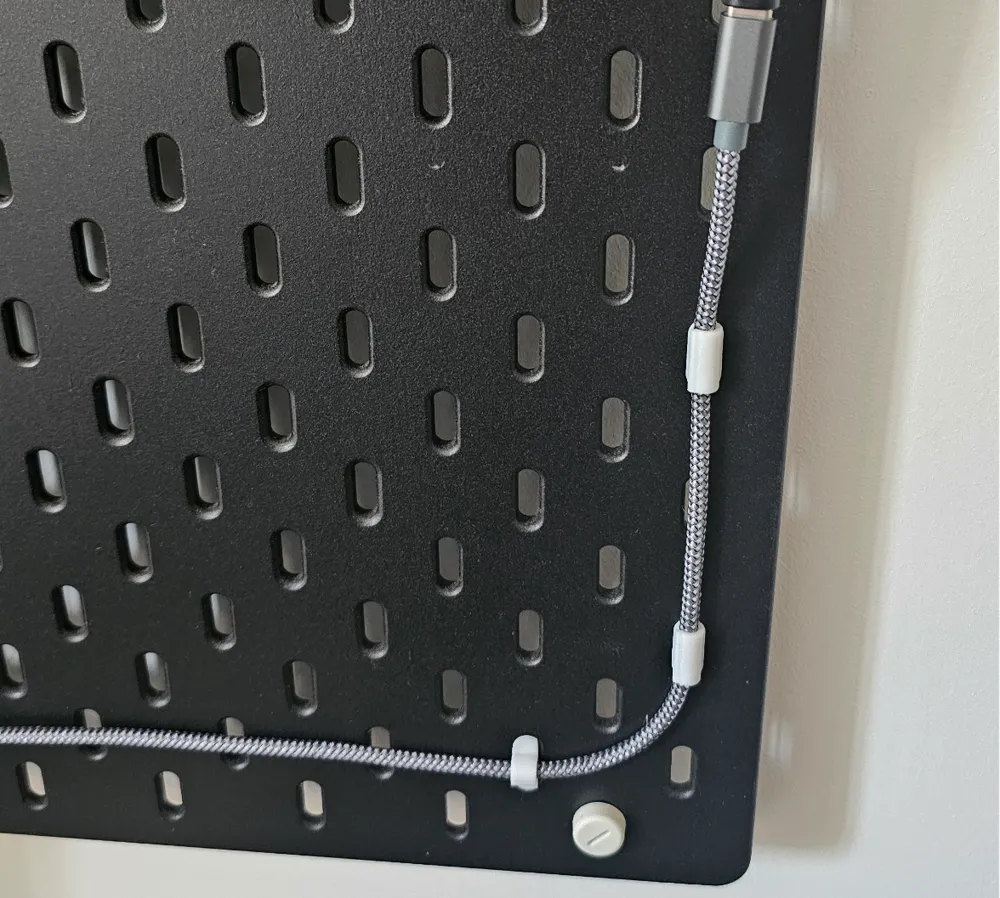

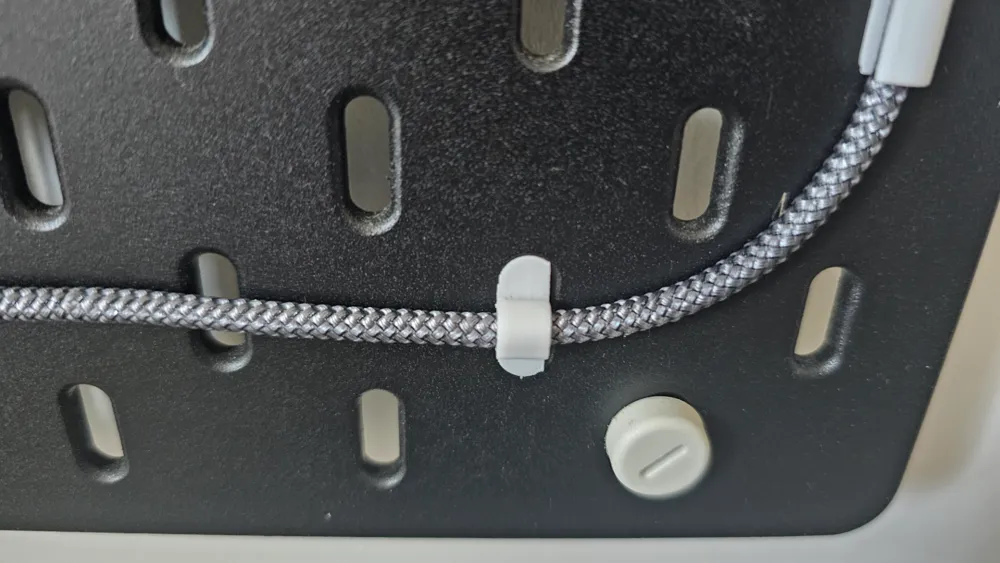

Clips for organising wires & cables on the IKEA Skadis board.
Included few sizes for different cable diameters - from 3.0mm to 5.0mm with 0.4mm increments (+5.2mm). If you'd like a specific size please drop a comment and I'll add it.
The clips are pushed directly into the board, but as it turns out it's not super precisely manufactured (at least mine isn't), so I included a ‘large’ version, which is simply wider and taller by 0.1mm so the fit is much tighter. You might need both standard and large sizes depending on which mounting points you're using.
Let me know in the comments if even the large one doesn't fit, I can add an XL version if required.

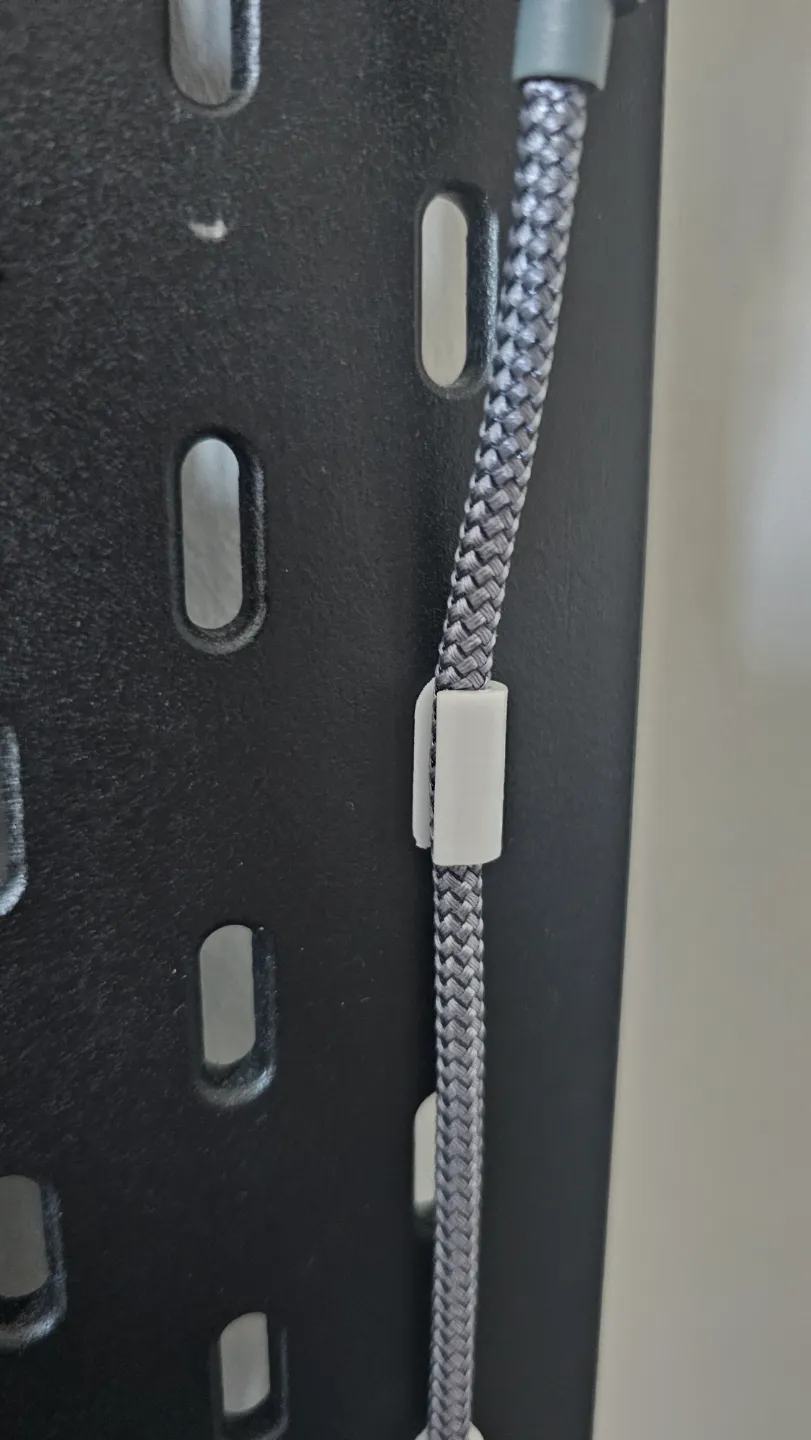

Print settings - no supports are required, but the vertical clip could use brim as the printing surface is quite small. Highly recommended to print in PETG.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
