AMS Led Ring Light Riser
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
7.6 h
3 plates
Open in Bambu Studio
Boost
43
119
7
4
59
20
Released
Description

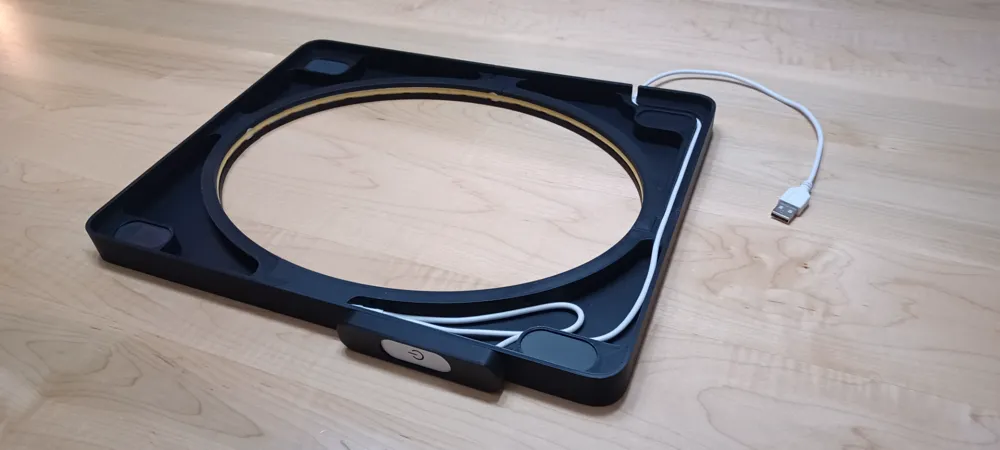

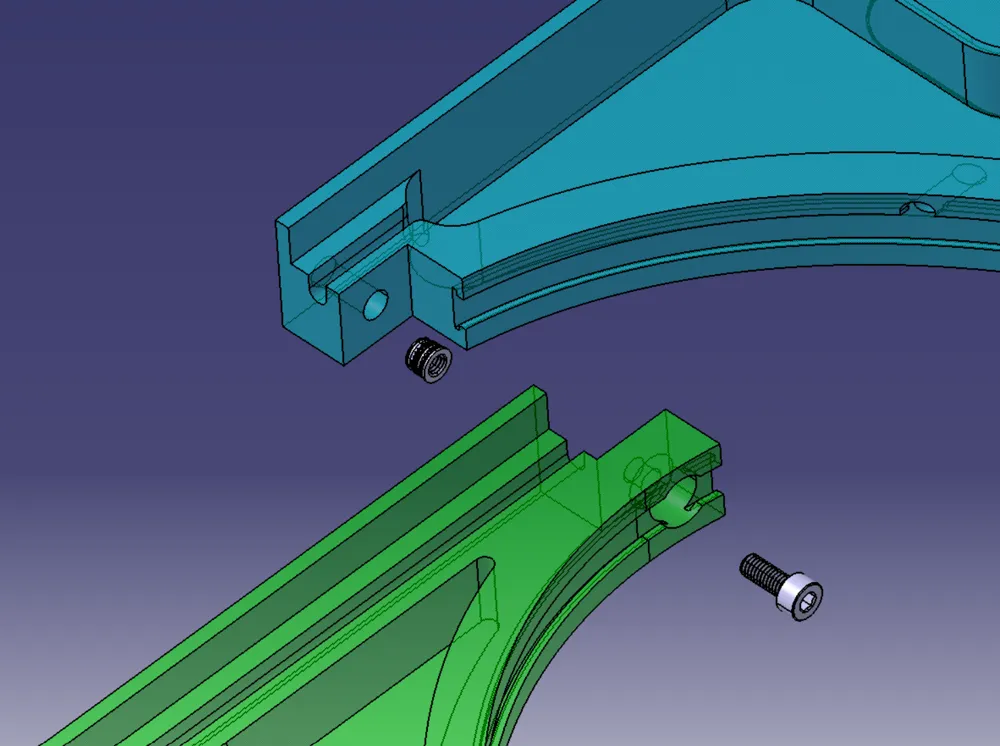

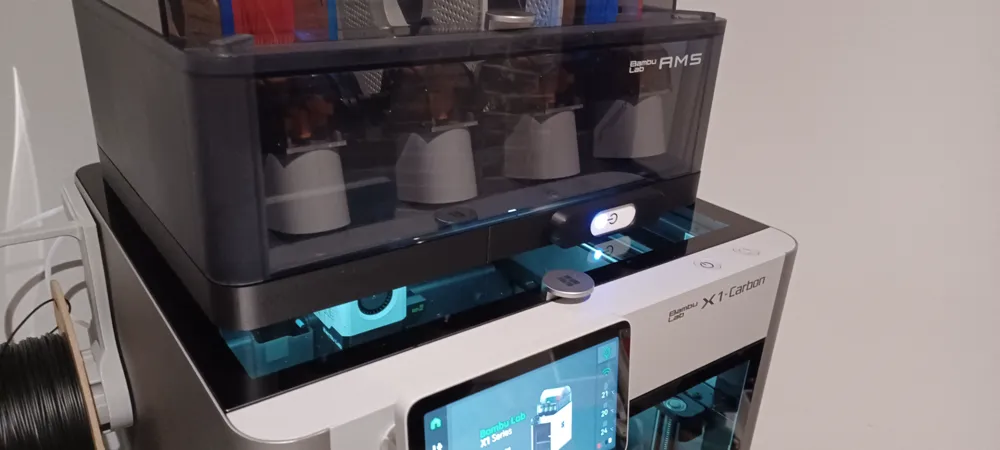

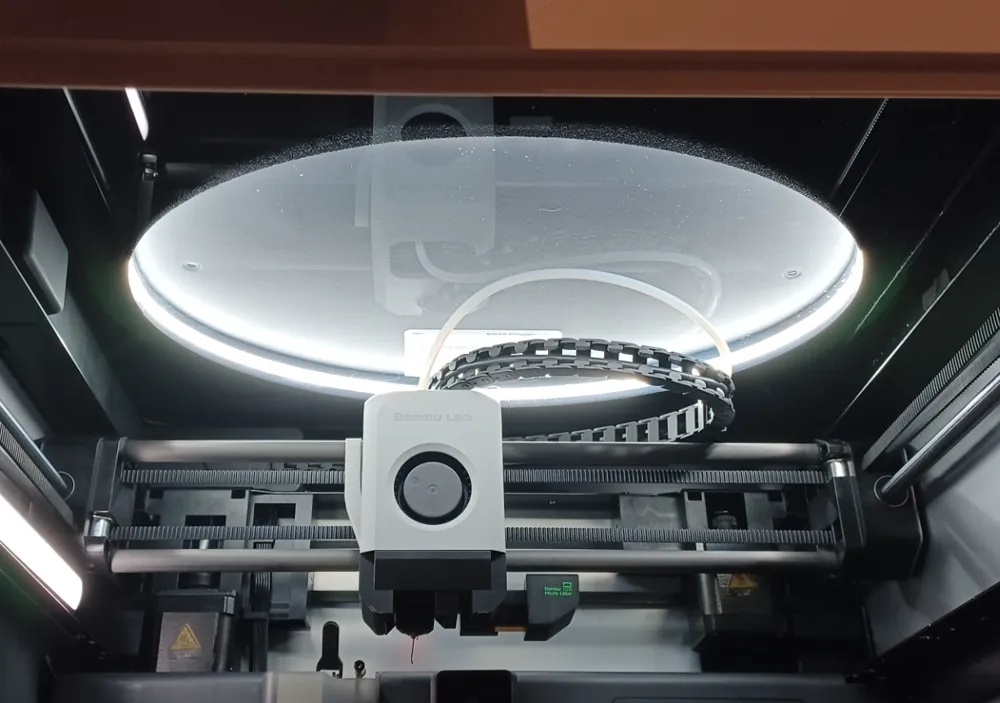

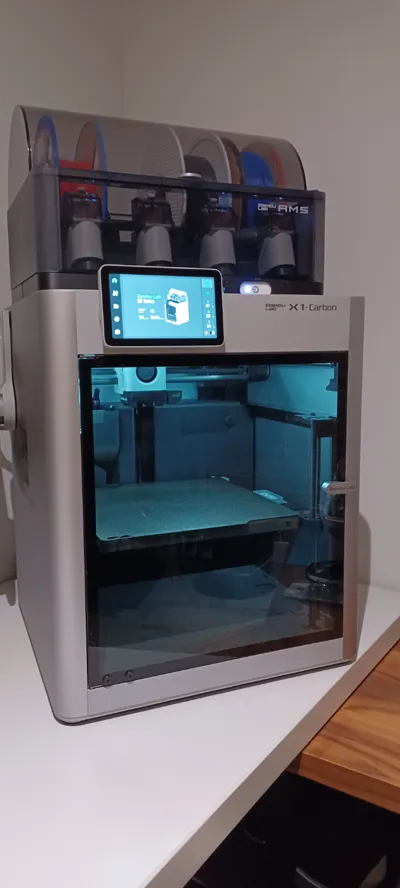

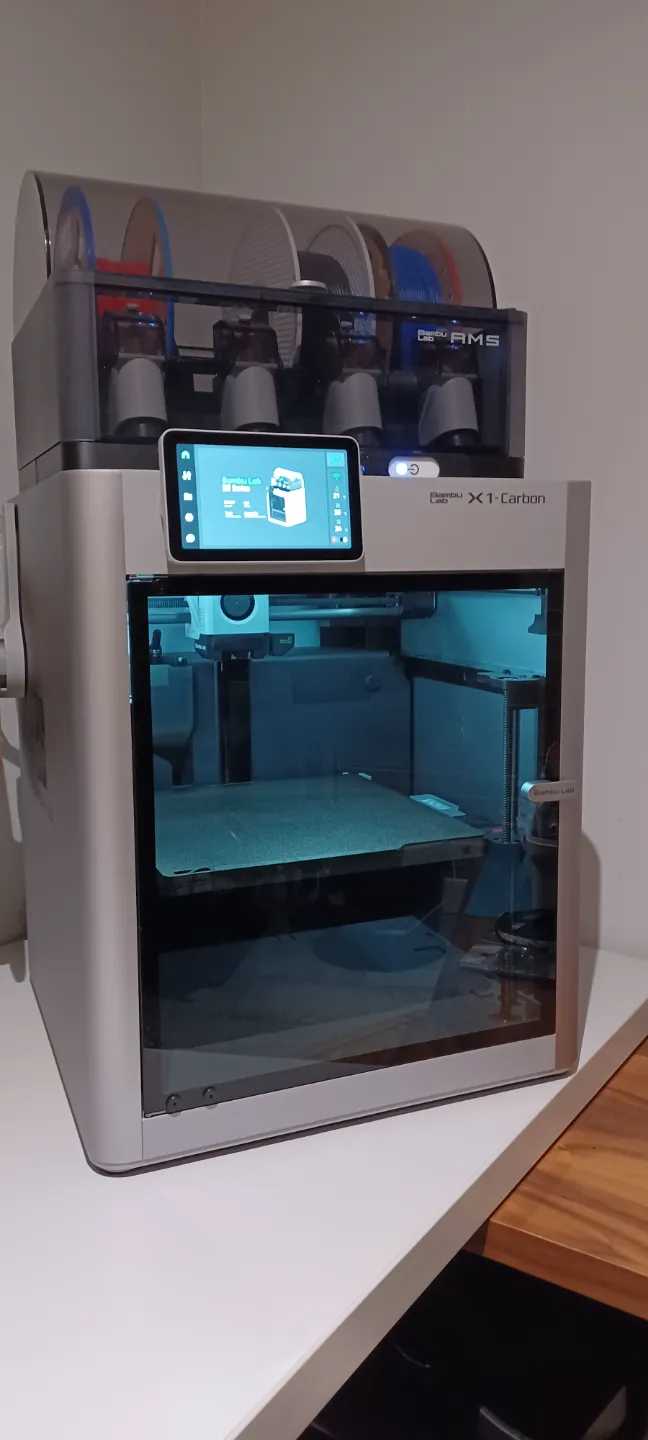

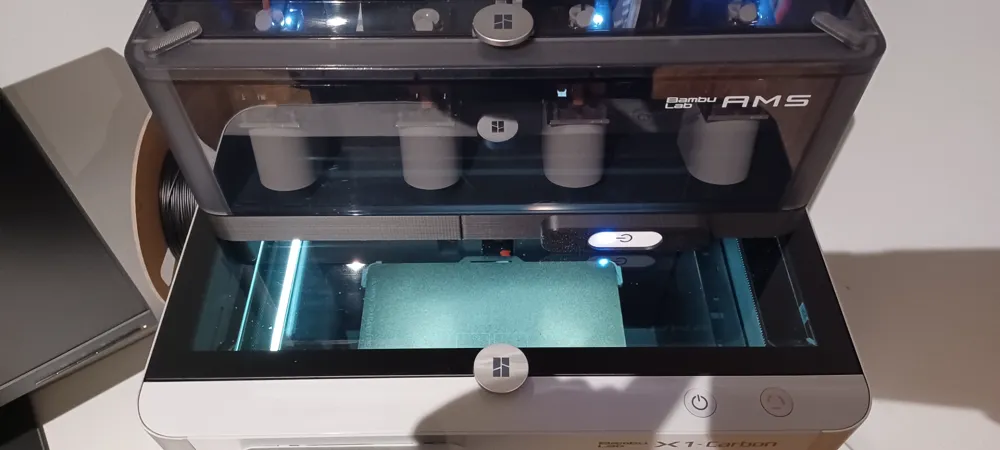

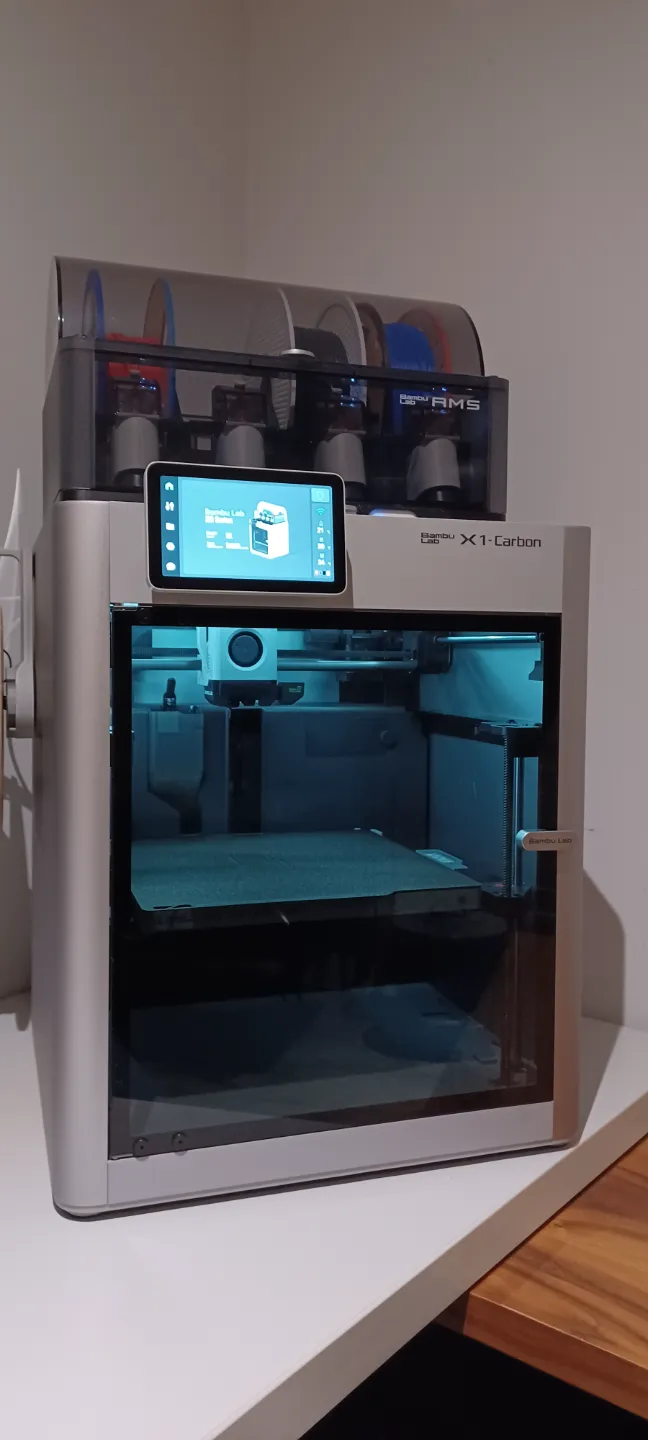

Hello everyone, I designed an ams riser with incorporated lighting. The AMS fit perfectly on this riser because it was designed from the AMS step files. To make this assembly you will need 6 M4 tread inserts and 6 M4 X 10mm screws. You will also need to order these LEDs for the perfect controller fit:
https://www.amazon.ca/dp/B0C89MFP3Q?ref=ppx_yo2ov_dt_b_fed_asin_title.

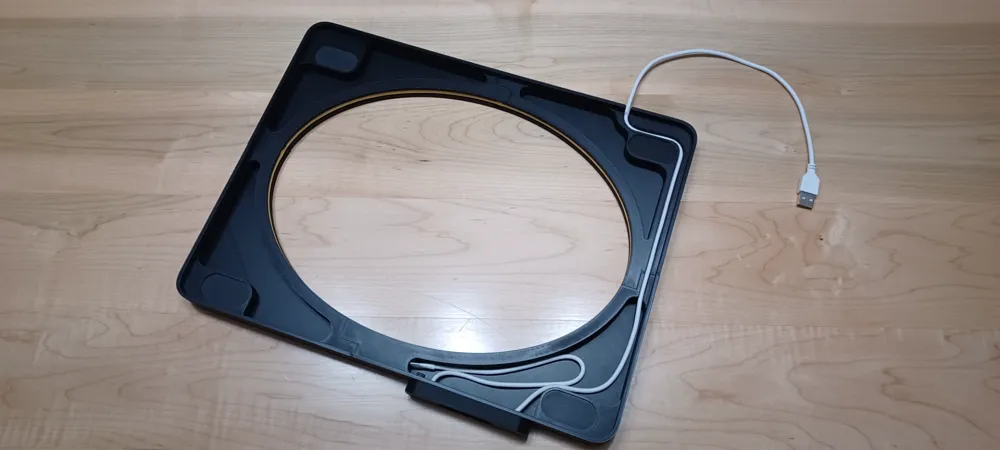

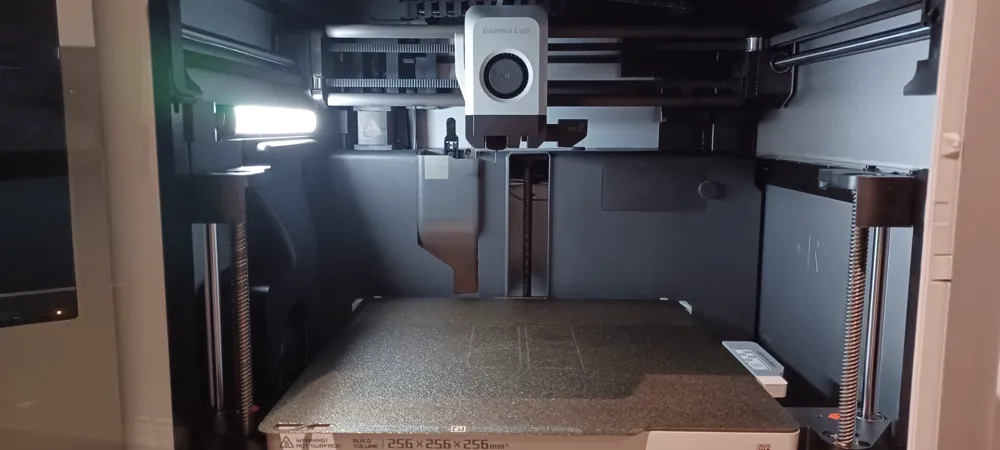

The LED strip is simply slipped inside a groove. No need to use the srtip adhesive tape.
Don't forget to add support. Personaly I like the Tree auto support for this print (easy to remove).

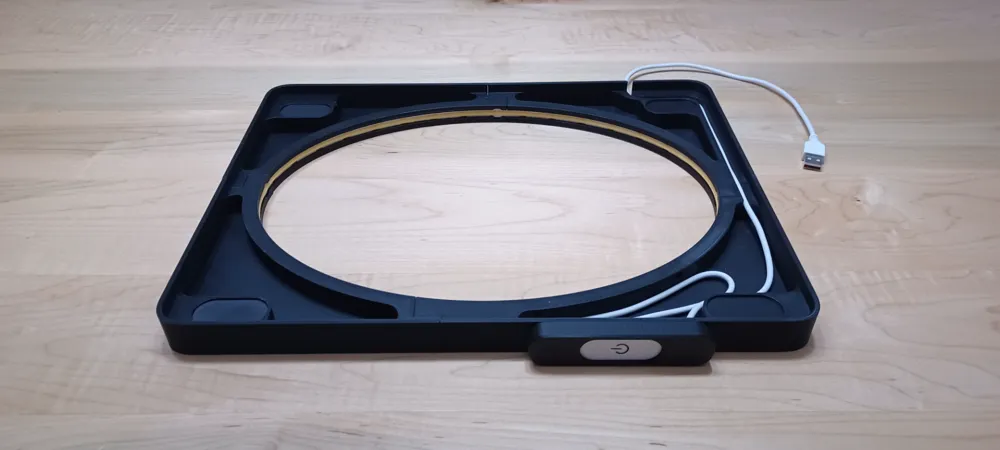

Below the riser there are 4 marks for installing TPU pads. You just have to glue them if necessary.
Have a good print and don't forget to post photos of your make!
