PTFE Perfect Curve Clip Guide

Version 1

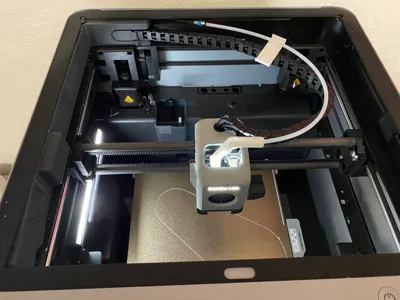

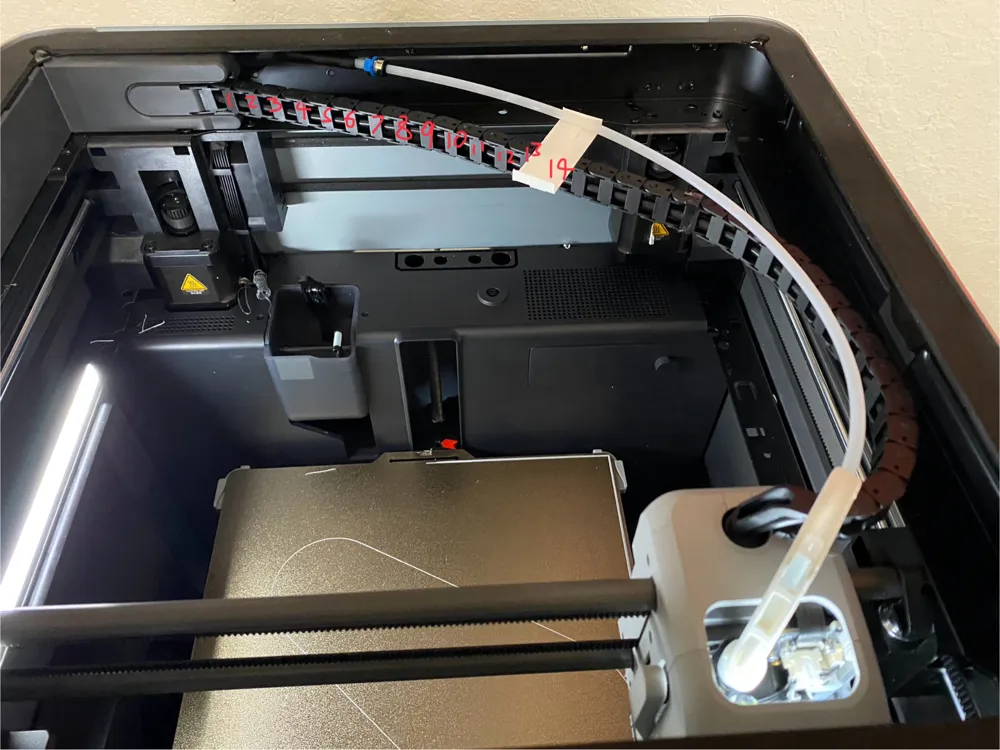

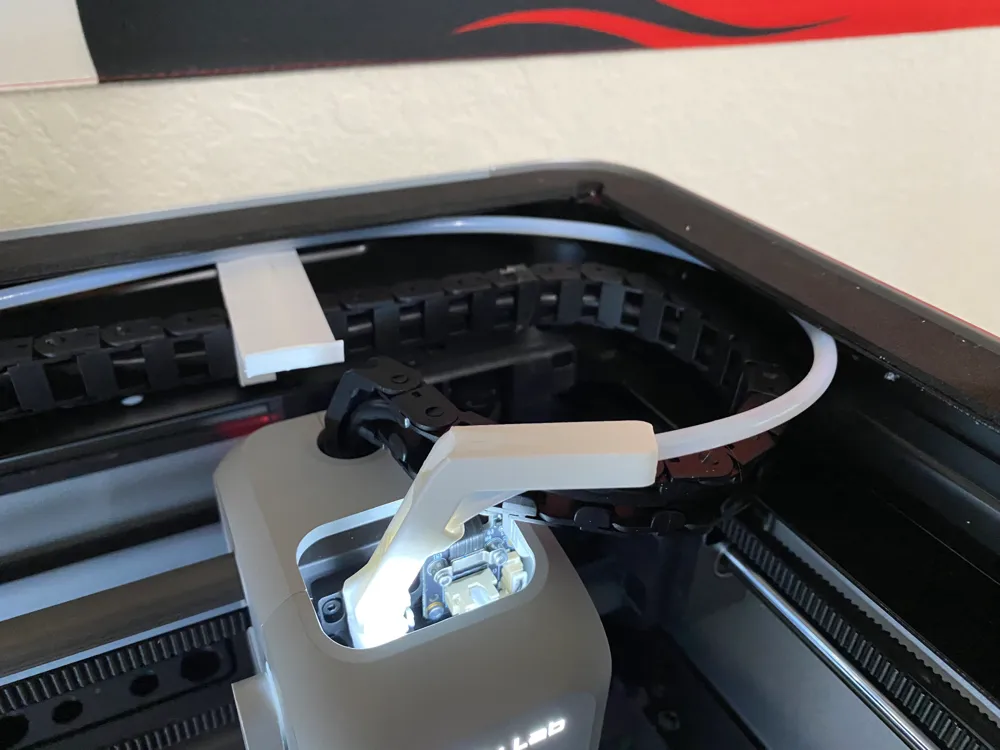

An optimized solution to high degradation of filament tube due to small radius corners caused by interference with the cable chain. It works best when used with a https://makerworld.com/en/models/84267#profileId-90066 or any 90-degree elbow attachment.

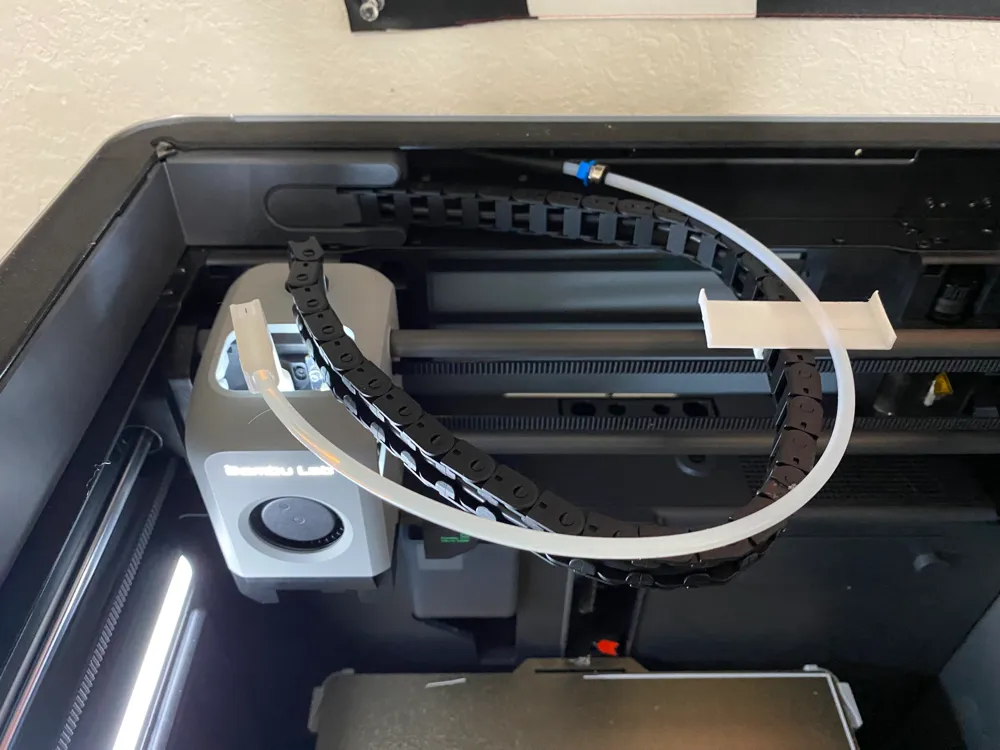

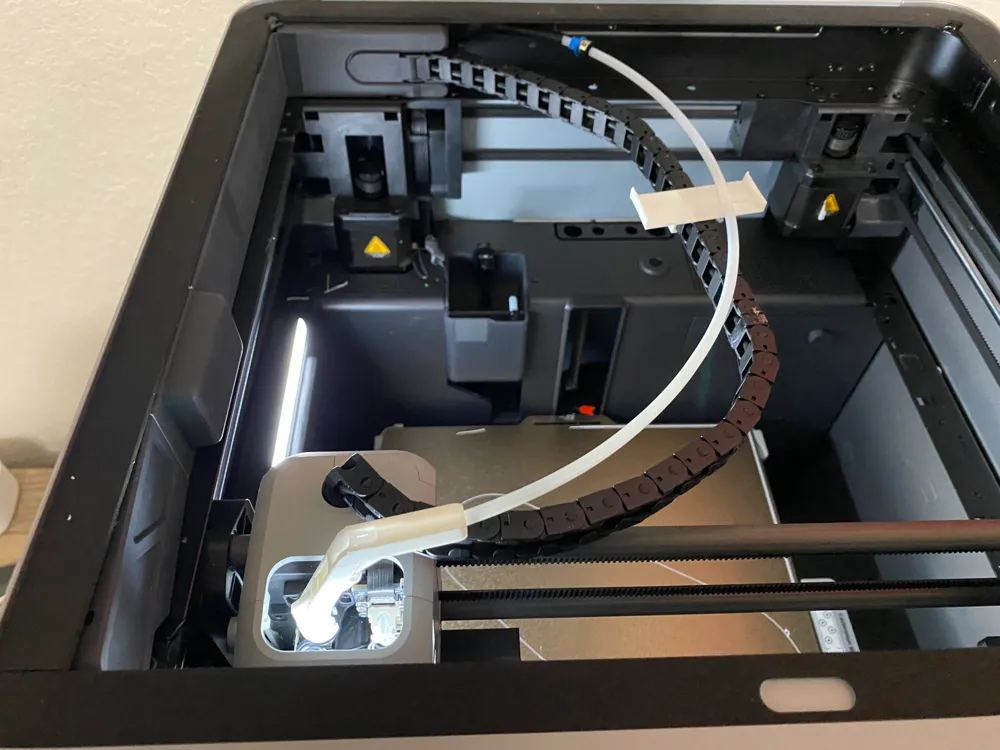

This solution will let the filament go through the tube using the biggest radius possible without being flexed by the cable chain.

Version 2

Adjusted clip dimensions to improve grip to the chainlink. Please print with PETG, so the clip does not deform and get loose.
