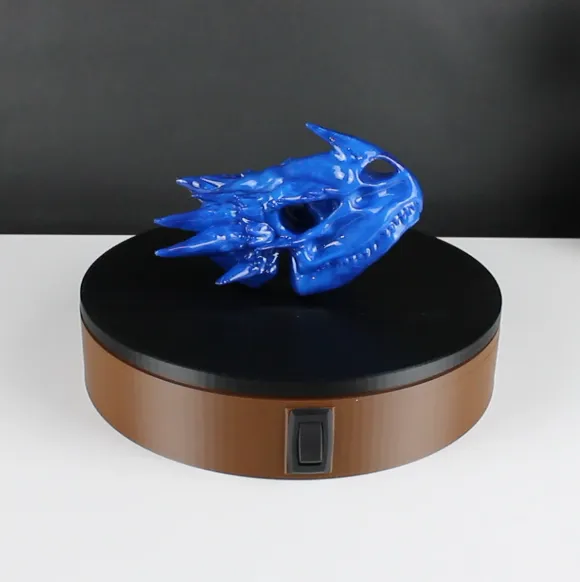

This display turntable is really easy and cheap to print and assemble. It's great for displaying 3D prints!
All 3D printed parts were designed in OnShape and the rest of the BoM is as follows:
- Gardner Bender Rocker Switch GSW-41
- Geared DC Motor 130 3V-12V - for DIY Car and Robot Projects
- Note: remove the plastic strap holding the motor to the plastic housing - glue the motor to the housing instead
- 9 VDC battery
- 9 VDC battery clip connector (with wire leads)
- Zip-ties
- I used some spares from the Prusa kit
- Nice Ball Bearing SRM043205BF18
- I used McMaster Carr PN 6383K22
You'll also need a soldering iron and solder. To help you succeed, I made an assembly guide video:
Printing
I printed everything in PLA on the Prusa i3 MK3.
When slicing, I recommend just applying “support on build plate only” and orient the parts similar to the provided g-code. Note that the base will need to have supports disabled near the switch, as shown below.
When assembling, I recommend filing or sanding down the tab on the battery cover (opposite the clip) a bit. I also sanded the post on the top a bit to help the gear mesh a little cleaner.
