A1Mini Cable Clip
Print Profile(7)
Description

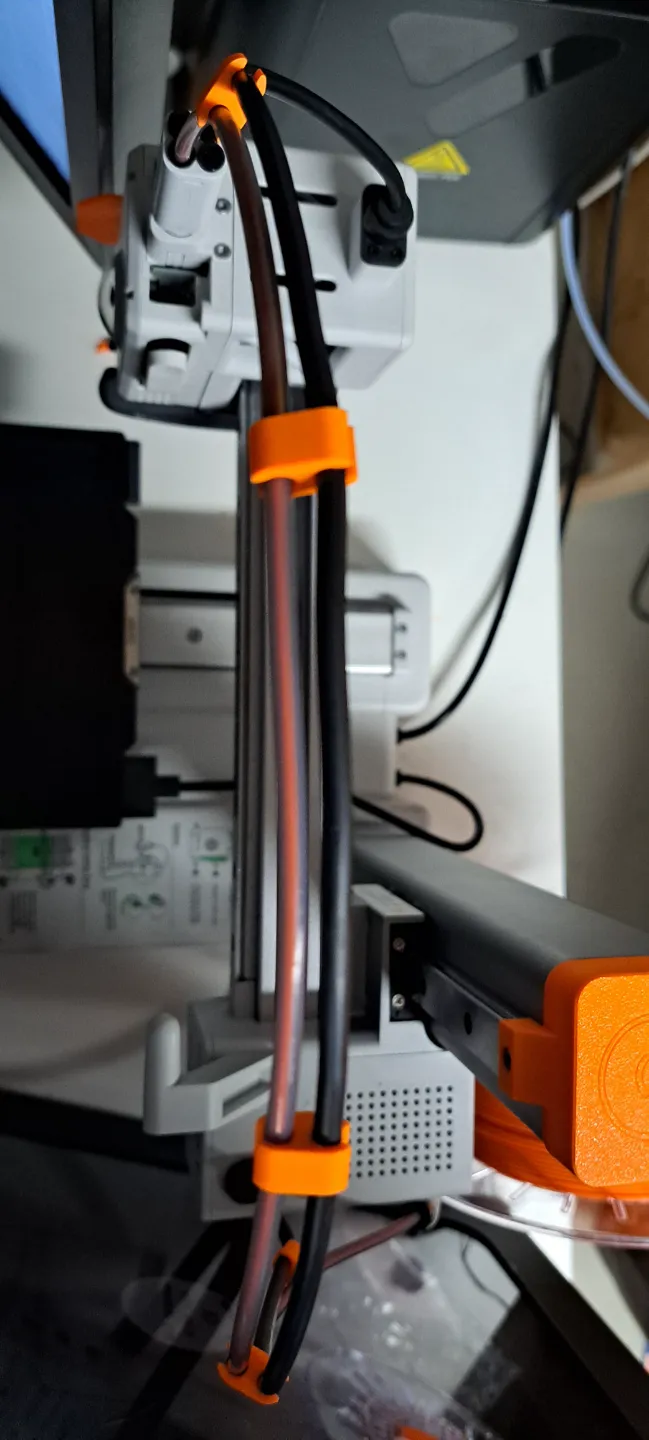

Clip for connecting PTFE tube and extruder cable
I have uploaded 2 additional models
The original version
PTFETube_Cable_Clip_A1Mini_4,5mm_stl sits relatively loosely on the PTFE tube and the extruder cable
The other versions
PTFETube_Cable_Clip_A1Mini_4,3mm_stl sits a little tighter on the PTFE tube and the extruder cable
PTFETube_Cable_Clip_A1Mini_4mm_stl sits quite snugly on the PTFE tube and the extruder cable

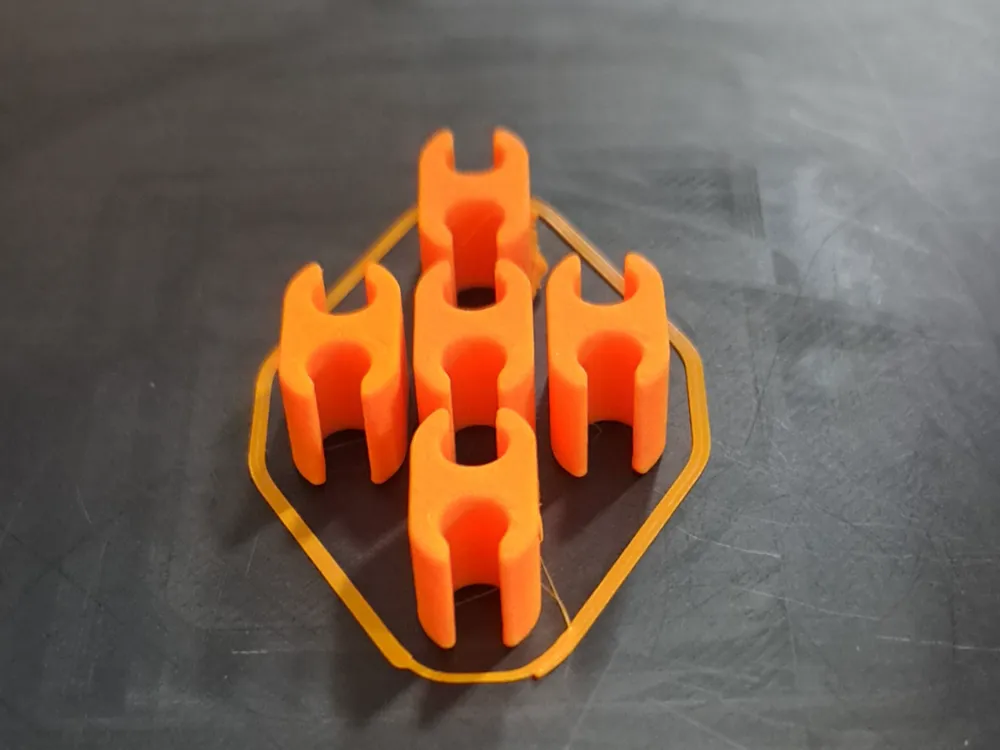

Furthermore, I have added a print plate with one clip each, where you can test which size you personally prefer
I have now added a parametric version where the dimensions can be individually adjusted
The following dimensions can be adjusted
Diameter D1 / Diameter D2 - here the bore diameter can be adjusted separately for each bore → Default value is 4mm
Difference Opening D1 / Difference Opening D2 - here the size of the opening can be adjusted (Size of bore - Difference) → here the default value is 0.6mm ( Example: Diameter D1 ( 4mm ) - Difference Opening D1 ( 0.6mm ) = Size of opening ( 3.4 mm )
Wall thickness - here the wall thickness can be adjusted
Height - here the height can be adjusted
