0.28mm Layer2 or 3 Walls&nbsp;PLA, ABS or PETG&nbsp;Achtet bei der Wahl eures Materials auf die Schrumpfung!!! In ABS habe ich auf 100,9 % vergrößert, damit es passt. In PLA 100.1 %. Bei so großen Druckteilen ist das Materialverhalten unbedingt zu beachten.&nbsp;Pay attention to shrinkage when choosing your material!!! In ABS I enlarged to 100.9% to make it fit. In PLA 100.1%. With such large printed parts, the material behavior must be taken into account.

0.28mm Layer2 or 3 Walls&nbsp;PLA, ABS or PETG&nbsp;Pay close attention to material shrinkage when making your material selection!!! For ABS, I scaled up to 100.9% for a proper fit, and 100.1% for PLA. With parts this large, it is crucial to account for material behavior.&nbsp;Pay attention to shrinkage when choosing your material!!! In ABS I enlarged to 100.9% to make it fit. In PLA 100.1%. With such large printed parts, the material behavior must be taken into account.

0.28mm layer, 2 or 3 walls, 15% infill

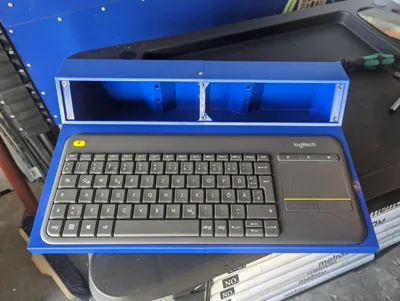

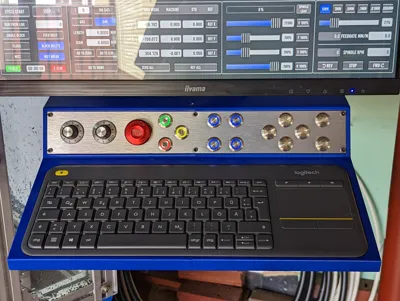

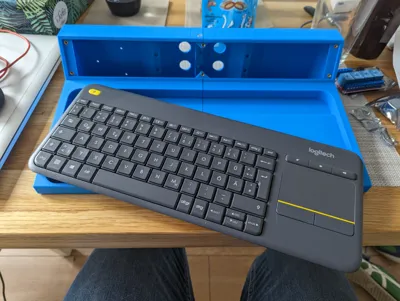

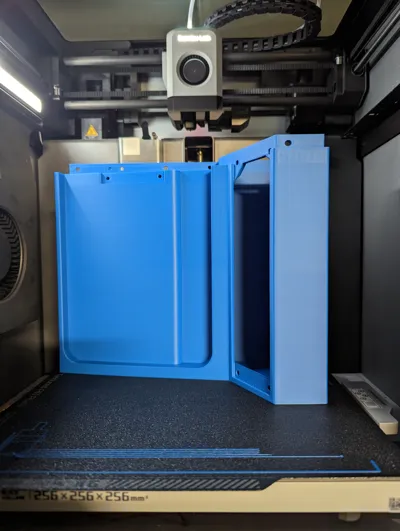

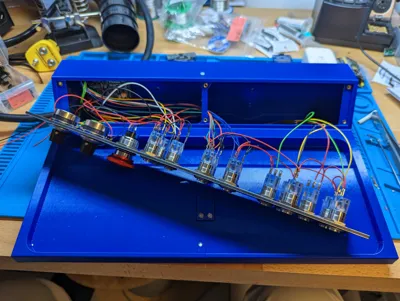

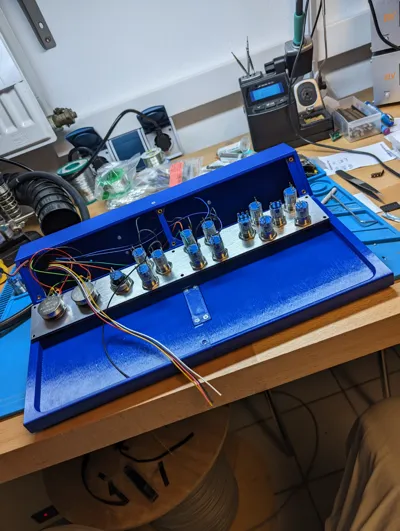

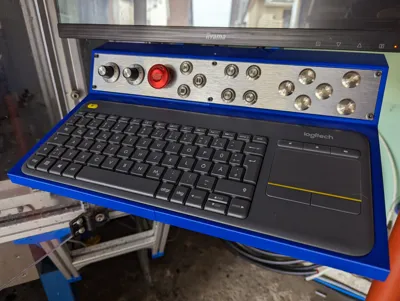

Das ist das Bedienpult welches ich mir für meine CNC-Fräse gebaut habe. Ich habe es in 0.28mm Schichtstärke gedruckt. Für das Frontpanel habe ich M3 Messingeinsätze verwendet. Die Bohrungen im Frontpanel könnt ihr euch so anpassen, dass sie für eure Maschine sinnvoll sind.&nbsp;Als Tastatur verwende ich die Logitech K400 PlusAffiliate Link:<a target="_blank" href="https://amzn.to/4i7hXJn?fbclid=IwZXh0bgNhZW0CMTAAAR2dfXKwkilkAODp1jJ5ibNFkjr0FwmNhqXxU8suCRi3AHJ_TcBhudzFYF0_aem_72uaCO8LfNAuqApkOU8b1w" rel="nofollow noopener">https://amzn.to/4i7hXJn</a>&nbsp;This is the control panel that I built for my CNC milling machine. I printed it in 0.28mm layer thickness. For the front panel I used M3 brass inserts. You can adjust the holes in the front panel so that they make sense for your machine.&nbsp;The keyboard I use is the Logitech K400 PlusAffiliate Link:<a target="_blank" href="https://amzn.to/4i7hXJn?fbclid=IwZXh0bgNhZW0CMTAAAR2dfXKwkilkAODp1jJ5ibNFkjr0FwmNhqXxU8suCRi3AHJ_TcBhudzFYF0_aem_72uaCO8LfNAuqApkOU8b1w" rel="nofollow noopener">https://amzn.to/4i7hXJn</a>

This is the control panel I crafted for my CNC milling machine. It was 3D printed at a layer height of 0.28mm. M3 brass inserts were employed for the front panel. The front panel's boreholes are customizable to suit your specific machine's requirements.&nbsp;My keyboard of choice is the Logitech K400 PlusAffiliate Link:<a target="_blank" href="https://amzn.to/4i7hXJn?fbclid=IwZXh0bgNhZW0CMTAAAR2dfXKwkilkAODp1jJ5ibNFkjr0FwmNhqXxU8suCRi3AHJ_TcBhudzFYF0_aem_72uaCO8LfNAuqApkOU8b1w" rel="nofollow noopener">https://amzn.to/4i7hXJn</a>&nbsp;This is the control panel that I built for my CNC milling machine. I printed it in 0.28mm layer thickness. For the front panel I used M3 brass inserts. You can adjust the holes in the front panel so that they make sense for your machine.&nbsp;The keyboard I use is the Logitech K400 PlusAffiliate Link:<a target="_blank" href="https://amzn.to/4i7hXJn?fbclid=IwZXh0bgNhZW0CMTAAAR2dfXKwkilkAODp1jJ5ibNFkjr0FwmNhqXxU8suCRi3AHJ_TcBhudzFYF0_aem_72uaCO8LfNAuqApkOU8b1w" rel="nofollow noopener">https://amzn.to/4i7hXJn</a>
