Platefinity 7
IP Report
Print Profile(1)
0.28mm layer, 3 walls, 10% infill
Designer
6.6 h
1 plate
Open in Bambu Studio
Boost
7
19
1
1
17
4
Released
Description

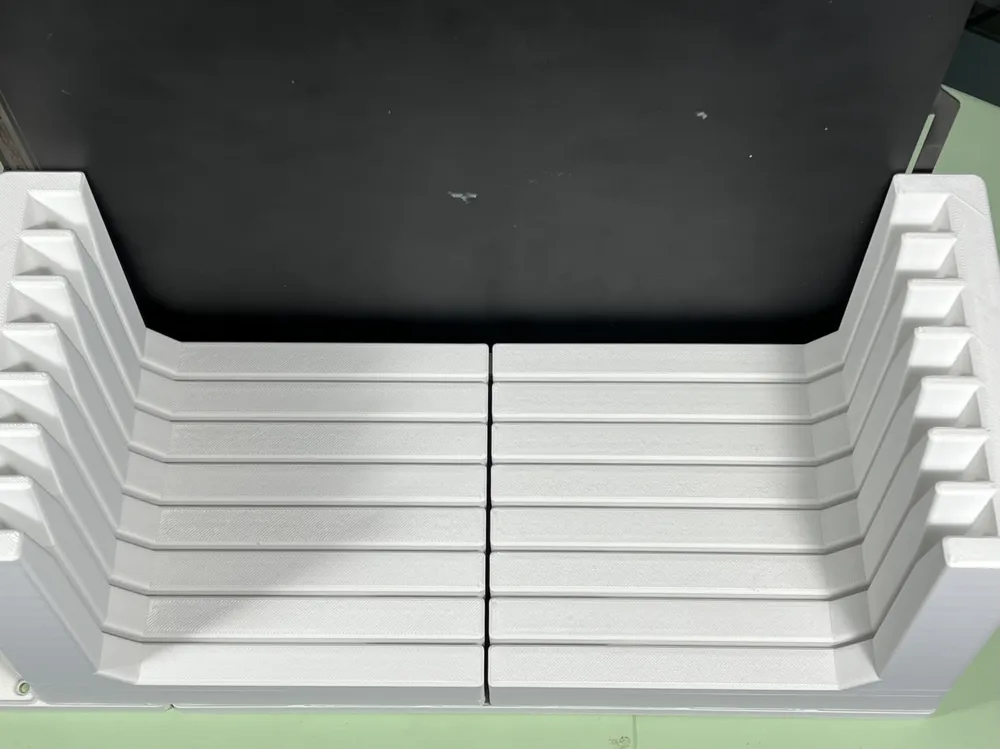

Build plate holder for big BambuLab printers (P1S P1P X1C). With Gridfinity bottom.

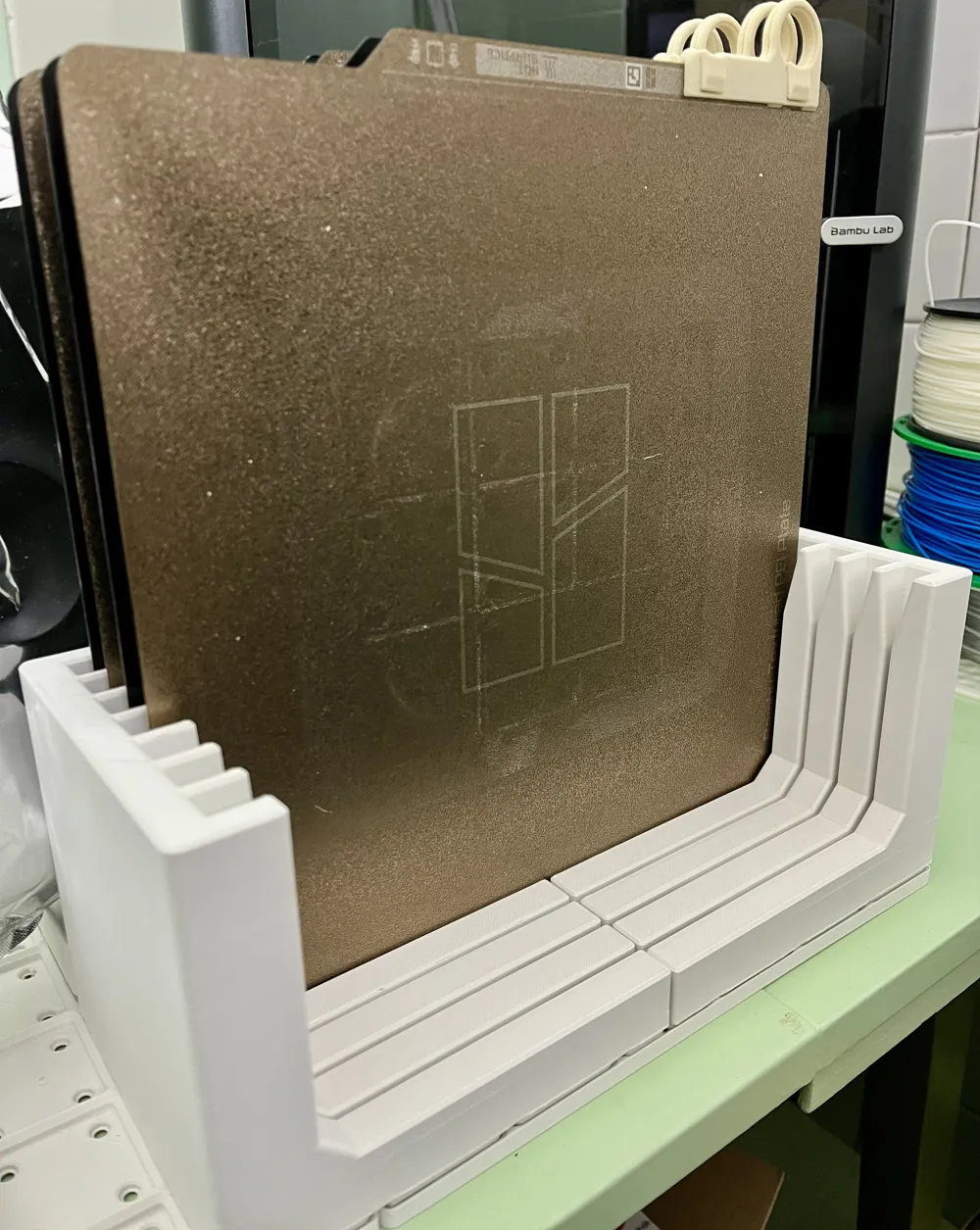

- holds up to 7 plates
- plates are orineted back side down

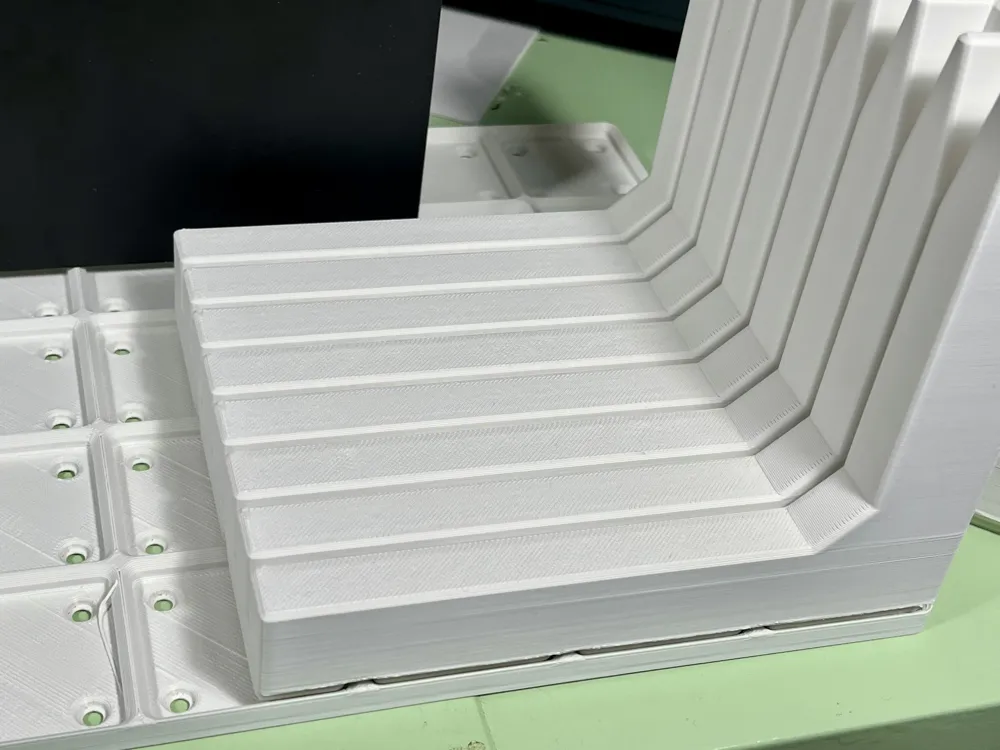

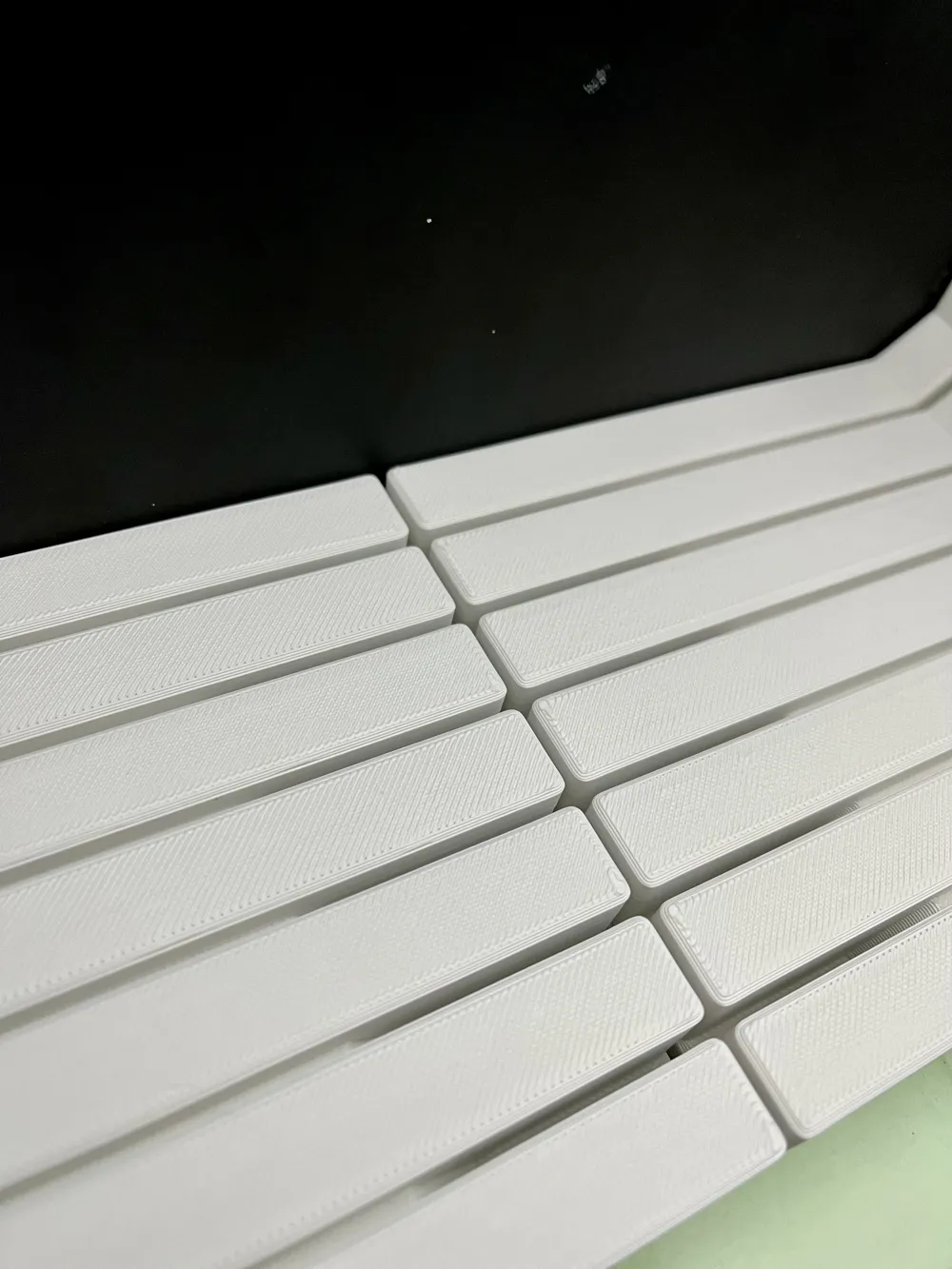

- chamfered for easy inserting
- made wide, tall and bulky for maximal stability
- footprint 7x3x18 gridfinityunitons
- consists of 2 identical parts
Boost Me (for free)
If you like it and it was not waste of half a spool, give me some oats, please.
Print from whatever. but print it twice

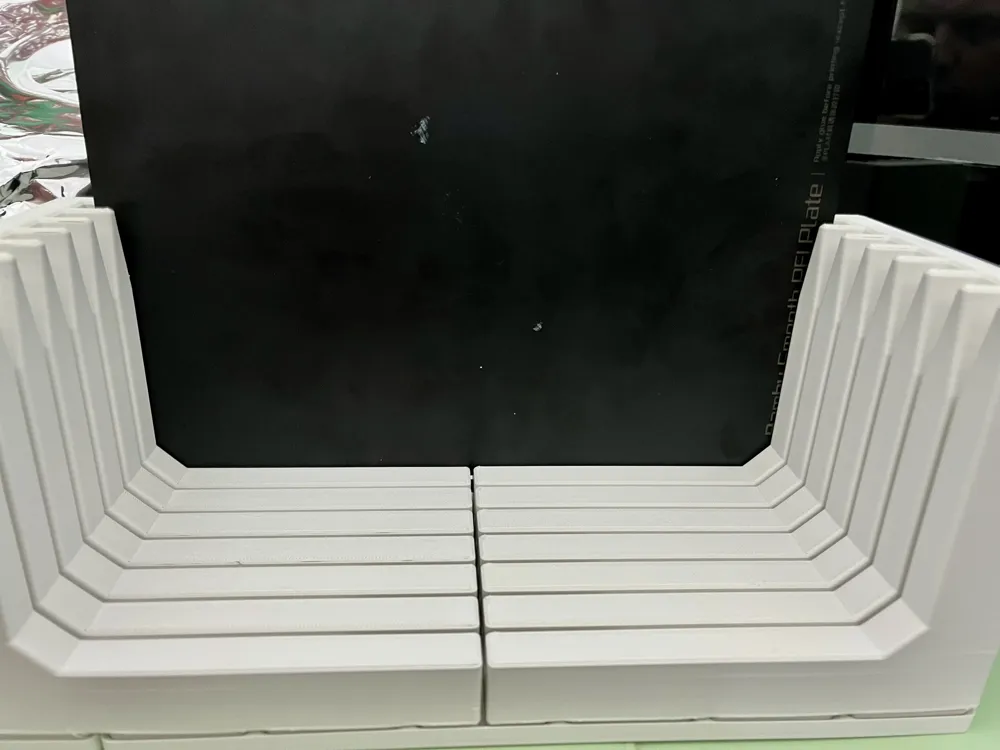

My suggestions (aka how i printed specimen above):
- time: ~6h50m
- weight: ~250g (PLA would be ~300g)
- ASA (bacause temp resistence- i like to put hot plates there)
- nozzle 0.4
- layer height 0.28mm
- 3 wall loops
- 1mm top thicknes
- 3mm bottom thickness (for that heavy)
- 10% rectilinear infill
- speed 100-150mm/s
- brim 20mm
If you want remix this bad boy, you can download FreeCAD project in files.
