Mancala

This is a variation of the stone game Mancala.

On the internet it appears under various names such as Mancala, Kalaha, Bao, Hus, etc.

Unfortunately, I do not know the exact name either.

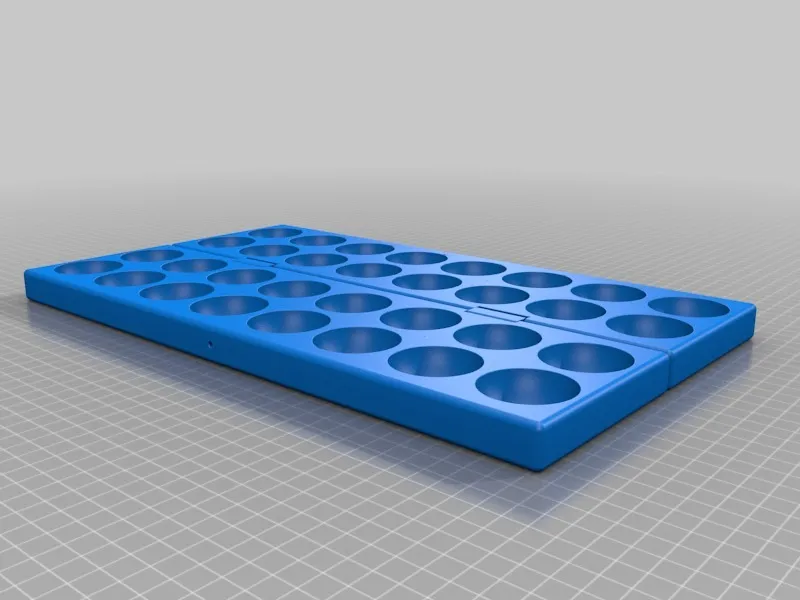

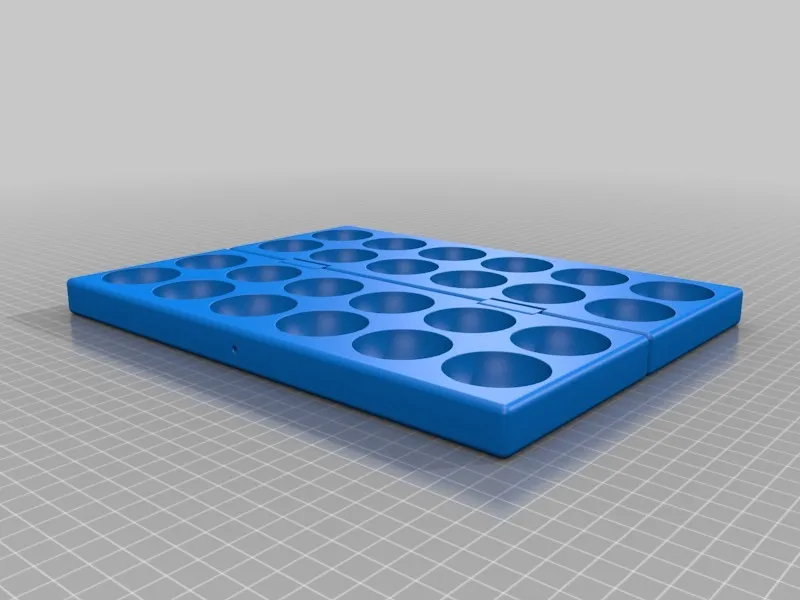

I have uploaded two versions, the "original" with eight pits, and a smaller version with six pits.

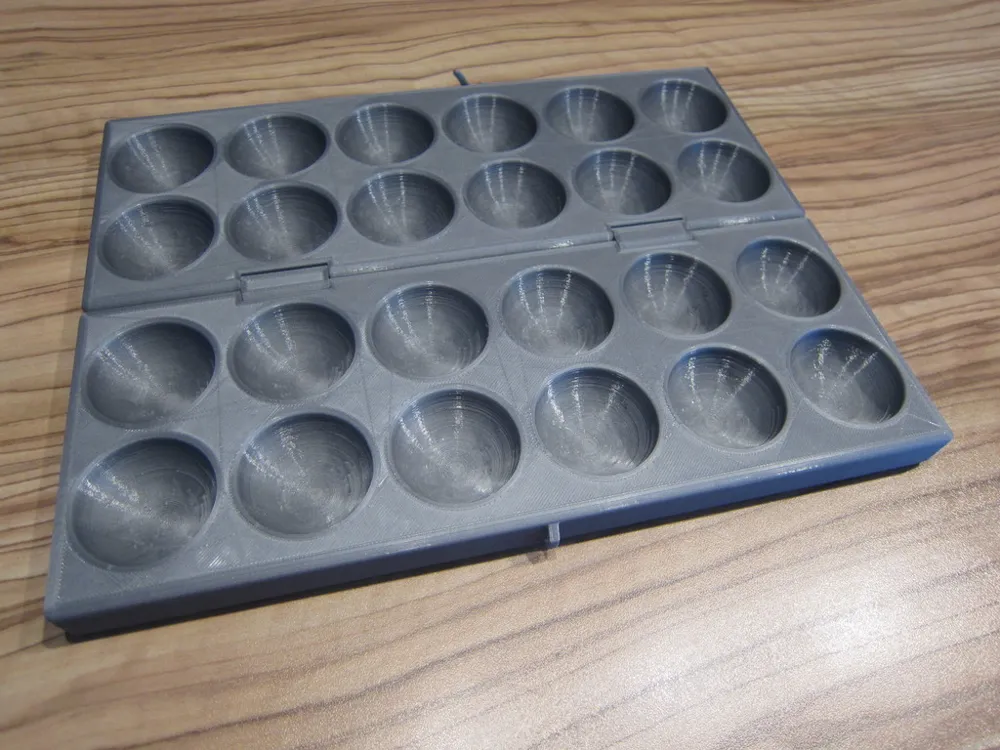

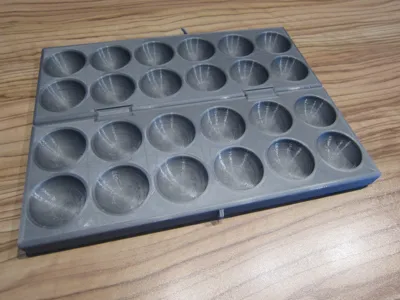

I printed the version with six pits, I cannot print any larger ones.

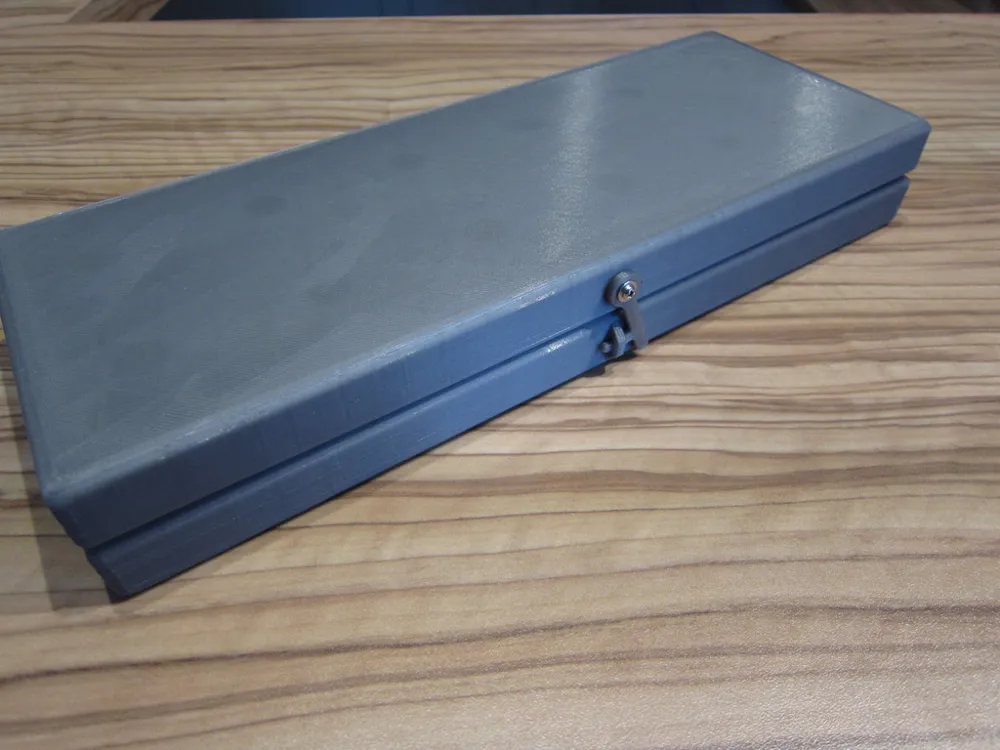

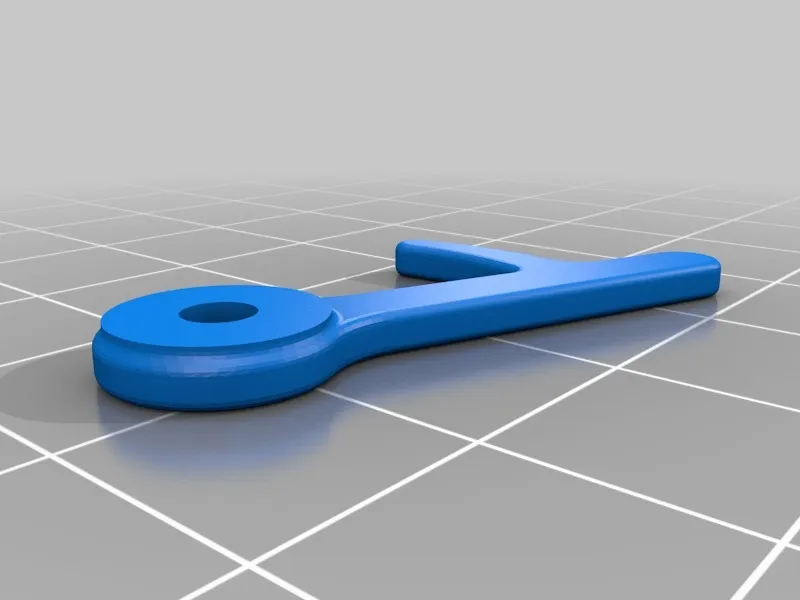

The fastener was then printed in a second step.

There is a 0.4mm gap between the two plates and in the hinge.

In my case, the two plates were slightly glued together, but could be separated with a spatula.

The hinges then also need to be carefully made movable.

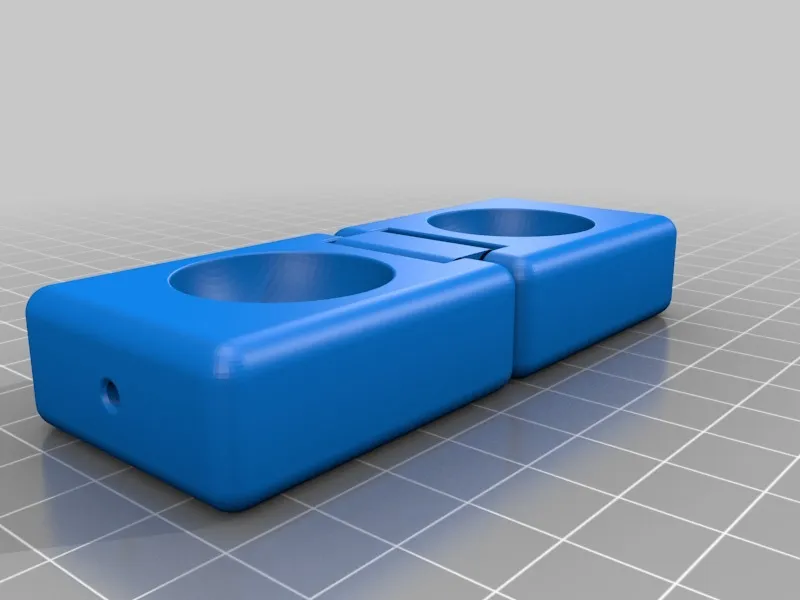

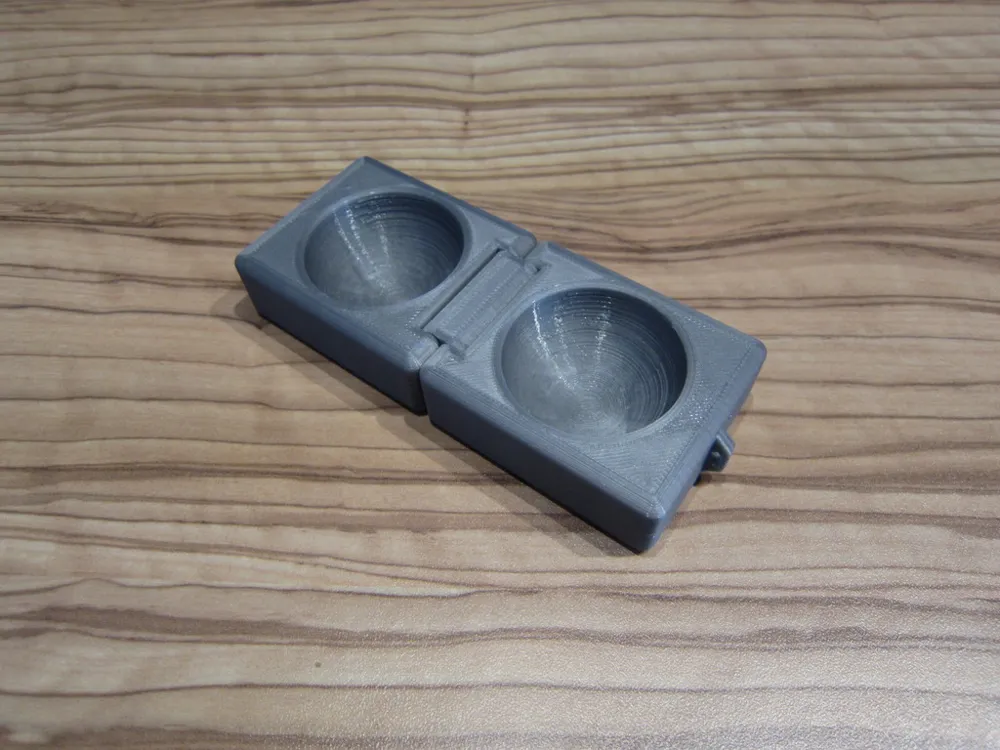

For a test print, I uploaded a smaller version with only one pit.

Size in mm:

6 pits 275x215x19

8 pits 365x215x19

This is a version of the strategy board game mancala.

On the internet it has different names like mancala, kalaha, bao, hus.

The exact name I didn't know.

I have uploaded two alternatives, the “original” with eight holes, and a smaller one with six holes.

My printer allows only the version with six holes, the fastener is printed separately.

Between the two plates, and inside the hinge, is a gap of 0.4mm.

The two plates stick together a little bit, but could be separated with a scraper blade.

To free the hinges they have to be moved carefully.

I uploaded a small version for test print.

Size in mm:

6 holes 275x215x19

8 holes 365x215x19

Print Settings

Printer Brand:

Creality

Printer:

Rafts:

No

Supports:

Resolution:

0.2mm

Infill:

Filament: Alcia-3dp PLA grey

Category: Toys & Games
