<boostme><boosttitle>为我助力</boosttitle><boostcontent>欢迎</boostcontent></boostme><p>耗材支架，<strong>该设计有两个版本，标准版和扩展版。</strong></p><p><strong>标准</strong><i>（文件 “parallel.holder_0.#.stl”）</i>可以容纳宽度约为 <strong>34-83 毫米</strong>的线轴。不是必需的，但为了提高固定和稳定性，可以将夹<i>子（文件“opposingClip_14.3mm.stl”）</i>添加到 The Ultimate Spool Holders v.2 的另一端。</p><p><strong>extended</strong> <i>（files “parallel.holder.extended_0.#.stl”）</i> 可以与较宽的线轴一起使用。或者在其他一些情况下可能很方便。线轴宽度 <strong>34-120 毫米</strong>。添加剪辑将阻止完全折叠。<span style="background-color: rgb(255,255,255); color: rgb(0,14,26); font-size: 14px">每个版本的封装盒都有三个文件。它们为铰链和关节中的间隙提供不同的值。您可以根据 3D 打印机的功能选择最适合自己的。</span><br><span style="background-color: rgb(255,255,255); color: rgb(0,14,26); font-size: 14px">我从铰链中间隙为 0.4 毫米的文件（在 XYZprinting da Vinci 1.0 Pro 上打印）中获得了最好的结果。有了这样的间隙，铰链很容易释放，间隙很小。</span></p><p><span style="background-color: rgb(255,255,255); color: rgb(0,14,26); font-size: 14px">填充20%，pla打印。</span></p><h4><strong>间隙值：</strong></h4><figure class="table"><table style="background-color: rgb(255, 255, 255)"><thead><tr><th>文件名</th><th>铰链间隙，mm</th><th>夹持夹宽度，mm</th><th>滑动夹具宽度，mm</th></tr></thead><tbody><tr><td>parallel.holder_0.3.stl、<br>parallel.holder.extended_0.3.stl</td><td>0.3</td><td>14.2</td><td>15.0</td></tr><tr><td>parallel.holder_0.4.stl、<br>parallel.holder.extended_0.4.stl</td><td>0.4</td><td>14.3</td><td>15.0</td></tr><tr><td>parallel.holder_0.5.stl、<br>parallel.holder.extended_0.5.stl</td><td>0.5</td><td>14.5</td><td>15.5</td></tr><tr><td> </td><td> </td><td> </td><td> </td></tr><tr><td>opposingClip_14.3mm.stl</td><td>-</td><td>14.3</td><td>-</td></tr></tbody></table></figure>

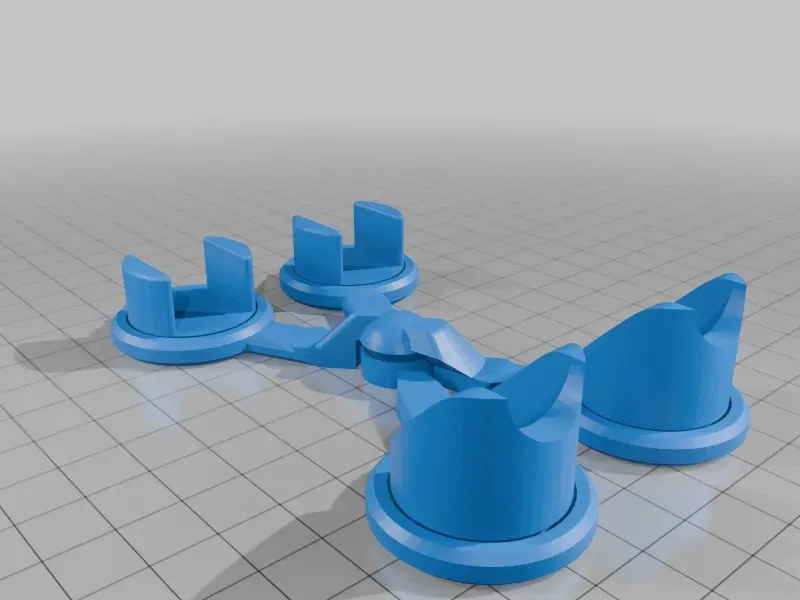

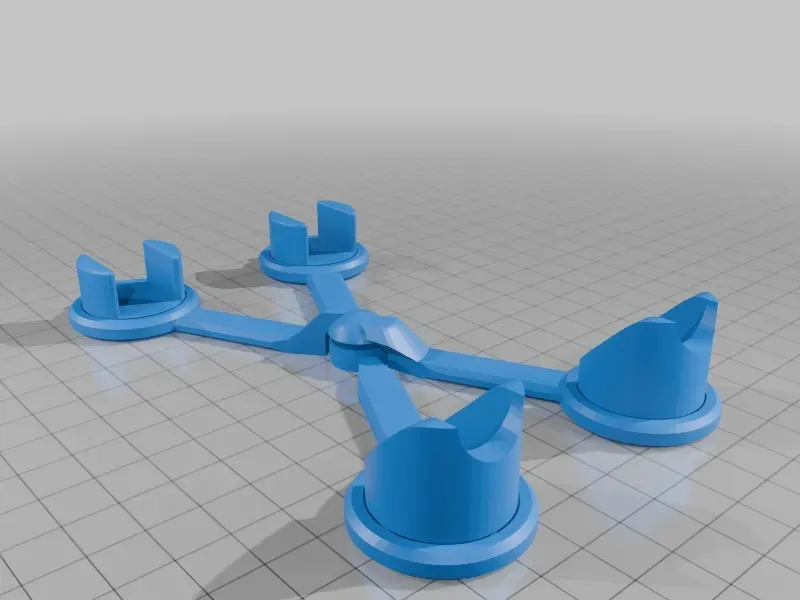

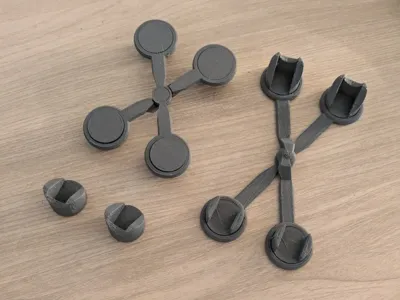

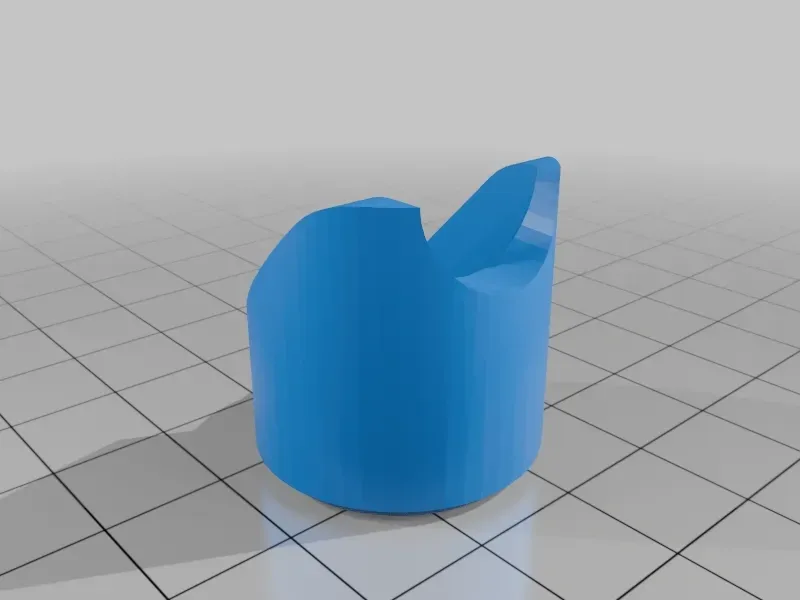

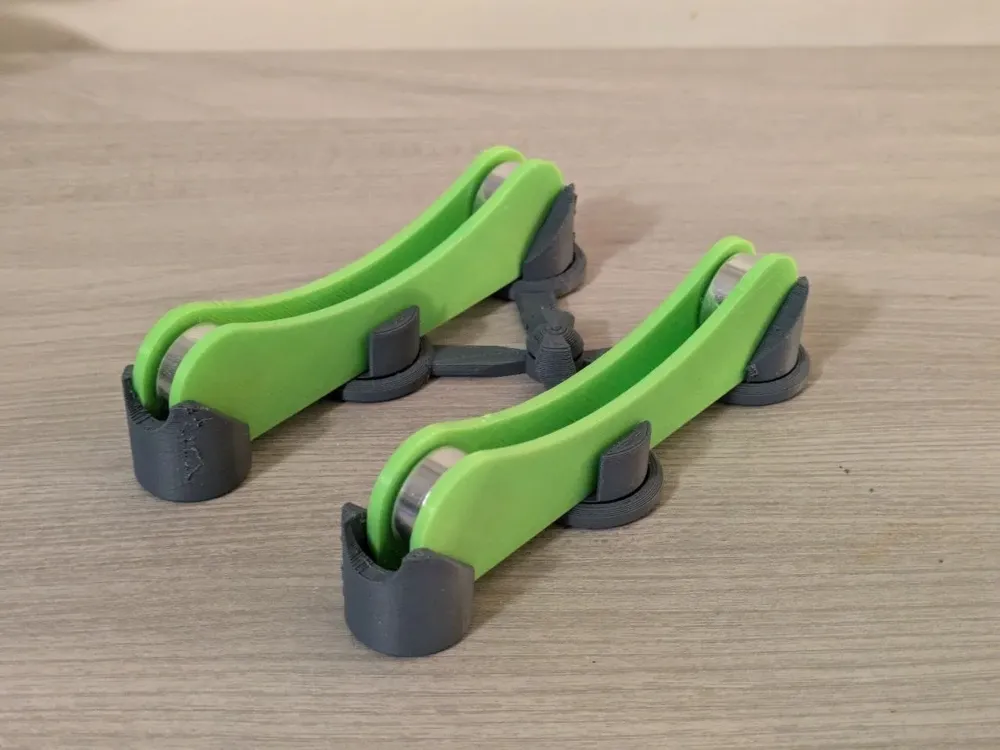

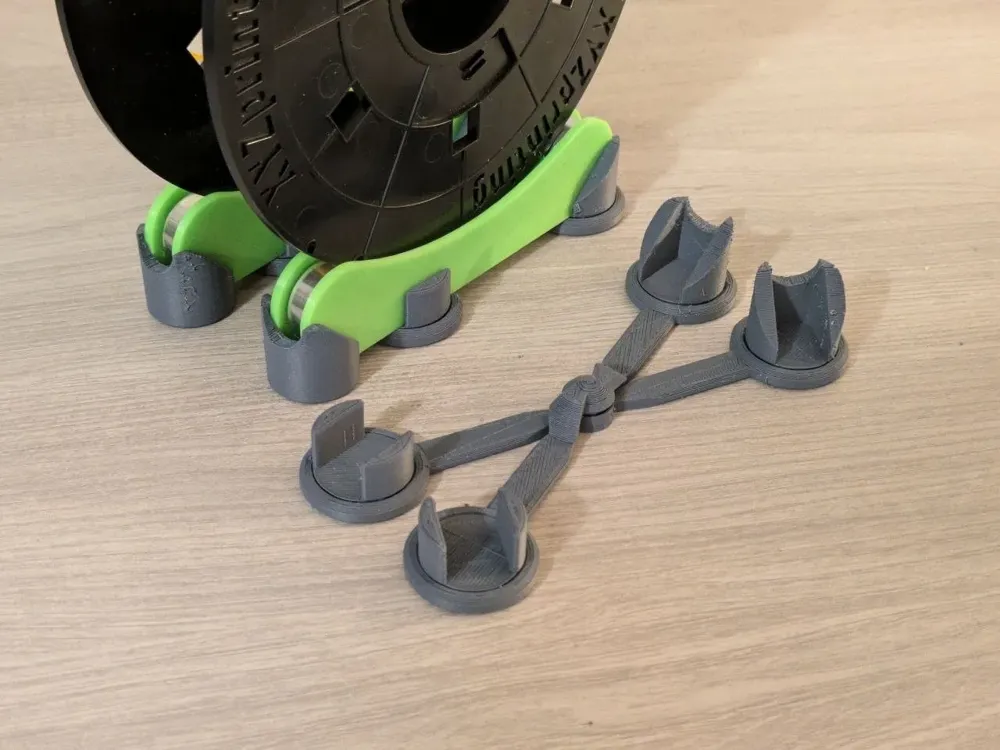

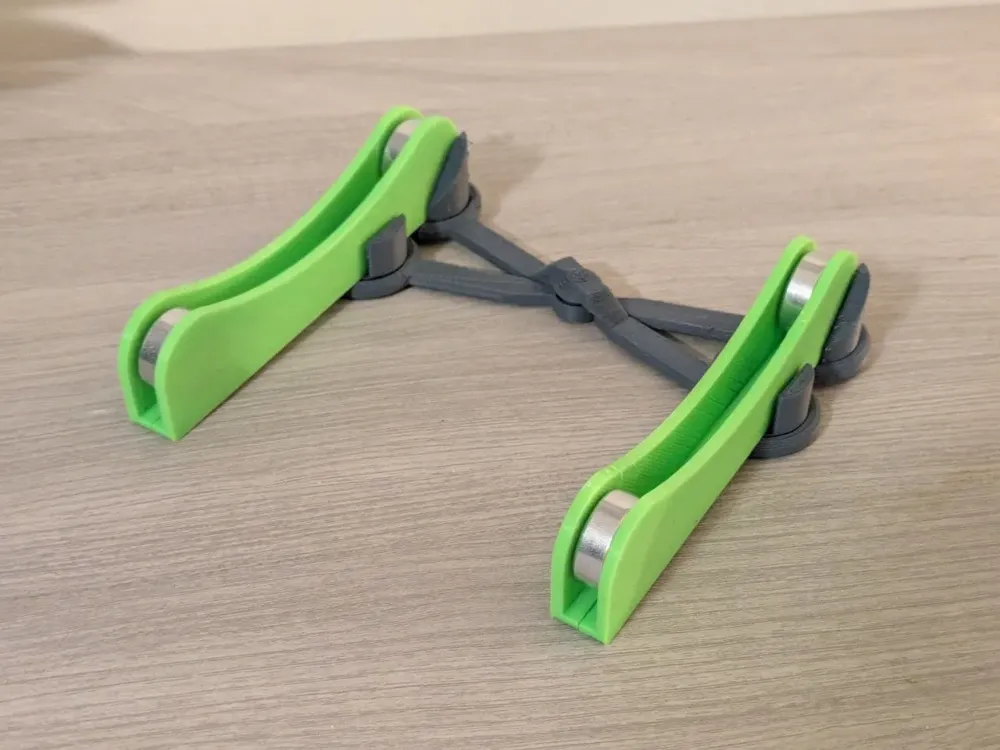

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Welcome</boostcontent></boostme><p>Filament holder, <strong>this design comes in two versions, standard and extended.</strong></p><p><strong>Standard</strong> <i>(files “parallel.holder_0.#.stl”)</i> can accommodate spools with a width of approximately <strong>34-83 mm</strong>.  Not required but to increase hold and stability, the clip <i>(file “opposingClip_14.3mm.stl”)</i> can be added to the other end of The Ultimate Spool Holders v.2.</p><p><strong>Extended</strong> <i>(files “parallel.holder.extended_0.#.stl”)</i> can be used with wider spools. Or may be handy in some other scenarios. Spool width <strong>34-120 mm</strong>. Adding the clip will prevent completely folding.<span style="background-color: rgb(255,255,255); color: rgb(0,14,26); font-size: 14px">Each version of the enclosure has three files. They offer different values for the gap in the hinges and joints. You can choose what suits you best depending on your 3D printer capabilities.</span><br><span style="background-color: rgb(255,255,255); color: rgb(0,14,26); font-size: 14px">I got the best results from the file with 0.4 mm gap in the hinge (printed on XYZprinting da Vinci 1.0 Pro). With such a gap, the hinge releases easily and the gap is minimal.</span></p><p><span style="background-color: rgb(255,255,255); color: rgb(0,14,26); font-size: 14px">20% infill, PLA print.</span></p><h4><strong>Gap values:</strong></h4><figure class="table"><table style="background-color: rgb(255, 255, 255)"><thead><tr><th>Filename</th><th>Hinge gap, mm</th><th>Holding clip width, mm</th><th>Sliding fixture width, mm</th></tr></thead><tbody><tr><td>parallel.holder_0.3.stl、<br>parallel.holder.extended_0.3.stl</td><td>0.3</td><td>14.2</td><td>15.0</td></tr><tr><td>parallel.holder_0.4.stl、<br>parallel.holder.extended_0.4.stl</td><td>0.4</td><td>14.3</td><td>15.0</td></tr><tr><td>parallel.holder_0.5.stl、<br>parallel.holder.extended_0.5.stl</td><td>0.5</td><td>14.5</td><td>15.5</td></tr><tr><td> </td><td> </td><td> </td><td> </td></tr><tr><td>opposingClip_14.3mm.stl</td><td>-</td><td>14.3</td><td>-</td></tr></tbody></table></figure>

Consumable Rack

ASIA

Print Profile(0)

Description

Gap values:

Comment & Rating (0)

License

Related Models

Filename	Hinge gap, mm	Holding clip width, mm	Sliding fixture width, mm
parallel.holder_0.3.stl、 parallel.holder.extended_0.3.stl	0.3	14.2	15.0
parallel.holder_0.4.stl、 parallel.holder.extended_0.4.stl	0.4	14.3	15.0
parallel.holder_0.5.stl、 parallel.holder.extended_0.5.stl	0.5	14.5	15.5

opposingClip_14.3mm.stl	-	14.3	-
