<h3>2 design available / 2 design disponible</h3><p>You will need 4 magnets of 4mm x 2 mm and m3 screws.</p><p>Available design:</p><ul><li>230 mm x 230 mm x 6 mm</li><li>220 mm x 220 mm x 6 mm</li></ul><p>**</p><p>Vous avez besoin de 4 aimants de 4mm x 2mm et de vis M3.</p><ul><li>230 mm x 230 mm x 6 mm</li><li>220 mm x 220 mm x 6 mm</li></ul><h3><strong>VERSION 2.1</strong></h3><p>I uploaded a new version of the OpenSCAD file (parametric file), you can now select if you want to generate the door or the base.</p><h3>VERSION 2</h3><p>I migrated from Blender to OpenSCAD so re-wrote the whole project but now you can change the size of the print to fit your need.</p><p>For that you need to:</p><ul><li>download OpenSCAD (https://openscad.org/downloads.html)</li><li>Open the file access_door.scad</li><li>Change the parameters (see comments in the code)</li><li>Export the door in stl (see comments in the code)</li><li>Export the base in stl (see comments in the code)</li></ul><p>&nbsp;</p><p>**</p><p>J&#39;ai migré de Blender à OpenSCAD alors j&#39;ai ré-écris le projet au complet et maintenant vous pouvez changer la grandeur de vos impressions pour répondre à vos besoins.</p><p>Pour cela, vous devez:</p><ul><li>télécharger OpenSCAD (https://openscad.org/downloads.html)</li><li>Ouvrir le fichier access_door.scad</li><li>Changer les parametres (voir les commentaires dans le code, en anglais)</li><li>Exporter la porte (door) en stl (voir les commentaires dans le code, en anglais)</li><li>Exporter la base en stl (voir les commentaires dans le code, en anglais)</li></ul><p>*****************************************</p><h3>VERSION 1</h3><p>I designed a magnitized access door for the house.</p><p>You will need 4 magnets of 4mm x 2 mm and the hole are for m3 screws.</p><p>The door is 230 mm x 230 mm x 6 mm</p><p>I designed it with Blender using the addon CAD Sketcher. Feel free to update it to your need with the dimensions you need.</p><p>**</p><p>J&#39;ai crée une une porte d&#39;accès aimantée. Il vous faudra 4 aimants de 4mm x 2mm.</p><p>La porte fait 230 mm x 230 mm x 6 mm et les trous utilisent des vis m3.</p><p>Je l&#39;ai créé avec Blender en utilisant le “addon” CAD Sketcher. Sentez-vous libre de l&#39;améliorer pour répondre à vos besoin avec vos dimensions.</p>

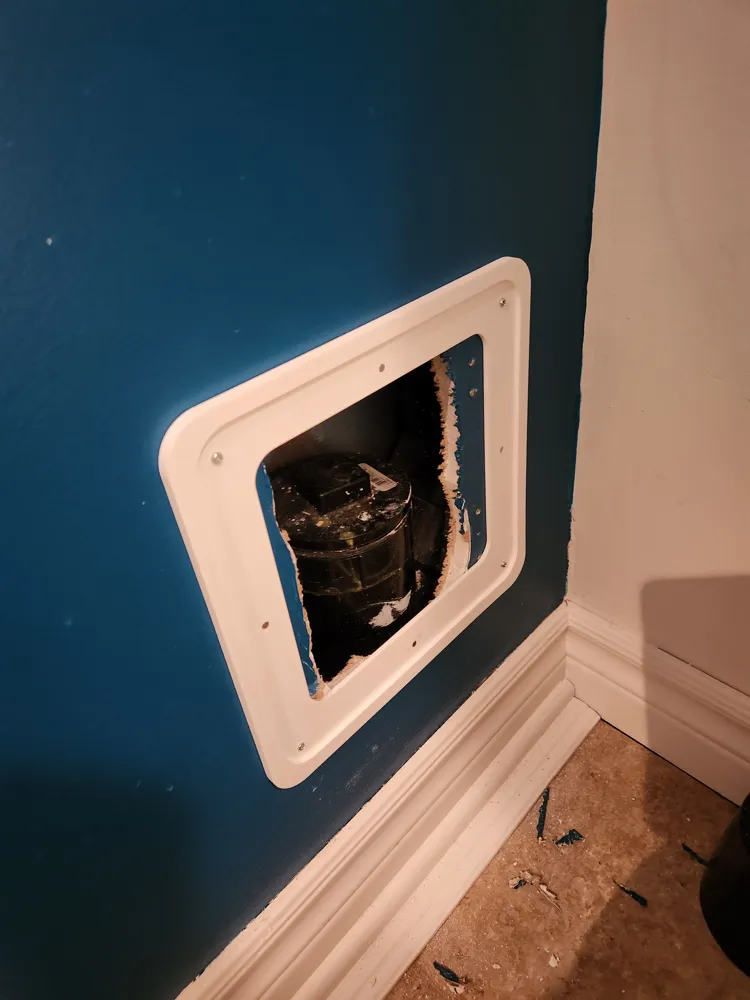

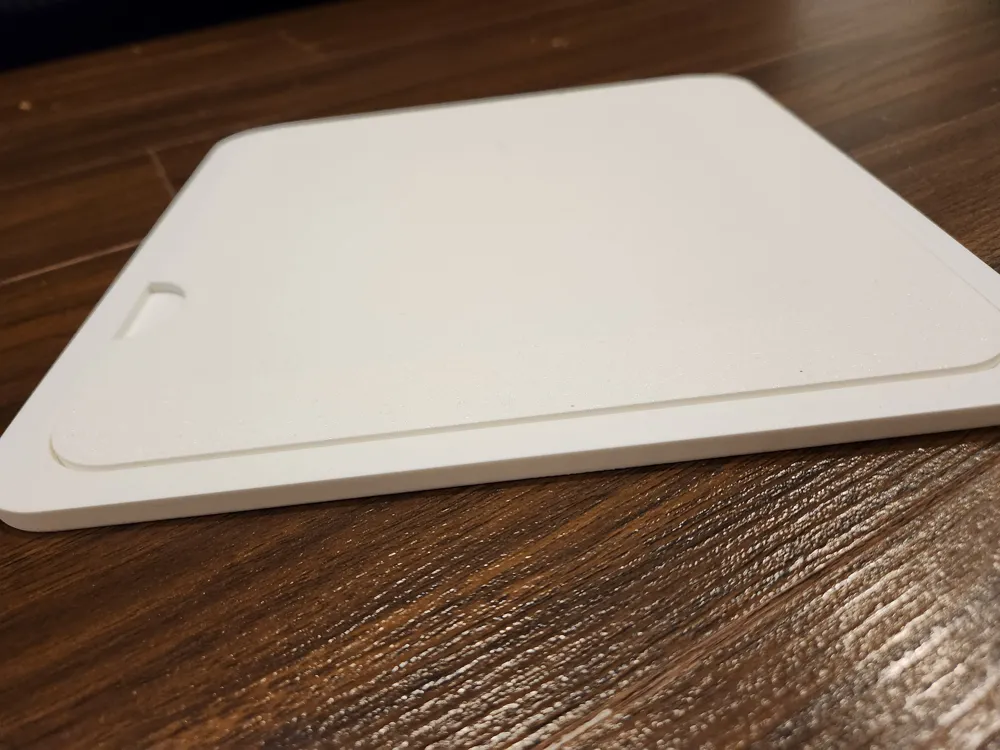

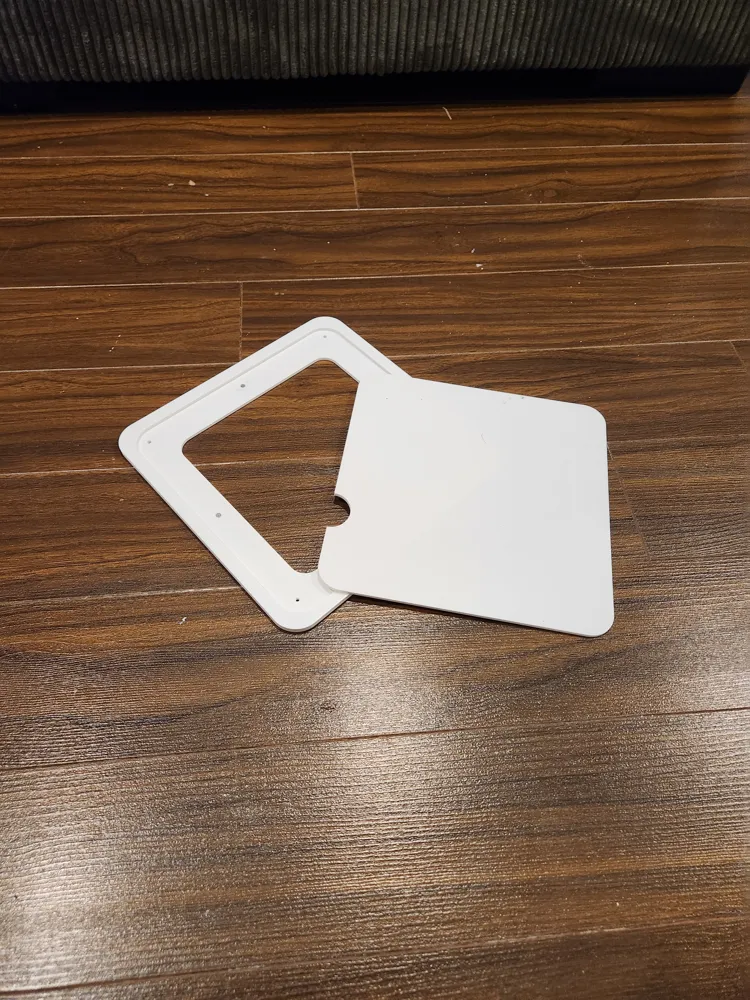

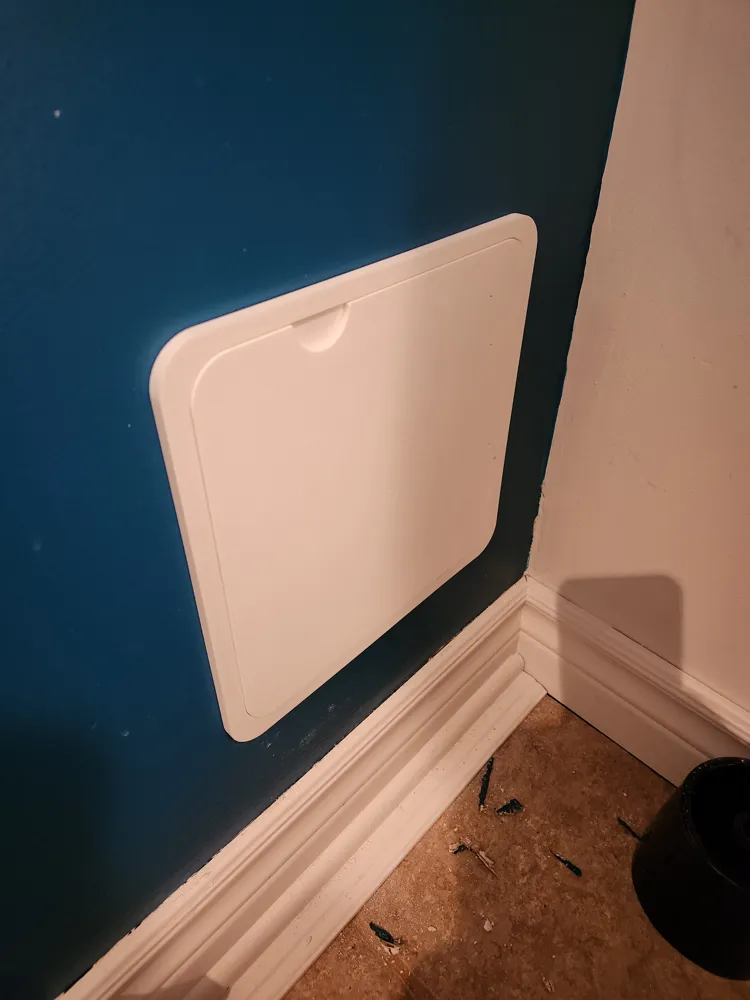

<h3>2 Designs Available</h3><p>Four 4mm x 2mm magnets and M3 screws are required.</p><p>Available designs:</p><ul><li>230 mm x 230 mm x 6 mm</li><li>220 mm x 220 mm x 6 mm</li></ul><p><h3><strong>VERSION 2.1</strong></h3><p>An updated OpenSCAD file (parametric) is available, allowing selection between door and base generation.</p><h3>VERSION 2</h3><p>A complete project rewrite using OpenSCAD now offers customizable print sizes.</p><p>To achieve this:</p><ul><li>Download OpenSCAD (https://openscad.org/downloads.html)</li><li>Open the access_door.scad file</li><li>Modify parameters (refer to in-code comments)</li><li>Export the door as an STL (refer to in-code comments)</li><li>Export the base as an STL (refer to in-code comments)</li></ul><p><h3>VERSION 1</h3><p>This design presents a magnetized access door for your home.</p><p>Four 4mm x 2mm magnets are needed, with holes designed for M3 screws.</p><p>The door measures 230 mm x 230 mm x 6 mm.</p><p>Created using Blender and the CAD Sketcher addon, feel free to adapt dimensions to your specifications.</p>

Print Profile(0)

Description

2 Designs Available

VERSION 2.1

VERSION 2

VERSION 1
