Description

2024-02-27: Moved the guide area a little bit to the right, so that it matches the HUB guide I also made.

NOTE: This is for the AMS BUFFER, not the AMS HUB. There is a different model for the HUB.

Another of many PTFE guides for the X1C and the AMS. This lines up the output feed.

There are two versions: one standalone, and another for use with the X1C spool holder.

You should have longer M3 screws in the accessories kit that came with your printer.

If you don't have any, you can buy any generic M3 hex socket screw kit off Amazon.

You can find other models I have released for the X1C/AMS here:

https://makerworld.com/en/u/2811301167/collections/109412

=====

If you appreciate my models, please consider buying me a coffee!

Comment & Rating (618)

@ga22be

Print Profile

0.2mm, 3 walls, 15% gyroid

Settings worked well enough, I did add a hole to the model to fit my usecase of passing an external filament tube to the opposite side. I have uploaded a profile with identical settings but two additional plates with double tube holes for anyone who might need it.

@tyrenick

so simple but so satisfying

@sektor7_studios

where did you get the cable holder on he left side?

@tyrenick

Replying to @sektor7_studios :

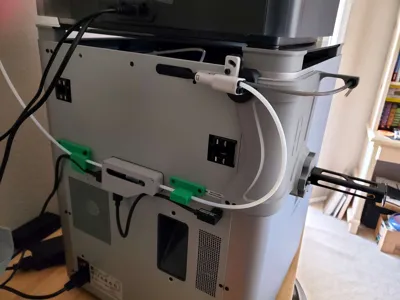

hey sektor7 studio the cable and ptfe tube holder on de left is also from @ultrajaxel he has multiple versions i added a foto with the one 1 i have from him

@deiss.serge

Print Profile

0.2mm, 3 walls, 15% gyroid

Bambu Matte Black PLA - Perfect result. Almost like its factory;)

@MicheleMM3D

Print Profile

0.2mm, 3 walls, 15% gyroid

Thank you

@MelissaRam

Where did you get that poop trashcan?

@MicheleMM3D

Replying to @MelissaRam :

I had found it on Yeggi.

@Raphael_2244

Print Profile

0.2mm, 3 walls, 15% gyroid

Works flawlessly and smoothing for surfaces was even activated 6/5

Show original

@Ast3rion

Print Profile

0.2mm, 3 walls, 15% gyroid

Great, fits perfectly. Printed in PLA on X1C. Thanks

@jerry320320

Print Profile

0.2mm, 3 walls, 15% gyroid

The model is good, but some defects were found after printing. I placed the modified parameters.

(Edited)

The profile uploader has replied

@ultrajaxel

I updated my print profile to get rid of those gaps.

(Edited)

@3DeePrints

Print Profile

Modify the place marked by the circle ~ there will be no hole problem

A little too tight. I had to use a grinder through the hole.

@user_3836724190

Print Profile

0.2mm, 3 walls, 15% gyroid

Functions great! Surface texture came out funky, but it’s not a visual piece to me anyway.

@user_1266833695

Print Profile

0.2mm, 3 walls, 15% gyroid

Works great, but had to offset install to clear side spool mount, but still lines everything up and keeps it that way. Thank you!
