Modular Shelf

This is a modular shelf, designed to be assembled in your own design usind insert pins to secure each shelf to one another.

It's 150x150x150mm on the outside and 130x130x150mm on the inside

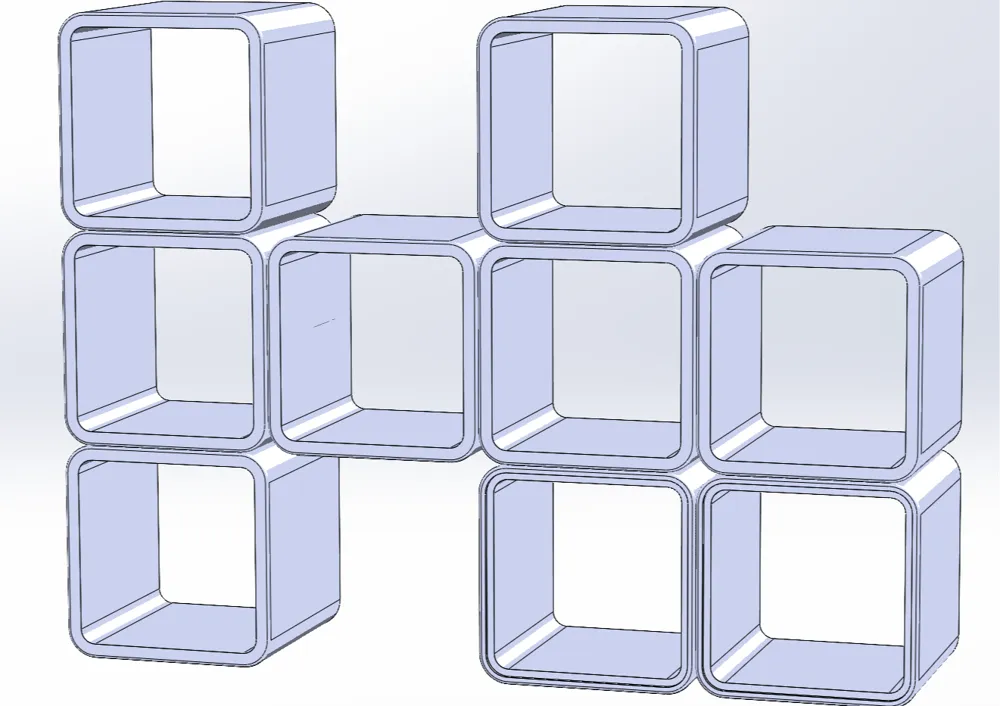

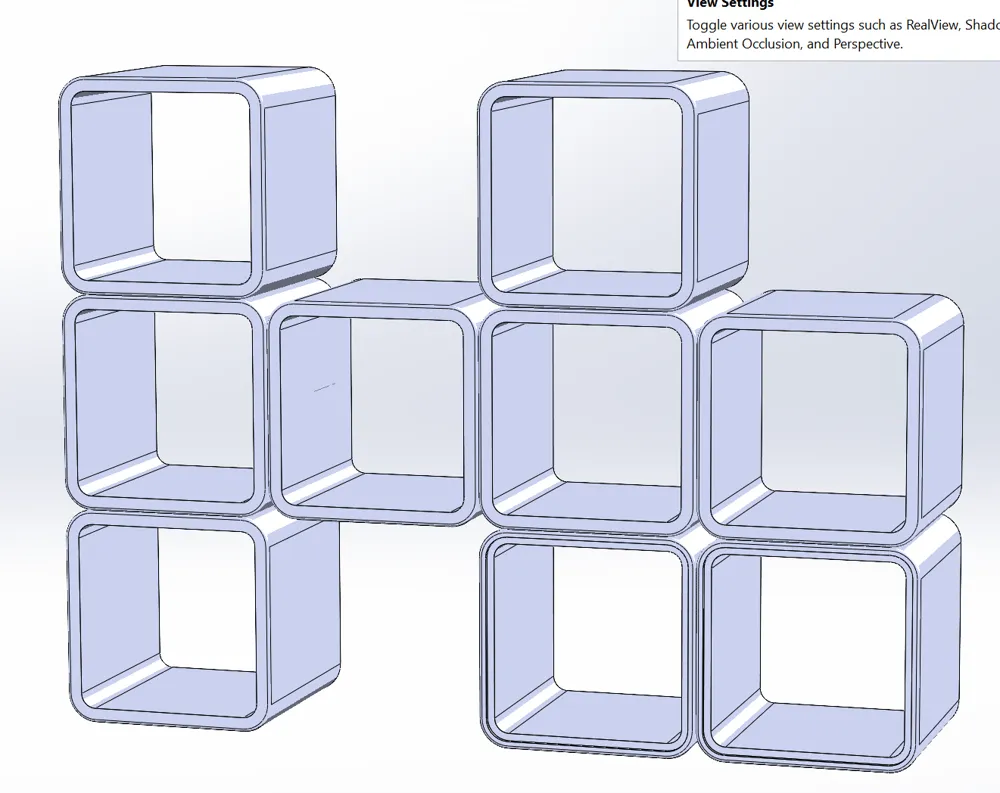

Let's look at an example of a shelf below, where every X is a module:

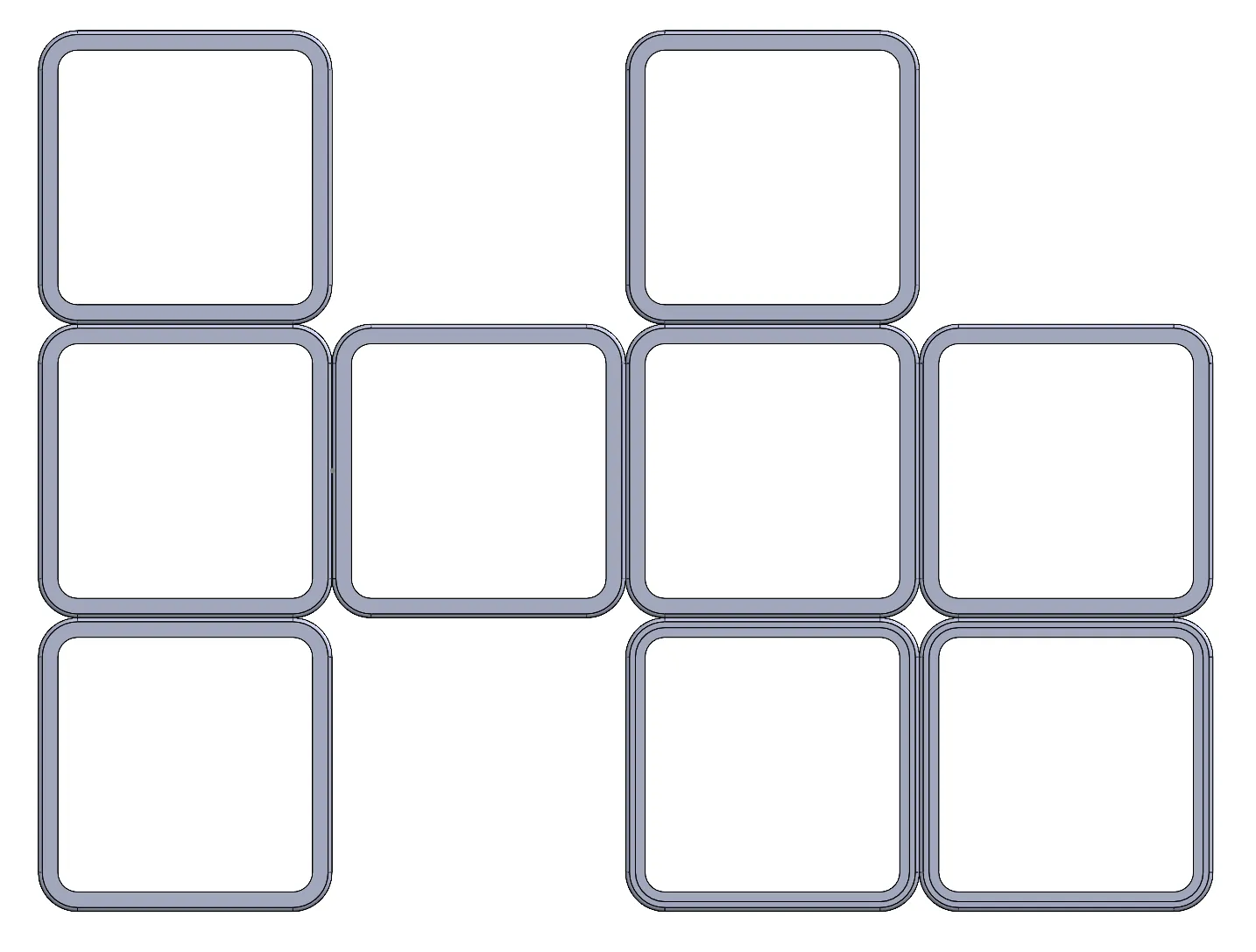

Front:

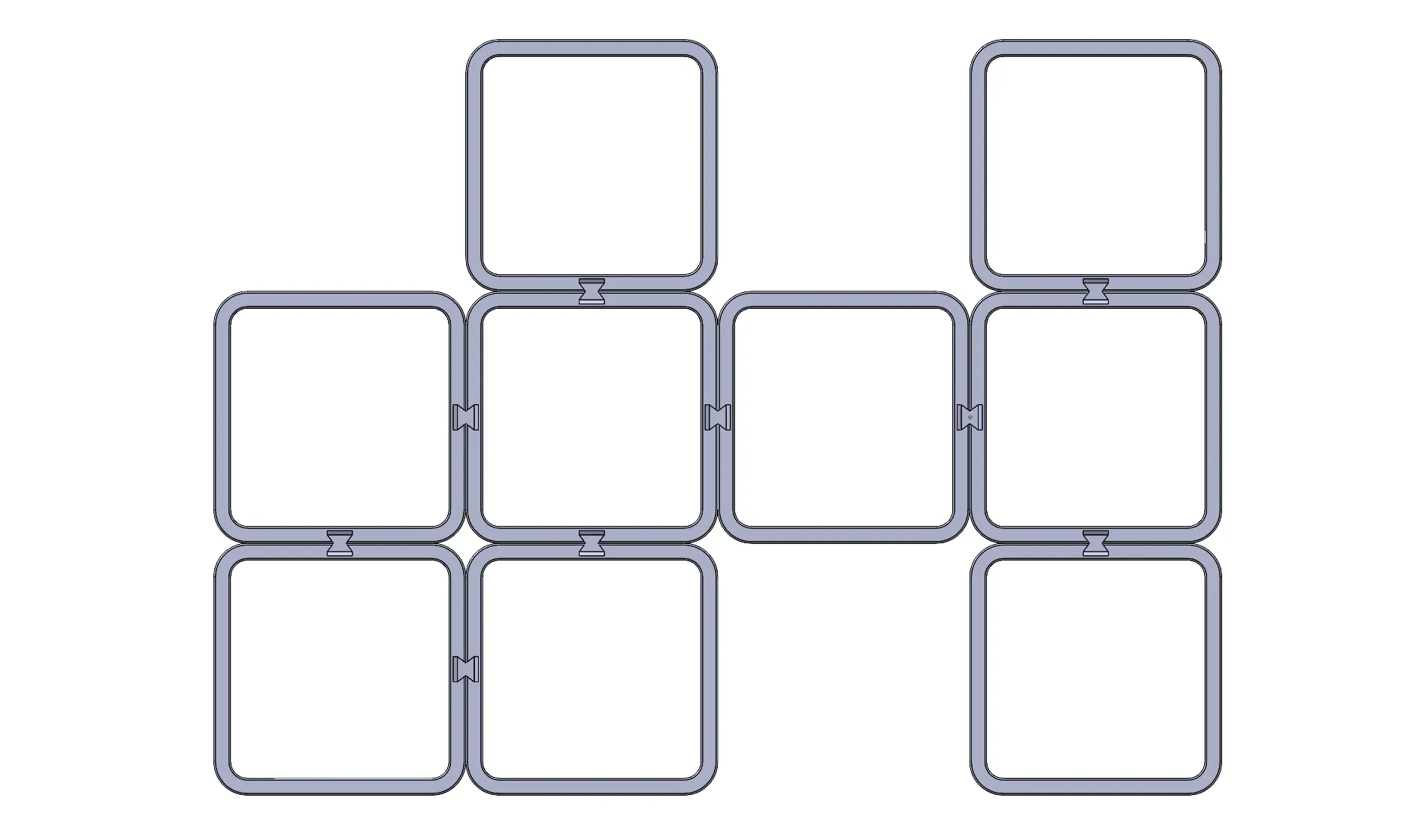

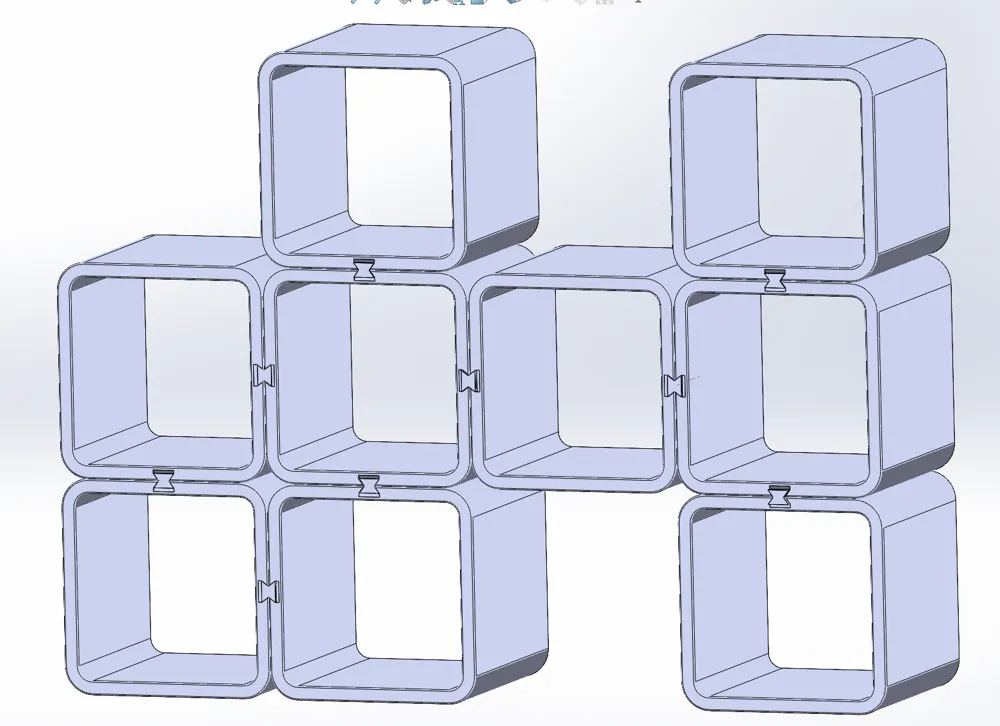

Back:

    A  B  C  D
1      X       X

2  X  X  X  X

3  X  X      X

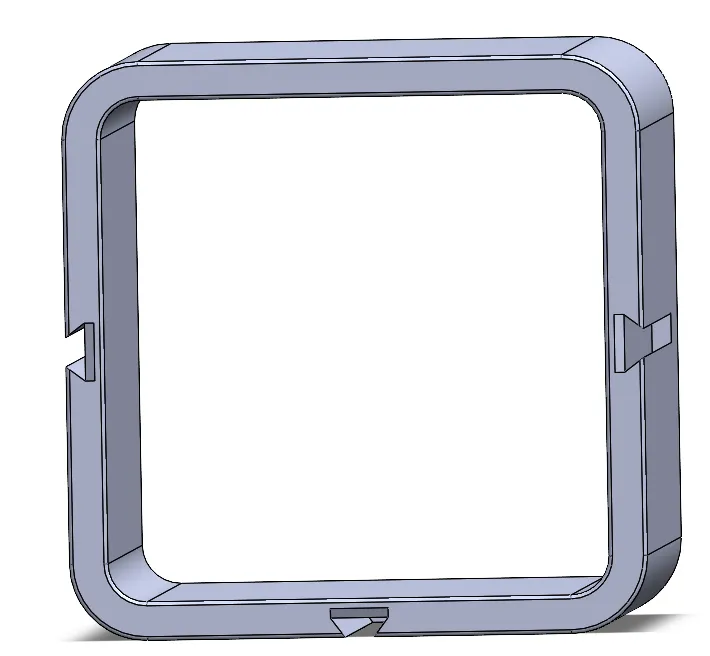

• For the module in B1, D1 and D3 there is a model whith only 1 insert for the pin;
• For the module in A2, A3 and B3  there is a model whith 2 inserts for the pin;
• For the module in C2 there is a model whith 2 inserts for the pin in a different disposition than the previous one;
• For the module in B2 there is a model whith 4 inserts for the pin;
• For the module in D2 there is a model whith 3 inserts for the pin;
• There is also a model with no inserts for single module shelves;

Also note that there are two files for this shelf, V1 is just a regular shelf for those who want it as minimalist as possible. V2 is the same shelf but with a small indent for applying some glass/acryllic.

Note: the glass must be 140x140mm with 15mm radius fillets and with a maximum with of 3mm to fit the indent

The file available is from OrcaSlicer and using a preset for ELEGOO Neptune 4 Pro, so don't forget to adapt to your printer

Hope you enjoy. Don't be afraid to leave comments on what to improve on this model and also if you try different settings please upload the profile
Happy printings
