Smart Light Switch Device

!!!!!!!Version 2.0 is here!!!!

1. This time, a pure circuit board version - compact structure (actually, those two socket boards are still needed)

2. Use Jiali Chuang to print circuit boards for free, then solder

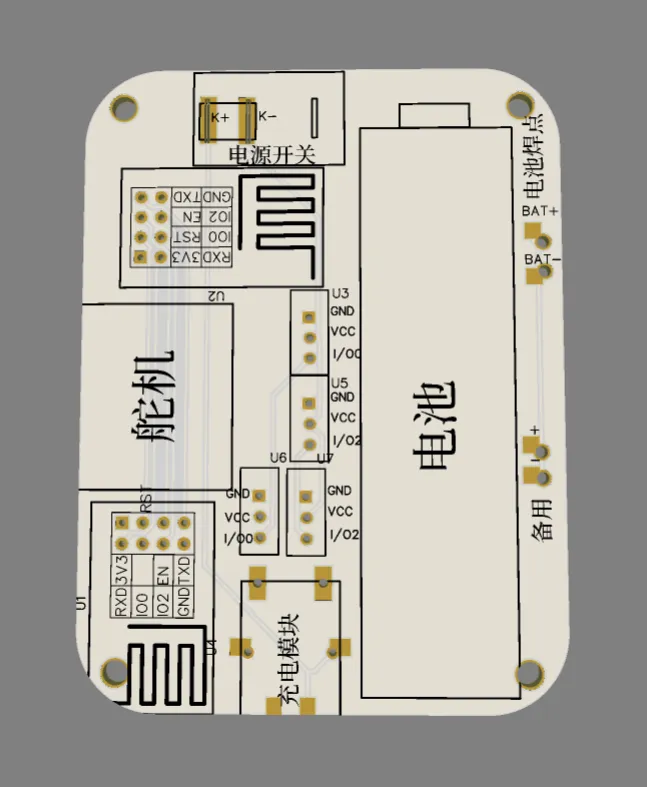

3. The PCB design files are as follows:

Files shared via network drive: Smart Switch Light.zip
Link: https://pan.baidu.com/s/1E3nnMDz6JAYn6qeU8IEsCA Extraction code: qphw

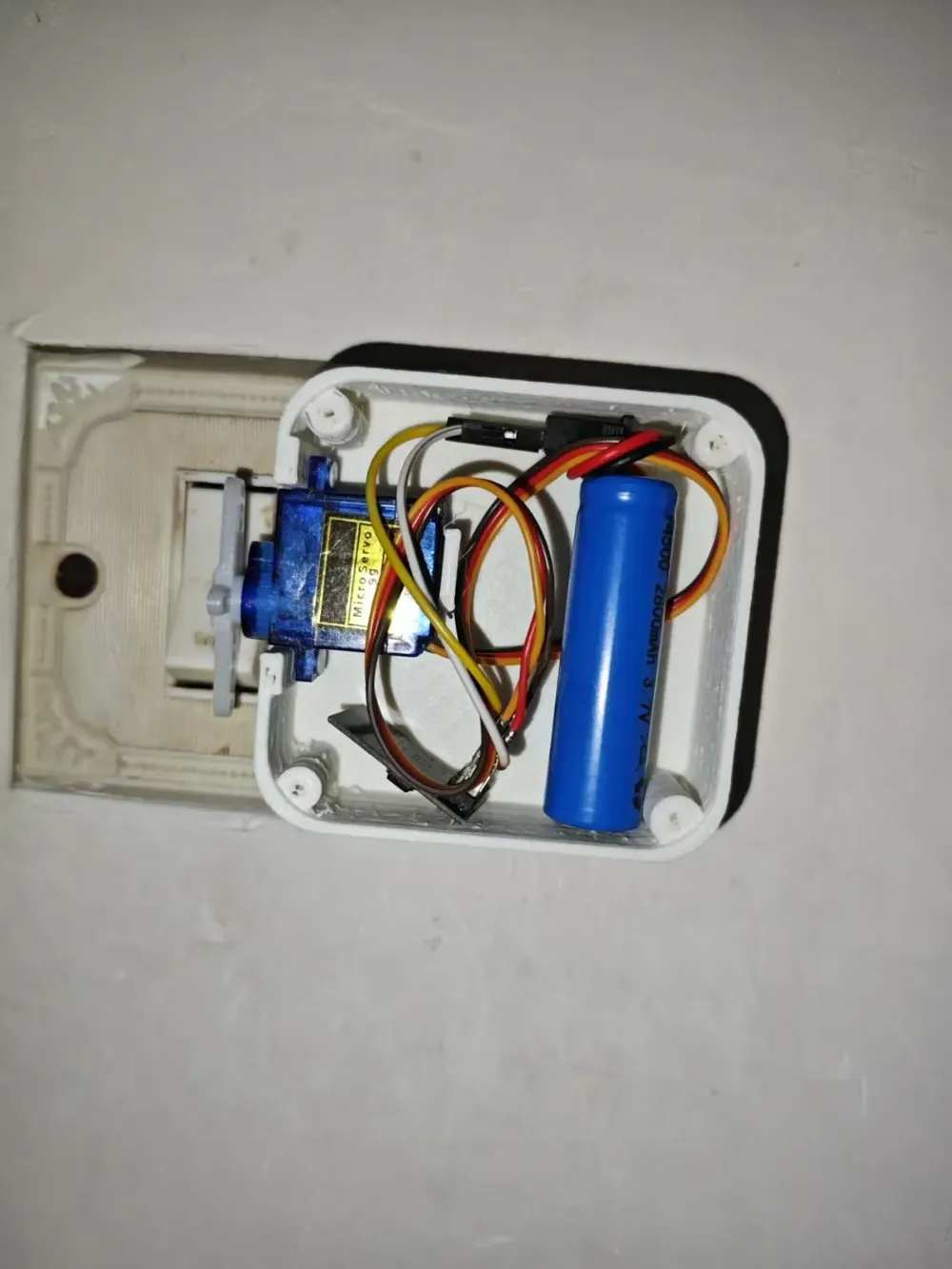

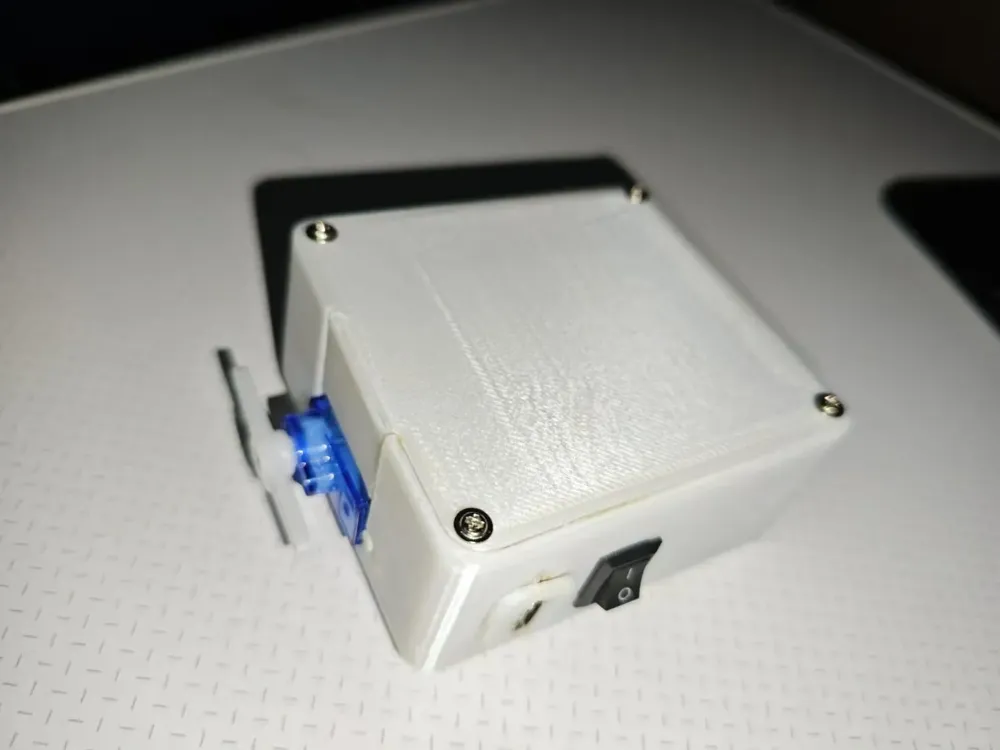

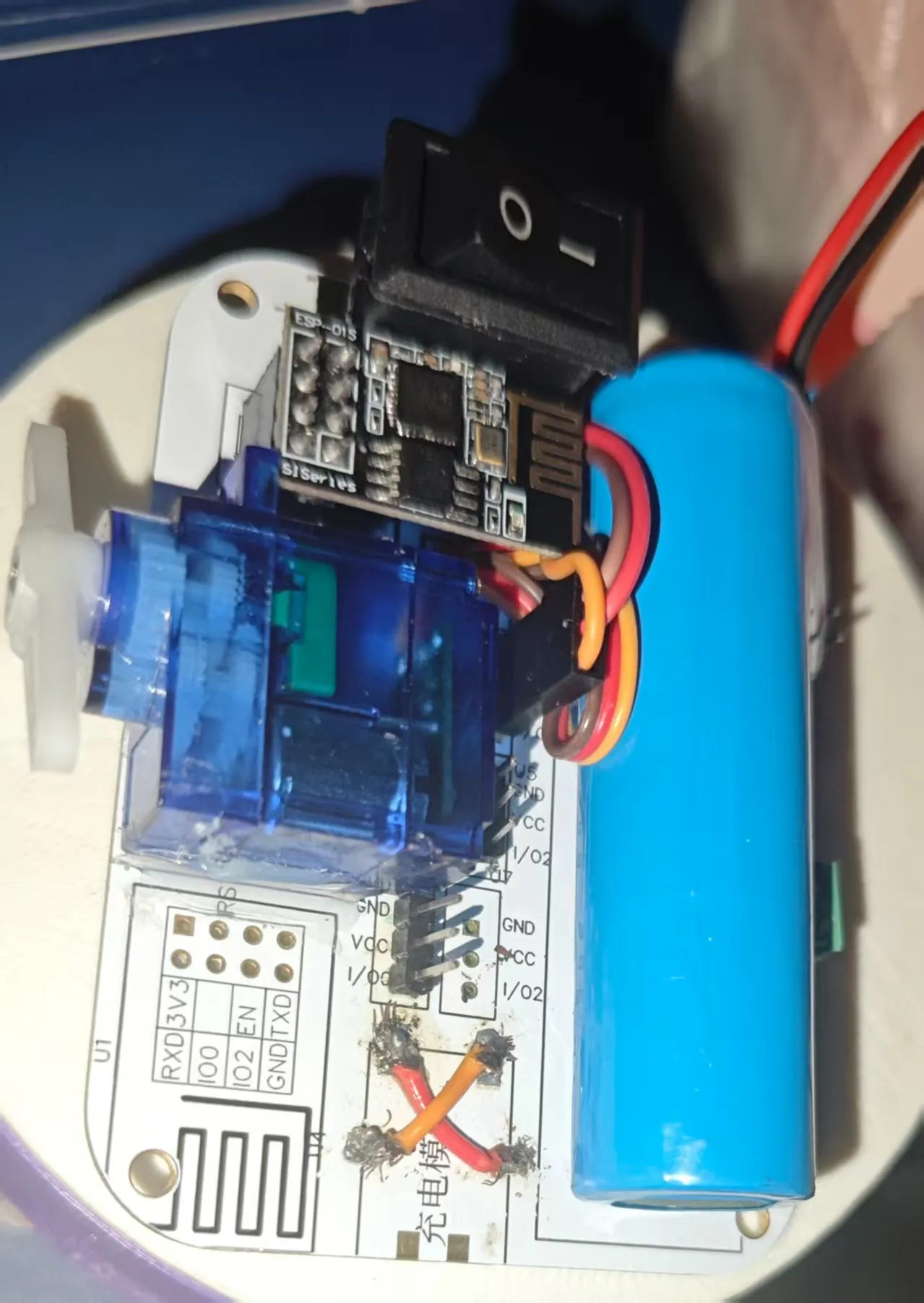

4. View the finished product (The charging module is gone, so that spot was shorted)

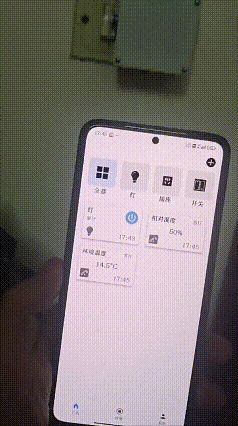

5. Video demonstration:

Douyin:

3.35 11/27 qRk:/ m@d.nd Copy and open Douyin Lite to see [Morning Ink's work] # diy # electronics hobbyist # Jiali Chuang # switch light... https://v.douyin.com/OXZ7VMqp7n4/

6. Note that soldering is required (Pay attention to ventilation and protection during soldering, try not to inhale fumes)

7. The new accessories are pin headers and sockets - convenient for component plugging and unplugging, not expensive, and can be directly soldered if not used

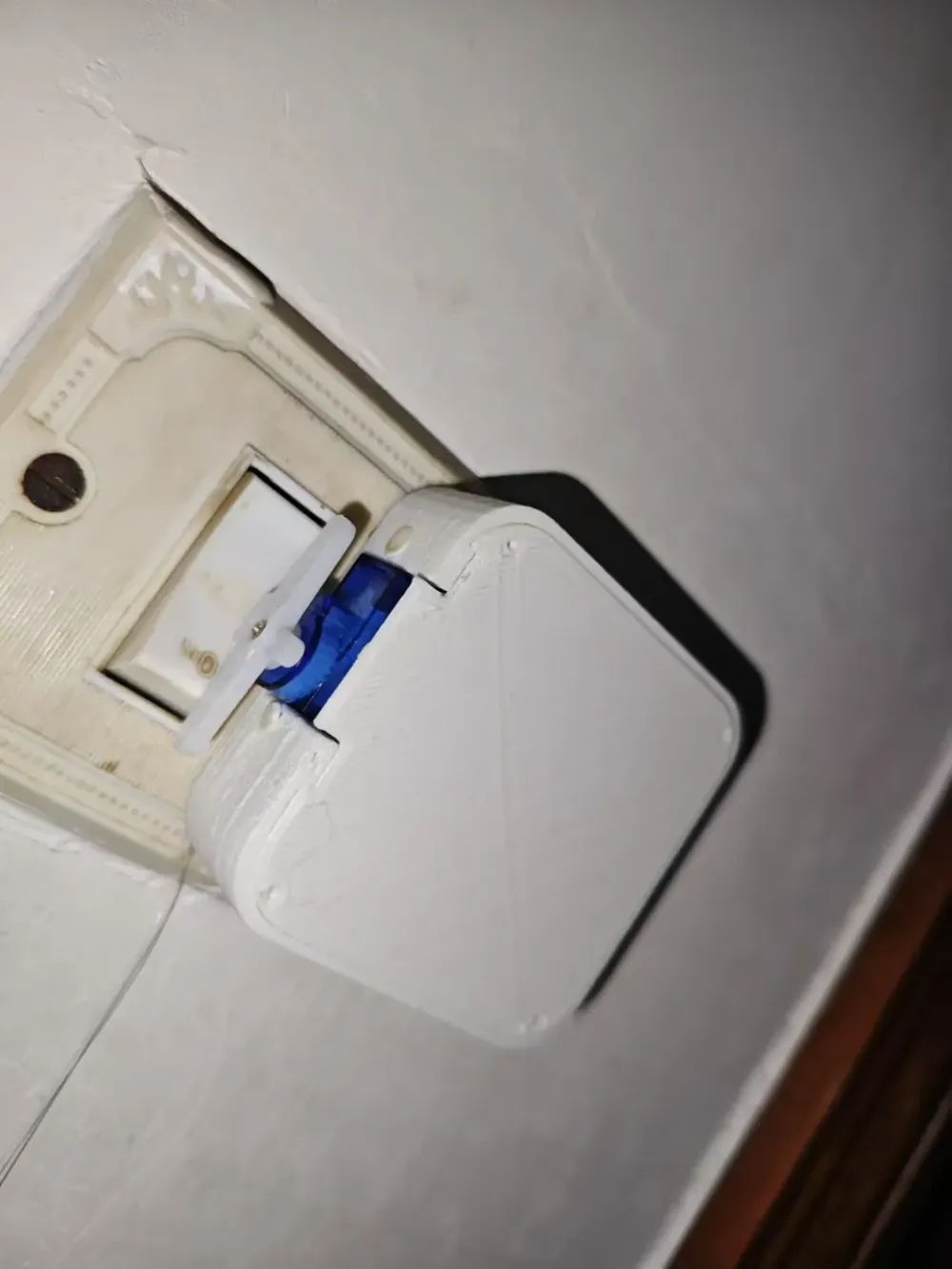

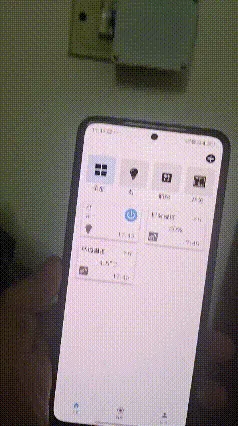

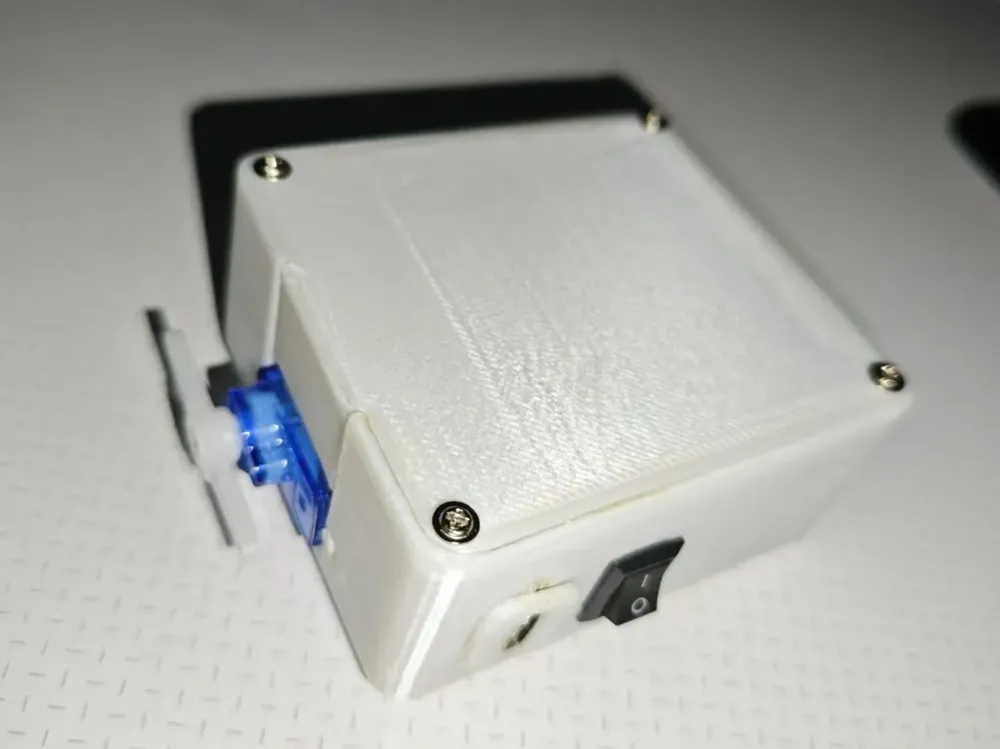

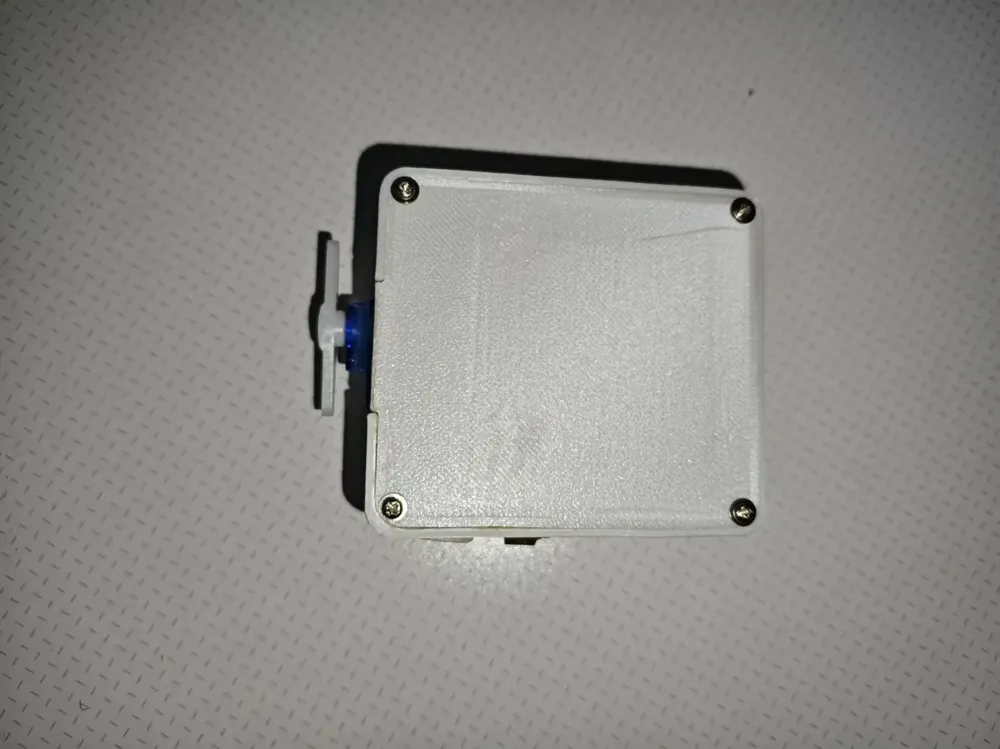

The smart light switch artifact has been made, it's very convenient to use, networkable, and can be voice-activated by phone (Xiao Ai, Tmall Genie, etc.)

Materials list:

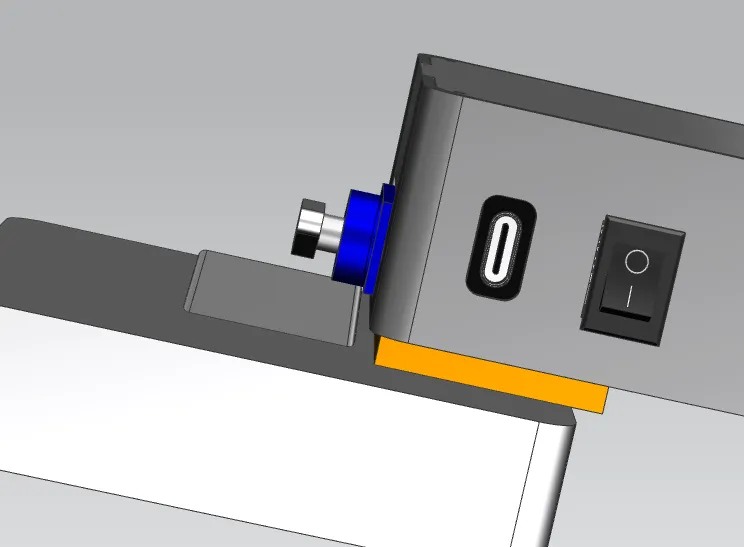

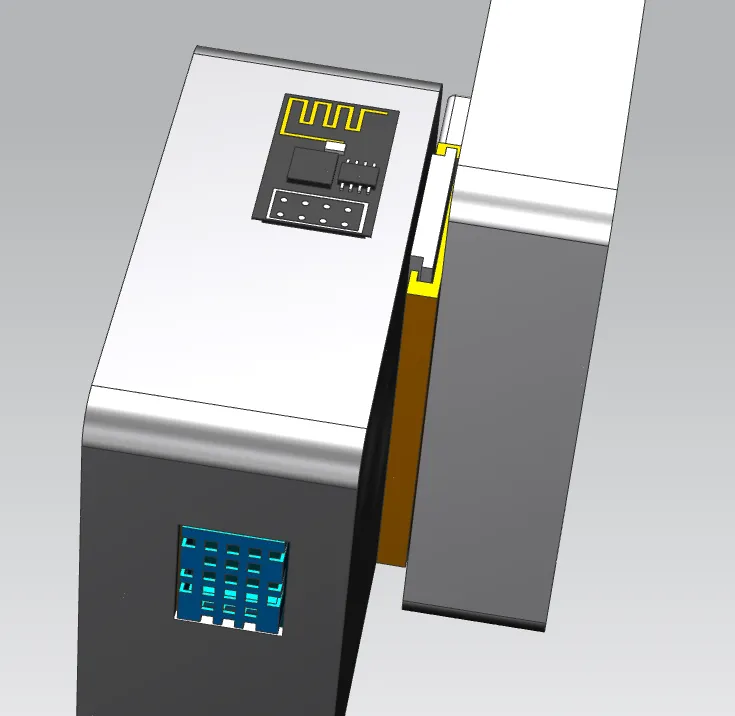

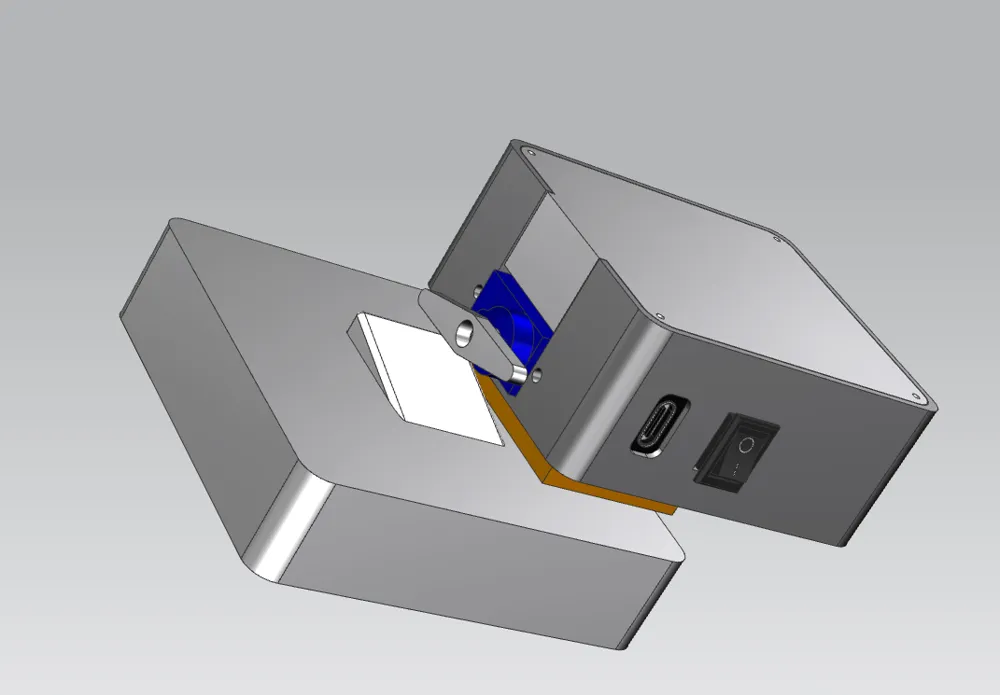

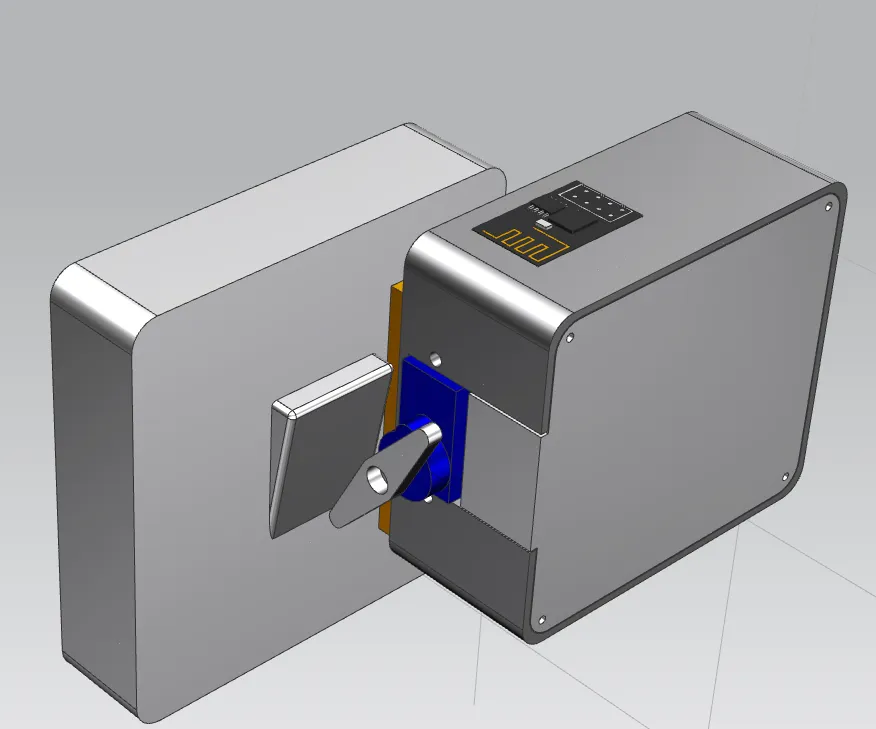

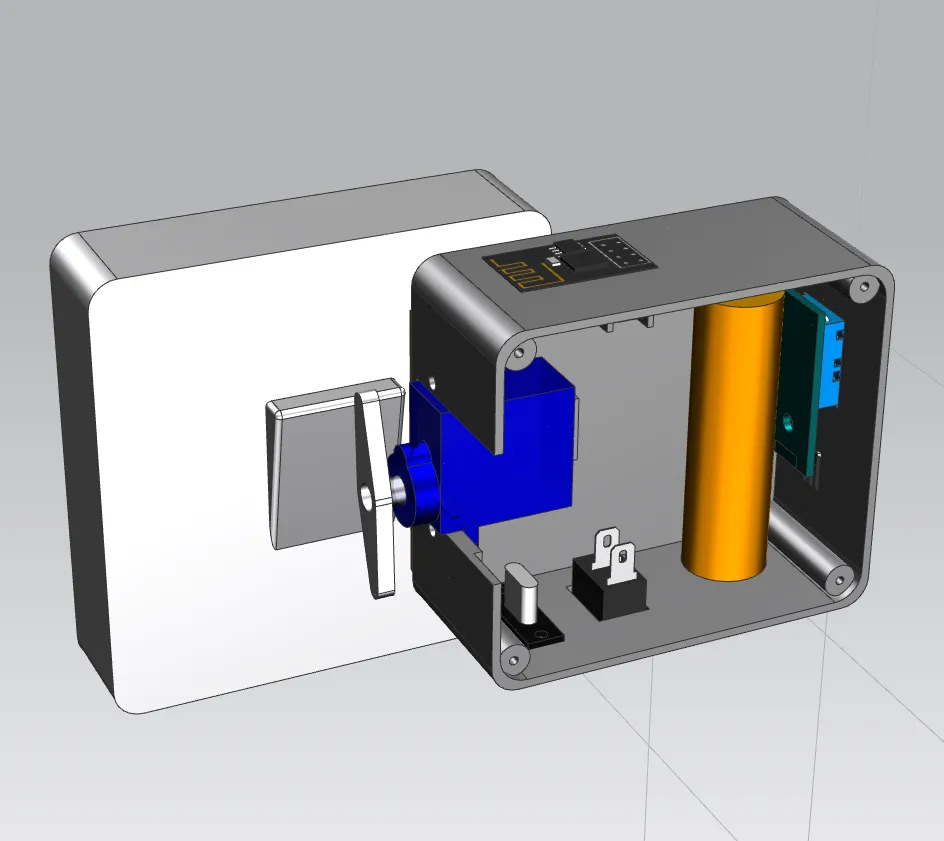

1. The enclosure model I uploaded

2. ESP-01S microcontroller (2.5 yuan)

3. Servo motor (includes screws, can fix the cover) (2.5 yuan)

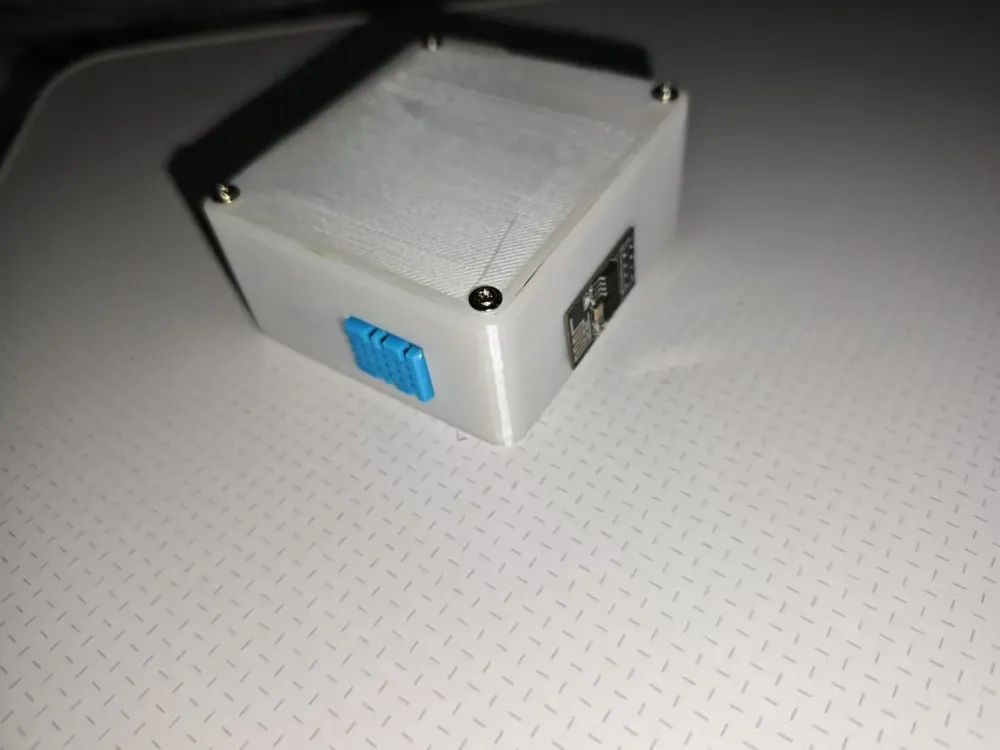

4. Temperature and humidity sensor (1.5 yuan)

5. Rocker switch (0.1 yuan)

6. Small rechargeable battery (2.5 yuan)

7. TYPE-C charging module (0.5 yuan)

8. Dupont wire or other wires (can be plugged in or soldered)

The prices listed above are the cheaper ones I chose

Note: (Bafa Cloud Platform) The program is simple, those who need it can leave a message
