Description

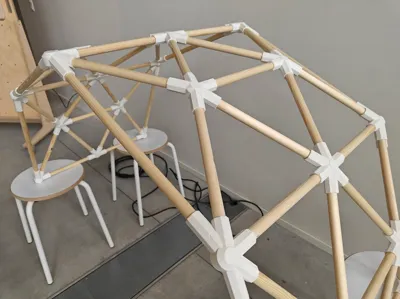

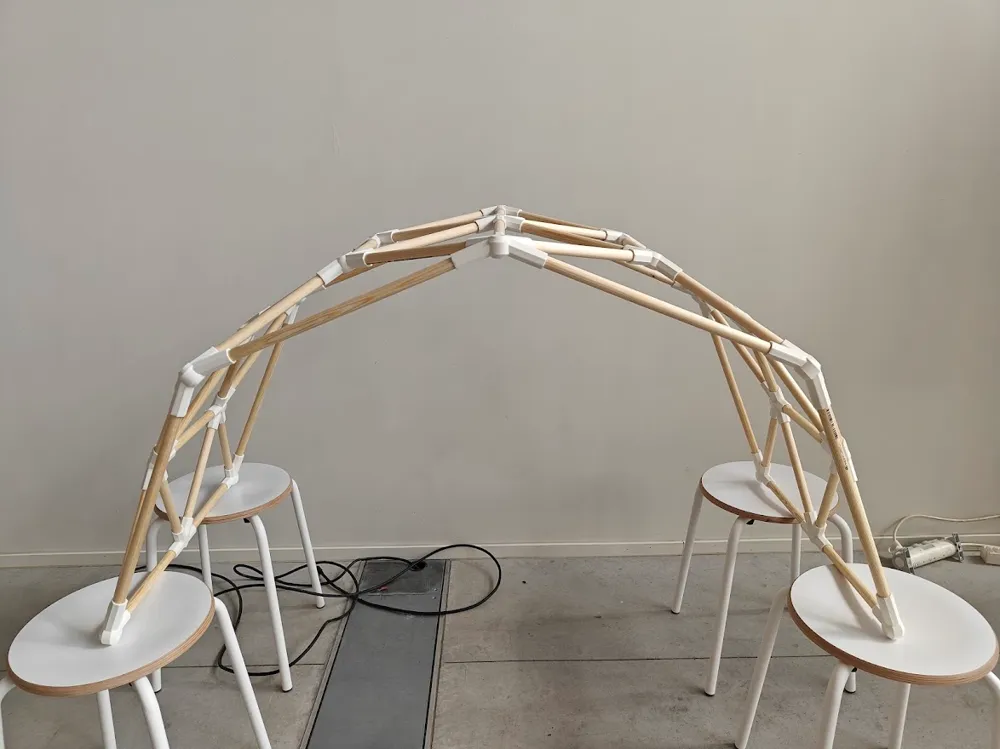

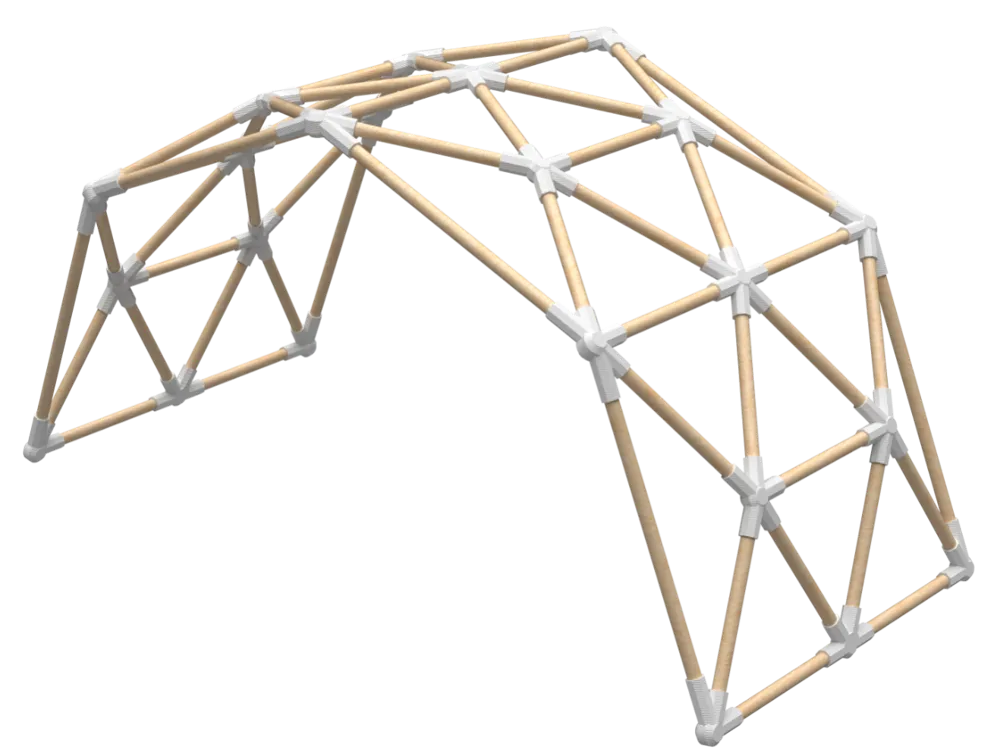

A bridge based on the principles of geodesic domes. The bridge is modular, allowing for easy assembly and disassembly, and is made up of 3D-printed joints and wooden sticks.
Parts:
- 3 x 3D-printed joint_6
- 6 x 3D-printed joint_5_side
- 8 x 3D-printed joint_5_center
- 2 x 3D-printed joint_4
- 2 x 3D-printed joint_3_left
- 2 x 3D-printed joint_3_right
- 8 x wooden stick 18 x 400 mm
- 46 x wooden stick 18 x 250 mm
Dimensions of assembled bridge: 1300 x 600 x 670 mm
Documentation (1)

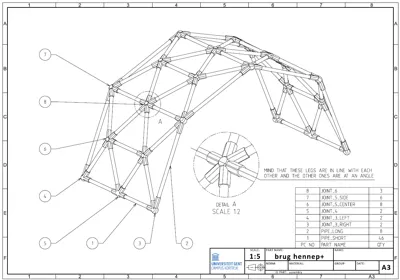

Assembly Guide (1)
illustratie opbouw.pdf
