Description

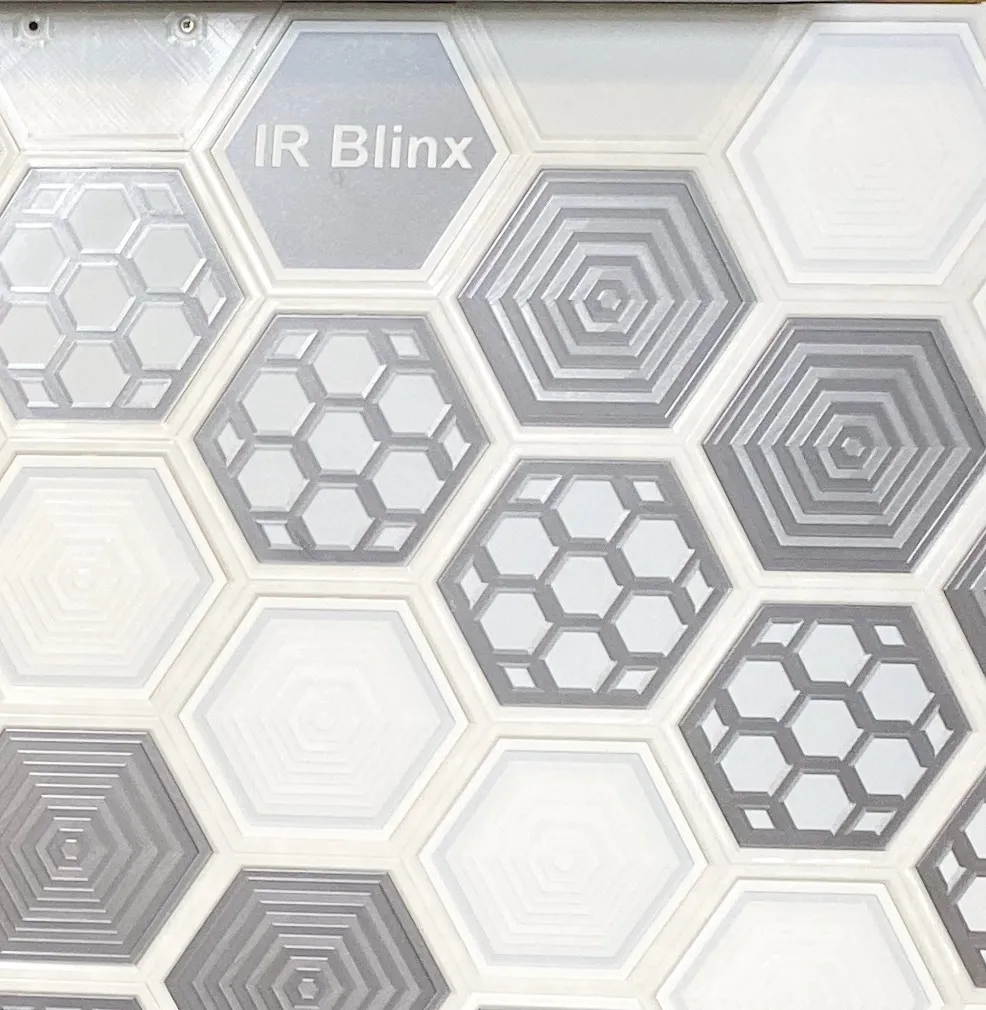

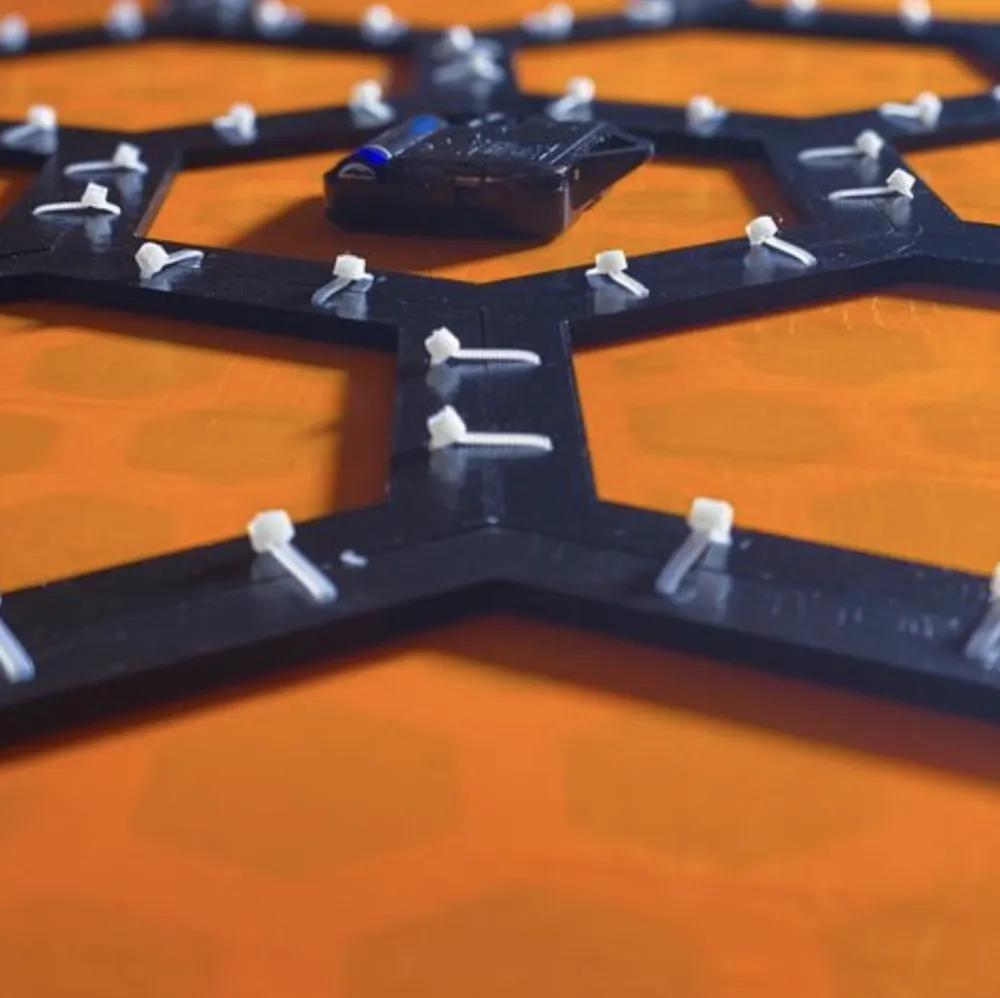

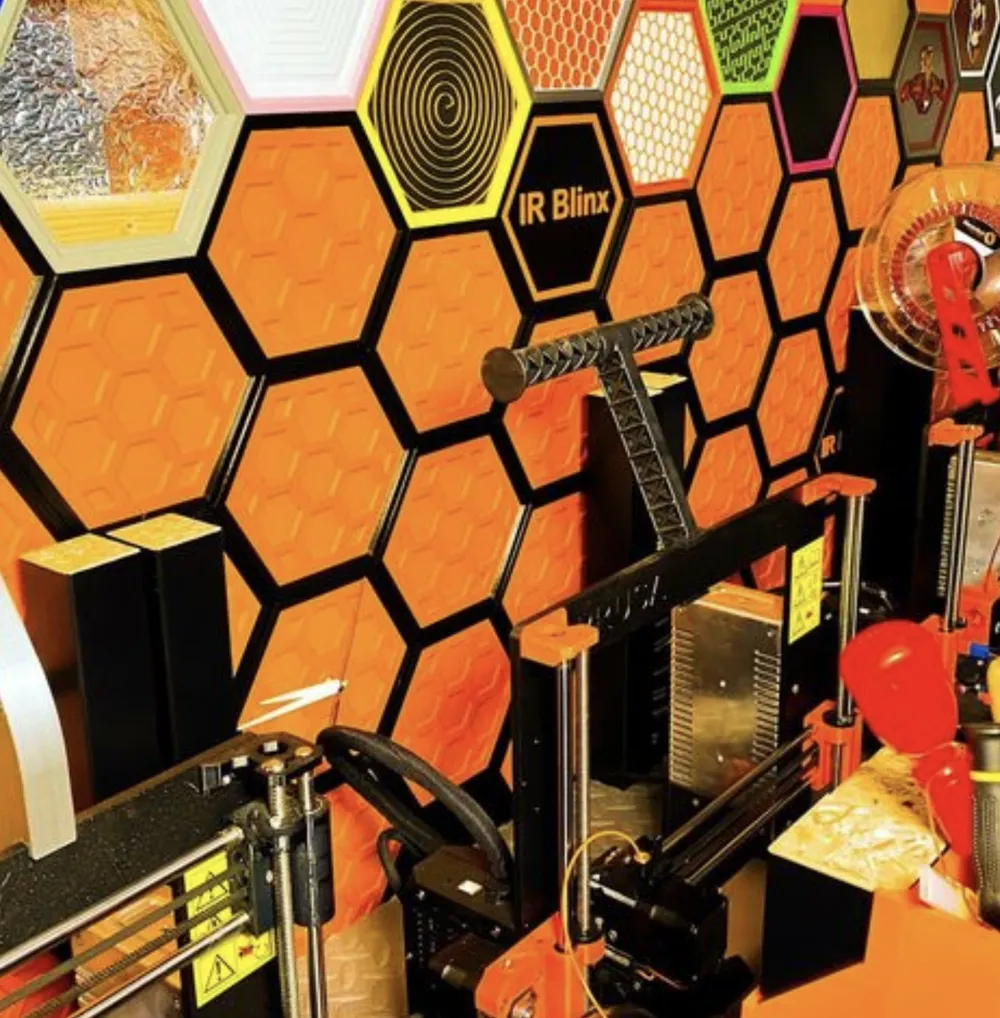

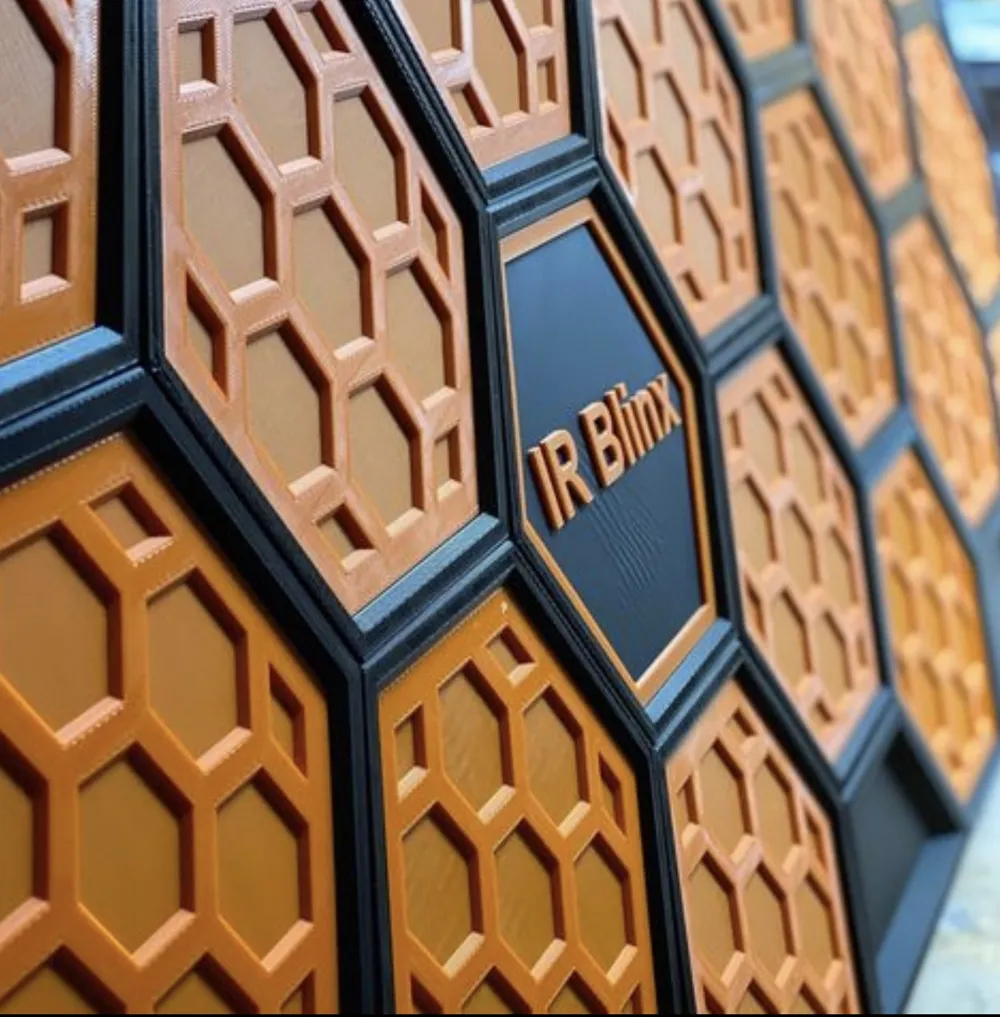

I'm working to cover the walls in my workshop with a 3D printed structure. I designed the individual tiles as hexagons and made a 2 part model, frame and insert, so that the design is interchangeable by swapping out the snap in inserts. The frame parts (BodyV2) are connected together with cables ties. The are some additional frame parts if you want to make the wall flush at the top/bottom/sides
There was a suggestion that this would make a good community project and so I've created a blank insert to allow people to come up with their own designs.
The only real rule is that the insert needs some flex to it so that the two tabs can be slotted into place on the frame.
NOTE that the tabs go to the top/bottom
