PicoCan
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
0
0
0
0
0
0
Released
Description
this plugs directly onto the skr to provide CAN bus functionallity via rx/tx pins.
Raspberry — usb —> Skr Pico — RX/TX —> SN65HVD230 —CAN L/H —> EBB36
see this for how to flash https://canbus.esoterical.online/mainboard_flashing/common_hardware/BigTreeTech%20SKR%20Pico/README.html
BUT take the 3.3V pins just left of the mount instead of 5V

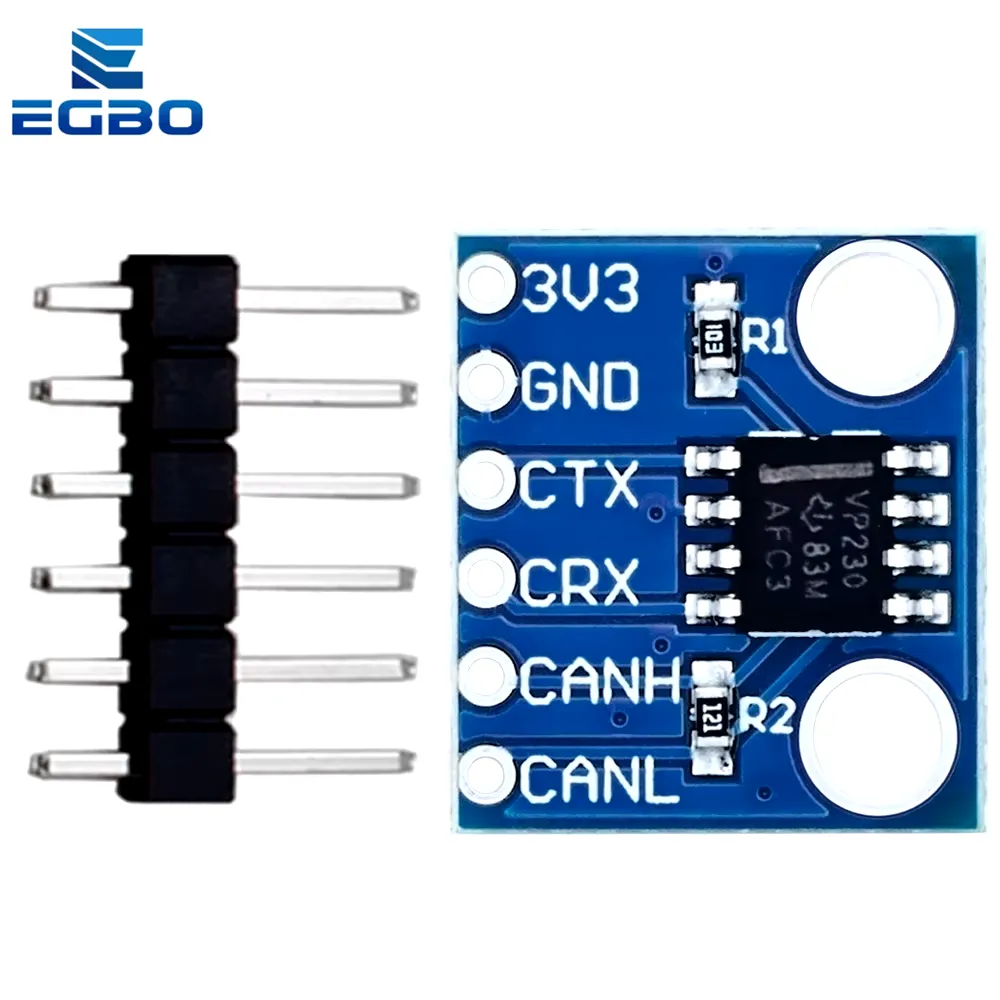

Its made for this one

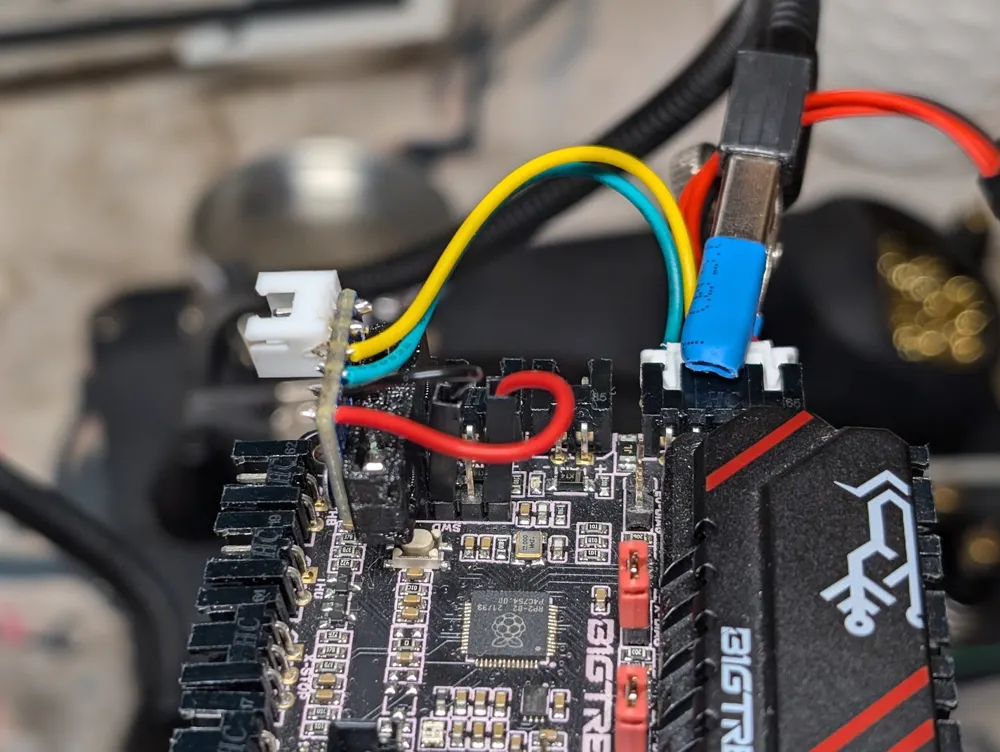

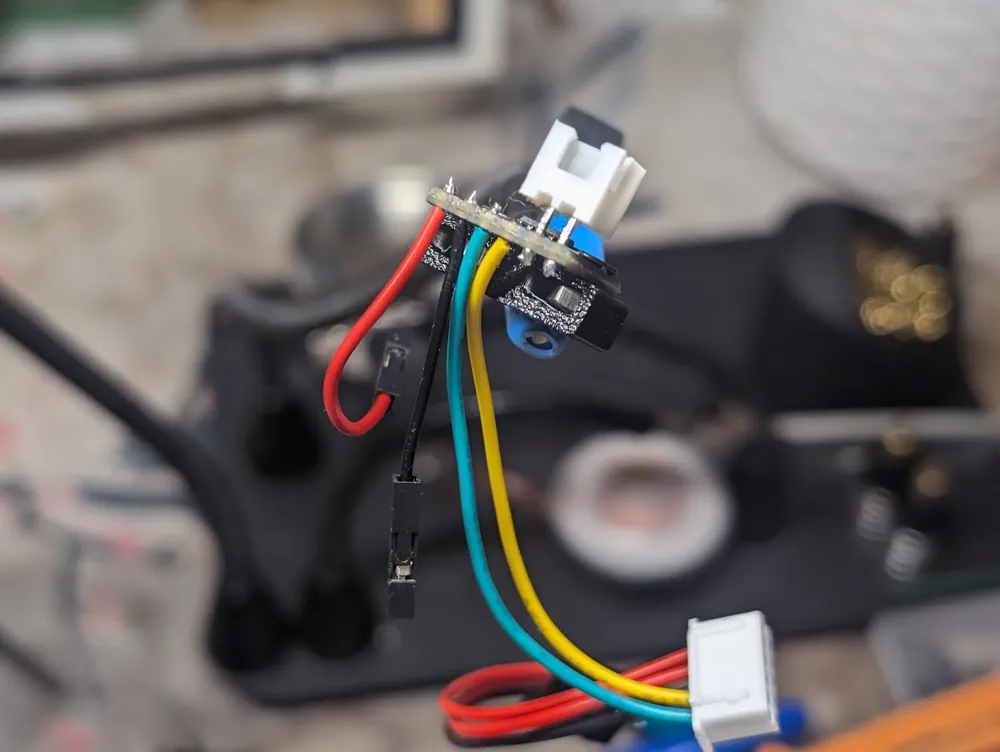

and should look like this THIN side to the pcb
