Butterfly Clock Hueforge
Print Profile(3)
Description

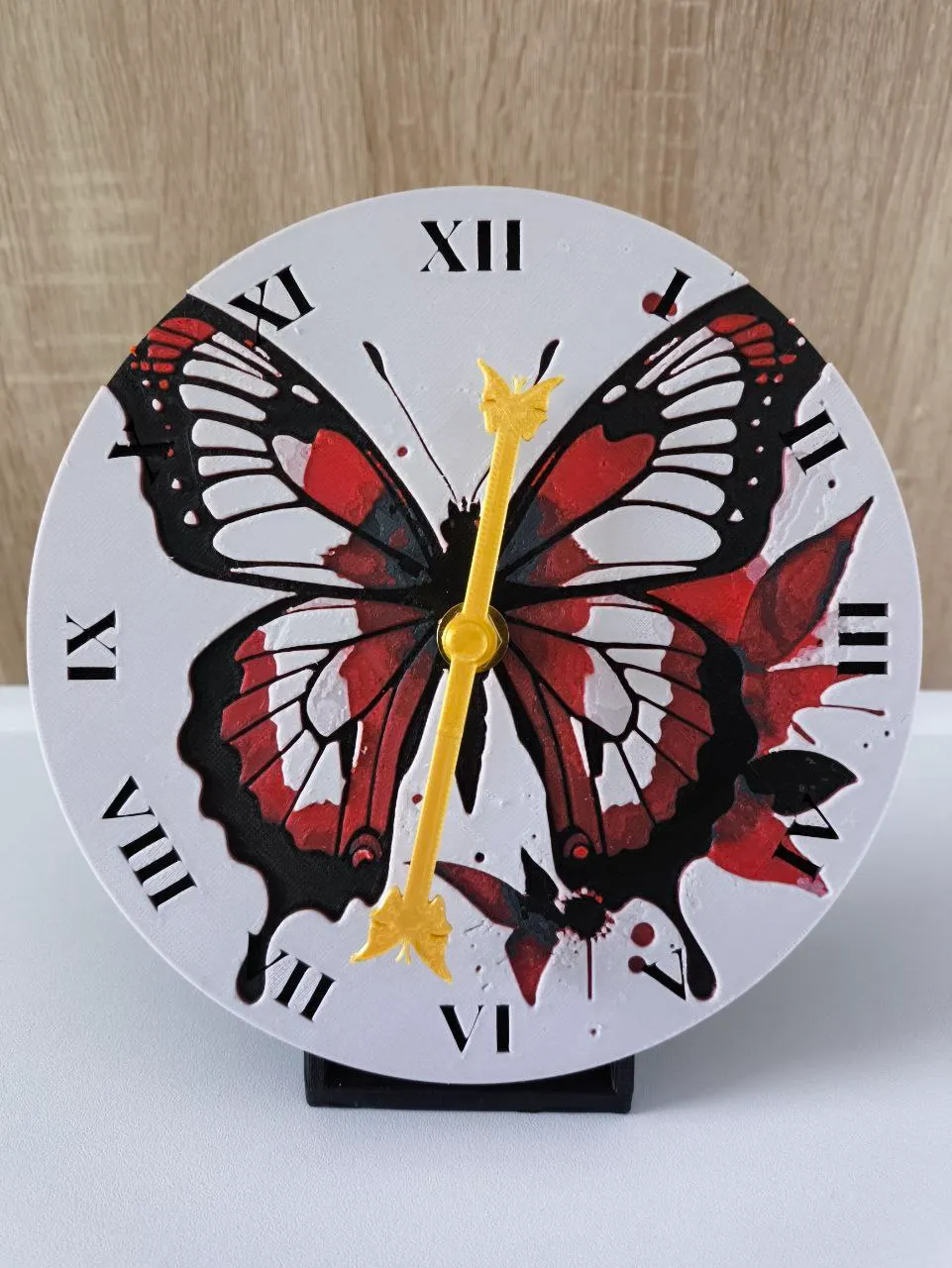

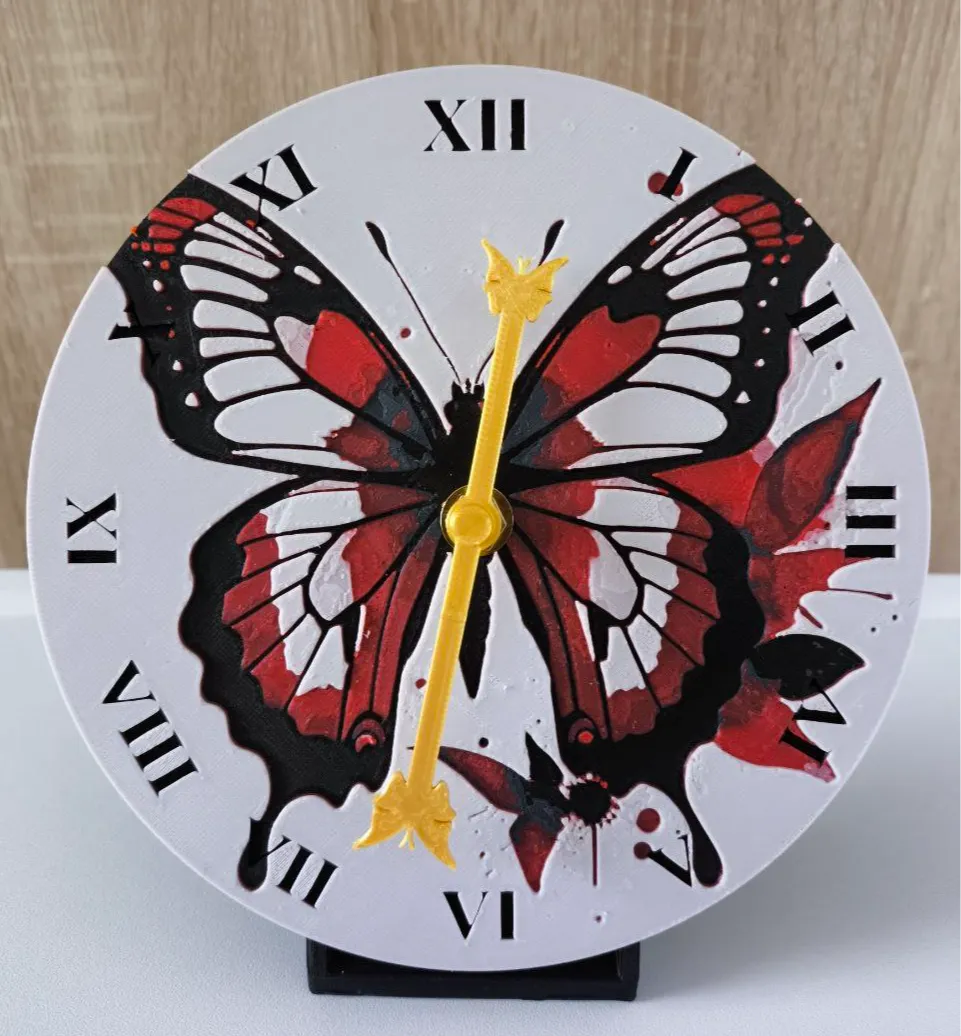

This clock model is available in 170mm and 245mm sizes.
The 170mm model can also be used as a desk clock. Corresponding mounts for the clocks are also available for download on my page.
Here is the clockwork mechanism I use:
https://www.amazon.de/dp/B0BRYZR1Q9?ref=ppx_yo2ov_dt_b_fed_asin_title
Here are my matching backplates for my 170mm and 245mm clocks:
https://makerworld.com/en/models/689970#profileId-618739

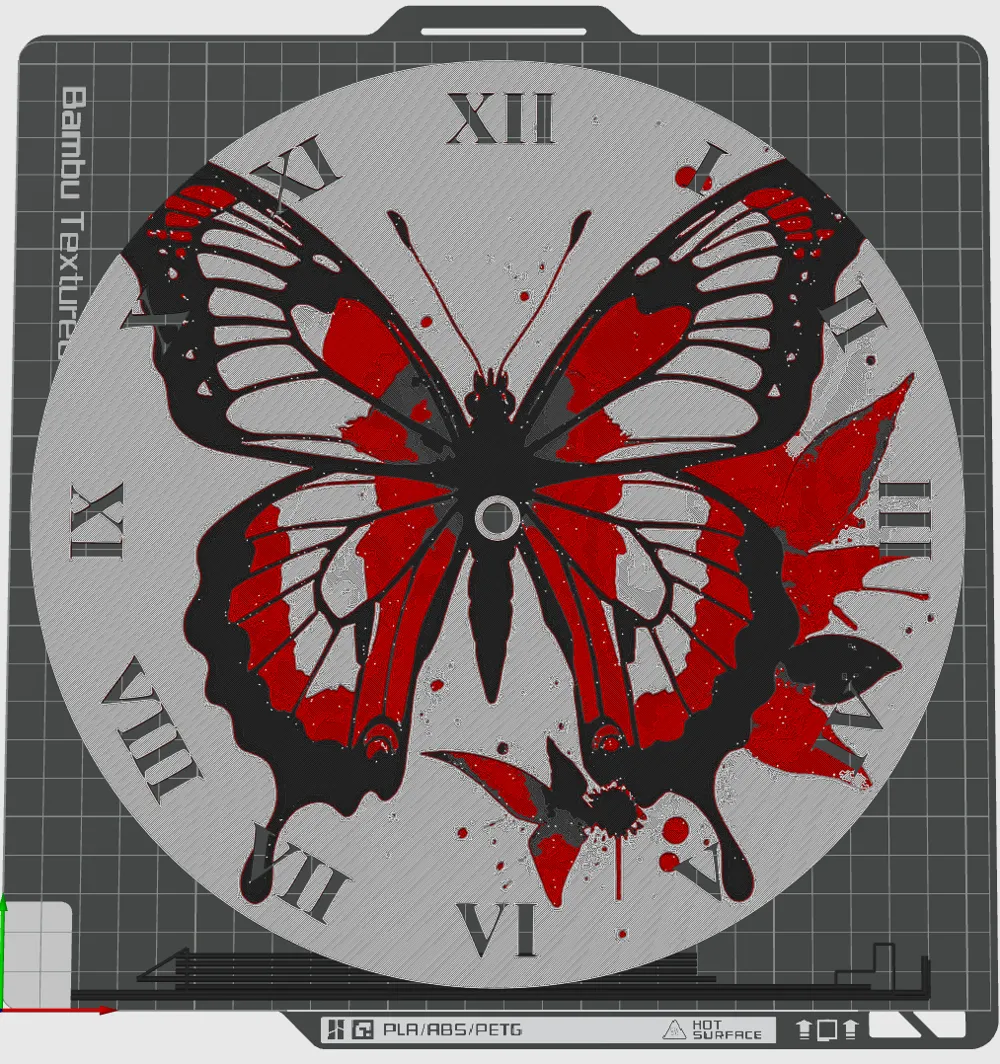

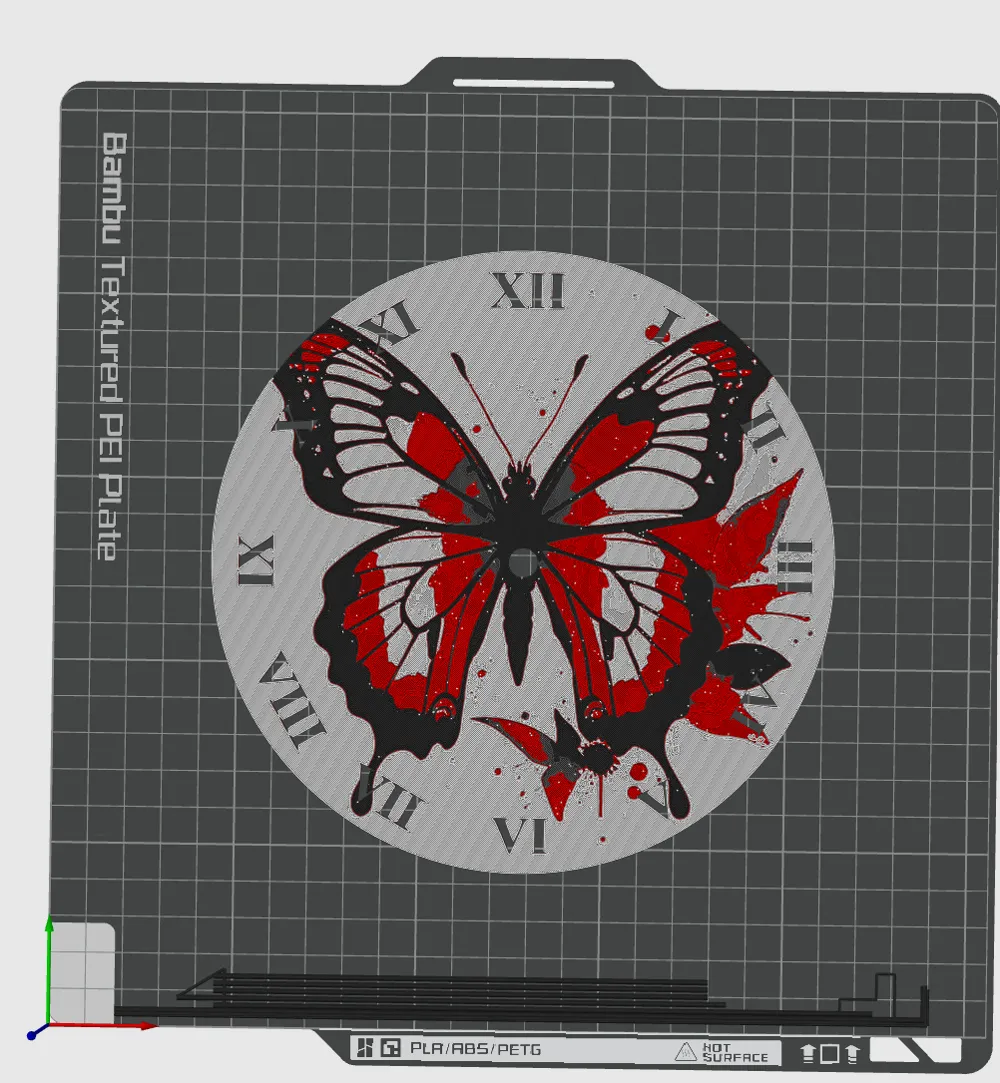

Print at 100% infill with a 0.08mm layer height and a 0.16mm base layer
The model is 170mm or 245mm in size
Higher layer heights below the minimum depth of 0.88mm may be used
The maximum depth is 2.5mm and the actual depth is 2.4mm
Filaments Used:
Geeetech Black PLA Transmission Distance: 0.2
Ziro Dark Grey PLA Transmission Distance: 2.2
Eryone Red PLA Transmission Distance: 1.7
Geeetech White PLA Transmission Distance: 4.4
This print utilizes four distinct filaments
Swap Instructions:
Begin with Black
At layer #12 (1.04mm) switch to Dark Grey
At layer #14 (1.2mm) switch to Red
At layer #23 (1.92mm) switch to White for the remainder.
