Electronic Generator Box
Print Profile(0)
Description

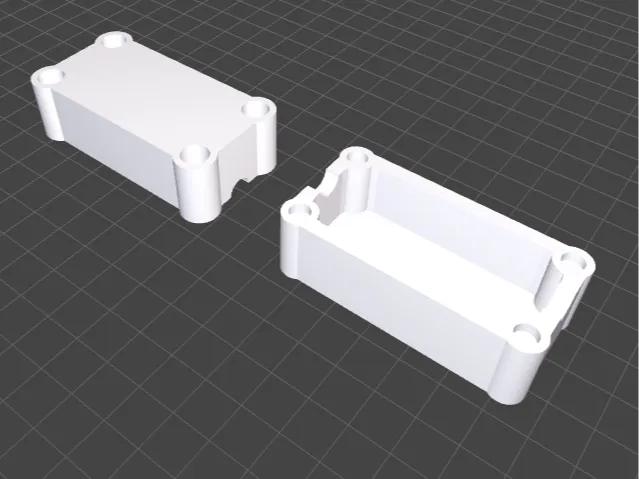

This multifunctional electronics enclosure is perfect for various DIY projects and electronic housings. Designed with OpenSCAD, it boasts a robust and well-conceived structure. Key features include:
- Rounded Corners: The enclosure features rounded corners for an elegant design and enhanced stability.
- Screw Holes: Four precisely placed screw holes allow for easy and secure mounting.
- Heat-set Insert Holes: The enclosure incorporates dedicated heat-set insert holes for added fastening options.
- Ventilation Holes: Small ventilation holes ensure sufficient airflow, preventing overheating.
- Cable Hole: A central hole allows for easy cable routing.
Parameters:
- Length: 100 mm
- Width: 50 mm
- Height: 30 mm
- Wall Thickness: 3 mm
- Cable Hole Diameter: 10 mm
- Screw Hole Diameter: 3 mm
- Heat-set Insert Diameter: 4.16 mm
- Heat-set Insert Depth: 4 mm
- Rounded Corner Radius: 5 mm
- Ventilation Hole Diameter: 2 mm
Applications: This enclosure is ideal for housing small electronics projects, such as Arduino or Raspberry Pi projects. It can also serve as an enclosure for sensors, switches, or other electronic components.
Files: The OpenSCAD file is included, allowing you to customize the enclosure to your needs.
Work in progress, a boost would be greatly appreciated to gauge interest and determine if further development of this enclosure is worthwhile…
