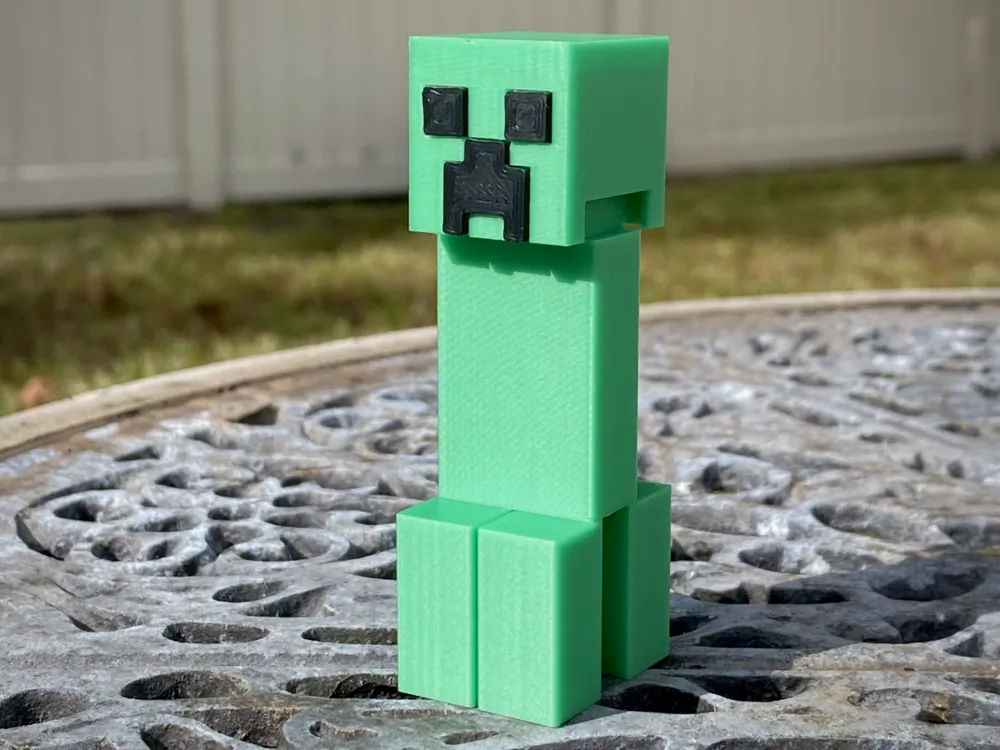

Creeper Clicker V2

This is a remix of my original creeper clicker, to make it easier to assemble! The body is now one piece instead of two, and there is more clearance inside the head to reduce any parts scraping together.

PARTS:

You will need one keyboard switch in a cherry mx format or similar. The first print profile contains all printed parts (eyes, mouth, head, and body). There is also a print profile with colors separated by plate.

ASSEMBLY:

The eyes and mouth fit into their grooves in the head, you might need glue to keep them secure.

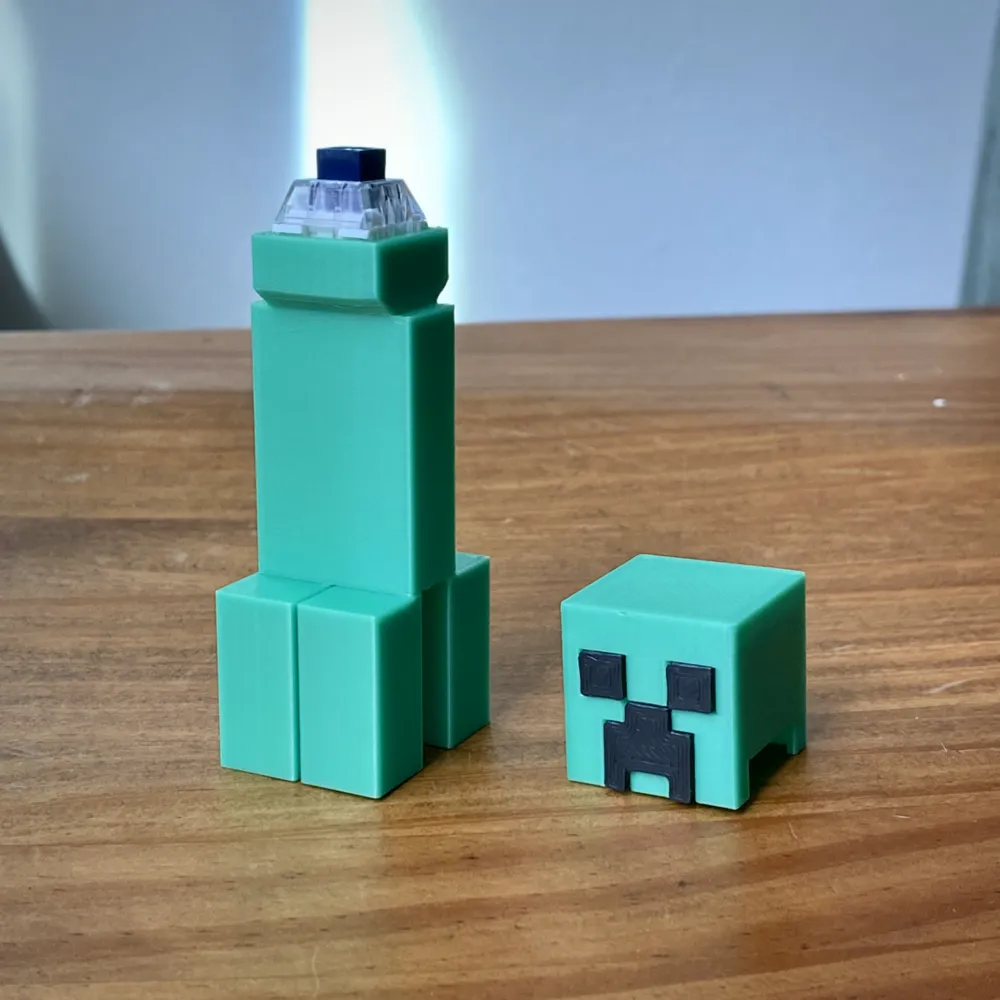

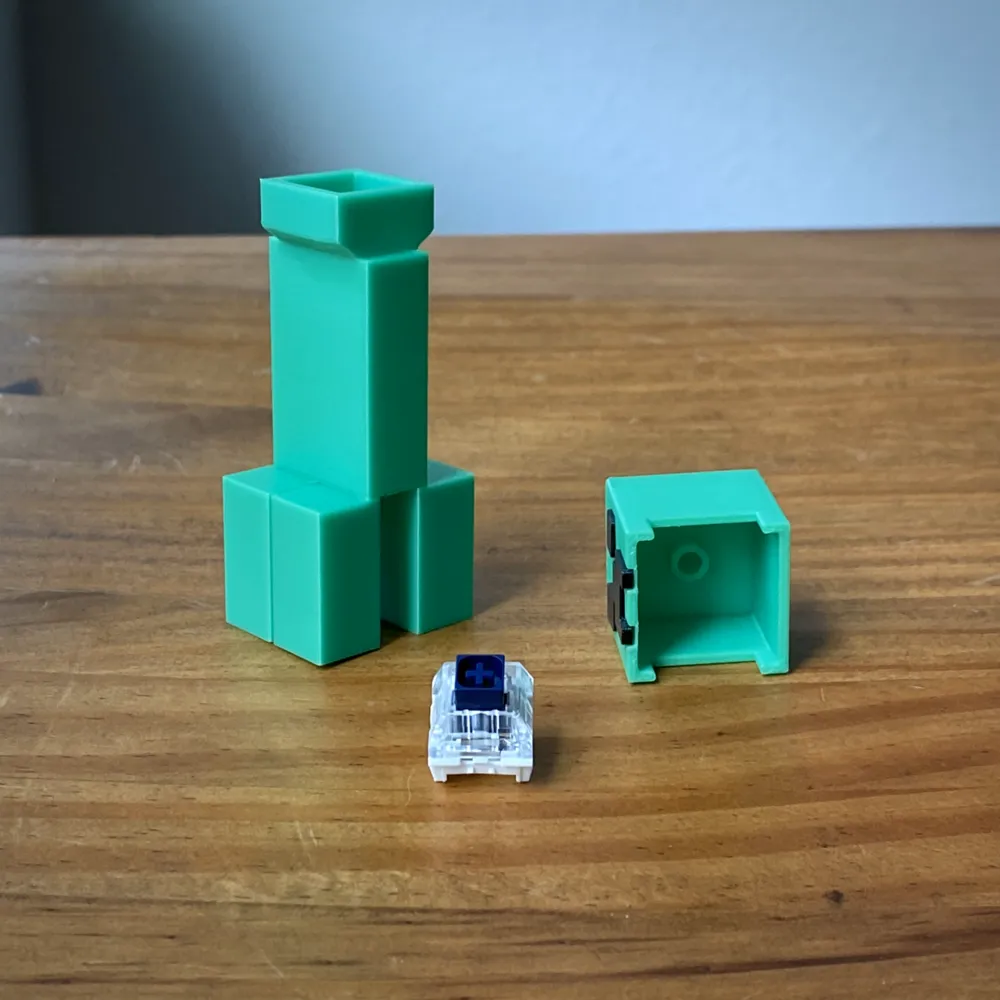

Push the keyboard switch into the base as shown in the photos, and pop the head on like a key cap. No need for glue, it should fit snugly.

PRINT SETTINGS:

Supports optional on the head (position upside-down on print bed), not needed on the body.

Any layer height and infill, 3 walls.

Adjust x-y hole compensation if the switch isn't fitting properly. Provided profile uses 0.02mm.
