Suspended Tensegrity X-Wing


Print Profile(3)

0.2mm layer, 2 walls, 10% infill
0.2mm layer, 2 walls, 10% infill
Designer
P1P, P1S, X1, X1 Carbon, X1E, A16.1 h
4.8
0.2mm layer, 2 walls, 10% infill
0.2mm layer, 2 walls, 10% infill
Designer
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A148.3 h
4.9
0.22mm layer, 2 walls, 8% infill (increase the temperature to ensure the first layer sticking)
0.22mm layer, 2 walls, 8% infill (increase the temperature to ensure the first layer sticking)
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A16.1 h
4.5

644
1032
197
1.9 k
764
Released
Copyright Claim
Model
Comment & Rating
Remixes
Related Models

Description

This is my entry to the flying object competition..
So i have been brainstorming of a design i can make for the competition and i knew i will make a suspended model for it..
But to make it different than my usual suspended model i need to add another element.. that's where the tensegrity comes in..


Tensegrity is basically a model that is floating solely by the tension integrity from the weight of the model itself.. in other words.. the X-wing will look like its floating and only supported by the suspended strings..

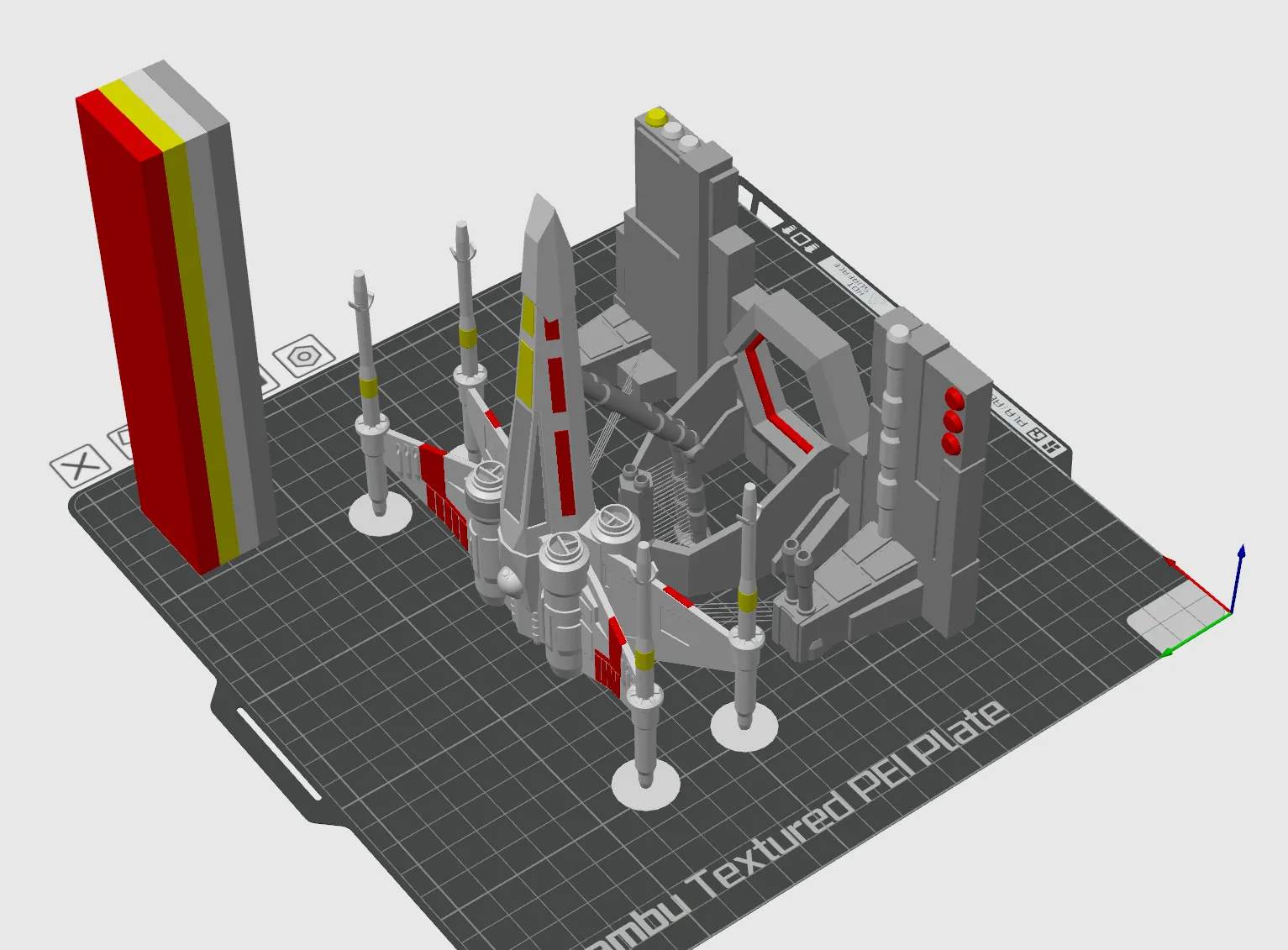

Like all my suspended model.. it will be printed in one piece except for the 4 back thruster engine.. that needs to be installed after print..
Once printed.. you need to be very careful when getting it off the bedplate since unlike other suspended model.. this one is held by very little strings.. the wings are held by 10 strings in total..



I have also prep the model so that you can easily paint parts for multicolor prints..

I've made the model small in size cause of the weight of the x-wing that the strings will have to bear.. and so that our A1 mini owners can join in the fun of printing this suspended tensegrity model

One important thing to remember is to set the wall generator to arachne from classic.. this will make the slicer print the strings..

I hope you guys have fun printing this suspended tie adv fighter


Comment & Rating (197)

Please fill in your opinion
0/5000

I have a question for you, i have never done one of these suspended string models on my x1c. with that being said what type of preparations should I do? filament calibration etc. thank you and happy printing
The designer has replied
0
Reply
no supports.. ni brim.. change the wall generator setting to arachne.. thats about it.. other setting i just used the default bambu studio..
3
Reply
Replying to @fay3dlab :
that seems to easy lol. but i guess that is the magic of bambu
0
Reply
it’s working!
3
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
printed beautifuly thank you
The designer has replied
1
Reply
Carefully when removing the brim on the 4 blasters
0
Reply
Replying to @fay3dlab :
will do, love it
0
Reply
yeah, I broke it whilst removing the plasters… So I’m just gonna print it again and keep it, they look fine
0
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
this looked absolutely amazing. my favorite print so far
The designer has replied
1
Reply
That color looks freaking awesome.. Is that the new dual color filament from bambu?
0
Reply
Replying to @fay3dlab :
no just one I saw on Amazon that I fell in love with
0
Reply
Fantastic model! 4 colour, 0.4mm nozzle, 0.2mm layers, 1390 filament changes, 44 hour print, A1 mini
(Edited)
The designer has replied
2
Reply
That looks epic
0
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
Perfect. came out very great. perfect print. thx 4 share this model
The designer has replied
2
Reply
Congratulations on printing this.. Looks clean too.. Good work..
(Edited)
1
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
what an absolute pleasure to watch being made! Thank you very much sir!
The designer has replied
1
Reply
You're welcome
0
Reply
Thank you it was cool to make, not to much poop but super fun to show off. thanks
The designer has replied
1
Reply
those color ia trippin.. ahahaha
0
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
very cool print, ended up printing with a brim outside only ( don’t think it needs it, had one fail but think that’s down to heat creep, as I didn’t open the door) i did gyroid rather than grid for the infill as I know grid has a tendency to clip parts and didn’t want that happening again. boy does it look amazing, has one of the thrusters fail each time, not an issue it’s 30 mins to print 4. rotated the thrusters to wide end touching the plate. and then used outside brim.
The designer has replied
1
Reply
Nicely done.. It looks awesome in multicolor
0
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
impresion perfecta pero al despegar la pieza de la cama se rompieron los tirantes de las alas aun asi el modelo de aguanta por los de debajo asi que me vale
(Edited)
The designer has replied
0
Reply
how is that even possible.. ahahahaa
0
Reply
Replying to @fay3dlab :
no se pero aguanta jajaja, de lujo
0
Reply
Awesome model! Unfortunately, the tensors ended up failing, but no big deal, cleaned it up and hard mounted it to its base. Someone at work mentioned that it looks like milk chocolate, so yea . . . . now thats all i see, the milk chocolate x-wing!
The designer has replied
1
Reply
sorry to hear your strings broke.. its very fragile.. but your way looks damn cool too
0
Reply
