Modular showcase display

Modular showcase for displaying miniatures, figures, warhammers, statues or any other collections.

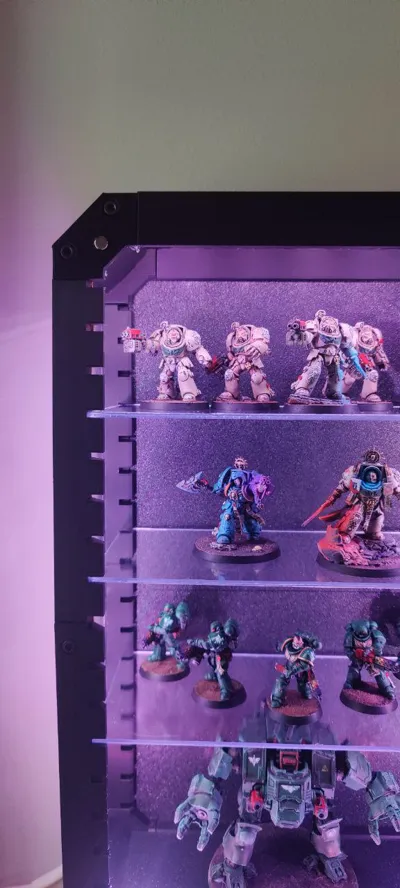

You can place shelves at diferent heights and as many shelves as you need.

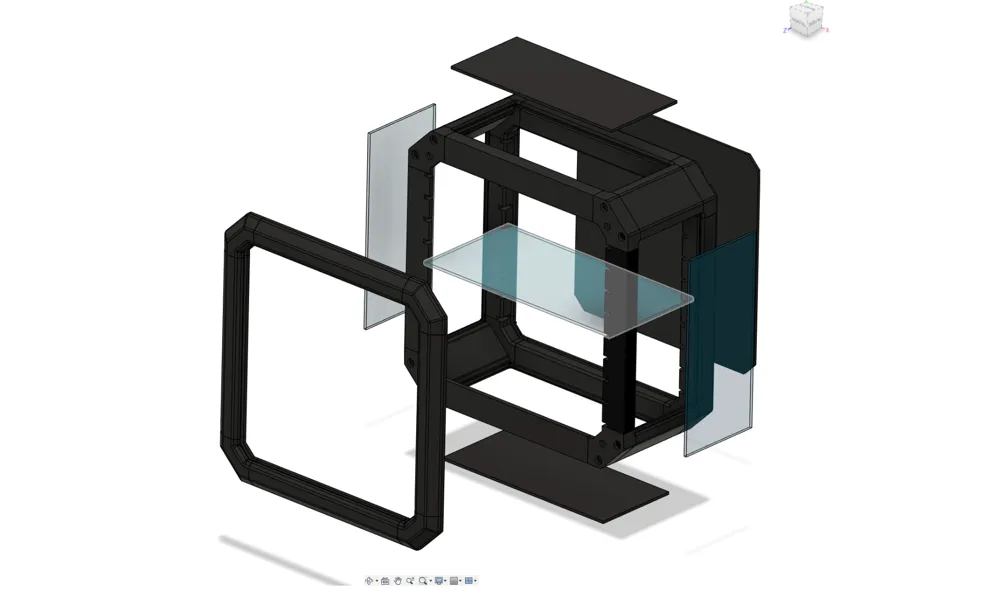

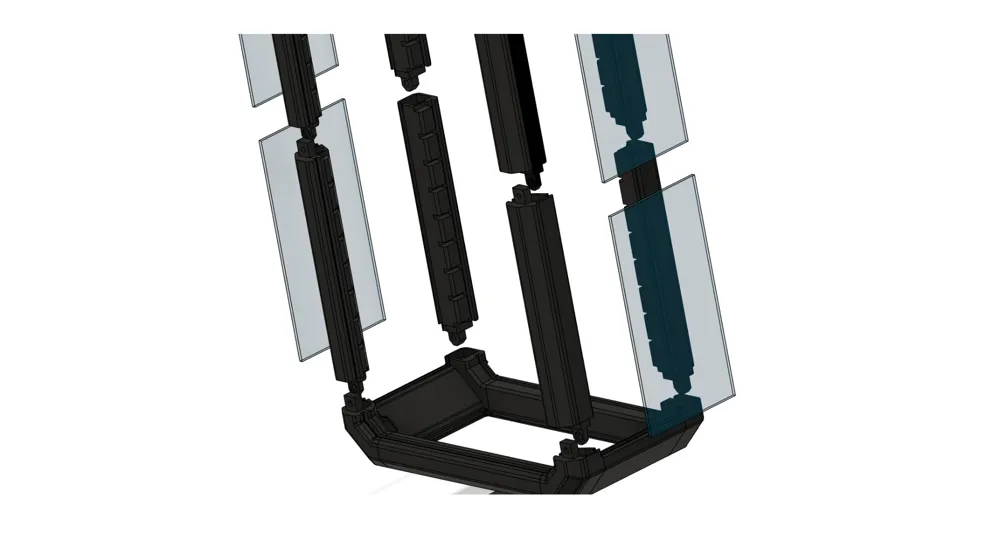

Shelves, back, upper, lower and side panes can be printed or made with any transparent sheet as show in pictures. Recomended to use polycarbonate, methacrylate or any transparent plastic sheets with 2 to 3 mm thickness.

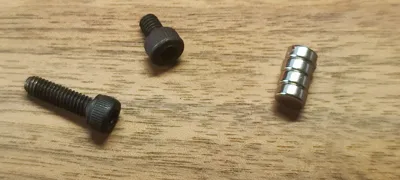

You can use 4x6mm screws for the door and 4x16mm (you can use up to 4x20mm) screws for the frame conections or you can just glue them.

To hold the door in place, you will need eight 5x3mm magnets.

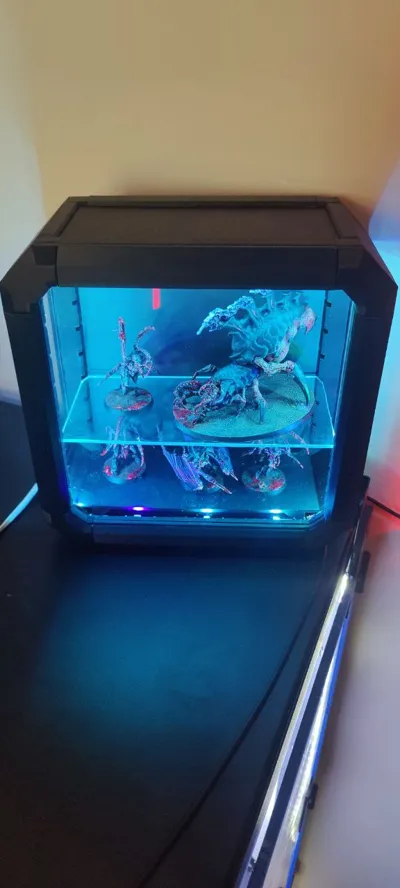

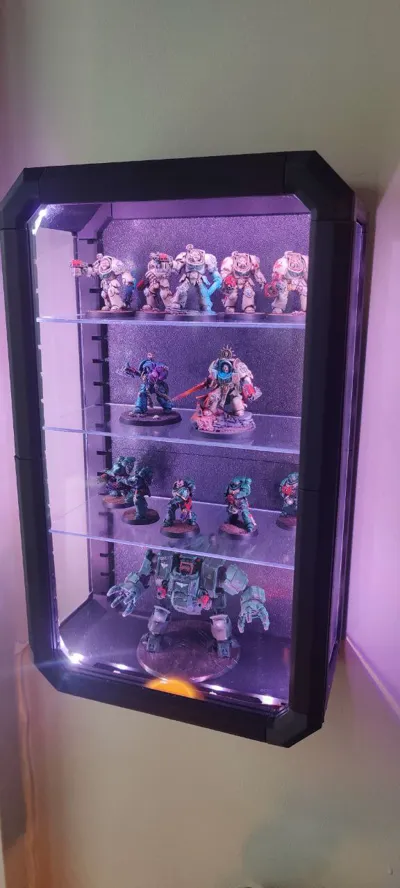

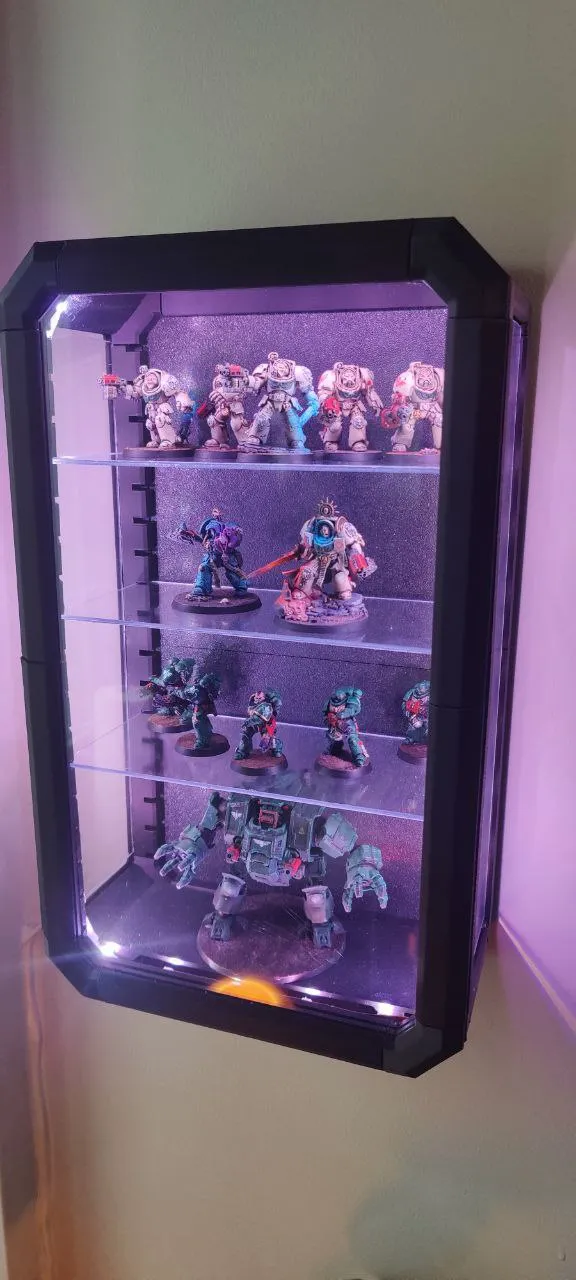

If wanted, there can be placed a led strip inside the front frame to light the showcase. You can also hang it on the wall with screws.

Minimal length (inside showcase measures): 200 x 200 x 100 mm

FIRST PRINTING PROFILE HAS THE INCORRECT BACK CORNER PIECES. I UPPLOADED A CORRECTED PRINTING PROFILE. IF SOMETHING FAILS, PLEASE LET ME KNOW TO CORRECT. THANKS.

Working on more variants to make the wider and bigger.
