Phone Stand
Print Profile(1)
Description

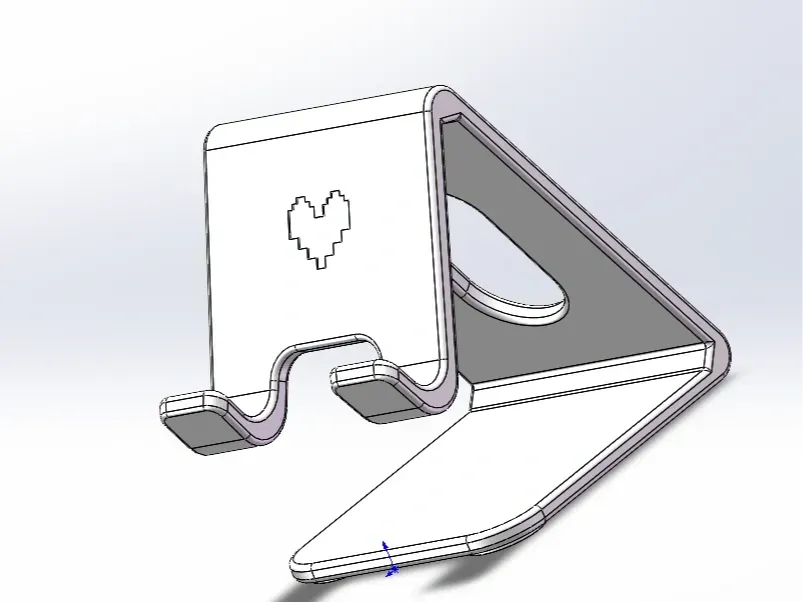

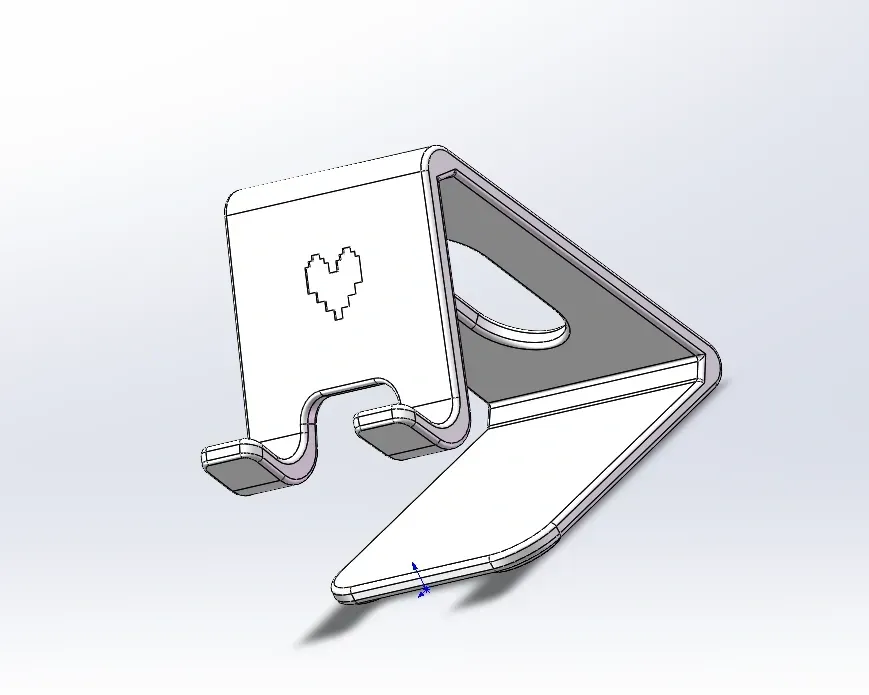

The back of the design features an elliptical cutout to reduce weight, while the front (where you place your phone) has a pixelated heart logo from Undertale.
The model uses side printing, and due to the possibly smaller contact area, my prints kept getting knocked over by the nozzle halfway through. This could also be due to the highest precision default settings I chose, with a layer height that's too low.
This is my first modeling work using Solidworks. I'm uploading it to commemorate this milestone and to earn some points to get discounts on supplies. I've only enabled tree supports and changed the infill pattern to octospiral, while keeping the default settings of 0.20mm strength @bbl a1m. (I'm using a different printer so I'm unsure how it'll turn out, so I'm hesitant to change anything else.)
I'm not working in a vacuum. I'm printing my own design right now, and it's already failed several times. I'll post the finished product once it prints successfully.
