Bed Rail Base Cover Remixed by Ocular Dynamic

Remixed by

Ocular Dynamic

3D Printer>3D Printer Parts

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

19 min

1 plate

4.9(50)

Open in Bambu Studio

Boost

175

440

235

Released

Description

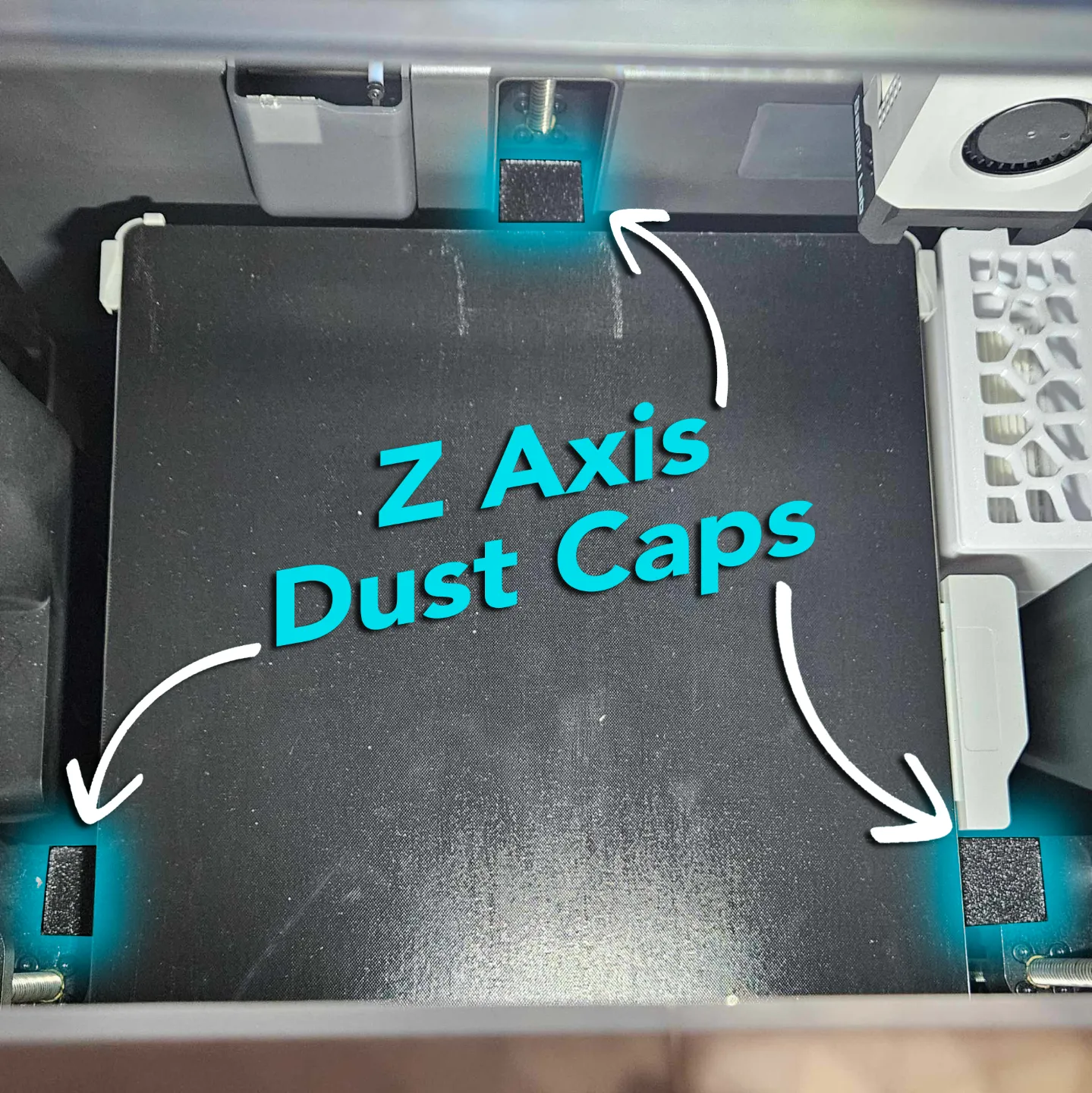

Plug/Cover to block debris from getting inside the hole at the bottom of the rail for the bed.

Was just looking to grab a hair more clearance so I trimmed 1.25mm off the top of the model to make it slightly thinner (2mm vs 0.75mm, you can see the difference in the second picture). Credit to clselee.tw for the great model!

*Note: When the bed is fully in the bottom position the bearings on the rails slide in to these holes, so just make mental note to remove them if you plan to print with the full range of the Z axis

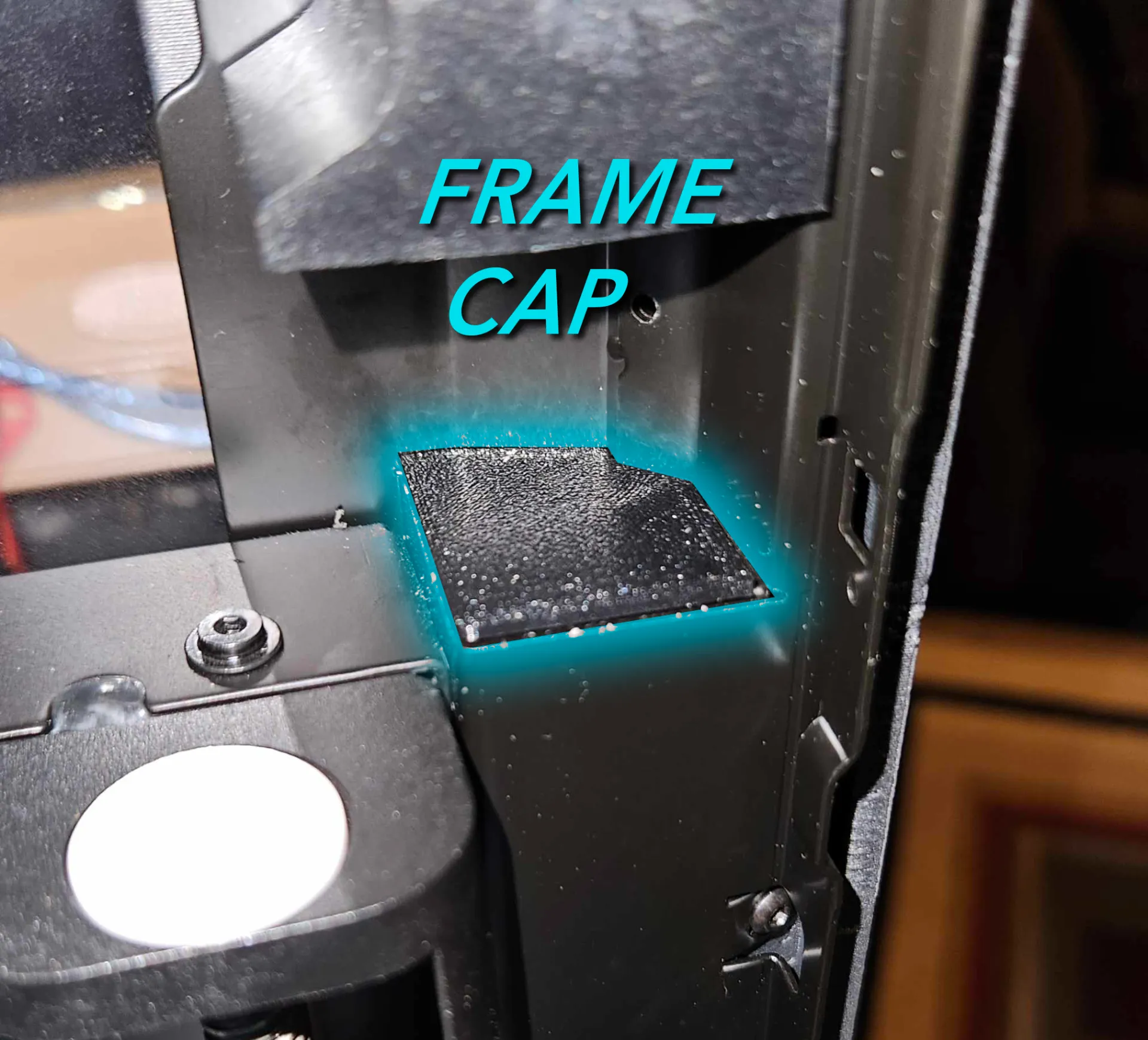

Looking for more covers to clean things up, check out some of my others!

Comment & Rating (68)

@jepeda

Print Profile

0.2mm layer, 2 walls, 15% infill

No issues printing but these do not seem to stay in place

The designer has replied

@OcularDynamic

if I'm seeing this correctly you have them upside-down. The smaller diameter part should go in to the hole and in the photo it looks like you have it upside-down. It also appears you have them around the threaded rod, not the rail (that's behind the rod in the photo)

(Edited)

@jepeda

Oh no I am ashamed. I'll reprint it today! Thanks!

@AnsgarOdinson

Print Profile

0.2mm layer, 2 walls, 15% infill

Fits Perfectly. I print with eSUN PLA+ . Thank u for that =)

The designer has replied

@OcularDynamic

Glad to hear it!

@G3R_xXAuronXx

Print Profile

0.2mm layer, 2 walls, 15% infill

fits perfectly

The designer has replied

@OcularDynamic

Thanks for the review!

@user_344532367

They snapped right in. Great job. Thanks

(Edited)

@ADAGIO3D

The print profile is no longer public

perfect fit!

@diego.mosquera

Print Profile

0.2mm layer, 2 walls, 15% infill

I like how they look like.

(Edited)

@Roby82

Print Profile

0.2mm layer, 2 walls, 15% infill

@N302OO7

Please write a warning in your description that with large prints the bed will move against the protection and the print will be torn off the plate.

The designer has replied

@OcularDynamic

Do you mean the note I already have in the description about removing the covers if you plan on printing large prints to avoid an issue with the bed not being able to go in the fully lowered position? Or something else?

@N302OO7

Replying to @OcularDynamic :

Oh yes, I just read it, but unfortunately I overlooked it until the bed ran into it.

@rhunt02

Print Profile

0.2mm layer, 2 walls, 15% infill

Highly recommended. prints, looks, works great!!!

The designer has replied

@OcularDynamic

Thanks, appreciate it!

@jsmith07611

it is a nice idea and i tried it but just be careful. if you do a large tall print like 255mm high then the bearings will crash into these. and also the z homing will go funny. as it will redefine it. so if you don't do tall prints you should be okay but never lower the bed fully with these

The designer has replied

@OcularDynamic

I thought I had mentioned that in my description, but I guess it was one of those situations where I thought it, but never actually typed it lol, i'll make that note now
