Description:

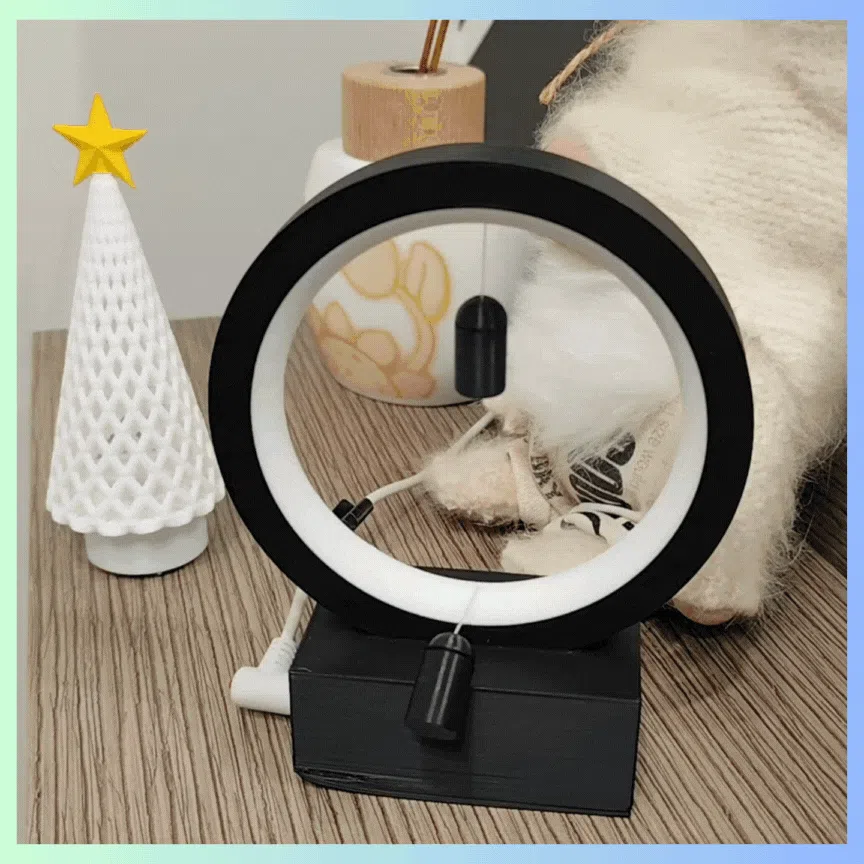

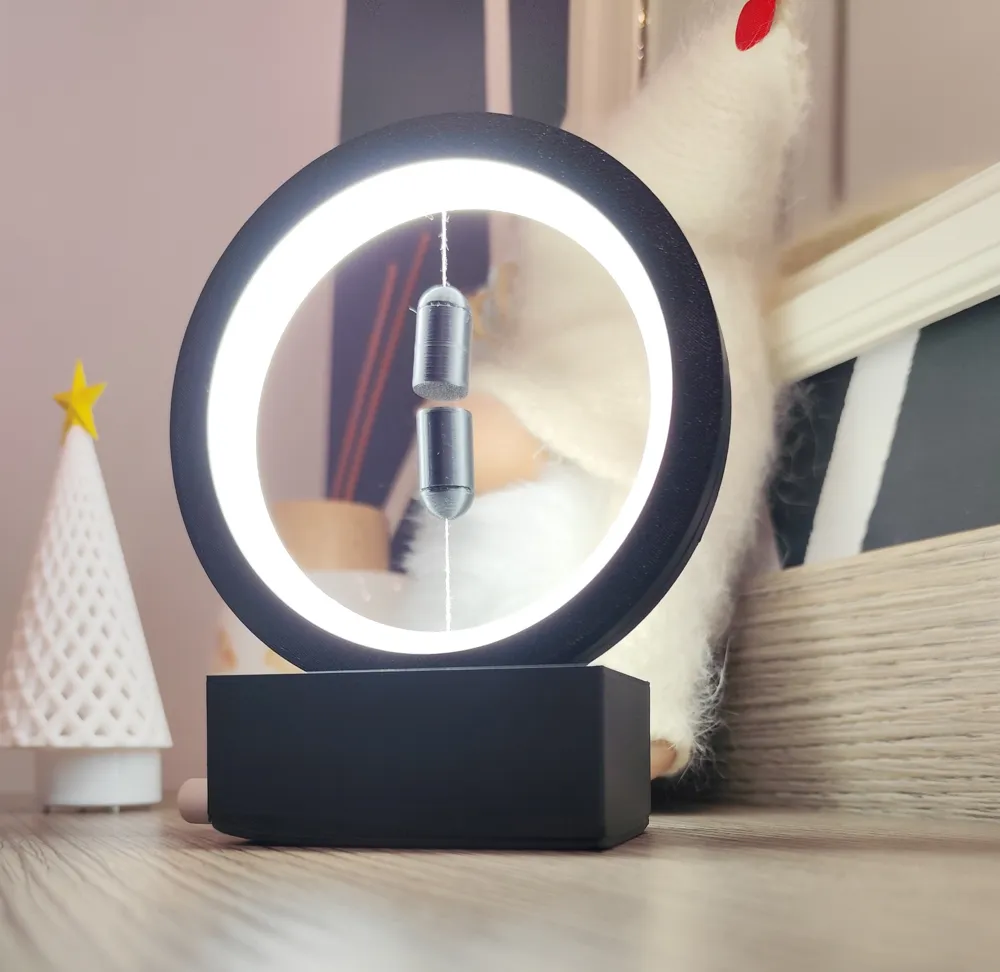

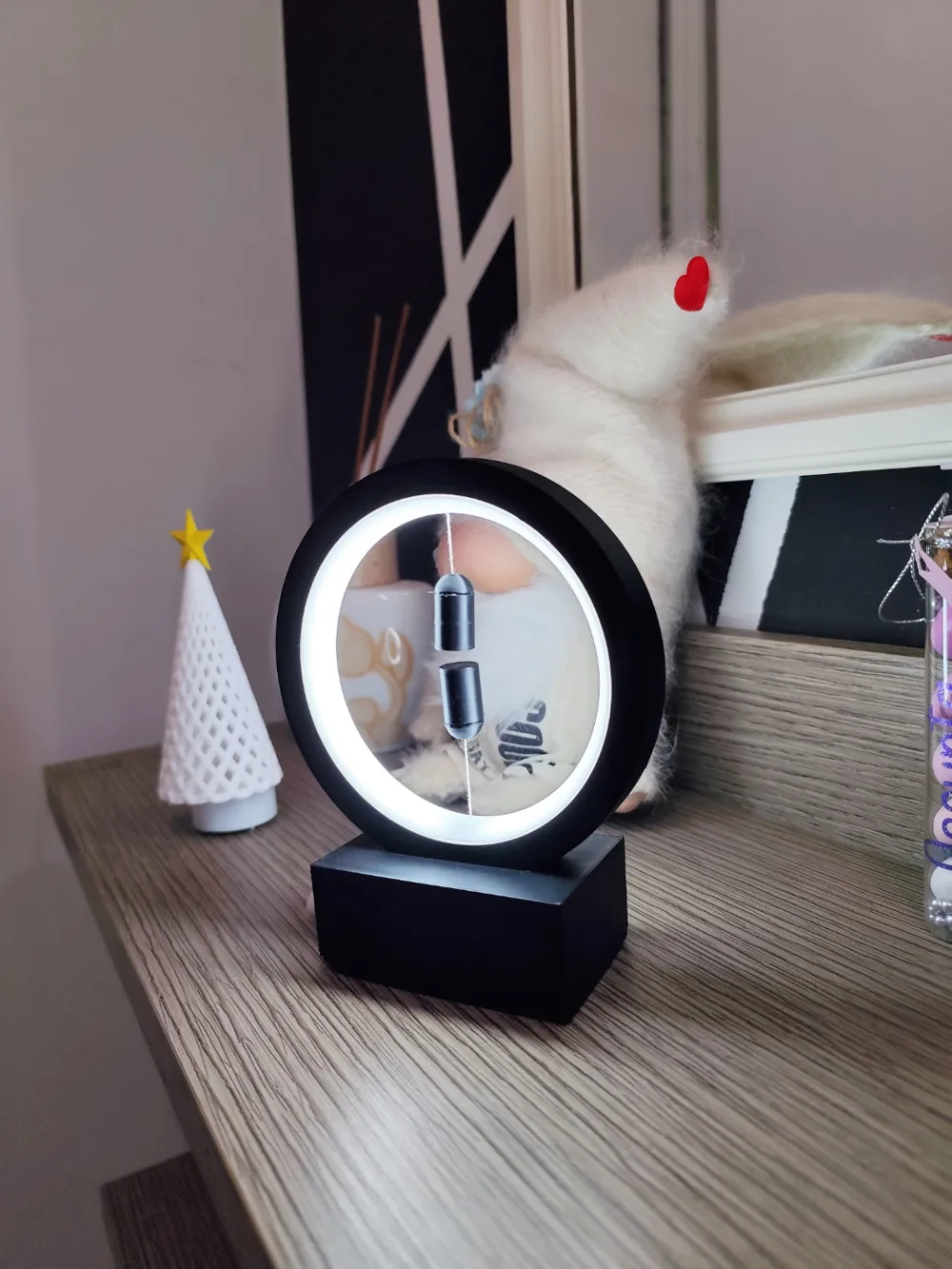

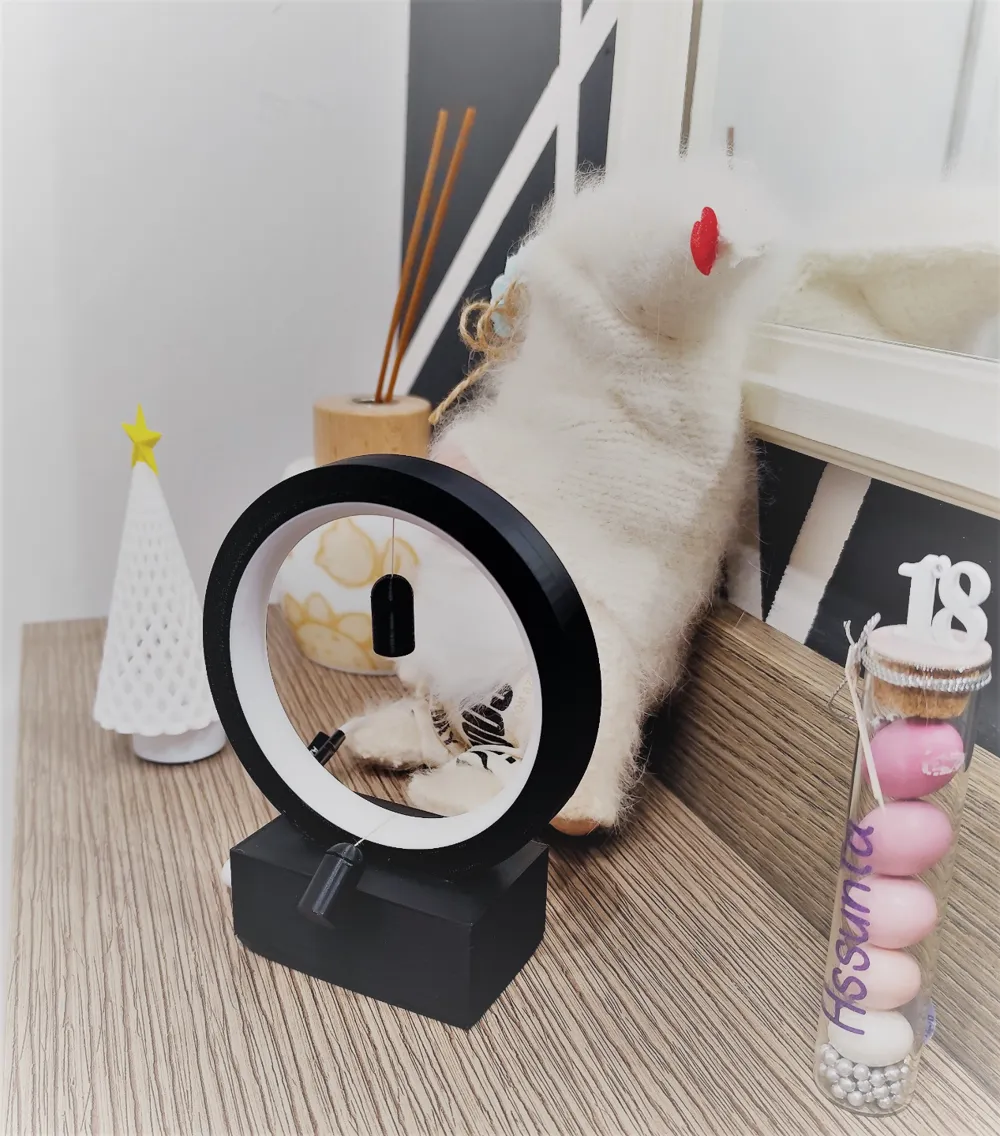

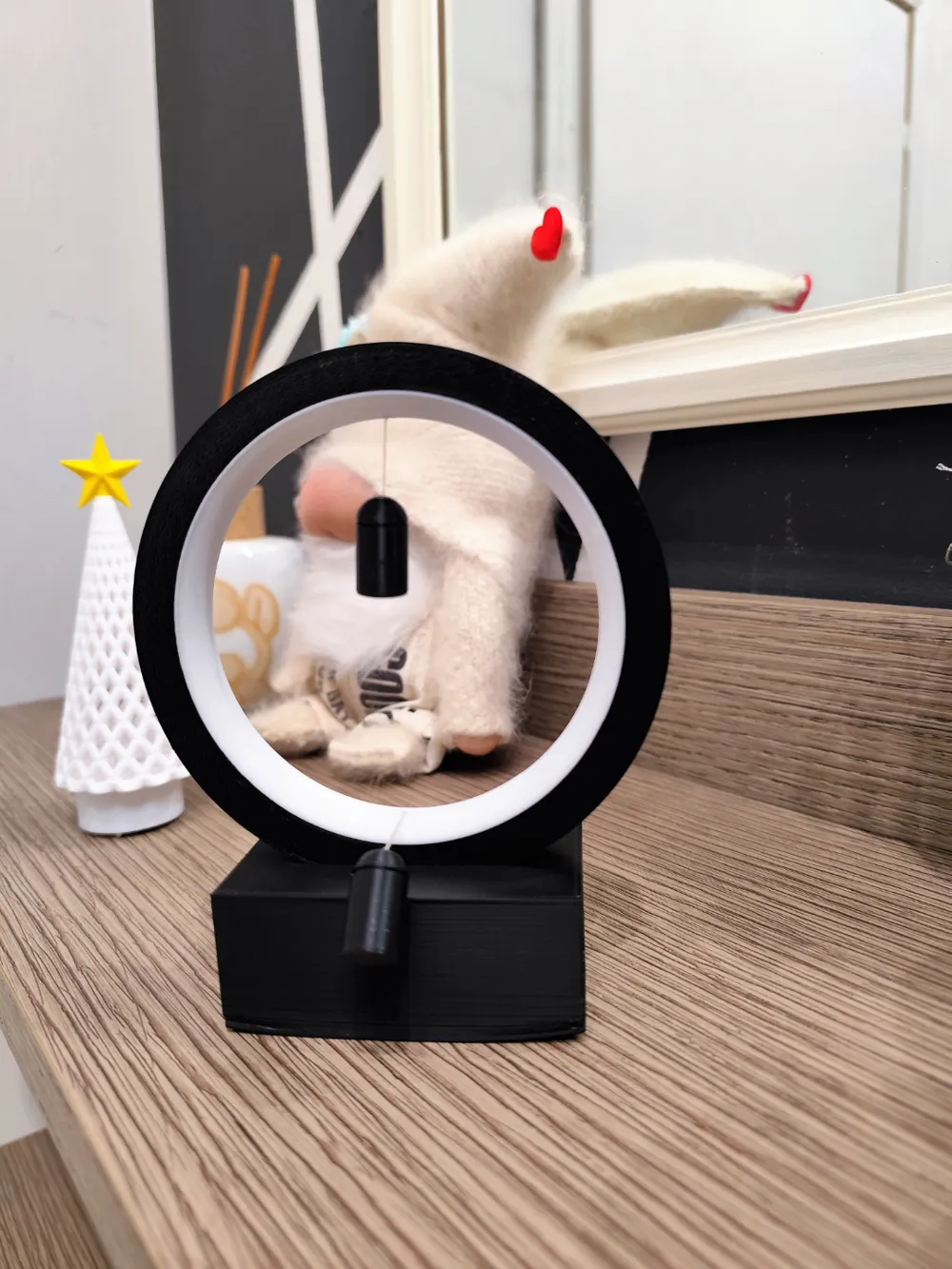

Beautiful magic lamp, very simple and with an elegant design.
All you have to do is align the two strings to turn on the magic.
Instructions:
The lamp is made up of 4 elements, I printed the central part with white petg, while the rest of the lamp with black pla.
In the base I made a hole to be able to put the power supply jack.
In the 2 suspended elements, I inserted 6 magnets, 3 on one side and 3 on the other side, being careful to insert them so that they can attract each other.
To assemble the lamp you will need:
4 Magnets 8 * 3
1 Micro Toggle Switch
150mm of cable
1 Female Connector
34 cm 12V LED strip
The diameter of the lamp is 120 mm
