<h2>3D Scanner Turntable – Print Profile Description</h2>This profile is optimized for clean geometry, minimal artifacts, and ideal surface quality for blue-light and structured-light 3D scanning. The table is designed to eliminate reflections, reduce noise, and provide a stable, non-warping platform for small-to-medium object scanning.<h3>Recommended Print Settings</h3><ul><li>Layer Height: 0.20 mm</li><li>Infill: 15% Gyroid<ul><li>Provides excellent rigidity while reducing vibration during scanning</li></ul></li><li>Walls / Tops / Bottoms: Standard is fine (2–3 walls, 5–6 top/bottom layers)</li><li>Material: ASA / PLA / PETG (ASA is what I printed mine from)</li></ul><h3>Post-Processing</h3><ul><li>Meshed Surface:<ul><li>The top features a micro-texture mesh pattern designed to:<ul><li>Minimize scanner glare</li><li>Improve projection point consistency</li><li>Reduce noise in Creality / Revopoint / Creality RealityCapture meshes</li></ul></li></ul></li></ul><h3>Features</h3><ul><li>Flat, stable scanning surface</li><li>Optimized for blue-light scanners (e.g., CR-Scan, Revopoint, Creality Raptor/RealityCapture)</li><li>Designed to reject surrounding background noise during meshing</li><li>Works well with scanning sprays or dry shampoo if needed for glossy objects</li><li>Print-in-place convenience — no supports required</li></ul><h3>Why This Platform Helps</h3>Uneven or glossy surfaces cause trouble for structured-light scanners, often pulling in the background or creating noise artifacts. This platform gives you a consistent, matte, non-reflective surface designed specifically to improve object isolation and mesh cleanup.

0.2mm, Painted 15% Gyroid

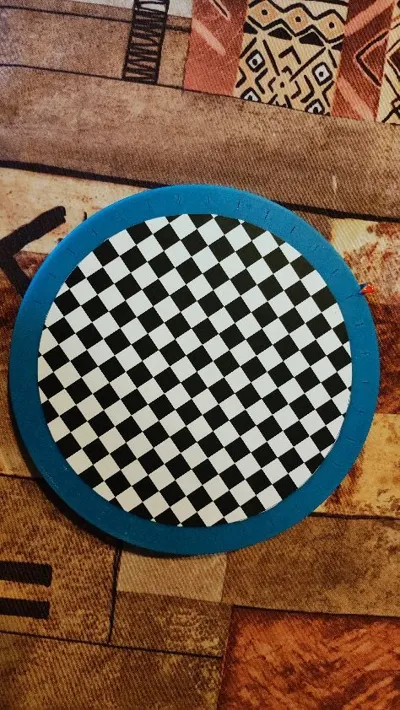

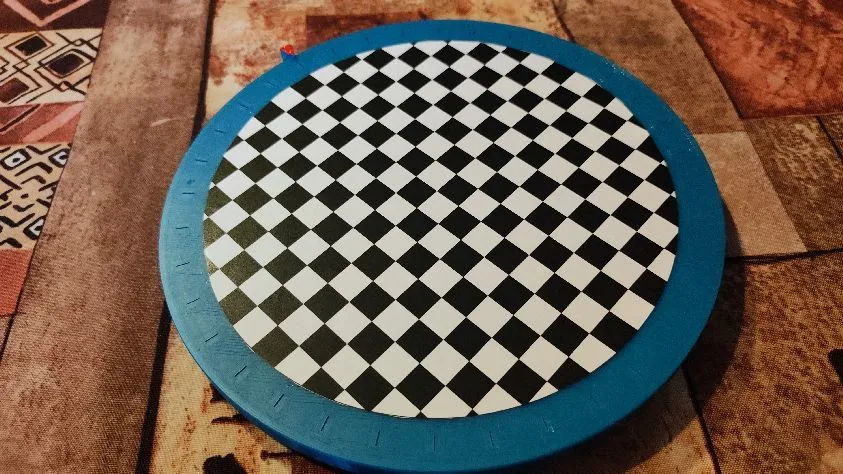

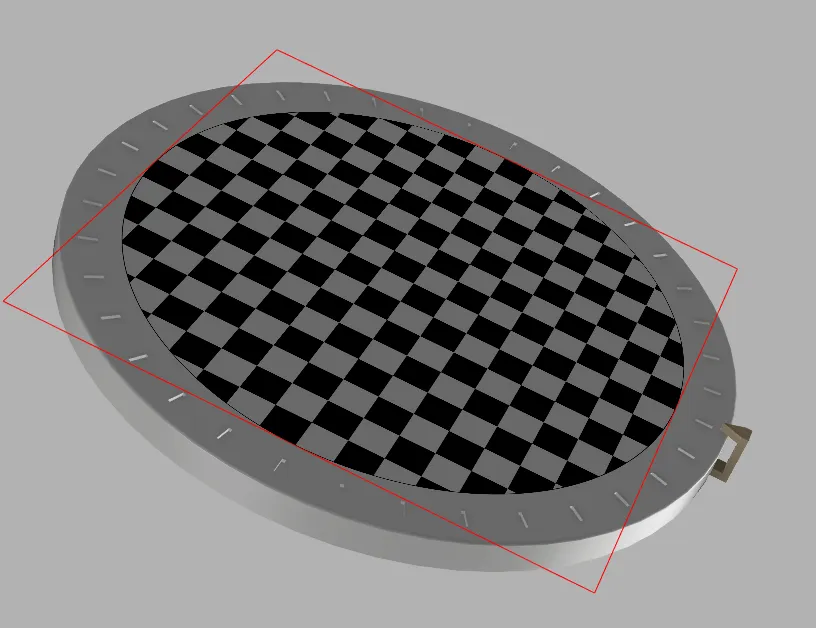

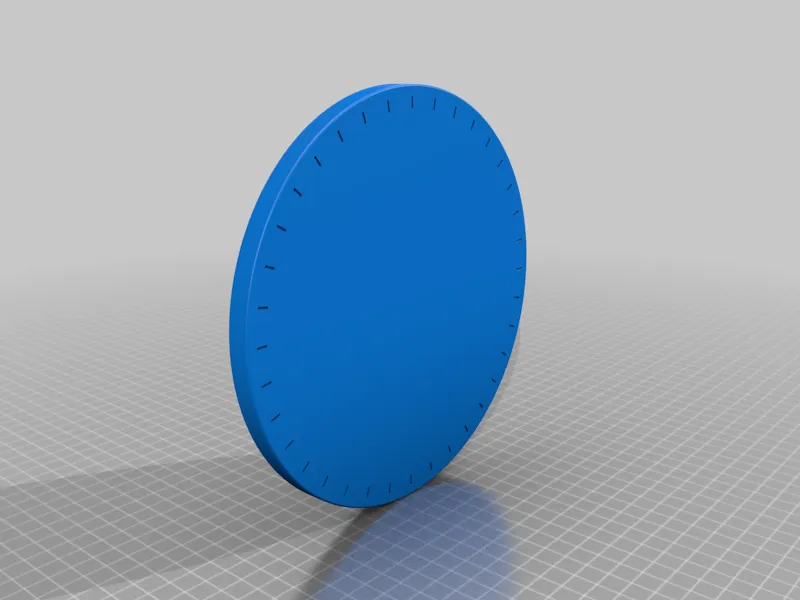

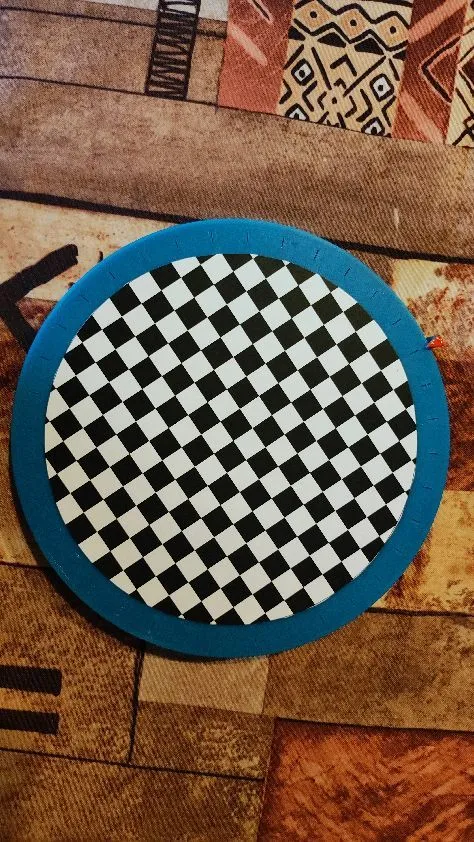

Plateau su roulement à billes avec graduations pour Scanner les objets en 3D avec un Smartphone ou autre.

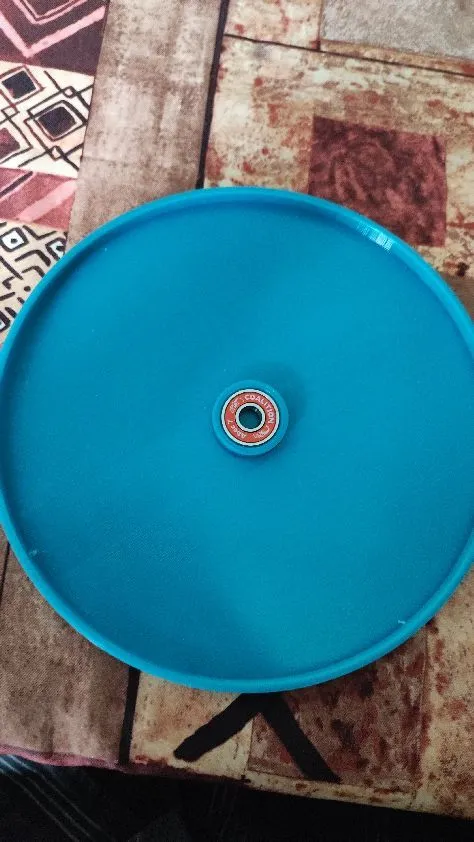

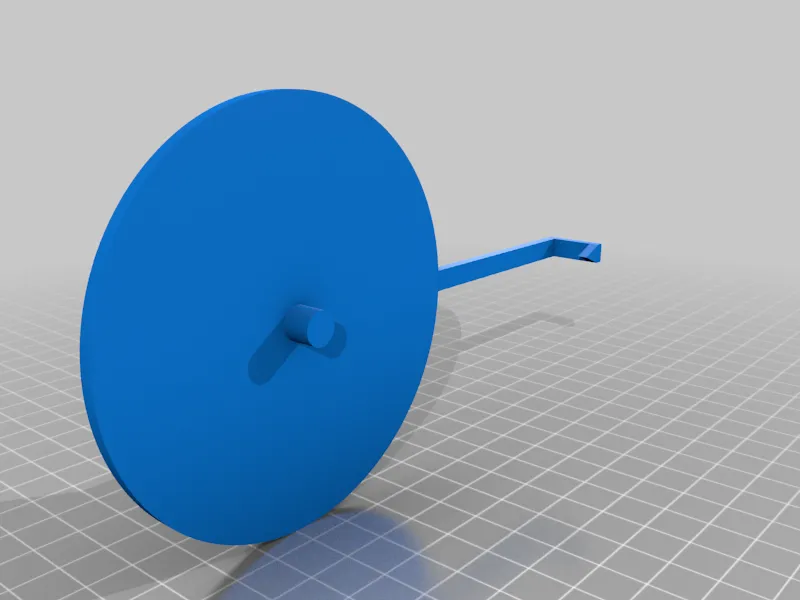

Imprimez les deux parties, insérer un roulement à bille dans le plateau et coller le damier au centre après l&#39;avoir imprimé pour améliorer les repères dans l&#39;espace du scanner.
J&#39;ai utilisé les roulement type Abec7 pour skateboard car je les avait en stock.
J&#39;ai mis le fichier fusion pour modifications si besoin.
Merci de citer comme remake si vous le modifiez
<a href="https://youtu.be/uU3zHdHeyrs" rel="nofollow">https://youtu.be/uU3zHdHeyrs</a>
<h3>Print Settings</h3>
Printer:
Artillery Genius
Rafts:
<div>Doesn&#39;t Matter</div>
Supports:
Yes
Resolution:
<div>0.2</div>
Infill:
15 - 20
Filament:
<a href="http://www.amazon.com/s?url=search-alias&amp;field-keywords=GST3D+PLA" target="_blank" rel="nofollow noopener">
 GST3D PLA </a>
au choix


Category: Scans &amp; Replicas

Ball bearing turntable with graduations for scanning objects in 3D with a Smartphone or other.

Print both parts, insert a ball bearing in the platform and glue the checkerboard in the center after printing to improve the landmarks in the scanner's space.

I used the Abec7 type bearings for skateboards because I had them in stock.

I have put the merged file for modifications if necessary.

Please cite as a remake if you modify it
<a href="https://youtu.be/uU3zHdHeyrs" rel="nofollow">https://youtu.be/uU3zHdHeyrs</a>

<h3>Print Settings</h3>
Printer:
Artillery Genius
Rafts:
<div>Doesn't Matter</div>
Supports:
Yes
Resolution:
<div>0.2</div>
Infill:
15 - 20
Filament:
<a href="http://www.amazon.com/s?url=search-alias&amp;field-keywords=GST3D+PLA" target="_blank" rel="nofollow noopener">
GST3D PLA
</a>
your choice


Category: Scans & Replicas
