Wheel for grill

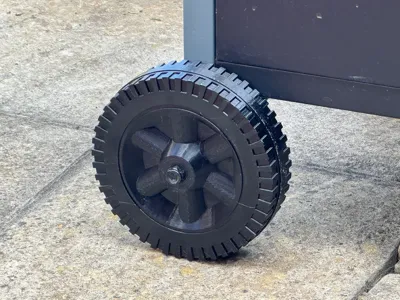

Replacement Grill Wheel – 3D Print Model

This model is designed as a direct replacement for broken or missing wheels on outdoor grills. The wheel is optimized for most standard grills and is built to be sturdy and durable, handling the demands of outdoor use and exposure to higher temperatures. With well-chosen dimensions and strong construction, it should perform well under regular grill usage conditions.

Model Specifications:

• Model Type: Replacement wheel for outdoor grills
• Wheel Diameter: 80 mm (adjustable as needed)
• Wheel Width: 20 mm
• Axle Diameter: 10 mm (standard hole size compatible with most grill structures)
• Wall Thickness: 4 mm – provides strength and durability
• Tread Pattern: Lightly textured tread for improved traction on smooth and uneven surfaces
• Model Weight: Dependent on material and infill, estimated at 30–40 grams using standard PLA with 20% infill

Printing Recommendations:

• Suggested Material: PLA, PETG, or ABS (depending on required durability and temperature resistance; PLA is suitable for typical use, but PETG or ABS is recommended for high-heat or sun-exposed environments)
• Layer Thickness: 0.2 mm for good accuracy and surface finish
• Infill: 20–30% to achieve optimal strength while keeping the weight low
• Supports: None needed, model is optimized for support-free printing
• Print Speed: 40–60 mm/s for best quality and strength

Features:

• Durability: Designed to withstand regular wear when moving over pavement, grass, and gravel.
• Customizability: Dimensions such as wheel diameter, width, and axle can be adjusted for specific needs.
• Aesthetic Design: Simple, clean look that fits most grill styles.
• Assembly: Compatible with standard securing components (e.g., clips or pins) for easy attachment.

Preparation and Maintenance:

After printing, a light sanding may be needed on any rough surfaces (if supports were used). For smooth rotation, consider applying lubricant, such as silicone or grease, to the axle if the wheel will be in regular use.

Usage Notes:

This model has been tested on a standard garden grill with a maximum load of approximately 5 kg per wheel. Print settings can be adjusted based on the type of grill and expected load. For grills that will be exposed to high heat or extreme conditions, consider using heat-resistant filament.
