R3S SHELL
Print Profile(1)
Description

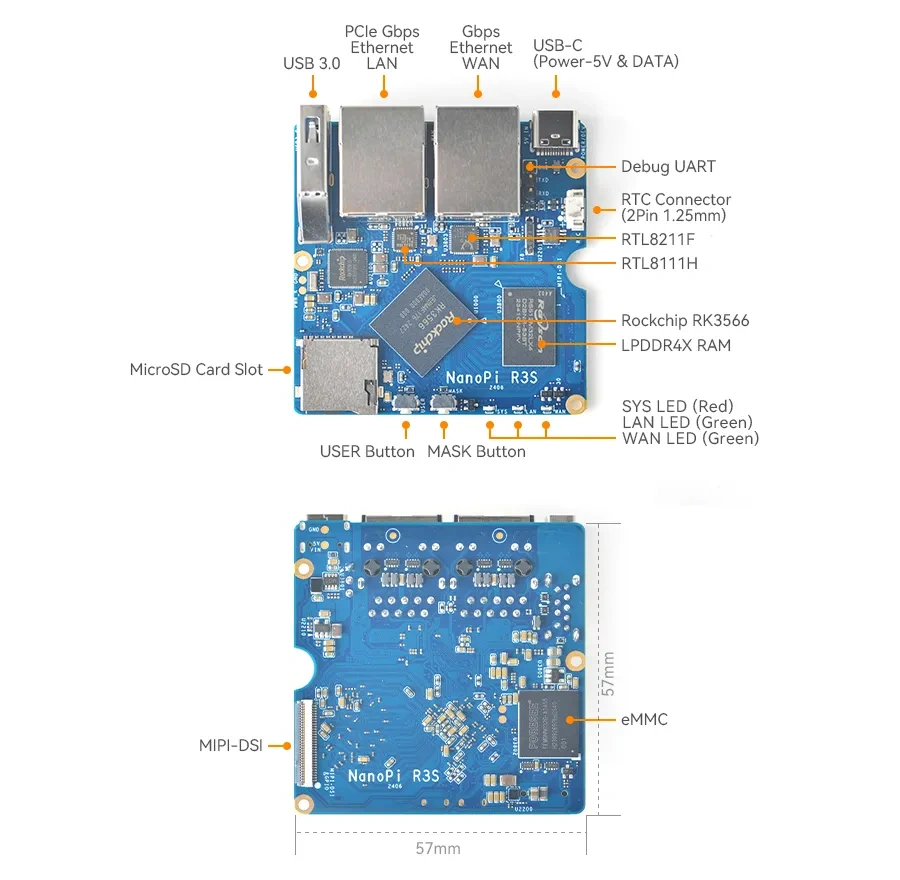

I designed a lightweight case for my new Nanopi R3S single-board computer, prioritizing minimal material usage, effective heat dissipation, and portability for convenient use as a mobile router. Three M2 screws are recommended for securing the mainboard, though they are optional. Secure attachment can also be achieved through friction between the top and bottom surfaces, potentially requiring slight adjustments to the expansion coefficient. An image of the official mainboard is provided below.

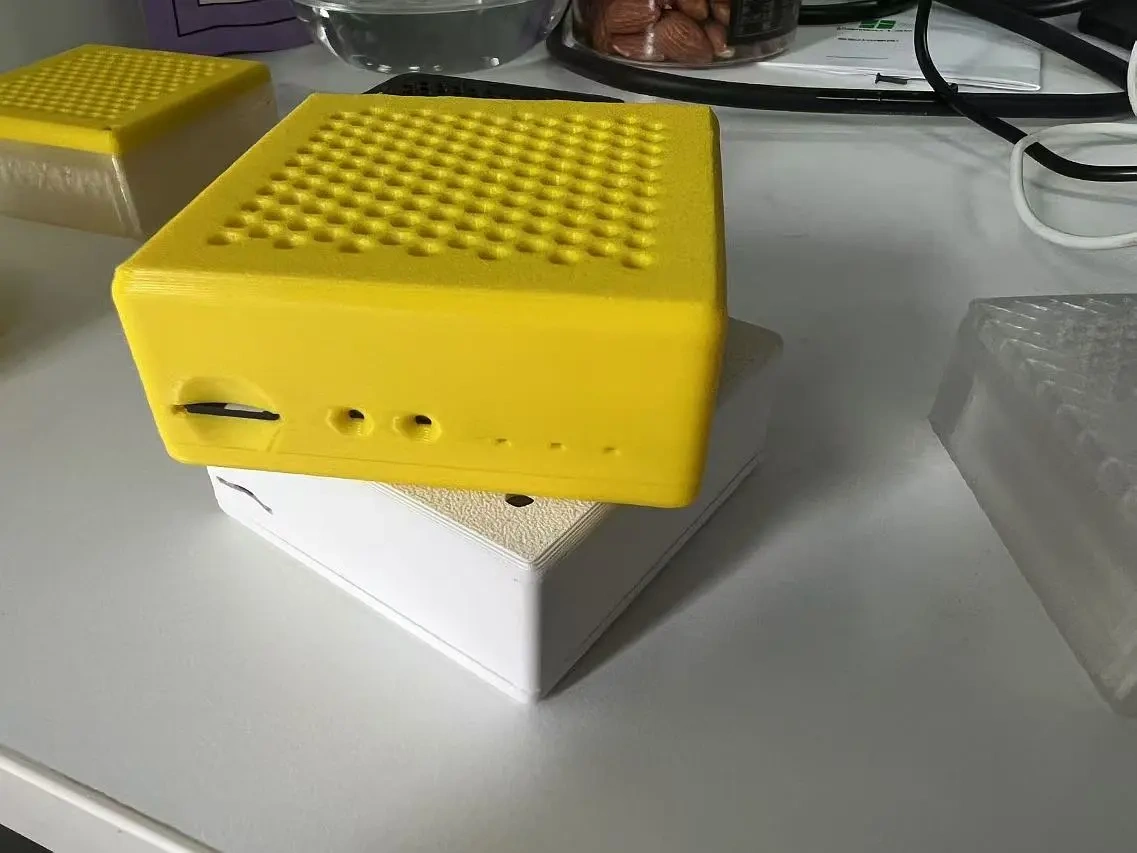

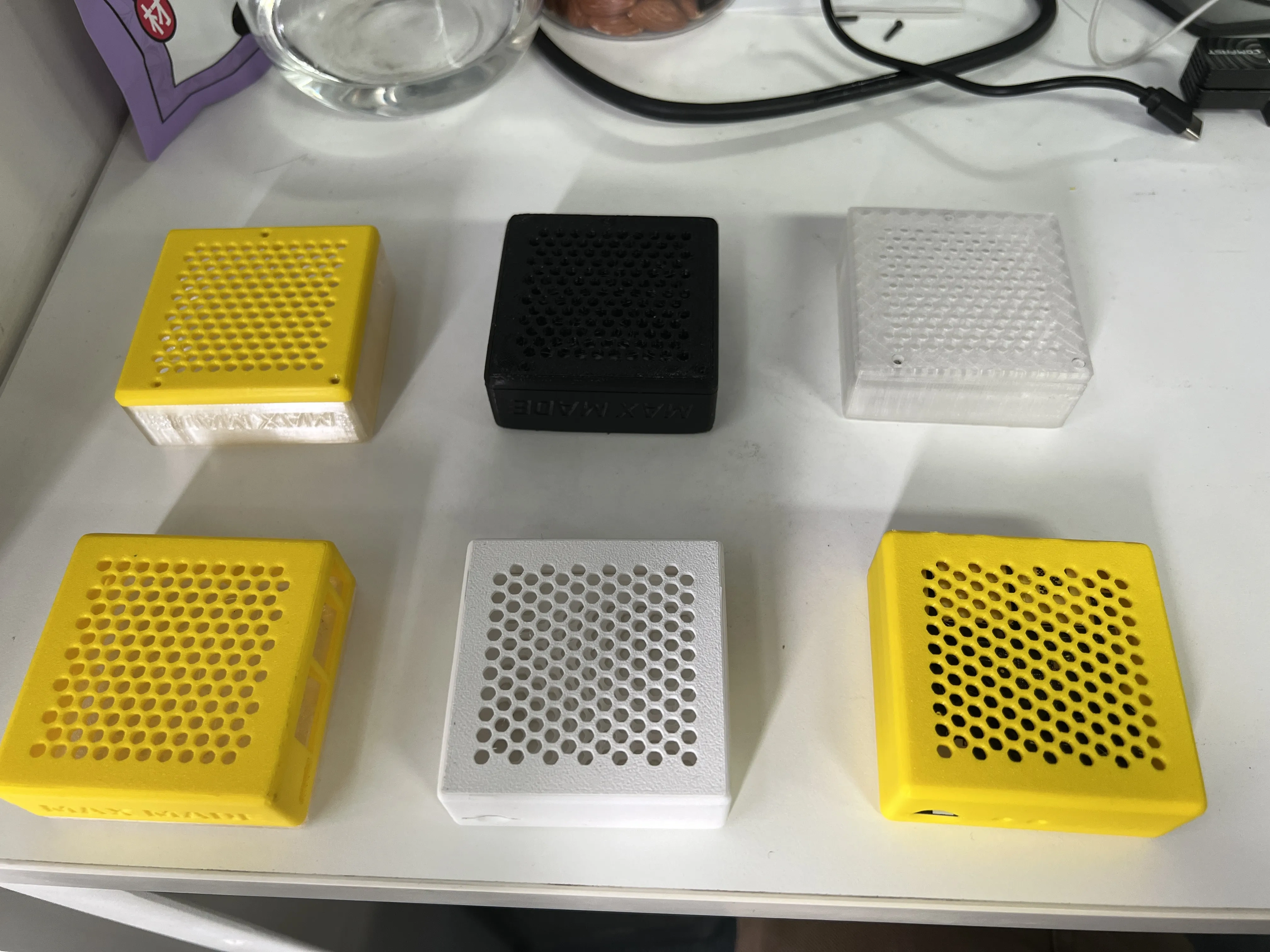

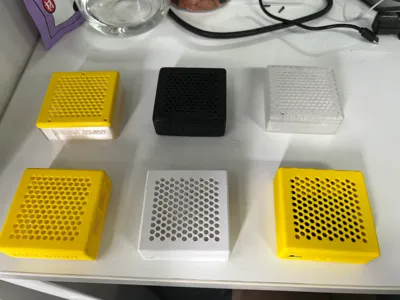

Through repeated printing and fine-tuning, the reset button and LED light hole positions have been optimized. The B-side is designated as the default base, featuring three M2 screw holes. Those who choose not to use screws can fill these holes.
Support is required for the holes and beams, while the SD card slot may need slight sanding for a polished finish.

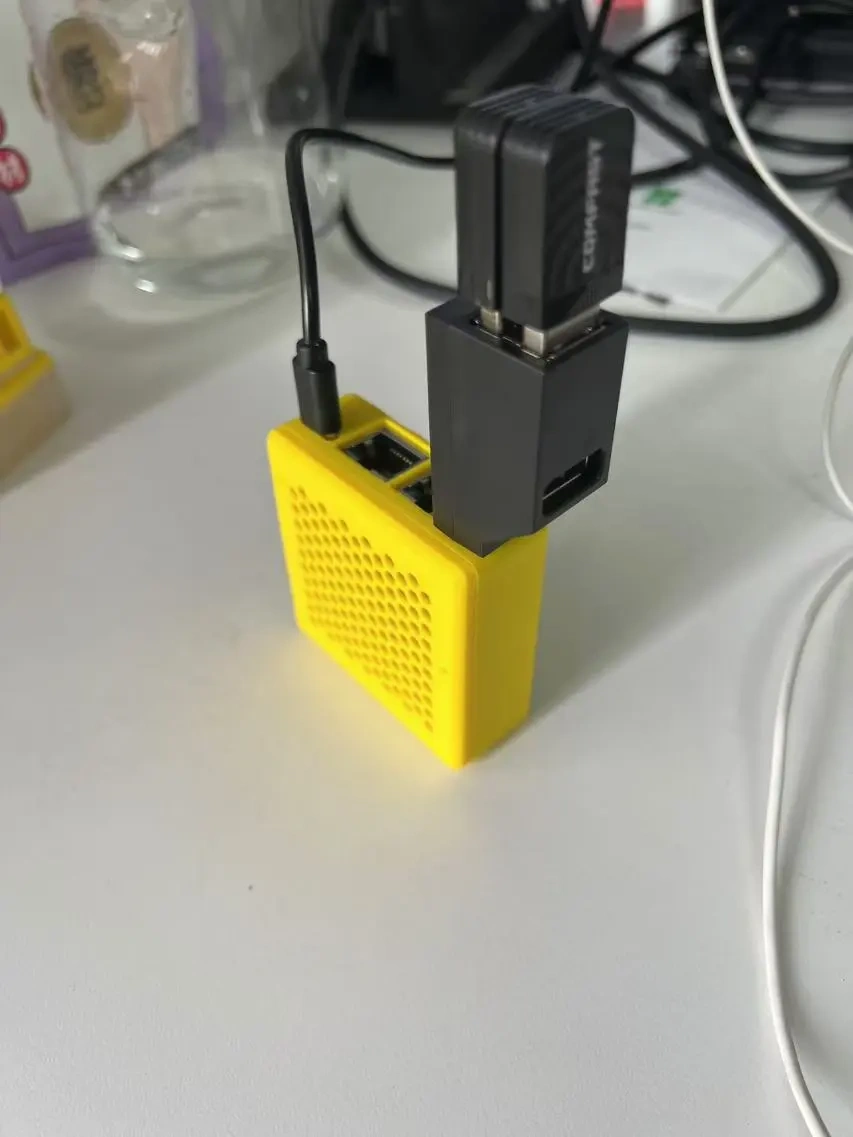

The ultimate mobile router form factor.
