Small wall hook
Print Profile(1)
Description

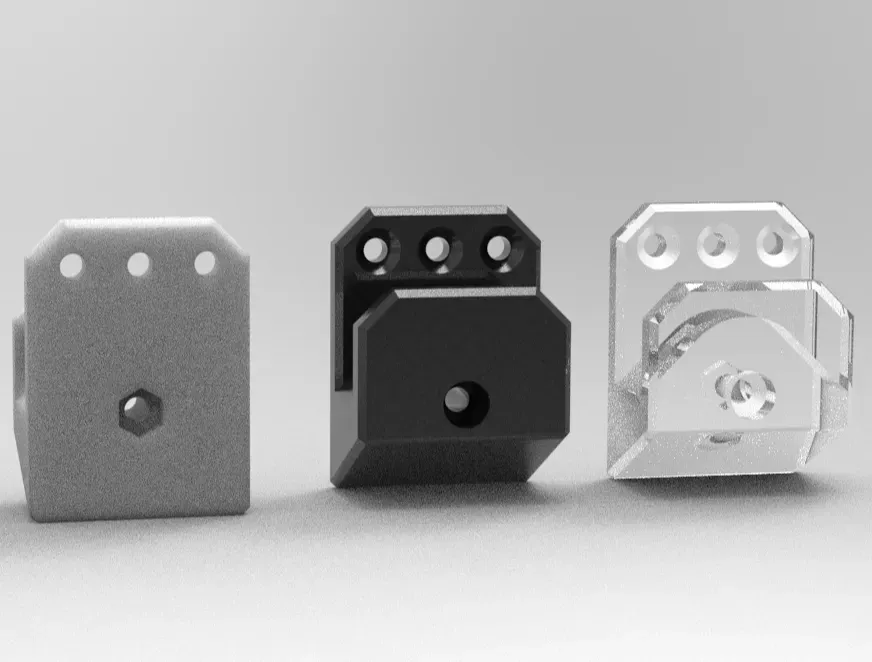

The hook features an outer baffle plate to prevent mounted items from sliding out. The hook is designed with a circular arc inner groove, providing a leveling and centering effect, and eliminates sharp contacts to protect the suspension rope.
(The English translation is machine-generated, and in case of any ambiguity, the Chinese version shall prevail.)
Installation Method 1:
Use two M3 countersunk self-tapping screws, each exceeding 35mm in length, to install in the left and right mounting holes. For the bottom mounting hole, you can optionally use an M3 countersunk machine screw or an M3 cylindrical head screw, combined with an M3 hex nut to enhance the load-bearing strength of the hook bracket.
Installation Method 2:
Use one M3 countersunk self-tapping screw exceeding 35mm in length and another M3 countersunk self-tapping screw exceeding 45mm in length to install in the top and bottom centerline mounting holes. This eliminates the need for additional reinforcing screws.
