Lightbox Wall Bracket

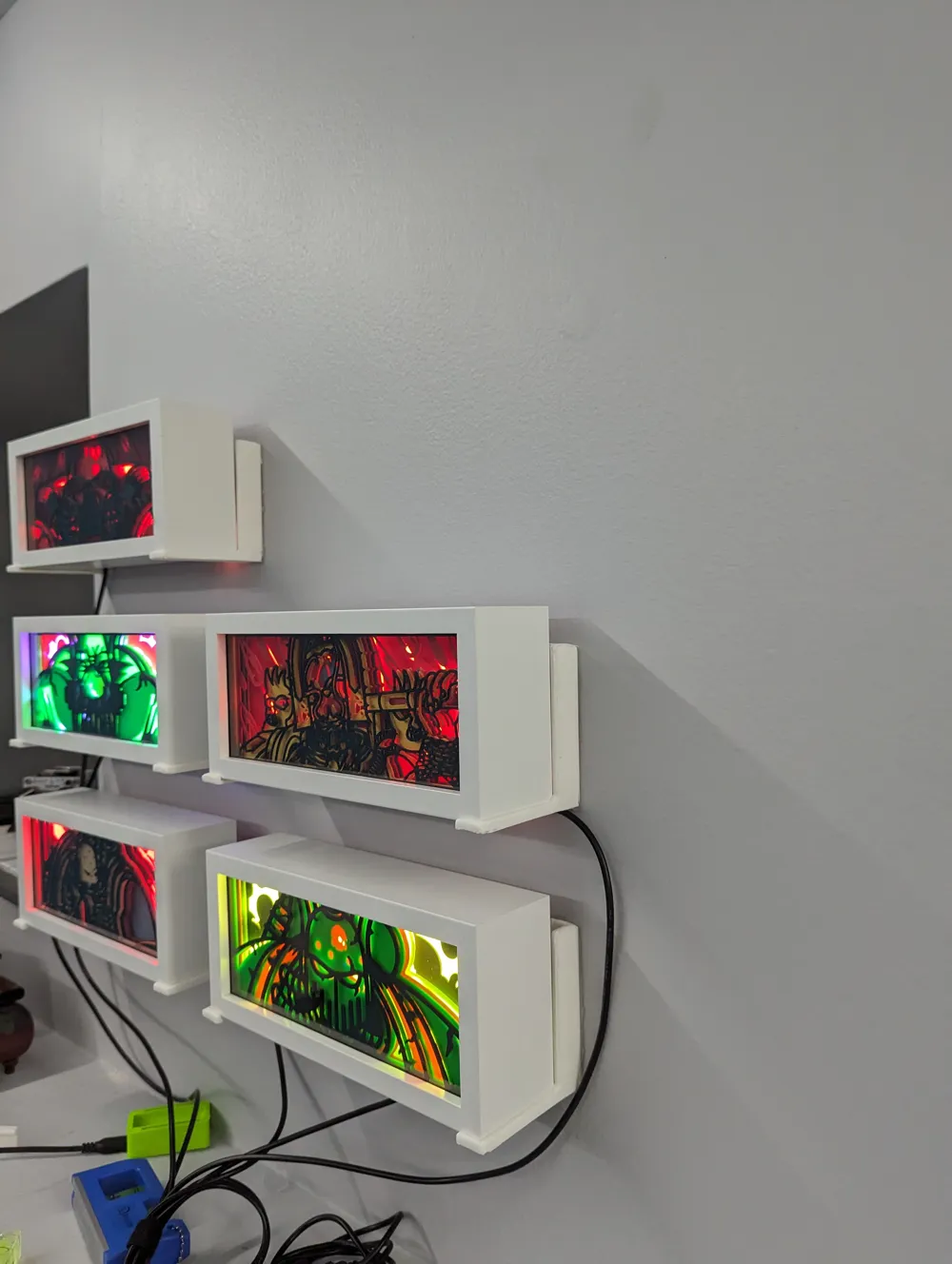

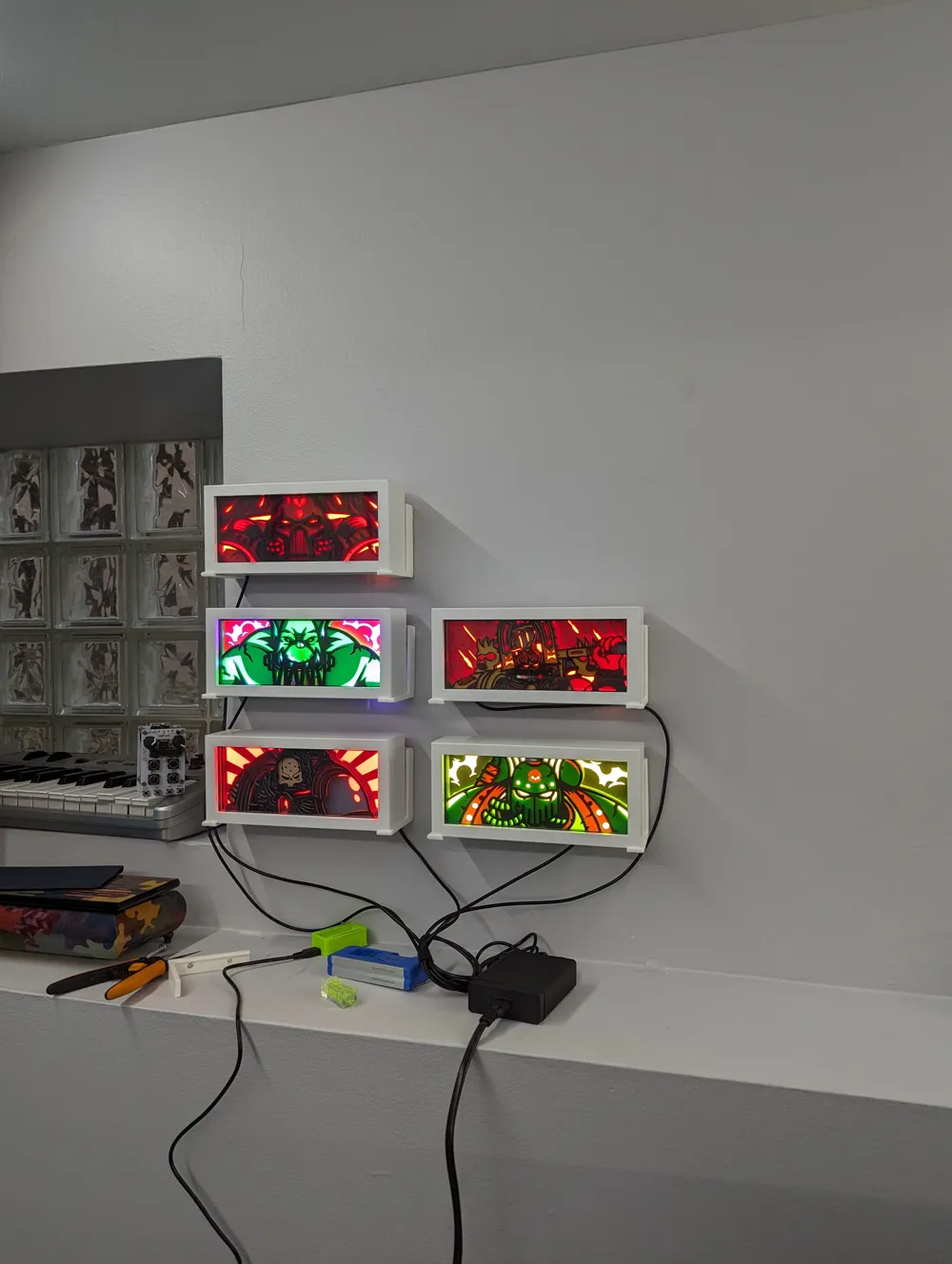

This is a lightbox bracket to mount LED-enabled lightboxes to a wall. I used double-sided tape to mount it, but you can use standard drywall screws as well.

If you're looking for some awesome lightboxes like the ones pictured, check out Amity3D!

Mounting can be tricky since it isn't 1 piece, so this is how I mounted them:

1. Get some temporary tape (painter's tape, etc)
2. Tape the lightbox to the mounts
3. Line up the lightbox where you want to put it
   1. Use a level!
4. If using screws
   1. Mark above each mount, the entire length of each mount
   2. Remove the lightbox from the brackets, line up the brackets with your marks, and drill!
5. If using double-sided tape
   1. Remove the lightbox with mounts, apply your double-sided tape to the back of the mounts, and place

Note: There's enough room between the wall and the light box to mount an LED controller to the back of the lightbox, and you can do it after you mount the brackets to the wall.

Printing:

• Layer height: 0.3mm or lower
• Infill
  • Percentage: 10-15%
  • Type: structural (cubic, gyroid, etc)
• Support: Not needed

STEP file provided if you have slightly different lightbox dimensions.

Happy printing!
