Magic Mouse Dock (Apple)
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
1.9 h
1 plate
0.2mm layer, 4 walls, 24% infill
Designer
1.7 h
1 plate
0.16mm layer, 3 walls, 40% infill
Designer
3.6 h
1 plate
Open in Bambu Studio
Boost
105
282
55
15
386
249
Released
Description

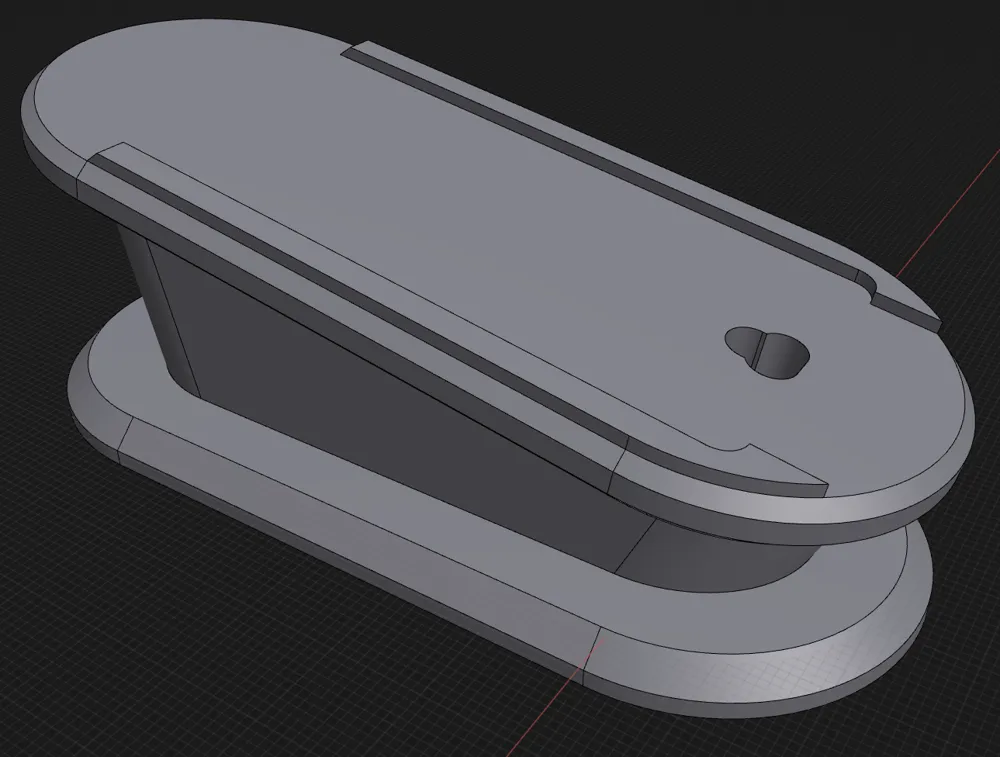

Magic Mouse Dock (v1)
NOTE: This model is designed to fit the Apple Lightning to USB Type-A charging cable.

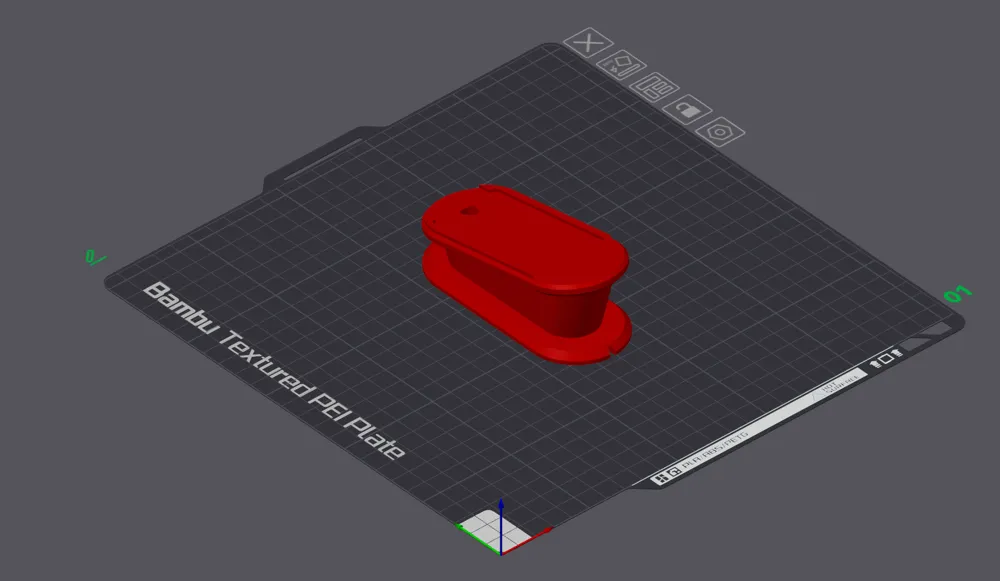

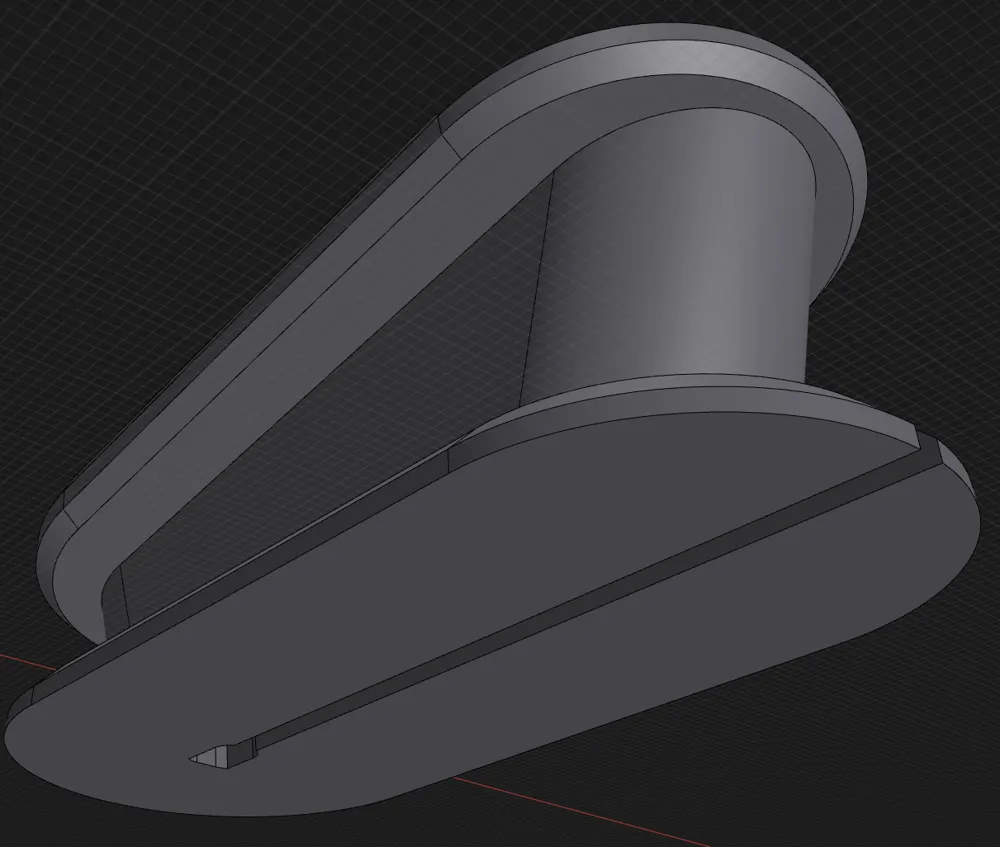

Designed for the Apple Magic Mouse to dock on and charge. I use the standard apple Lightning to USB-A cable that fits very snug. The dock itself has a channel to feed the USB charge cable underneath. I have found the best orientation to print is shown in image 3.
Machine Configuration -
Printer: BambuLab P1S
Plate: Textured PEI Plate
Hotend: 0.4mm hardened steel nozzle
Filament: Bambu Labs Matte PLA
My Process settings for this print
0.20mm Standard - Default with the below changes -
Strength-
Wall Loops - 4
Detect Thin Walls - Checked
Sparse Infill Density - 24%
Support-
Enable Support - Checked
Type - Normal(auto)
Others-
Brim type - No-brim
