Beth Deck
Print Profile(1)
Bill of Materials
- M3x25mm button head screws x 6:
- M3x5mm button head screws x 5:
- M3x4mm heat set insert x 6:
- M2.5x4mm Standoff x 1:
- Easy SMX M05 Gaming controller x 1:
- USB-C dongle with 2xUSB-A, 1xUSB-C and HDMI x 1:
- Waveshare 8" 800p touchscreen x 1:
- 50mm 90 degree USB-C extension x 1:
- 100mm 90 degree USB-C to USB-A adapter x 2:
- 200mm HDMI Ribbon cable (A1-A1) x 1:
- Wifi antennas x 1:
- VHB tape x 1:
- USB-C 90 degree adapter x 1:
Description

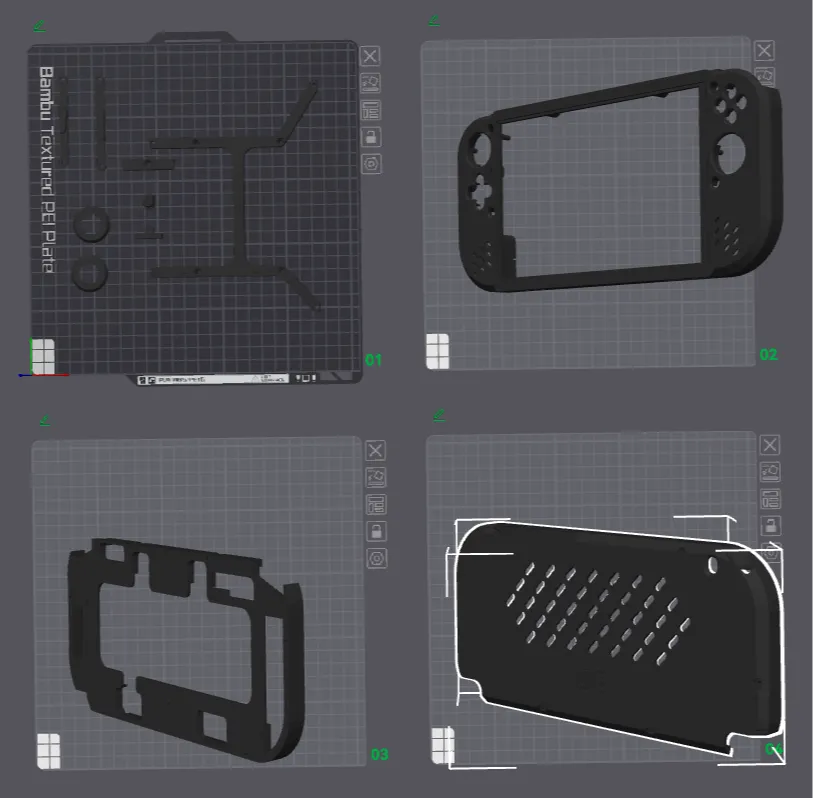

Uplaod of the Beth Deck to makerworld from printables, with reorientation to be printed on bambu labs X1, P1 and A1 platforms.
There is a list of materials below not including Framework 13" mainboard, Framework 13" battery, Ram, SSD or Wifi card not included.
Are you tired of buying the newest gadgets just to throw them away 5 hours later because the next best thing just came out!?
Introducing the Beth Deck, The future-proofed completely upgradable handheld. Guaranteed to always play the latest games and apps far into the future! (as long as Framework continues to support their 13" mainboards)
The whole thing can be assembled in about 15 minutes and disassembled in less than 2 minutes with no soldering and all non-printed parts can be purchased!
PLA does not work, it's too brittle. the top shell has lots of small features ABS, PC or PCTG are recommended if you print in ABS warping might cause the controller to not work because it uses pogo pin contacts that are sensitive to position.
Small issues
-Mobile controller is difficult to work with. Make sure ribbon cables are completely inserted or the controller will do wonky things. Be careful screwing in parts, stop when they are just starting to tighten and do not go any further. Plastic acts as locking compound, don't worry about under-tightening. it will break if you over-tightening.
-Power button still flys off and out the window when disassembling.
