IP2312 module basic enclosure/case

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 2 walls, 15% infill
0.16mm layer, 2 walls, 15% infill
Designer
16 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
8
18
1
1
42
25
Released

Description

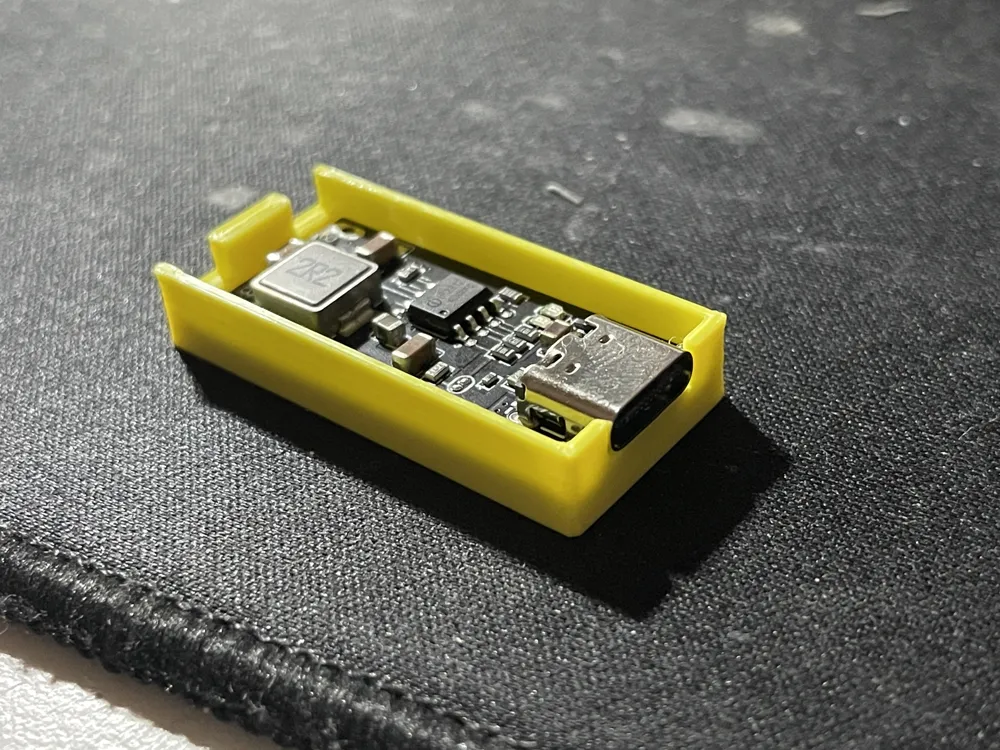

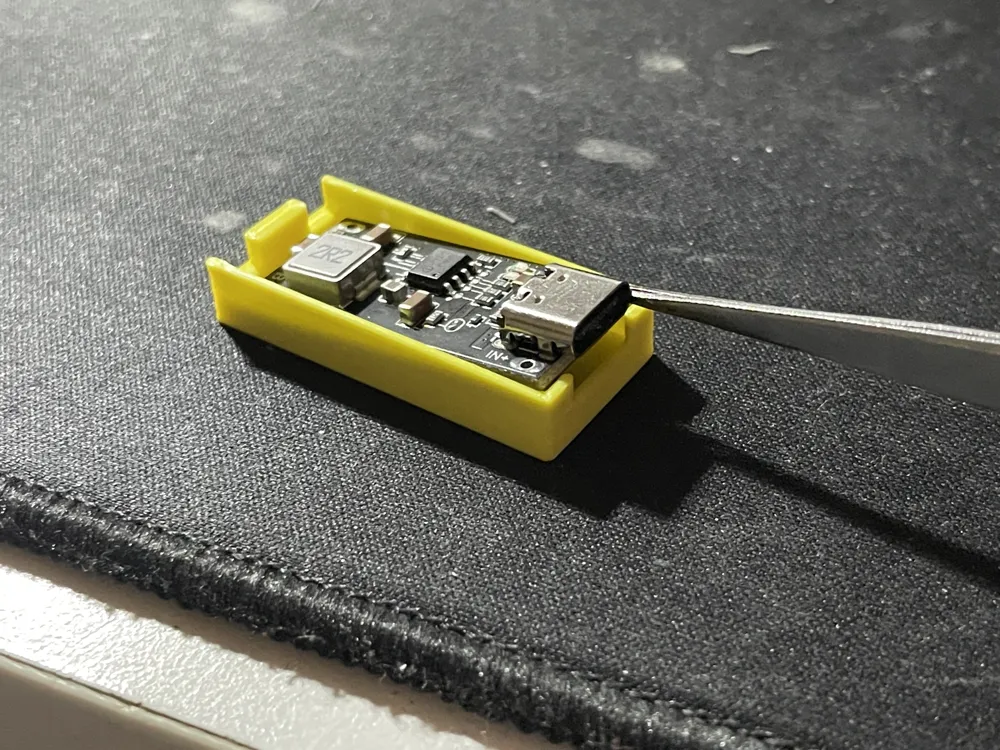

infill 15 percent , 2 walls , it has a little bit of play as tolerance but nothing big , just drop a superglue under the module

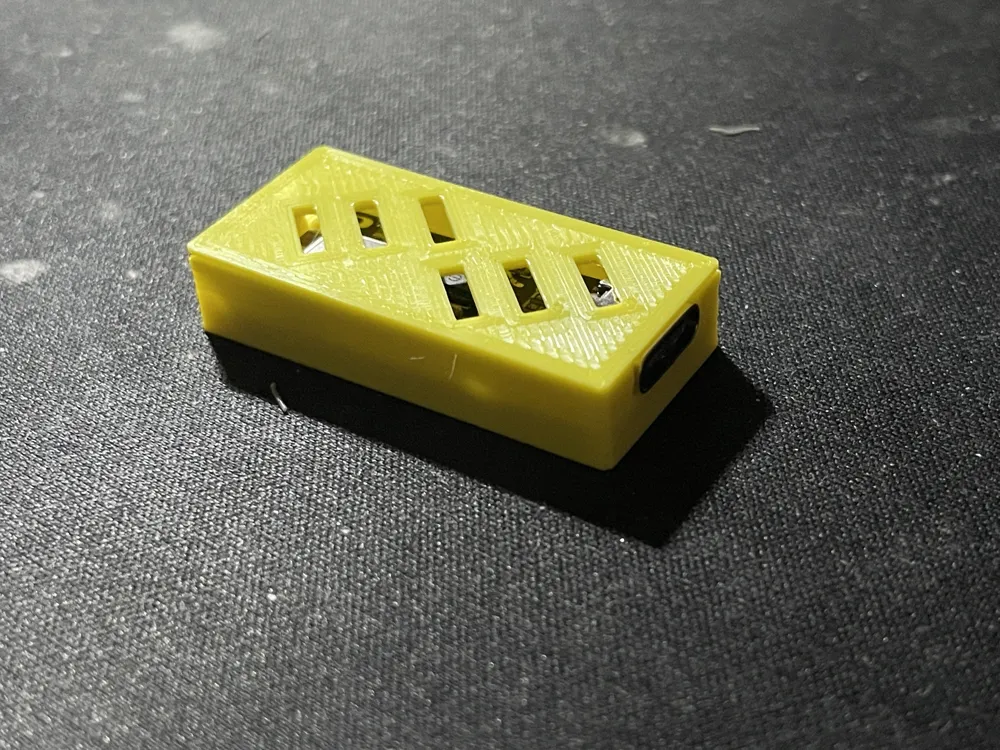

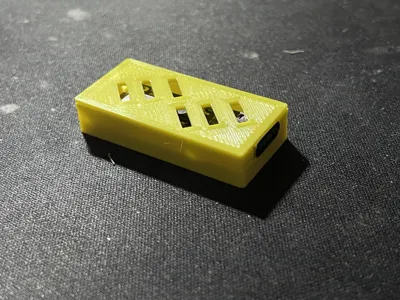

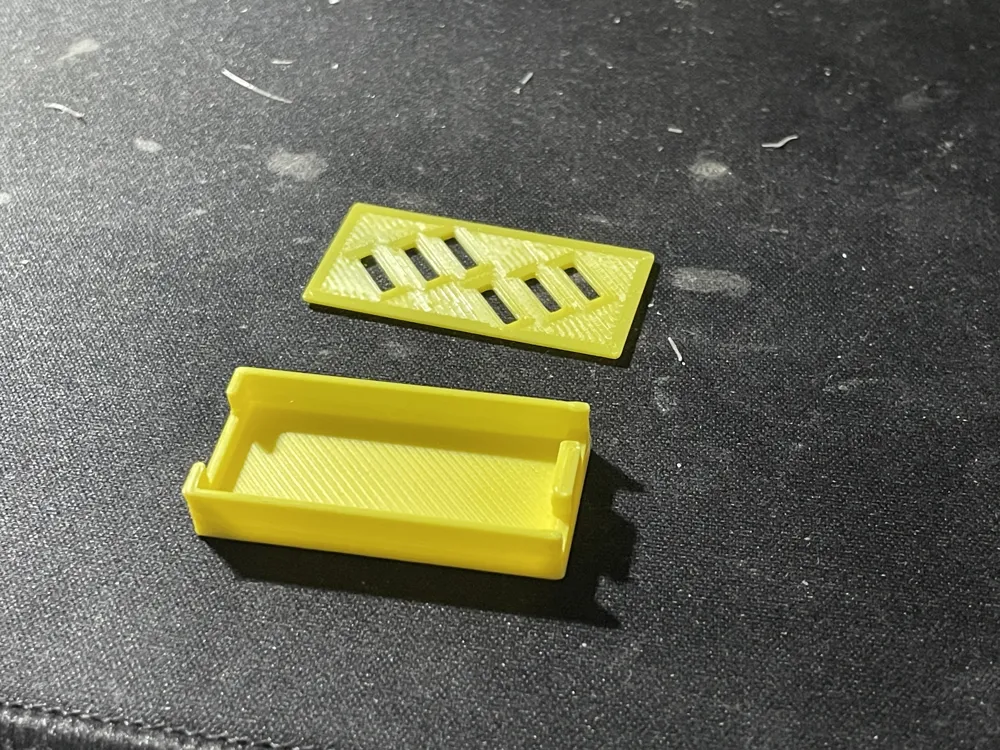

The top has a section cut out for the side where usb-c port is

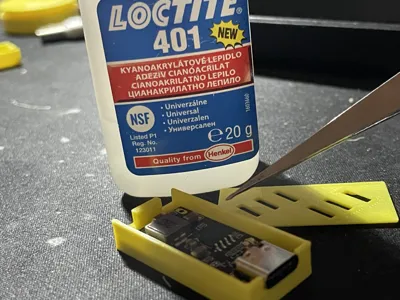

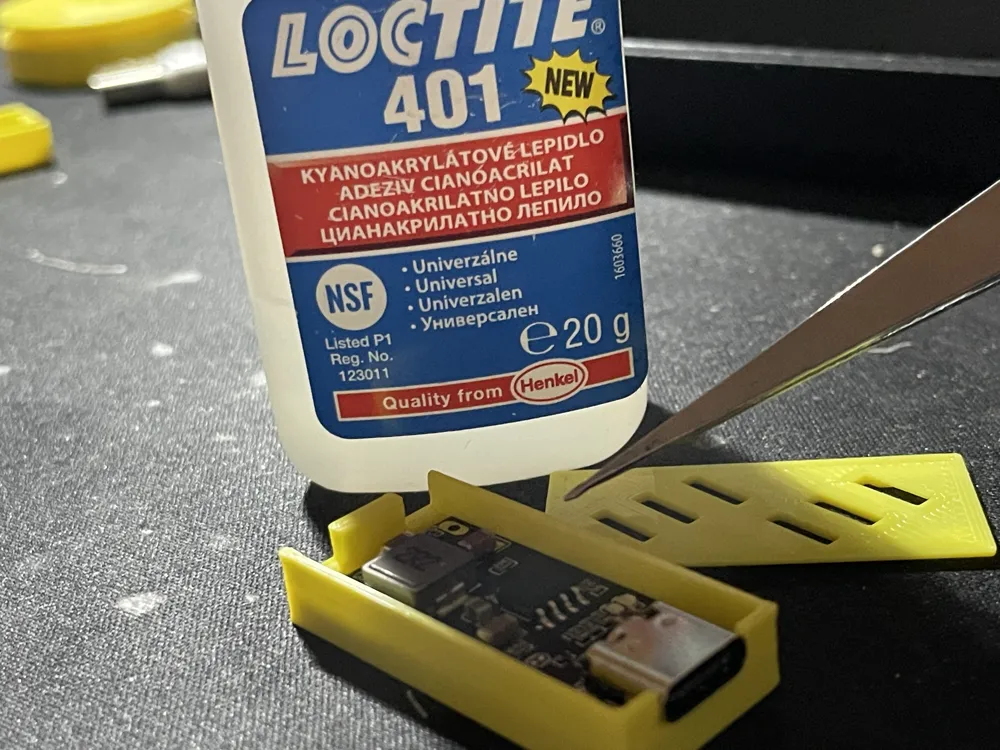

there isnt a good clip mechanism for mounting the top so use a bit of superglue and put weight on it or press it somehow (rubber bands)

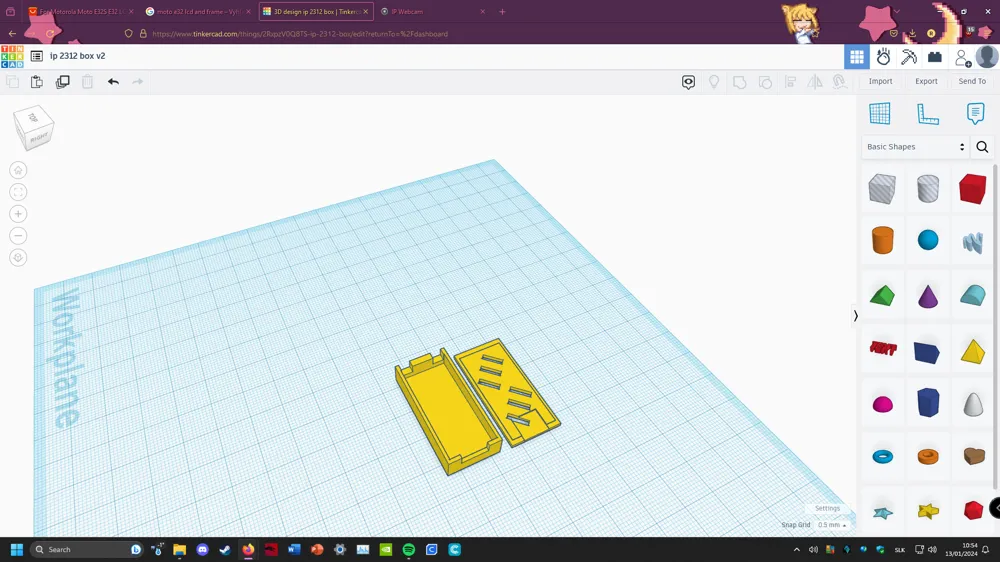

thanks to thinkercad so i could make this model as a beginner :)



if anything just hit me , thanks
