0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.3 h
1 plate
5.0(2)

Tighter Fit - 25% infill - 4 top and bottom layers - PETG
Tighter Fit - 25% infill - 4 top and bottom layers - PETG
1.3 h
1 plate

Open in Bambu Studio
Boost
5
8
10
2
16
9
Released

Description

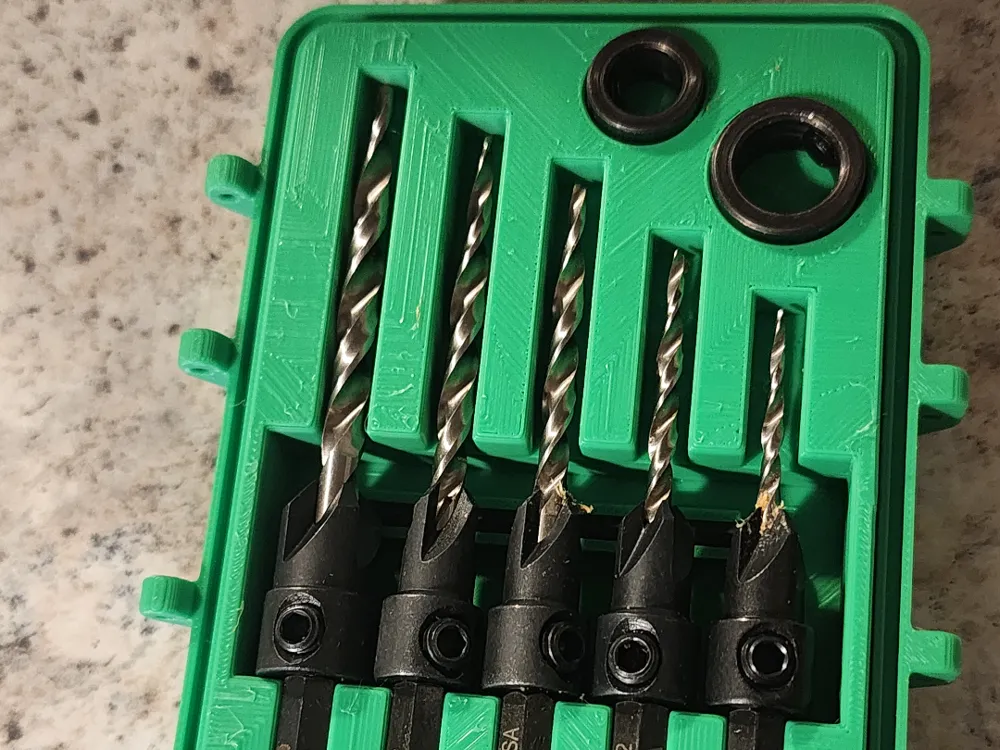

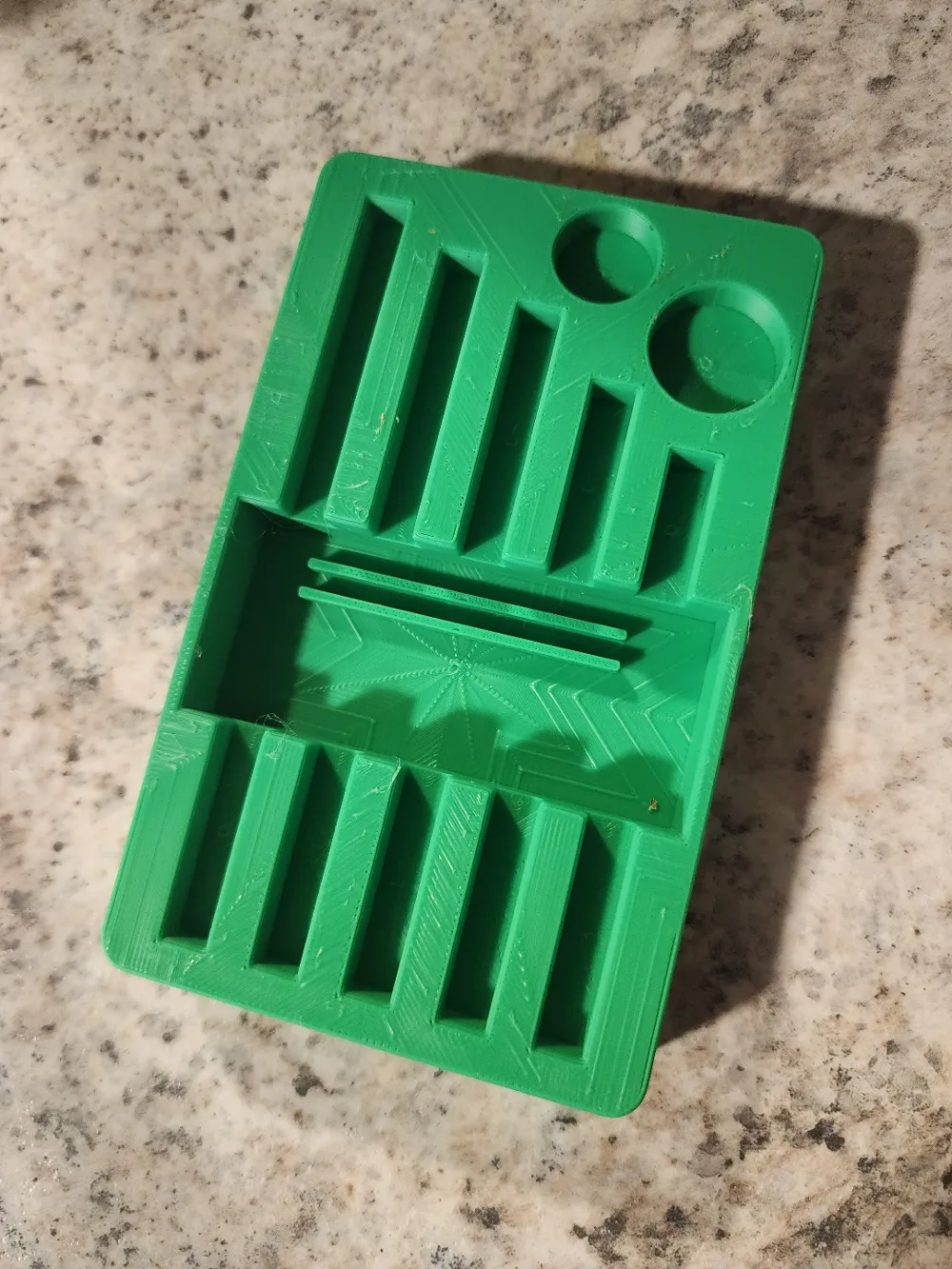

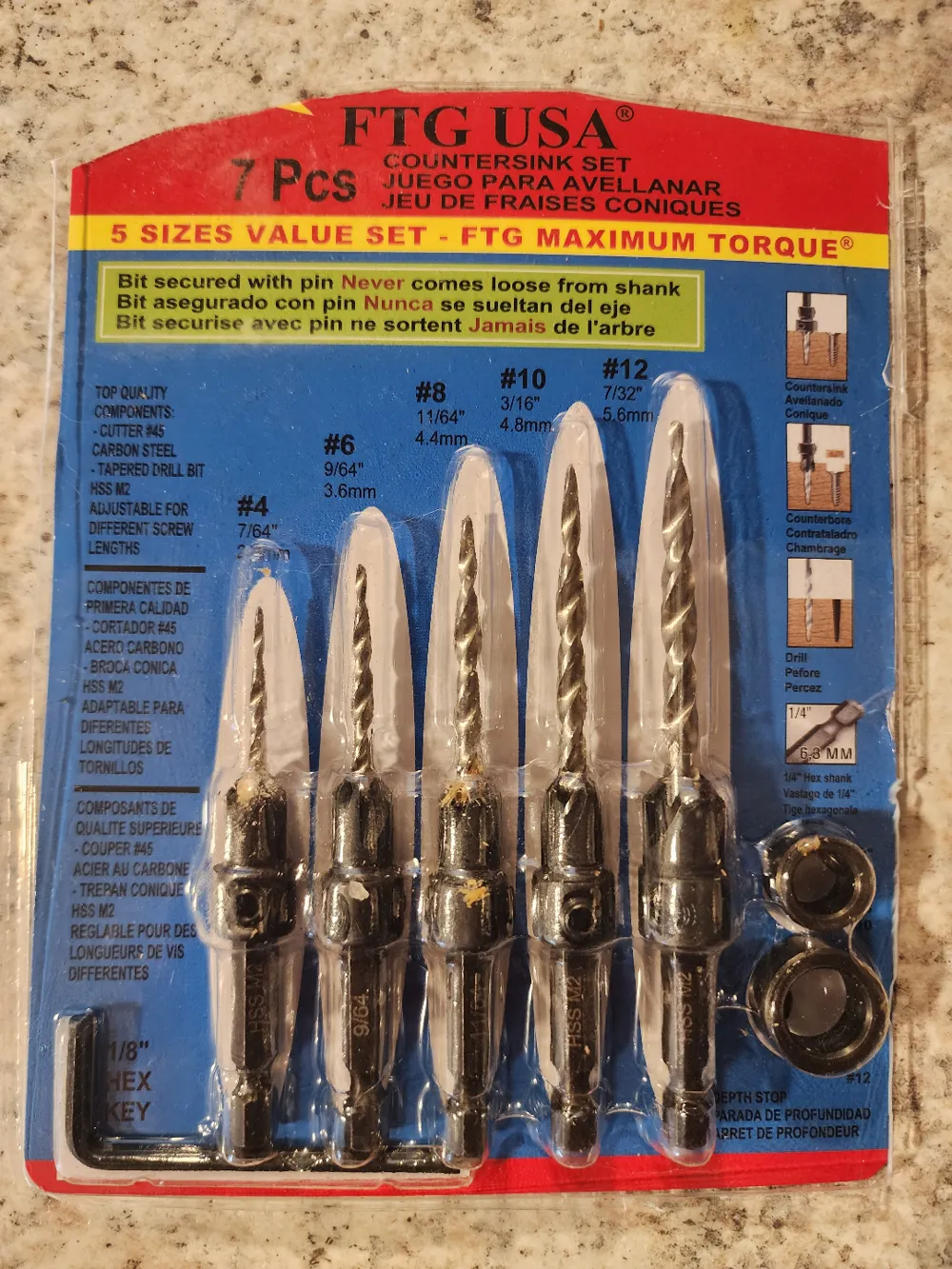

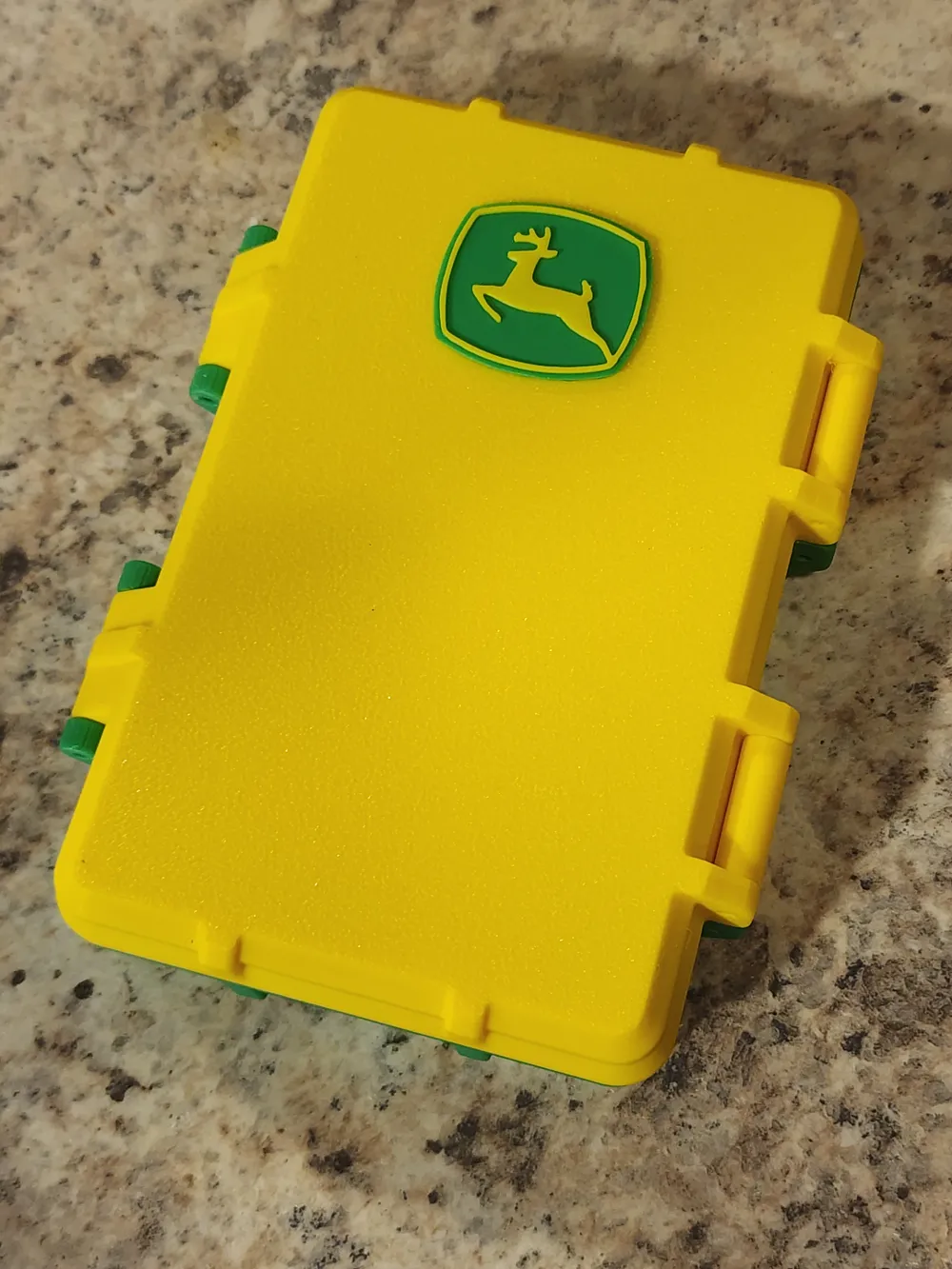

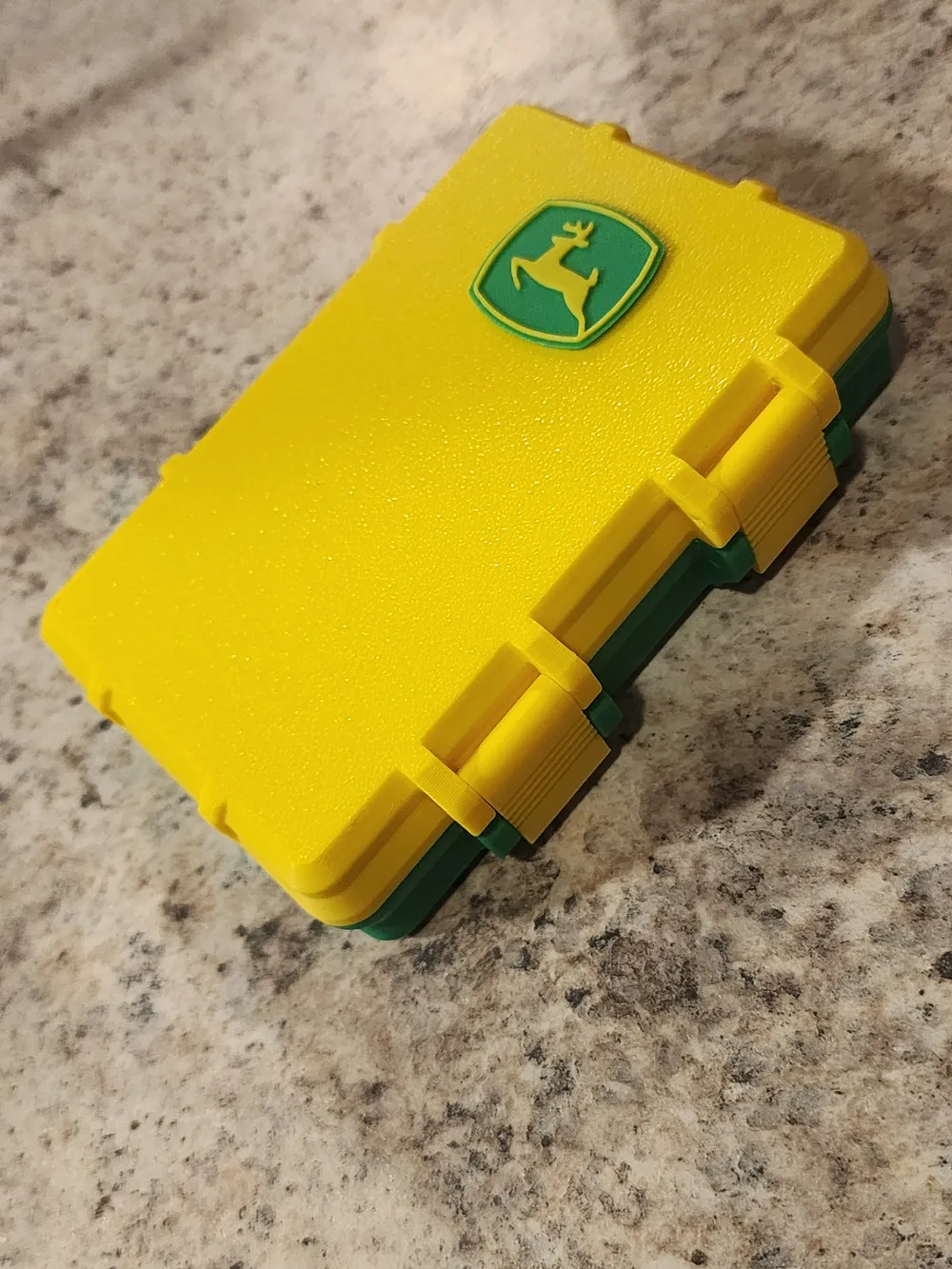

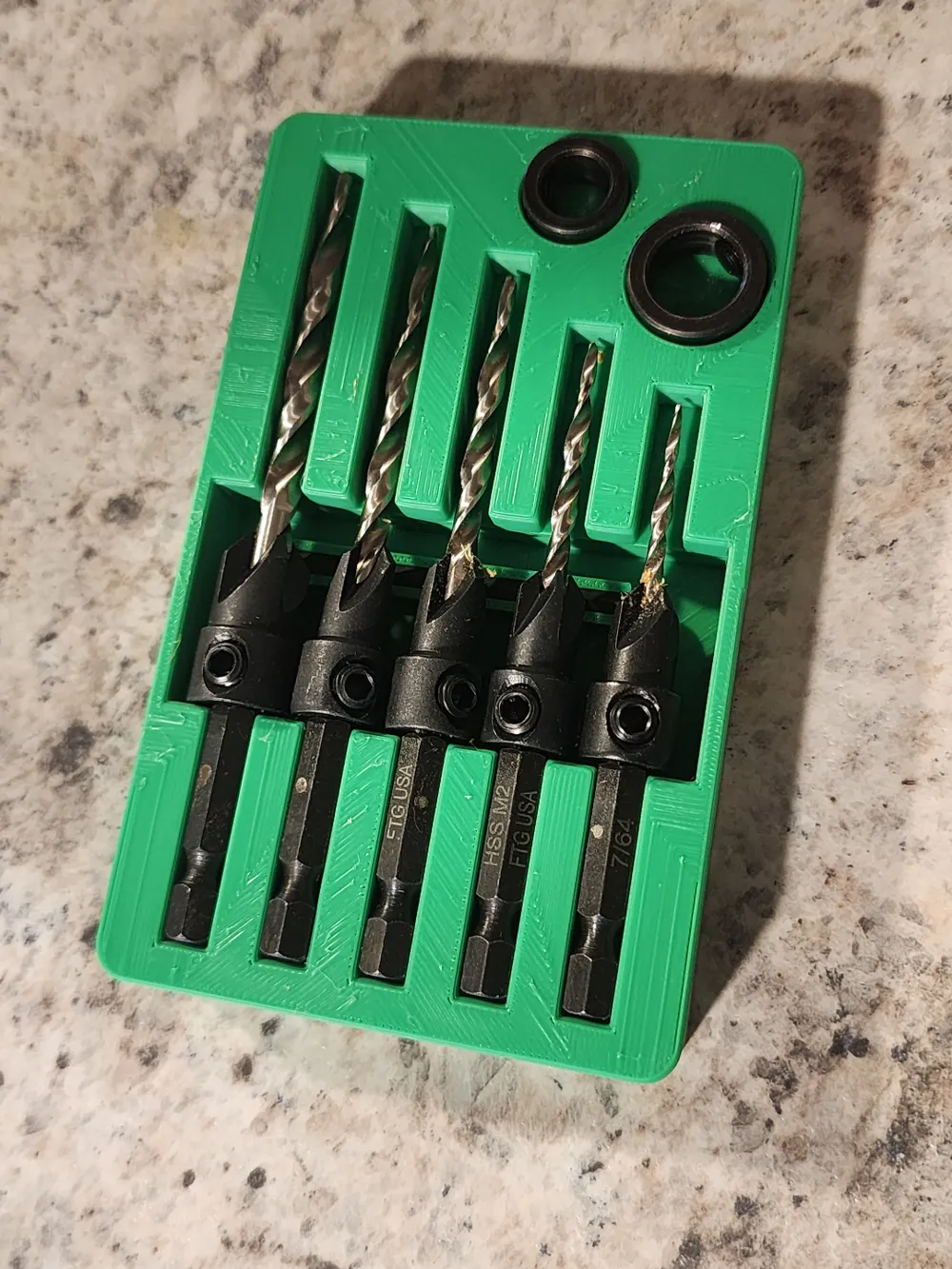

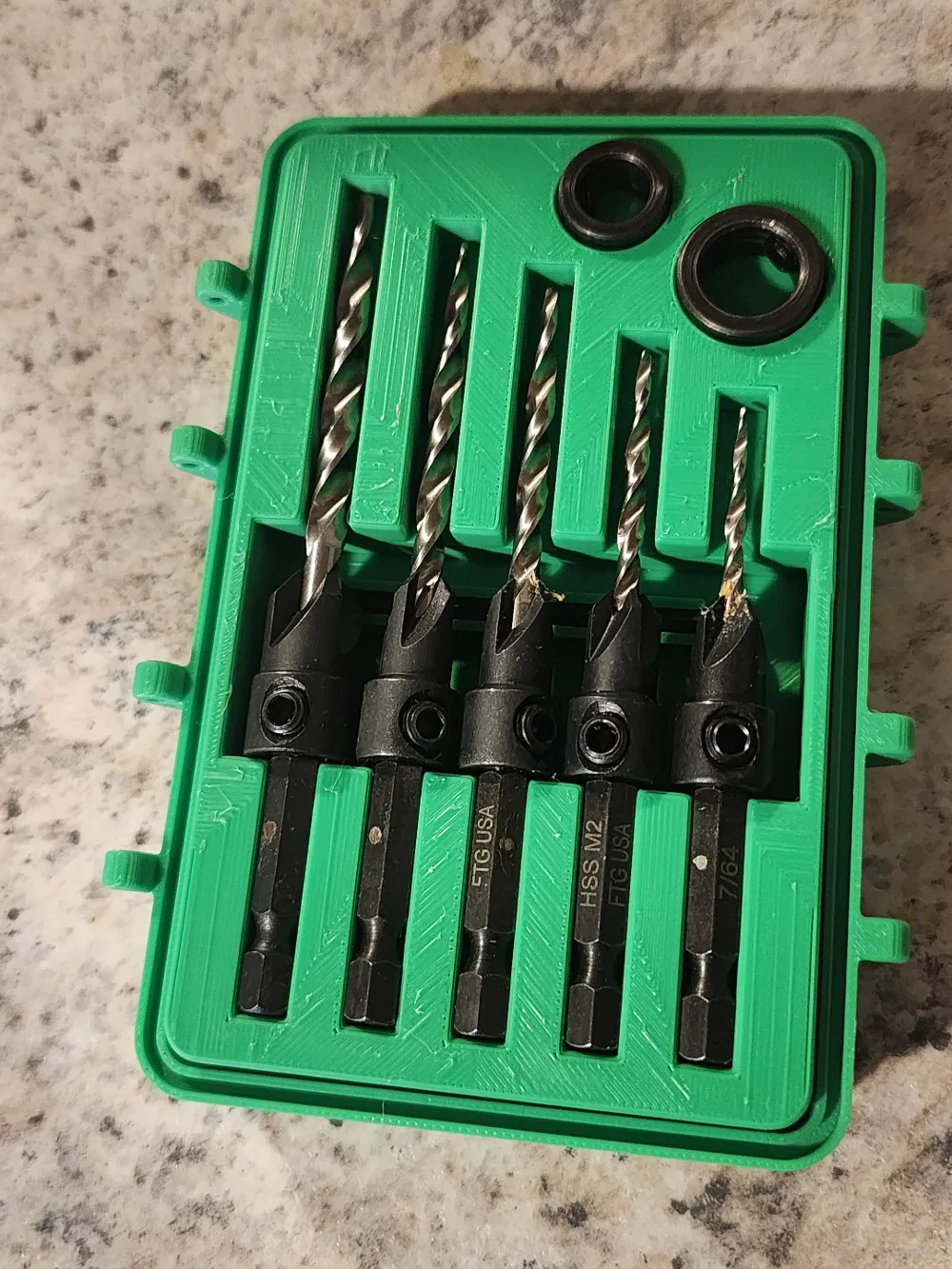

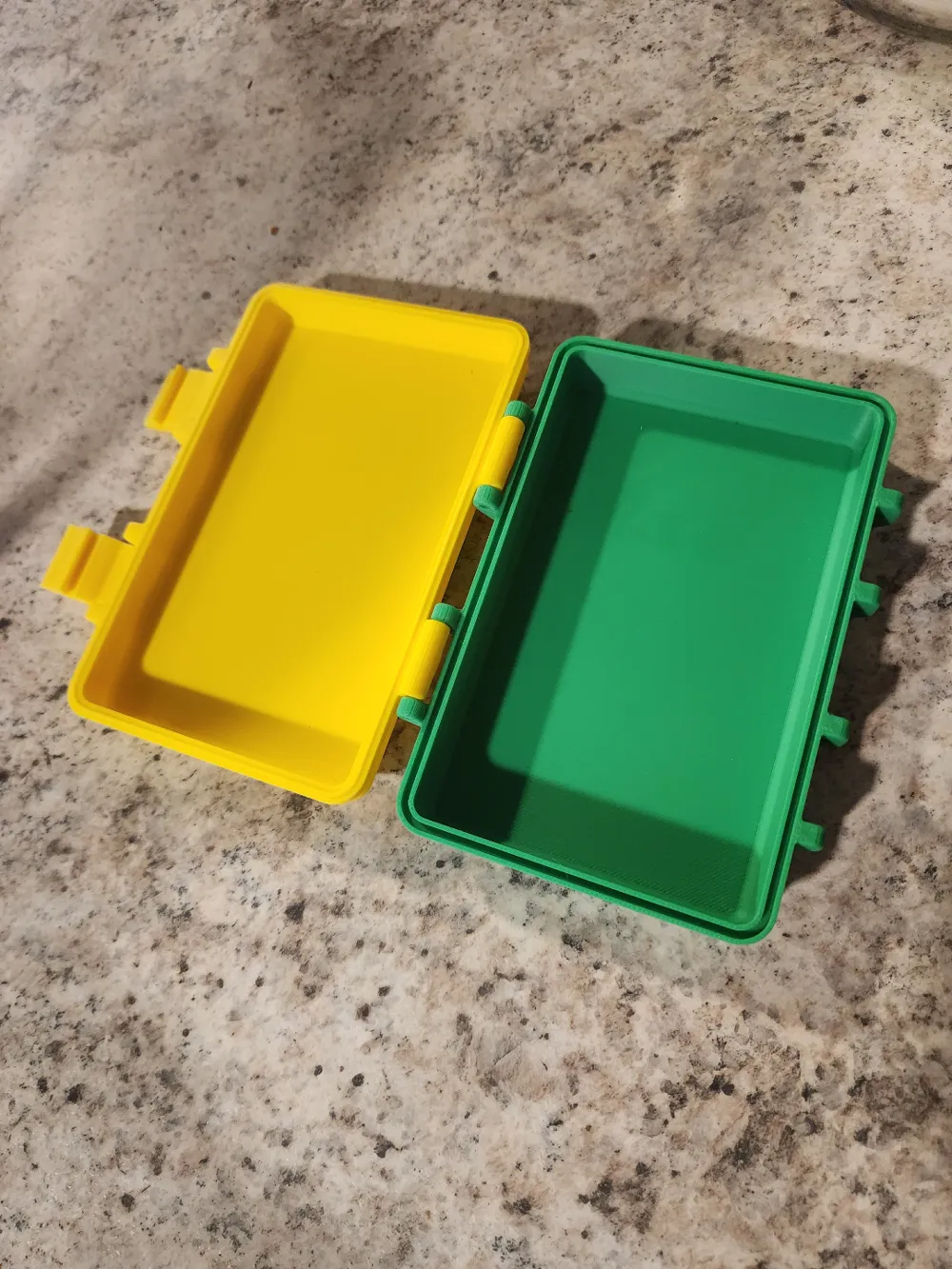

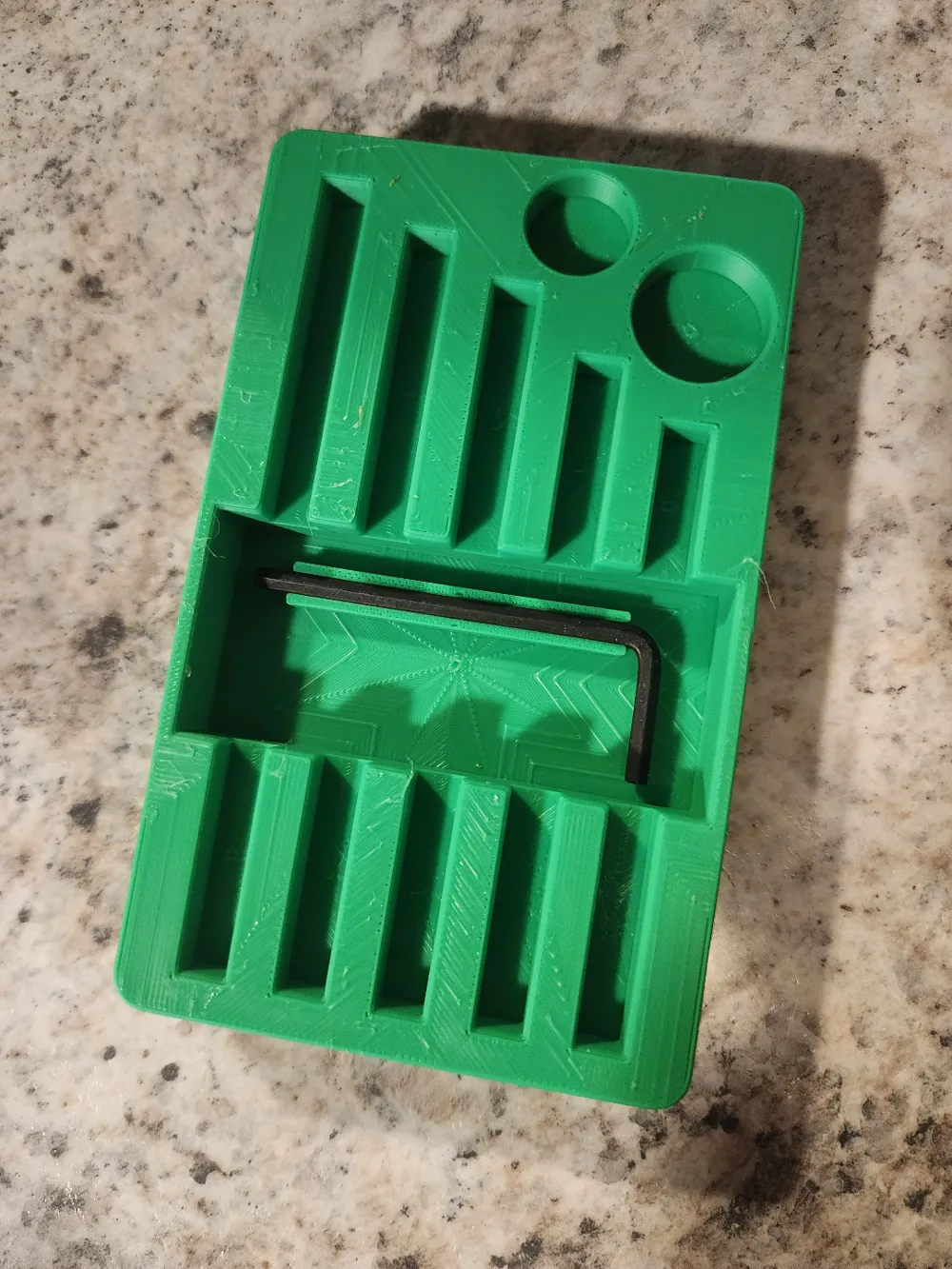

This is an insert tray for the FTG USA countersink set I bought on Amazon.  It has 5 countersinks, 2 Depth stop collars, and a Hex Key.  Hex key snaps into holder in bottom of tray.  The tray is made to specifically fit into the 3D Boxes to Your Dimensions v.2 found here on MakerWorld, Box number 222.  (Thank you Valera Perinski for the perfect little box!)  Please note that the box does NOT have the JD badge on it, I printed that and put it on there.  Also note that the items fit snugly in the box but I imagine that over time they will loosen up a bit.  I anticipate putting a foam pad or something in the top of the box to keep everything in place.  One final note:  I am new to 3D printing and Cad.  This is my first model, if you like it please let me know!
