A1 mini 3-Axis AMS lite Conpacted Feeder Mount
Print Profile(1)
Description

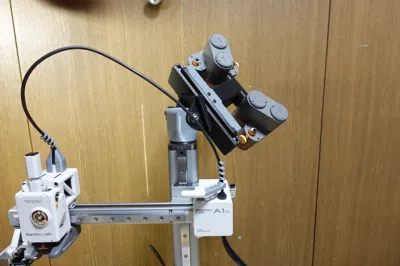

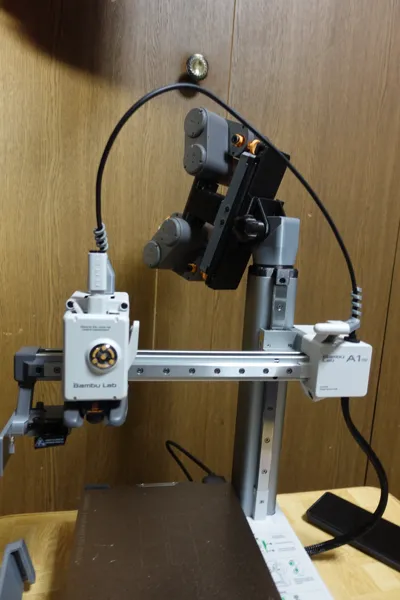

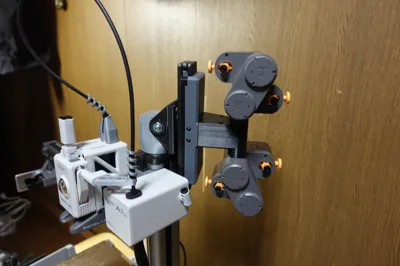

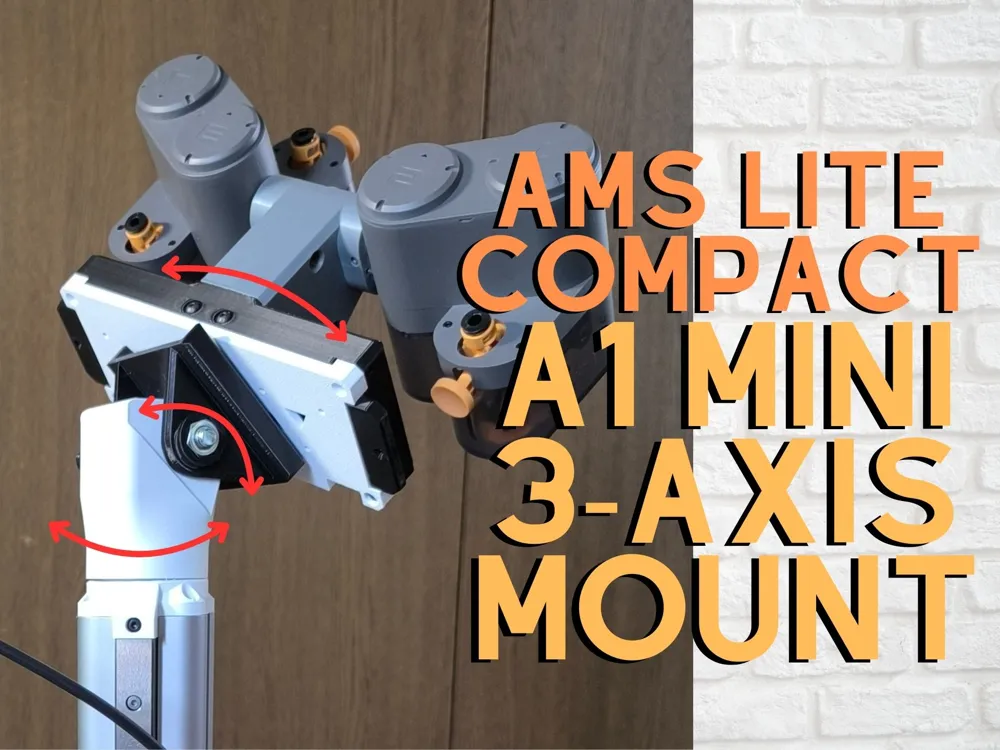

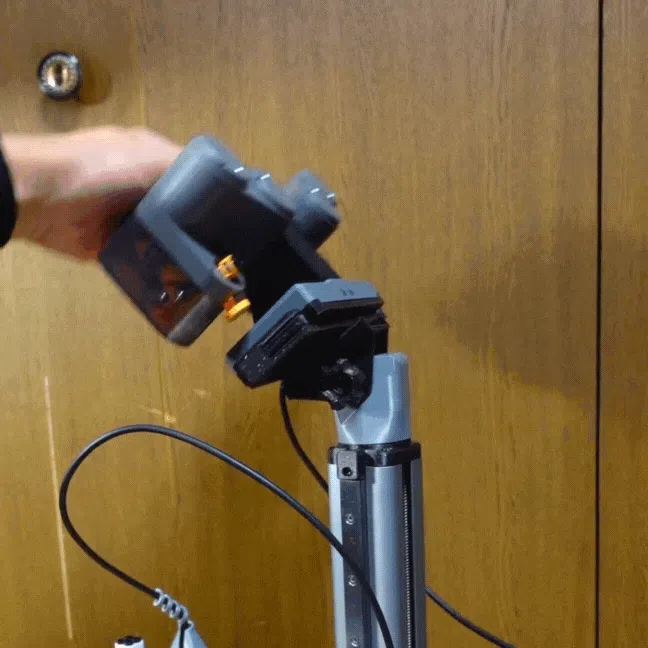

This is a part for mounting my compactly modified AMSLite onto the frame of the A1 mini. It allows for adjustment in three axes—vertical rotation, tilt, and mount rotation—so you can position it in your preferred setup.
Please use this in combination with the MOD in the provided link.
AMS Lite Feeder Compacted Mod Wall and Top Mount
↓
AMS Lite Compact Rotary Wall Mount （Rename）
https://makerworld.com/en/models/486438#profileId-399168
https://youtube.com/shorts/GtD9COP_sX8?si=GgedWkd4ufmLLymB
**Print Settings:**

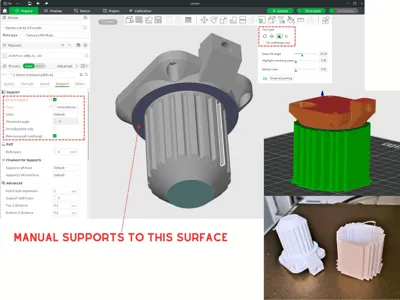

A1 MINI TOP MOUNT.stl: Requires supports.
All other parts can be printed without supports:
M8_knob_20.stl
SWIVEL MOUNT LOCK.stl
SWIVEL MOUNT_NO LOCK.stl
TILT MOUNT_LOCK.stl
TILT MOUNT_NO_LOCK.stl
2024/11/16 update

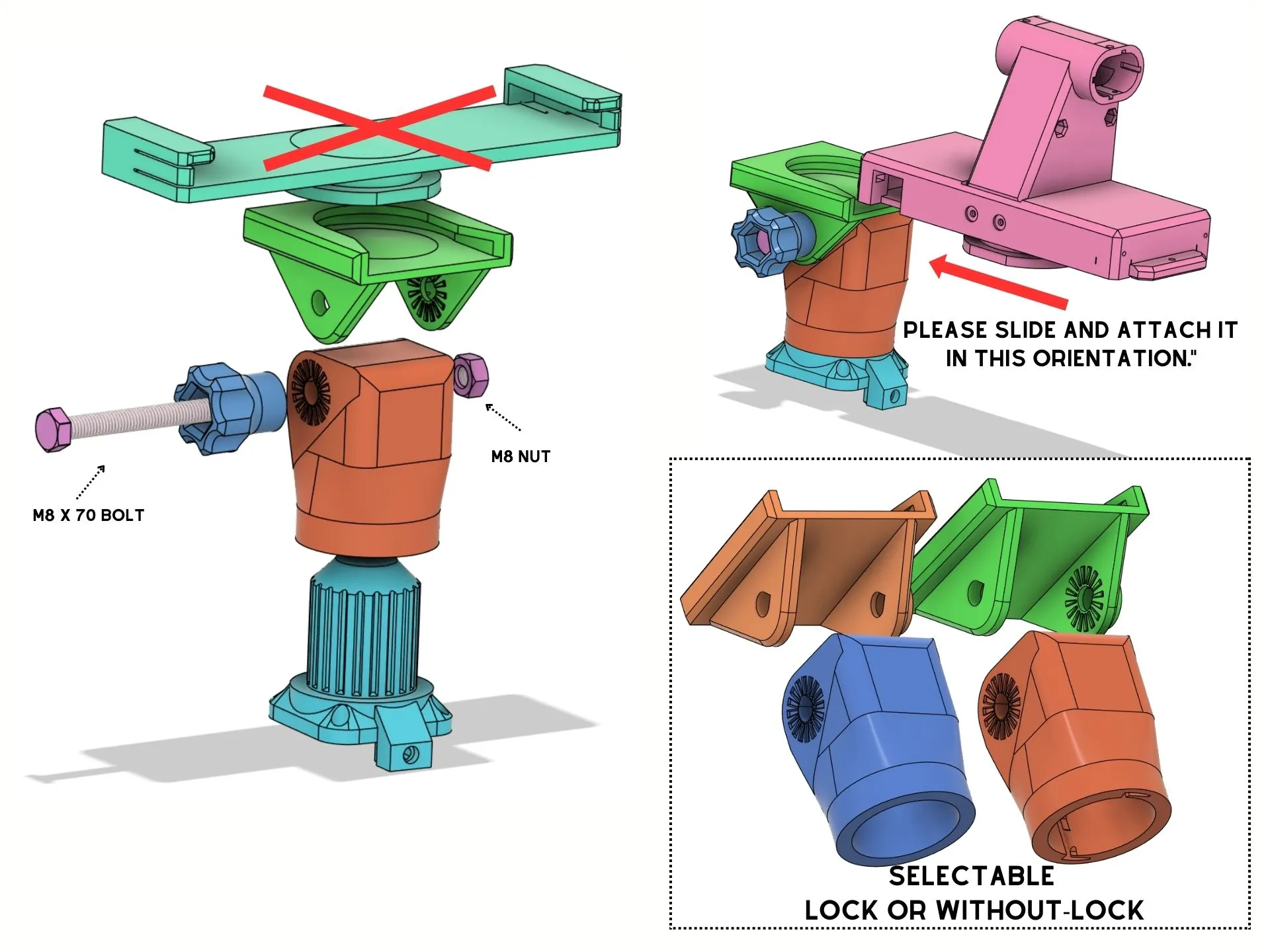

I have updated the "AMS Lite Feeder Compacted Mod Wall and Top Mount" to the new "AMS Lite Compact Rotary Wall Mount" with support for a rotary joint.
As a result, the "AMS LITE ROTATION MOUNT.stl" is no longer needed.
By reducing the number of mount parts and directly securing the AMS Lite MOD, stability has been improved, minimizing wobbling.
2025/4/6 update
I've released a mount that attaches to the top of the A1 frame and is adjustable in two axes. Please use it in conjunction with this modification.
A1 Top 2-Axis AMS lite Conpacted Feeder Mount
If the fit is too tight or too loose, please try adjusting the flow rate first.
