Description

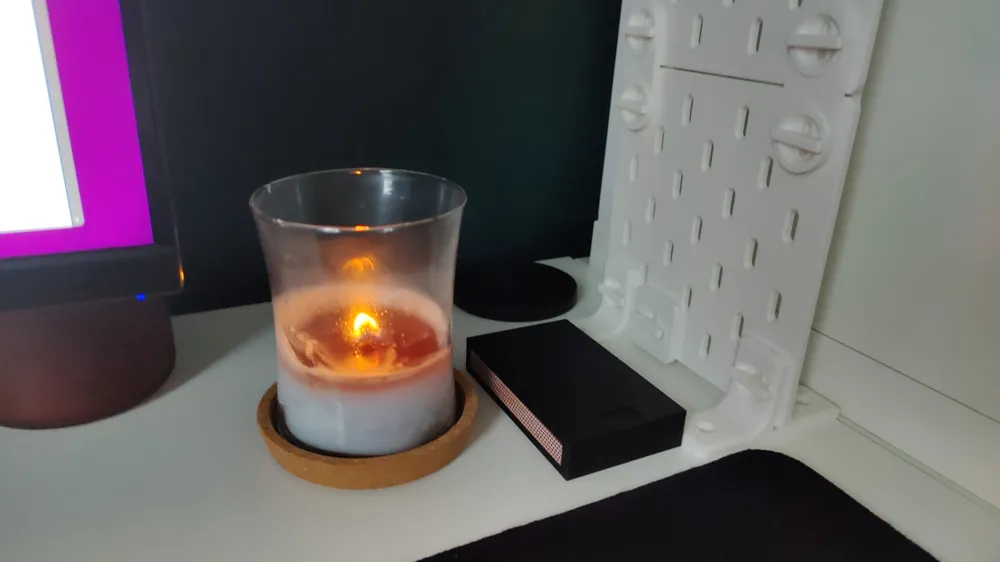

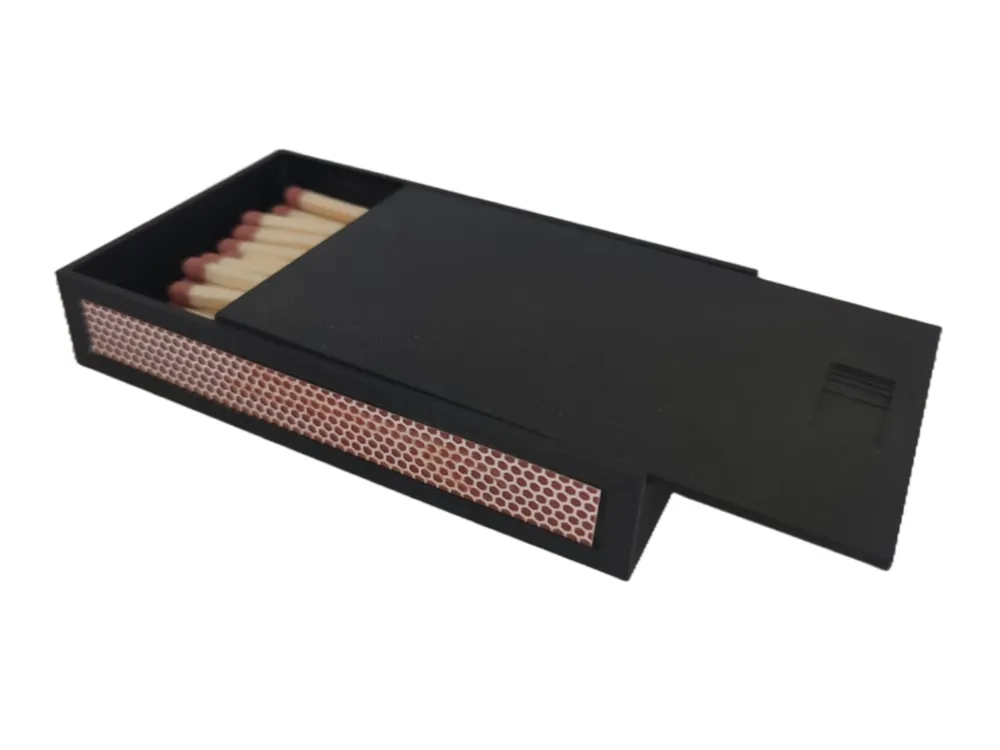

I personally like a monochromatic colour scheme for boxy/storage items left out in the open, and standard cardboard matchboxes are just too ugly. Based off the dimensions of a shop bought box of extra long matches, this first iteration includes a dovetail lid and recessed side panel where a striker strip can be glued in for a flush fit.



Dimensions:

L 110mm x W 65mm x H 20mm.

2mm thick container, with 1.55mm thick lid. Dovetail at 55°.

3mm radius for internal corners.

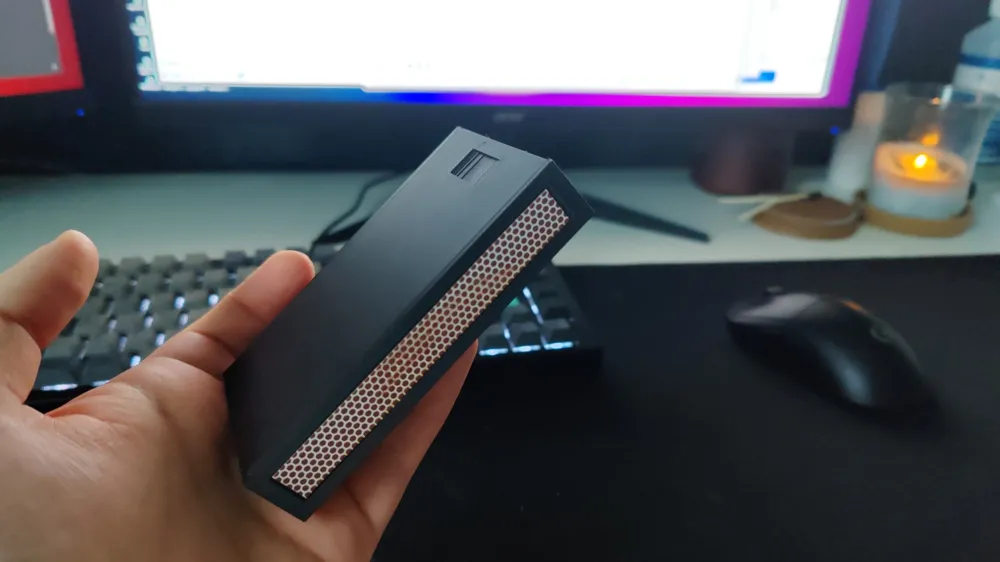

0.57mm recess on one side for striker strip. 0.57mm being the thickness of the strip itself to ensure a flush finish when glued in.



This is my first model so there will definitely be room for improvement.
