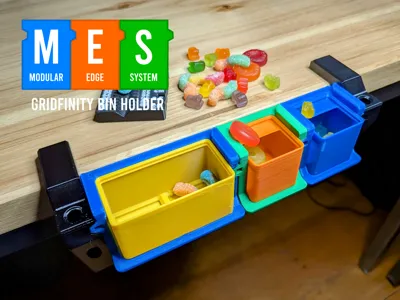

MES - Gridfinity Bin Holder/Sorting Modules

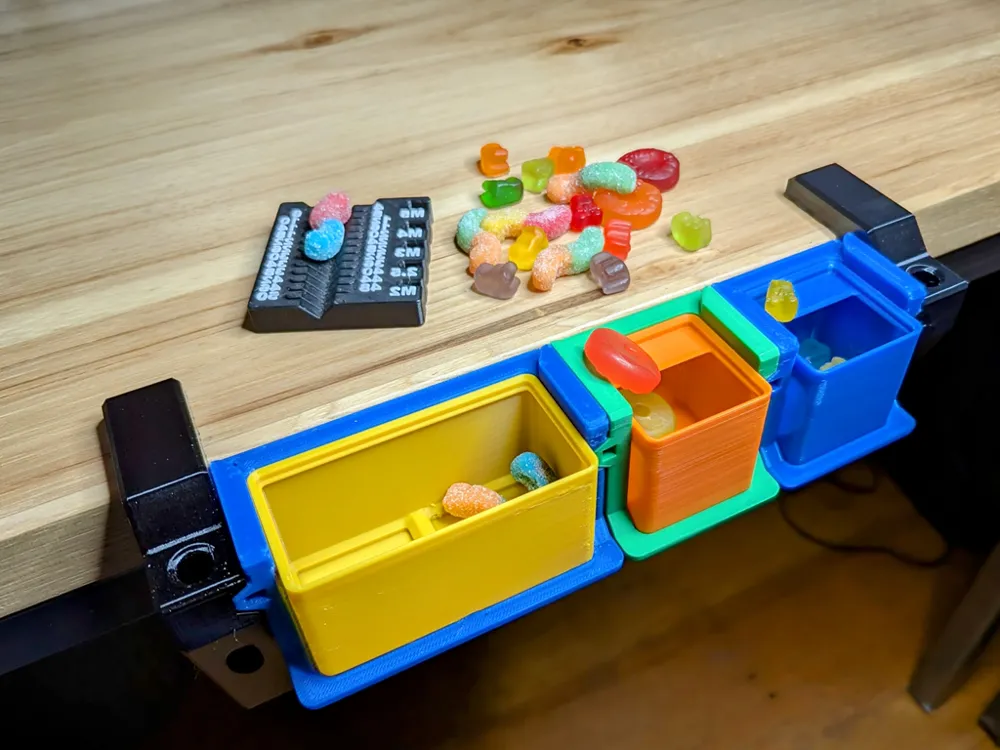

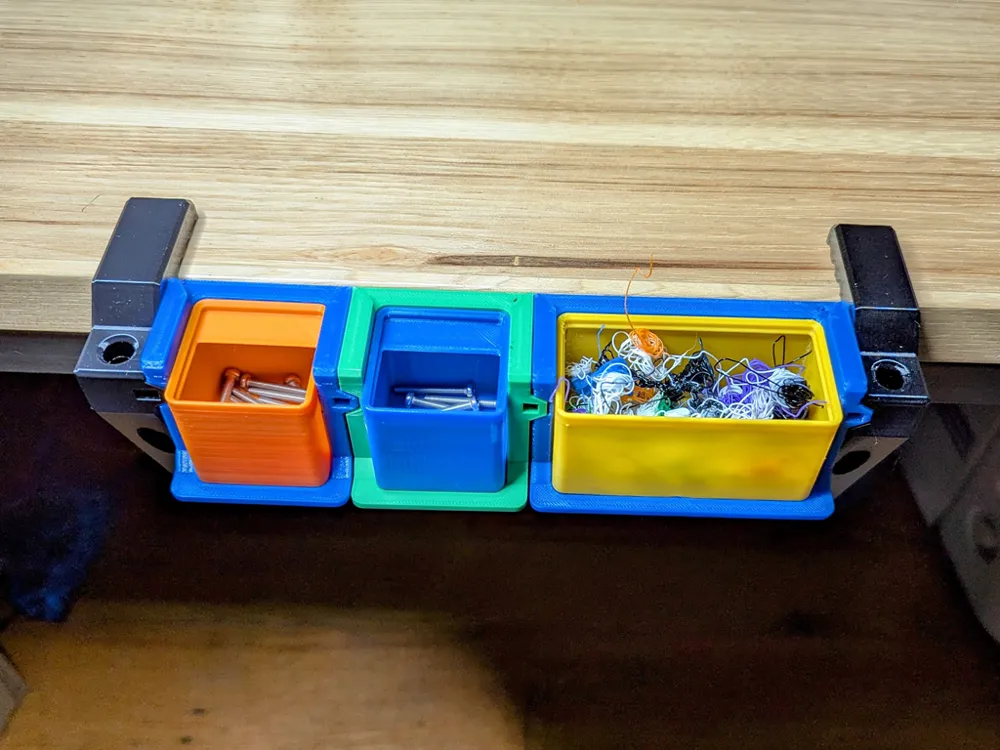

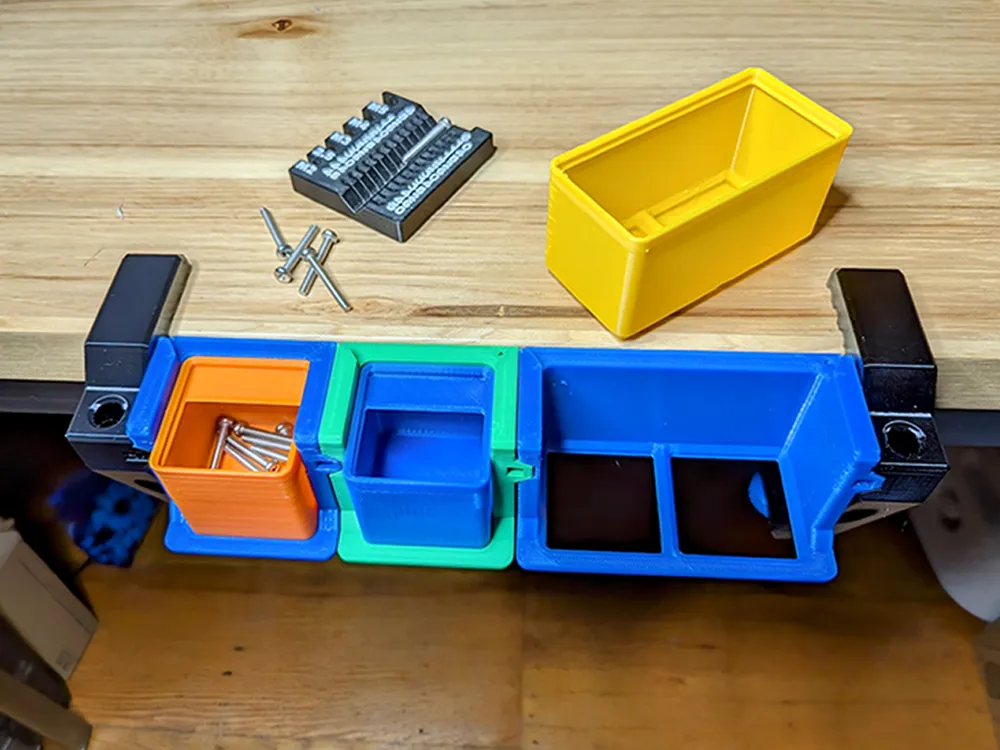

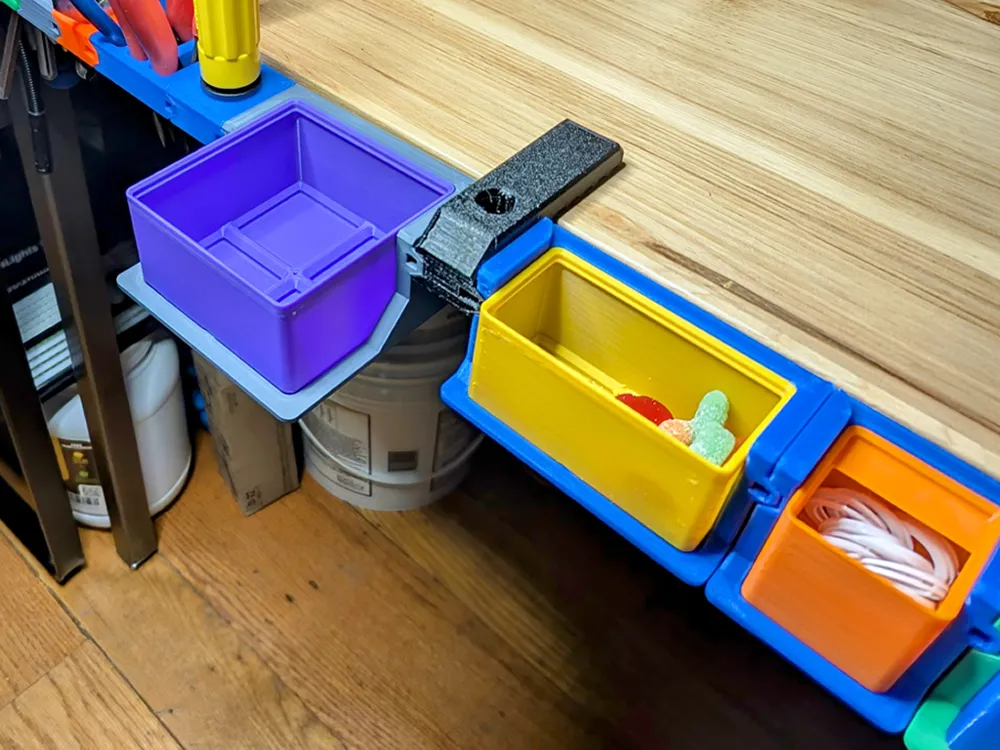

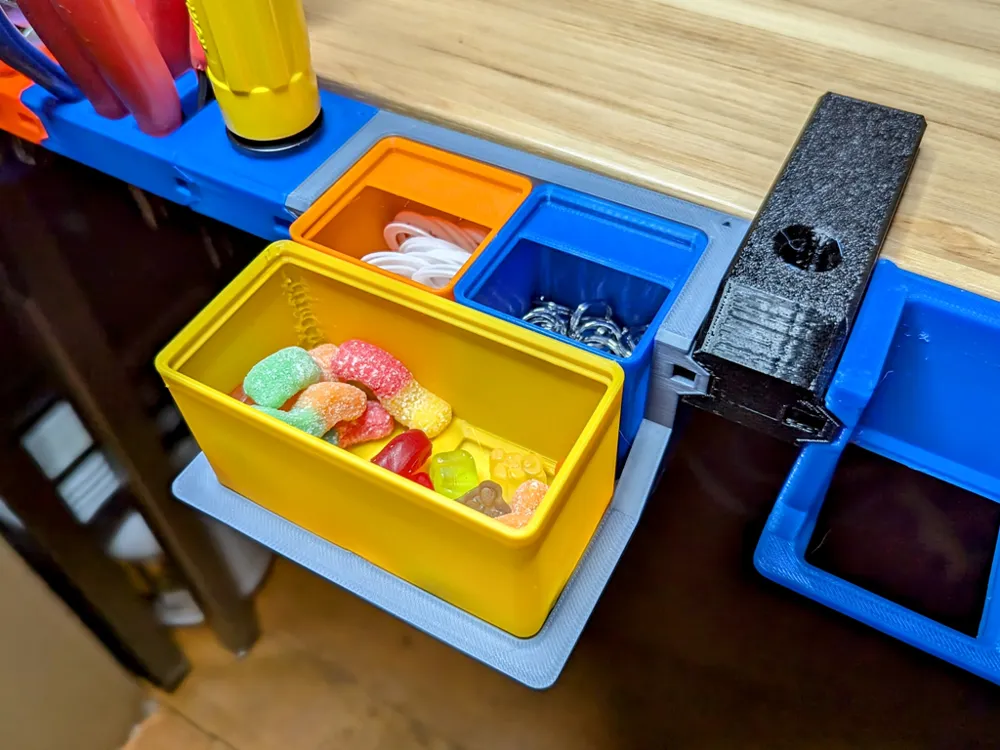

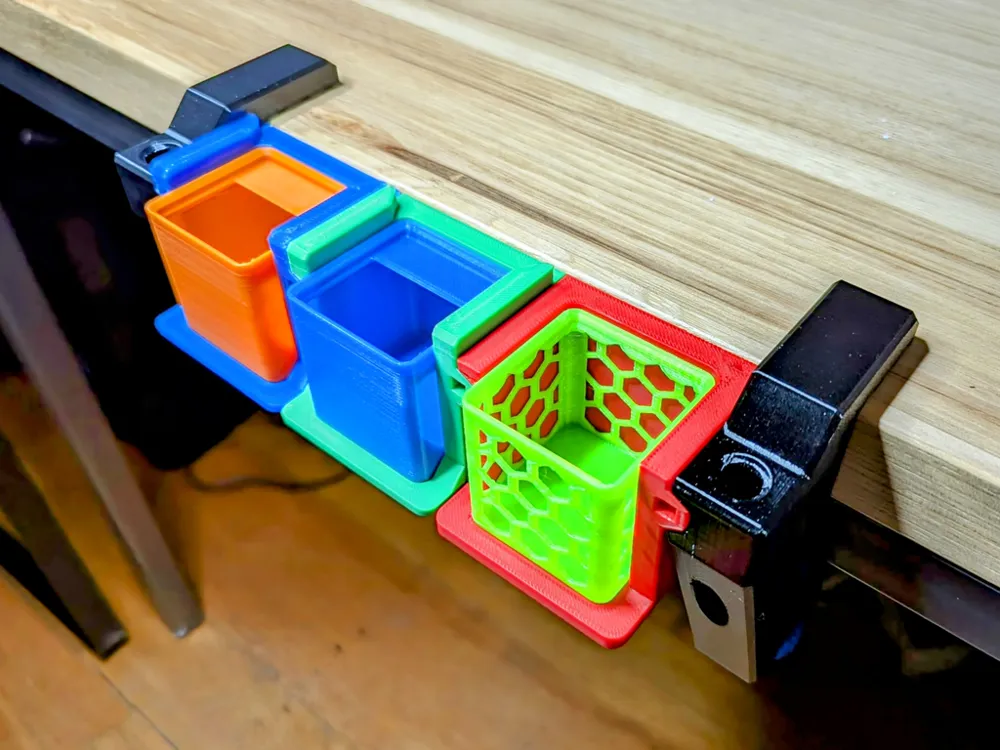

The “MES - Gridfinity Bin Holder/Sorting Modules” are designed around Gridfinity 1x1x6, 2x1x6 and 2x2x6 bins and are for use within the Modular Edge System. The holder modules allow for 6U bins to be flush mounted to your table top allowing for easier parts sorting. The modules can also hold Gridfinity bins that are less than 6U in height.

For MES module mounting clamps, additional MES modules, and instructions on how to add these modules to your MES setup, checkout the Modular Edge System page.

I printed these modules using PETG but any type of filament should work. No supports are needed.

Update 11/13/2024

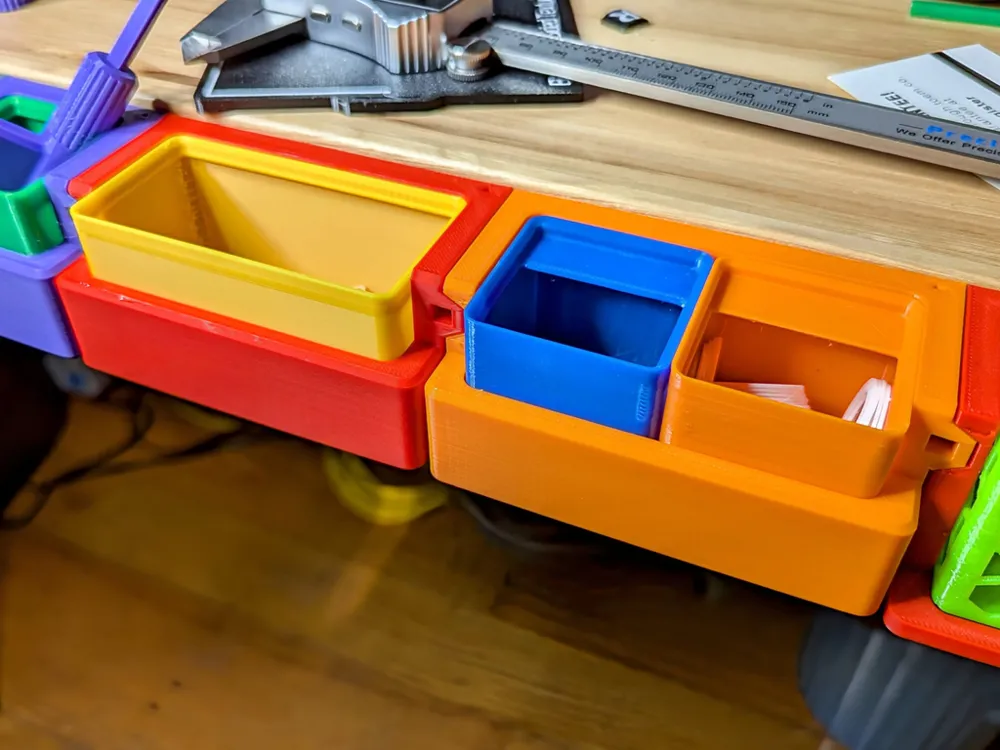

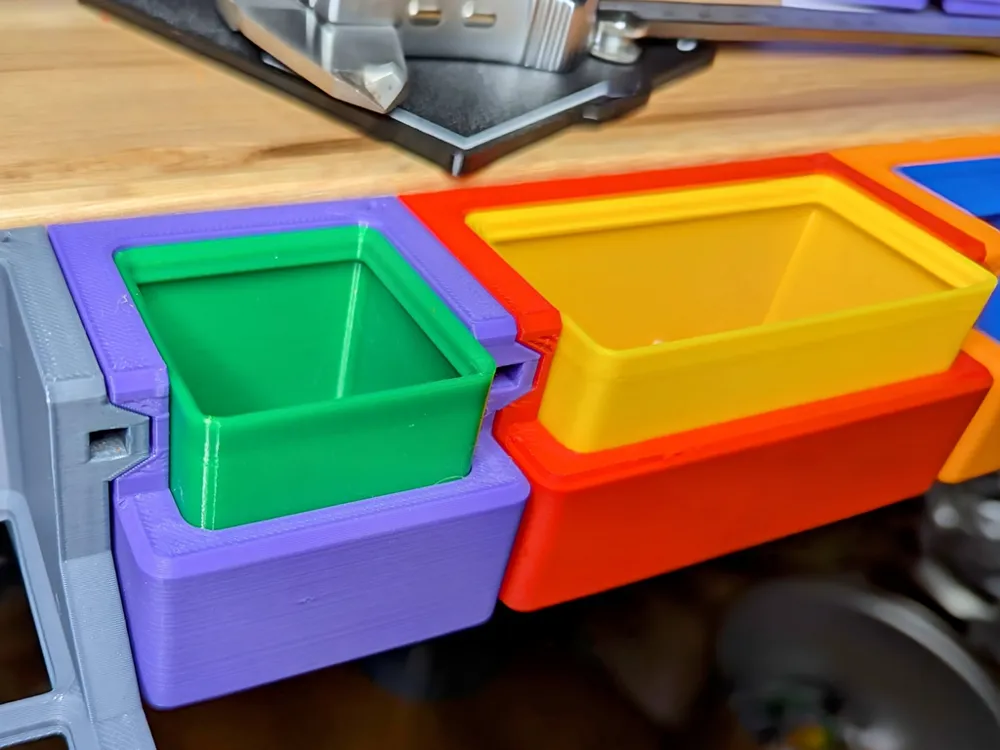

I kept on knocking the bins out of the holders and dumping the contents on the ground so I made ones with half height lips. They still allow for easy bin removal.
