Ryobi Compact Router - 6" Sliding Edge Guide
Print Profile(1)
Description

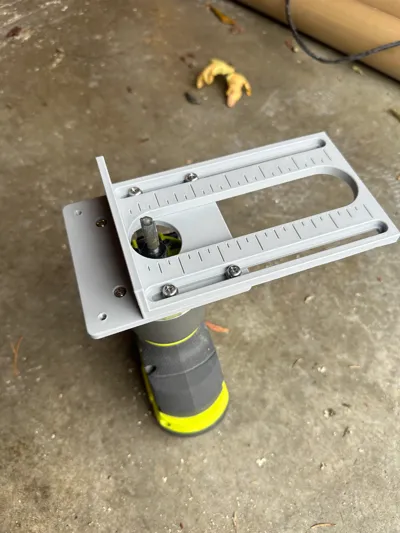

6" Sliding Edge Guide for Ryobi Compact Fixed-Base Router. Works on most Ryobi Routers but the mode I use is #PCL424B

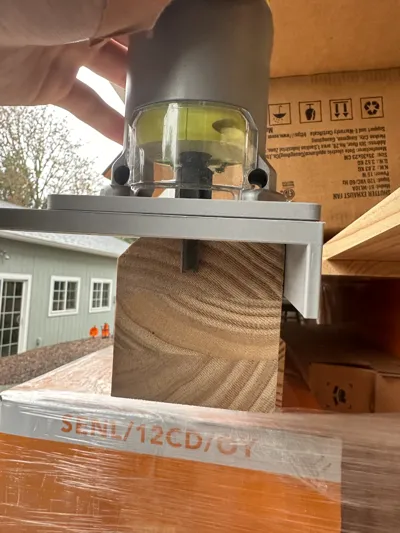

The guide allows you to route up to 6 inches from an edge and is adjustable.
Requirements:

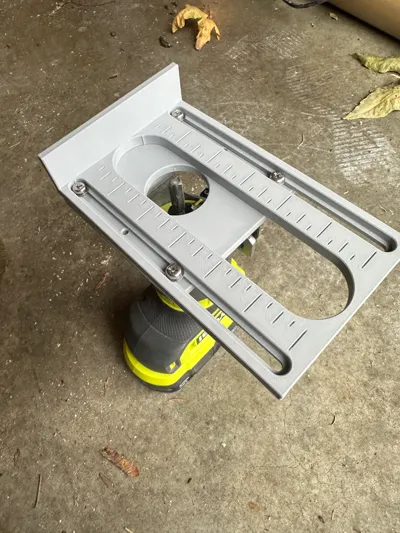

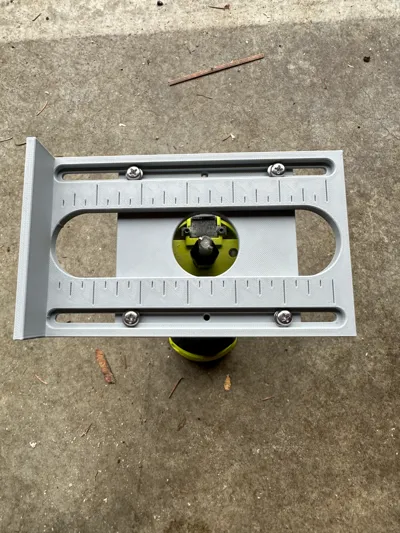

This attachment is screwed into the 4" Square Base linked above. It includes a 6" ruler measuring from the start of the edge, allowing you to fine-tune the distance you want to route from.
Threading the M5 screws through the Square Base the first time will take a bit of force, but this ensures the Sliding Edge Guide is firmly affixed. Slightly loosen each screw to allow the guide to slide back and forth, set the distance, then re-tighten the screws when you're ready to route! For very short distances, use the center holes present on the Square Base as your Slider attachment points.
Recommend printing in PETG for durability, but it will work fine with PLA. Print with a brim and preferably in an enclosure as PETG prints of this size are prone to warping. 100% infill recommended to adequately allow screw tightening without deformation.
Boost Me (for free)
This took a while to develop so if you like it leave a review or a boost!
Looking for a guide for making Bevels and Chamfers? Check out my 4" Sliding Bevel Guide here!
