An original design, thank you to my friends who support me with a free boost.

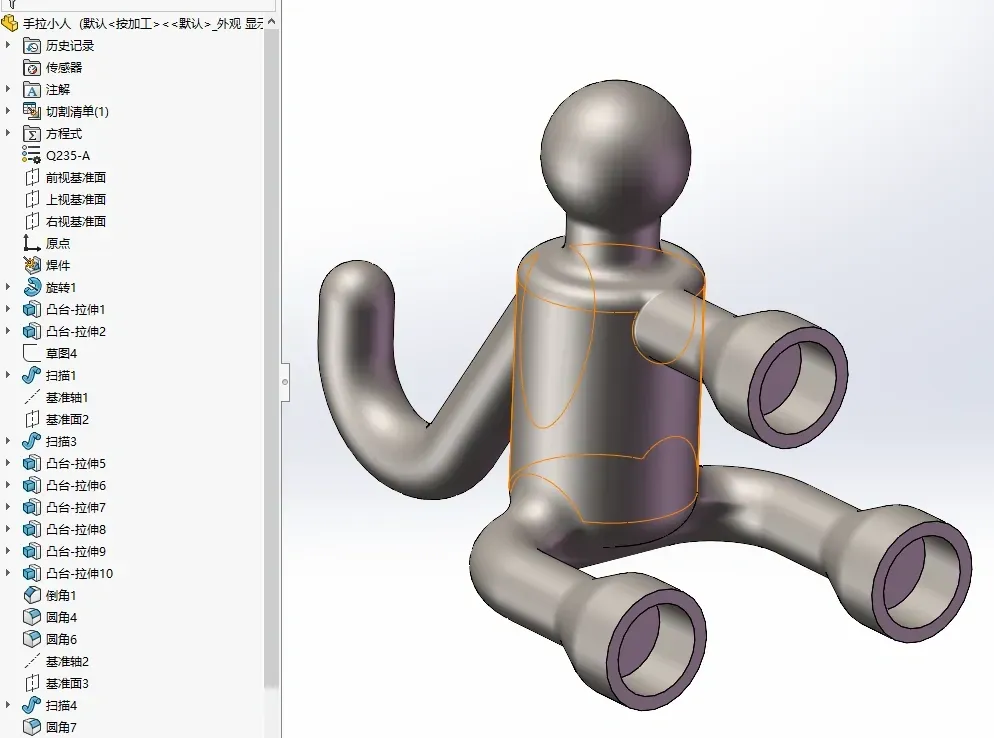

The following image shows the interface I designed, I usually use Blender and Solidworks. This work was designed using Solidworks.
11.1 Optimized Design:
- The legs were a bit fragile, so I thickened the thighs and lowered them at a slight angle.
- The magnet hole diameter was reduced to 5.1 mm. With a strong push, you can press it in without glue. When pressing, press in the opposite direction.
Design Features:
- Compact, only 2.8g.
- Convenient magnetic adsorption, it can be adsorbed anywhere with iron.
- The figure is quite vivid.
- There are three magnet positions for greater stability.

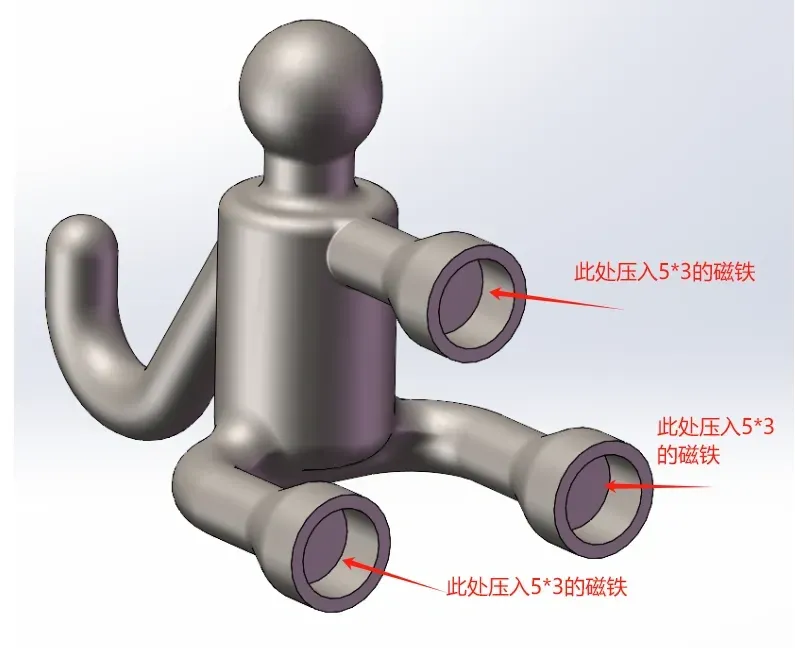

Assembly:
As shown below:

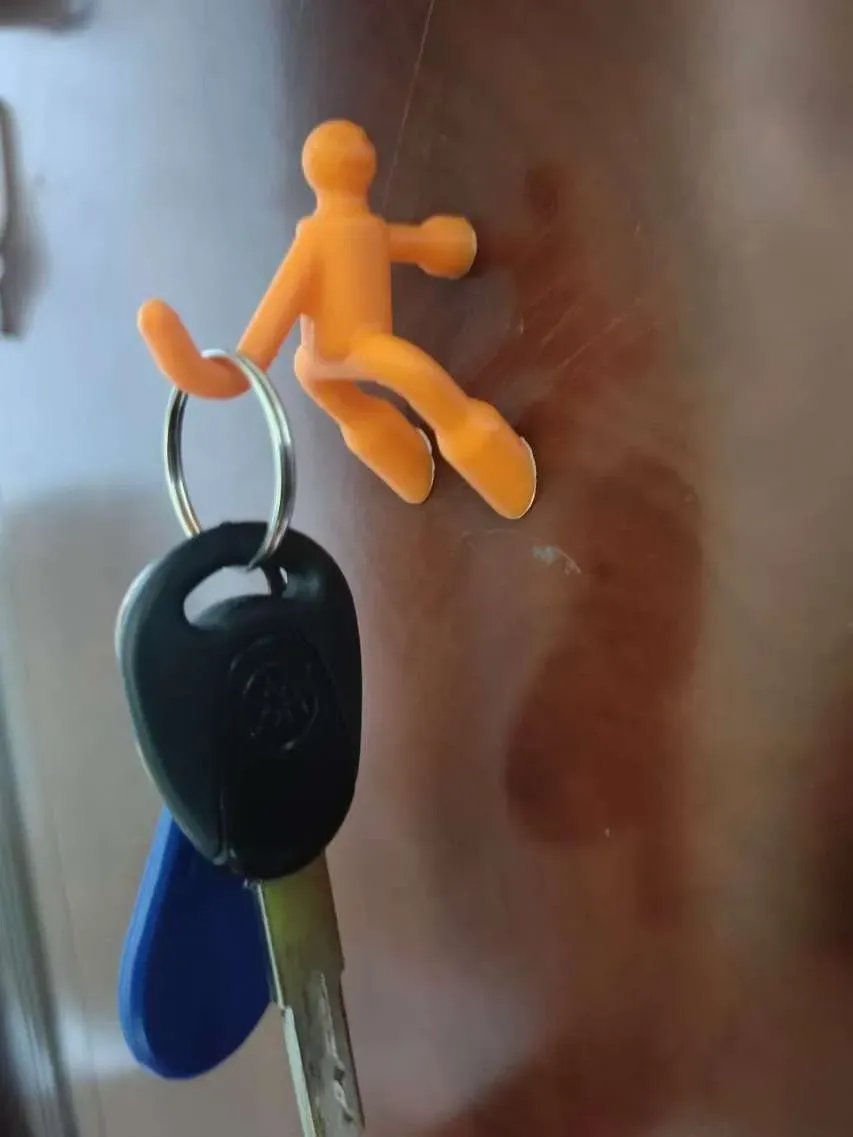

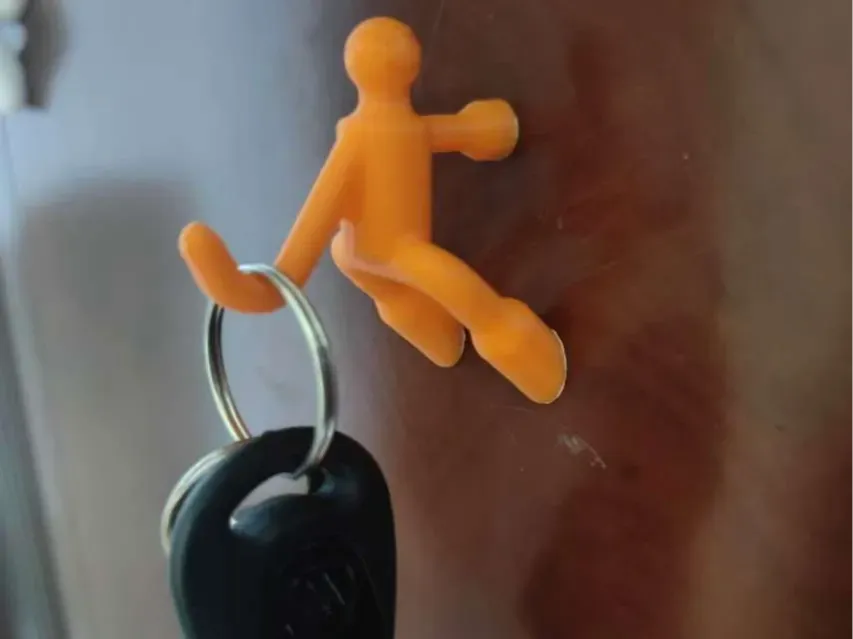

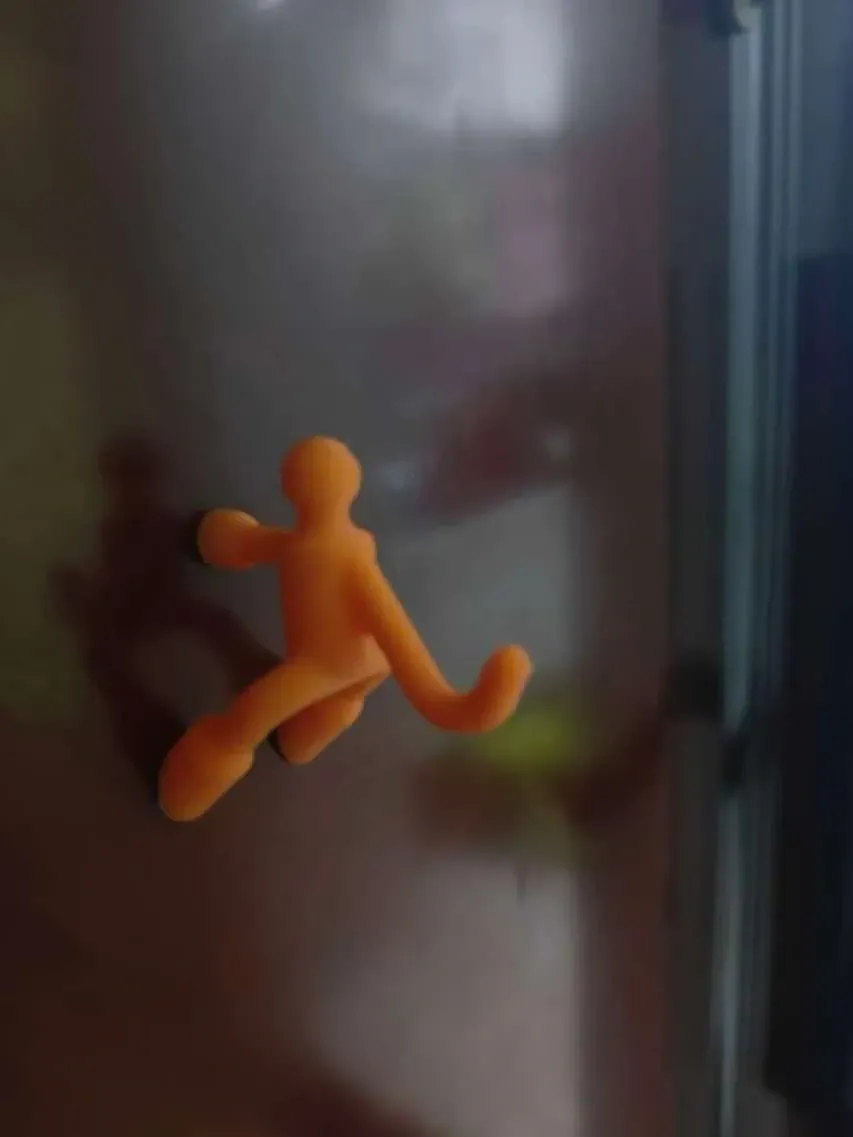

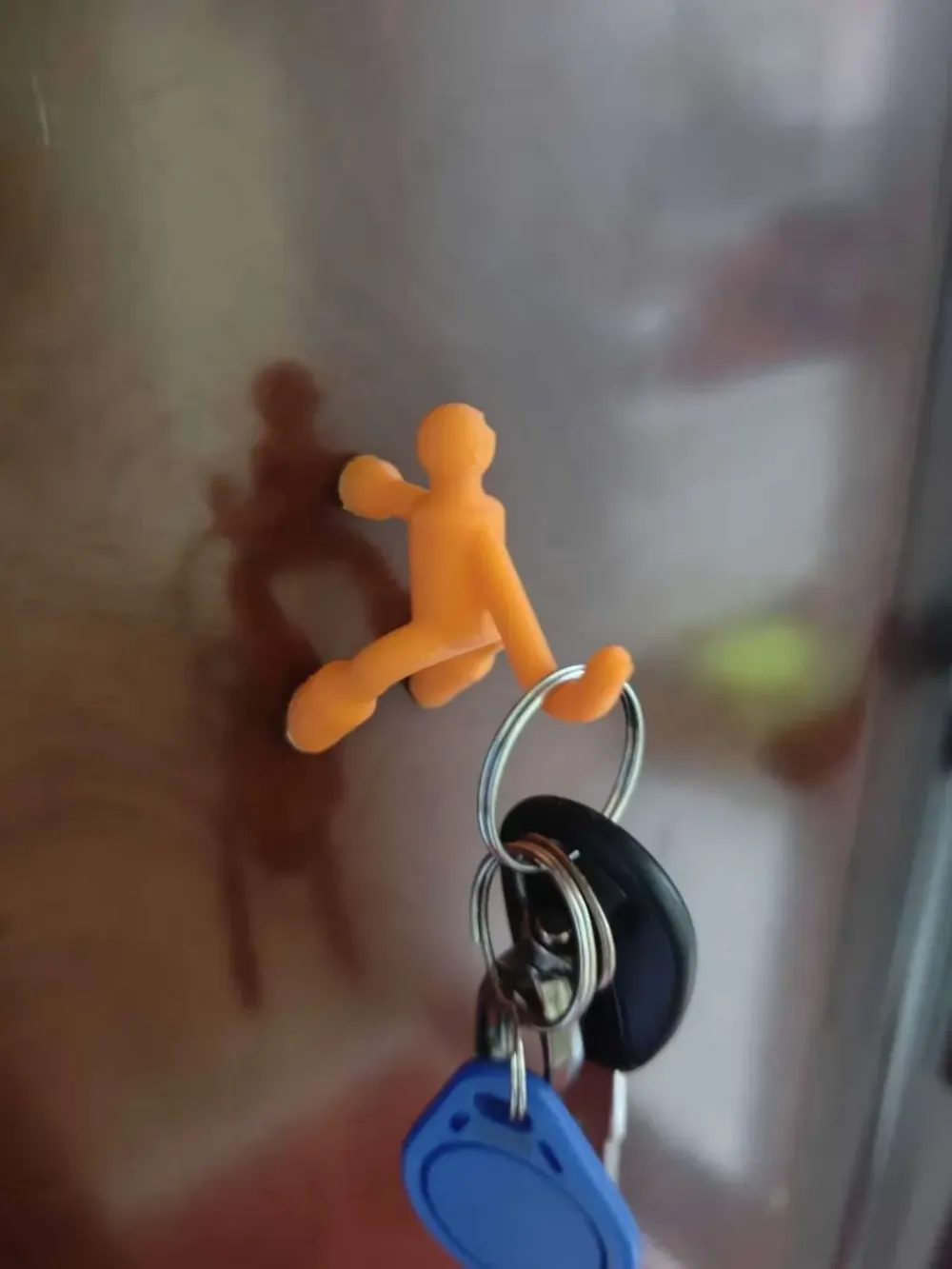

After installation, you can stick it to the door.
