Leverless Controller / Hitbox Style Controller
Print Profile(1)
Description

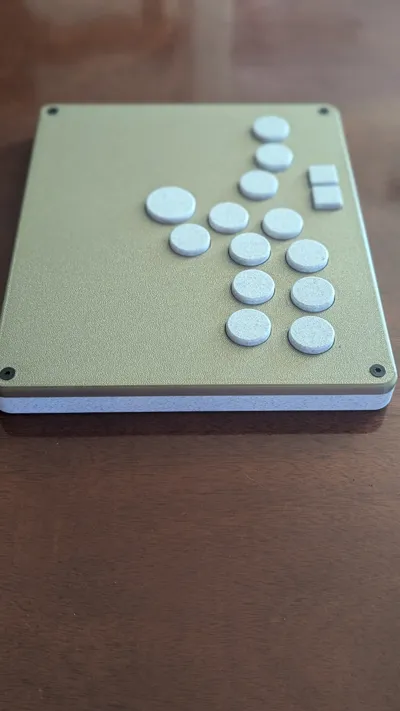

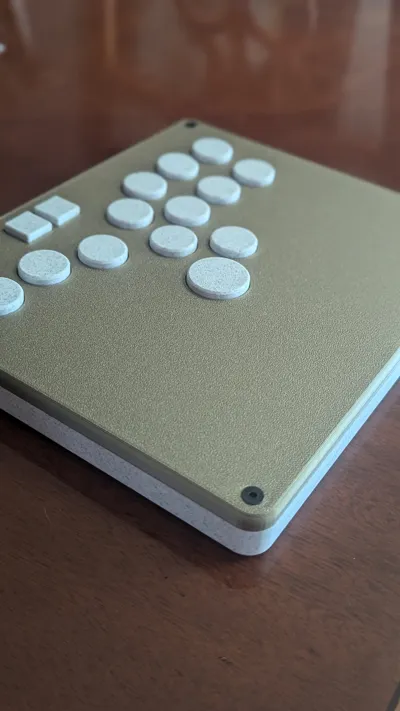

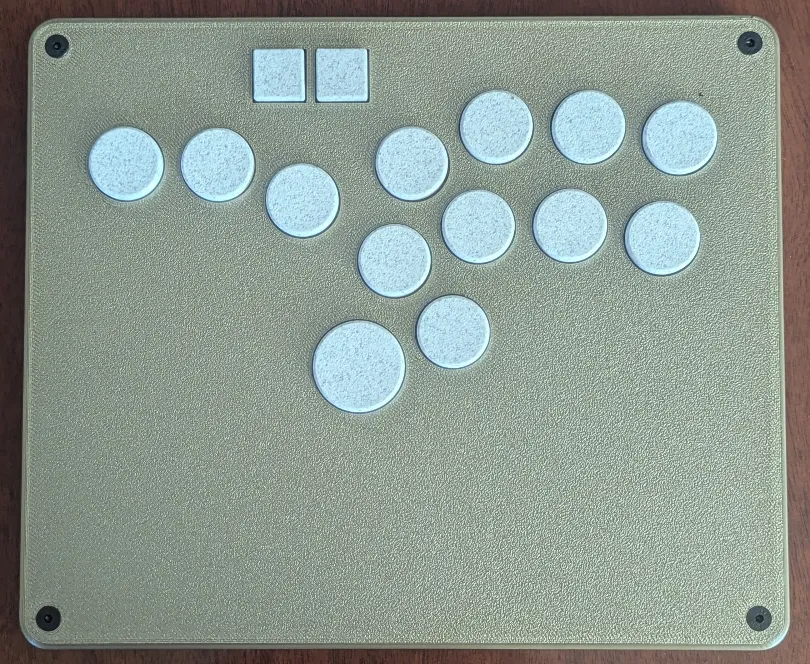

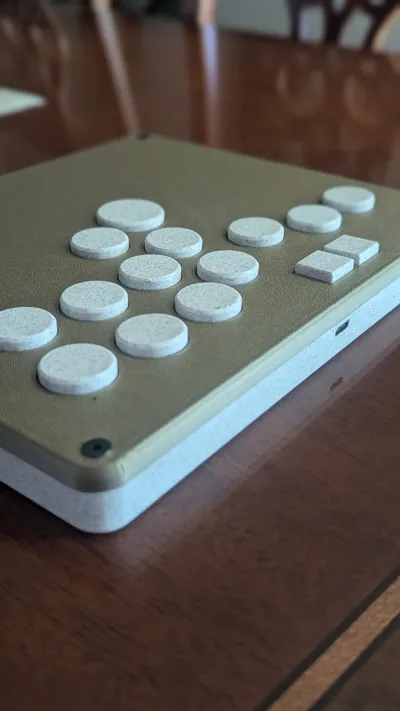

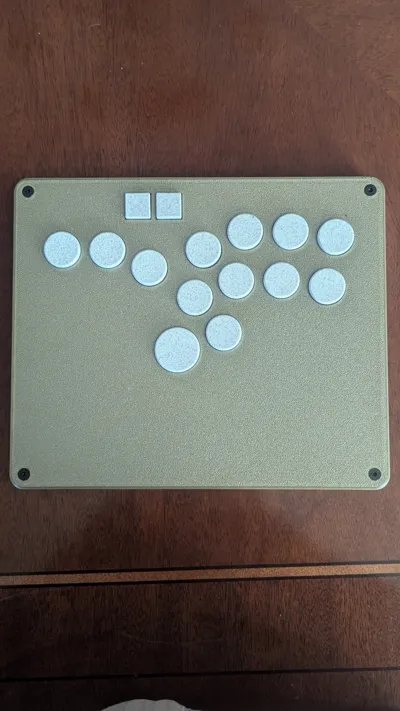

This is a Leverless/Hitbox style controller. Used primarily for PC fighting games. This one I modeled more for street fighter 6. It's a simple controller that can fit directly on the p1s or x1c buildplate. Its very easy to assemble.
You need:
x4 m4 12-16mm screws https://a.co/d/2eFHYDw
x2 m3 6mm screws https://a.co/d/3uKKn2w
1x Raspberry Pi Pico https://a.co/d/4UpK96Z
15 low profile switches https://a.co/d/hW6W0zc
1x usb c breakout https://a.co/d/ecJnEby
solder and wire to connect the switches.
To assemble just press the switches into the body of the controller and they will snap securely in place.
Screw the usb c breakout board to the body with the m3 screws.
Use a soldering iron or something warm to melt the standoffs to hold the raspberry pi pico into place.
Then connect all the switches using solder and wire to the pico using the wiring guides at https://gp2040-ce.info/
Connect the usb c breakout to the pico using a micro usb cable.
Connect the pico to your pc and hold the button on top while connecting to be able to flash the firmware from https://gp2040-ce.info/ onto the pico.
Here is a fairly comprehensive guide on the process i found on youtube! I will also be recording a guide of my own in the coming weeks.
