LED Tester V1.0
Print Profile(1)
Description
LED Tester V1.0
Pocket-sized 3 volt LED diode tester
A simple circuit powered by one CR2032 battery

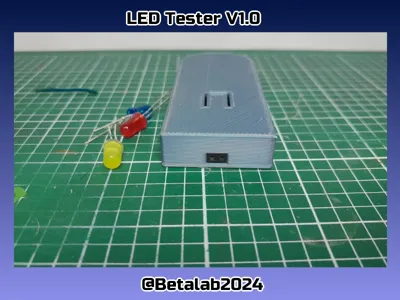

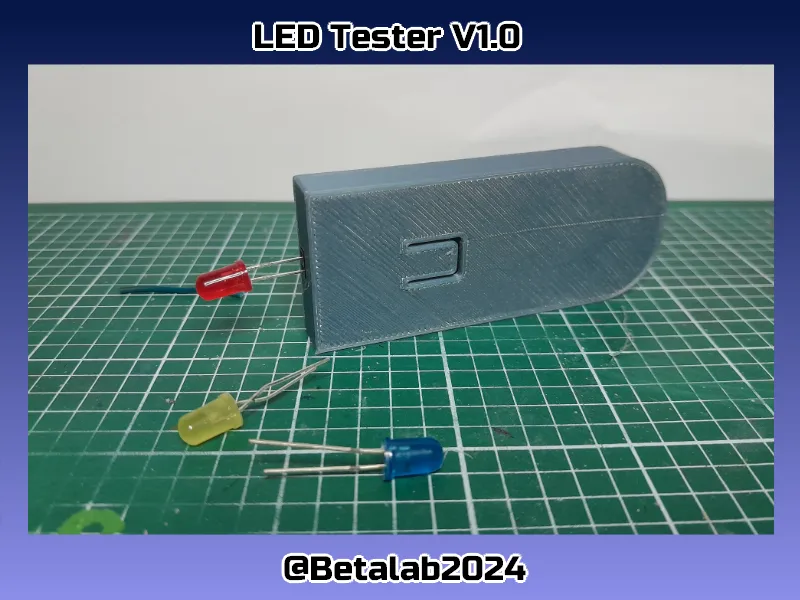

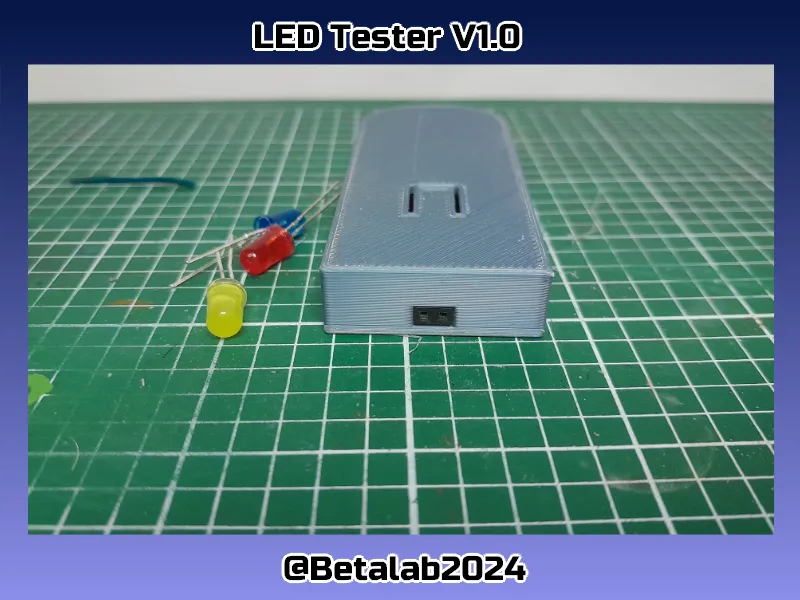

Pocket-sized device 73x30x10.5mm

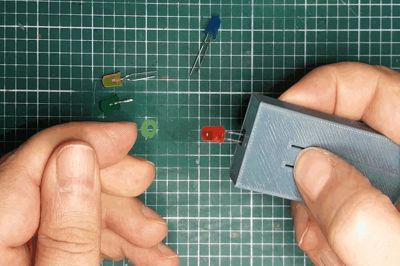

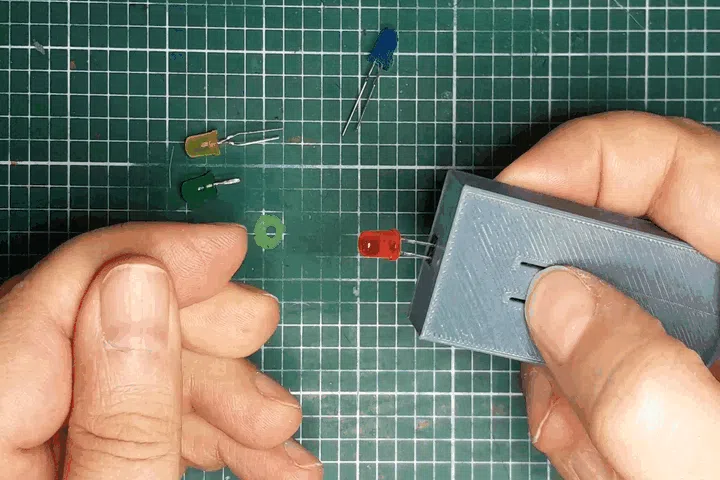

To test an LED, simply insert the test leads into the connector on the front and press the button, paying attention to the polarity of the diode, which should be inserted with the positive side to the right.
Assembly is very simple, simply position the battery, button and connector as shown in the video and make the connections with a tin soldering iron.
In the video description you will find useful links to find all the components.
