String Generator for String Art Models

String Generator for String Art Models

Parameter Description

length: Length of the straight line
width&height： Each line is actually a thin elongated rectangular solid. These two parameters control the width and height of the line. Width corresponds to the line width in Bambu Studio, which is generally 0.42 millimeters by default. Height corresponds to the layer height in Bambu Studio, which defaults to 0.2 millimeters. It is recommended to use a layer height of 0.28 millimeters. Regardless of which parameters you use, remember to change the corresponding slicing settings when slicing.


num circle： Number of arrays per layer, that is, the number of straight lines.

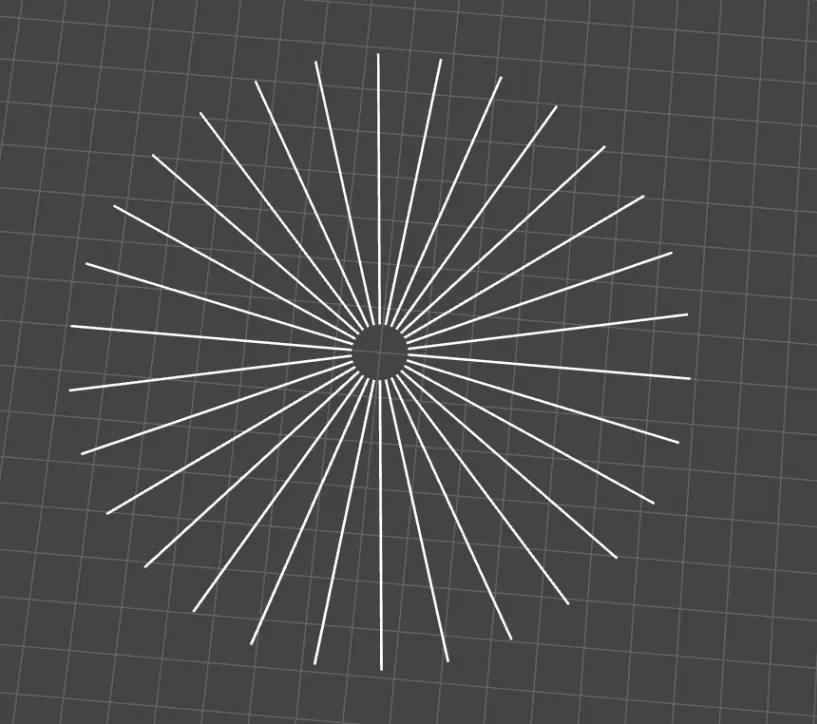

radius： The radius of the circular array. This radius is calculated from the center of the line. When the value exceeds half the length of the line, a hole will be formed in the center to prevent the lines from intersecting, which can improve the success rate of printing.


layers: Number of layers. Controls the number of layers generated. For ordinary line models, 5-6 layers are sufficient.

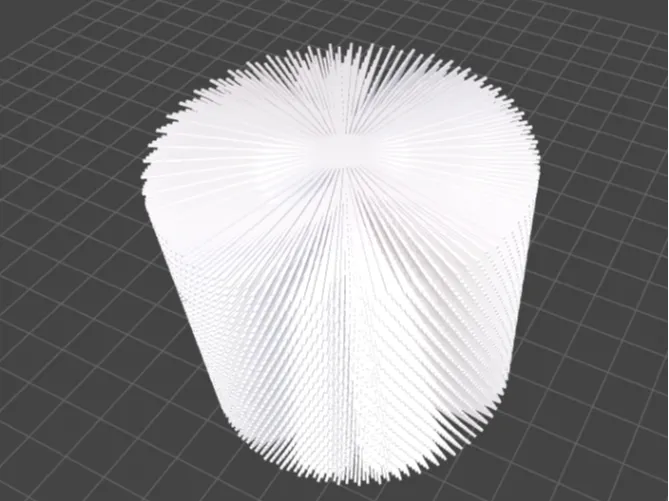

layer spacing： Spacing between each layer. For ordinary line models, it is usually ten times the line height. If you are making special hair, you can use a spacing of two times the line height.

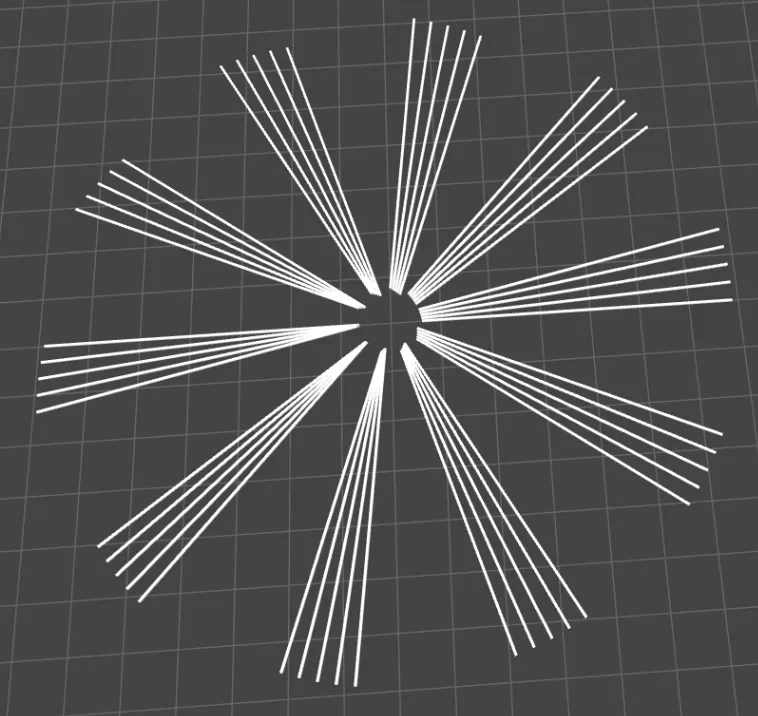

rotation angle： This parameter controls the rotation angle of each layer of lines, so that each layer of lines is not on the same straight line, which makes it more aesthetically pleasing.
