Description



I have created an improved version of this case: https://makerworld.com/en/models/1234733

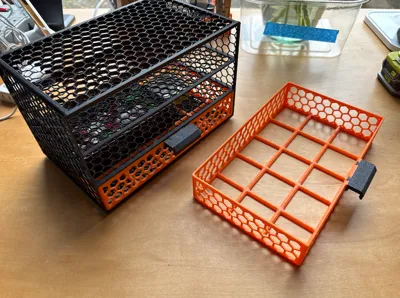

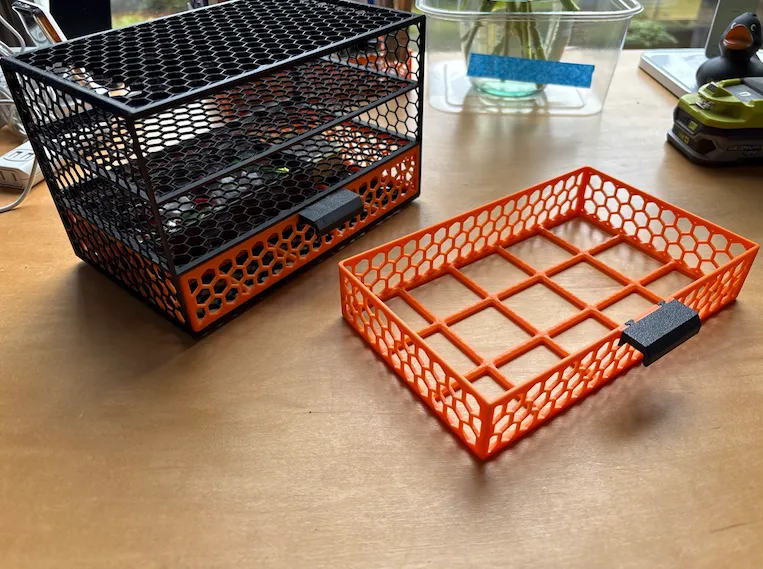

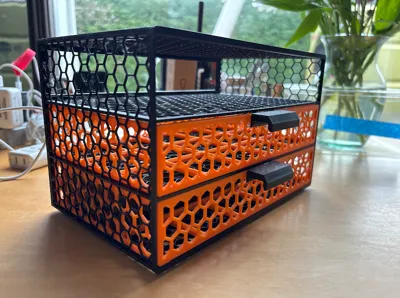

A remix of the gridfinity 5x3x5 (3 drawers) case (Hugo's version of Chipp Walters) with a honeycomb pattern.



Thanks to Hugo for providing fusion360 file for the case. It is also an improvement over souldbrotherb's since the honeycomb is aligned such that there are no horizontal overhangs, which improves the quality of the honeycomb.

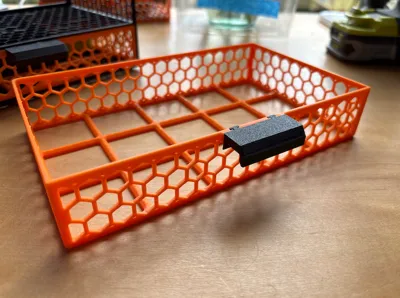

The drawer can be used as a 5x3 carrier of gridfinity bins.



The drawer is a bit stronger than the case. There are significant filament savings compared to the original case and drawer. The case requires 221g and the drawer 45g.



Printing the case requires a well calibrated printer/filament.

I have printed them with 3 walls, using PLA.



Compatible with the original drawer pull (and it does not protrude inside the drawer)



The STL of the pull is https://www.printables.com/model/300896-gridfinity-modular-drawer-system/files and its name is Handle.stl
