Bambu_Exhaust Flange> Camco_Rhino_Hose_ w/ AMS Hub
Print Profile(2)
Description

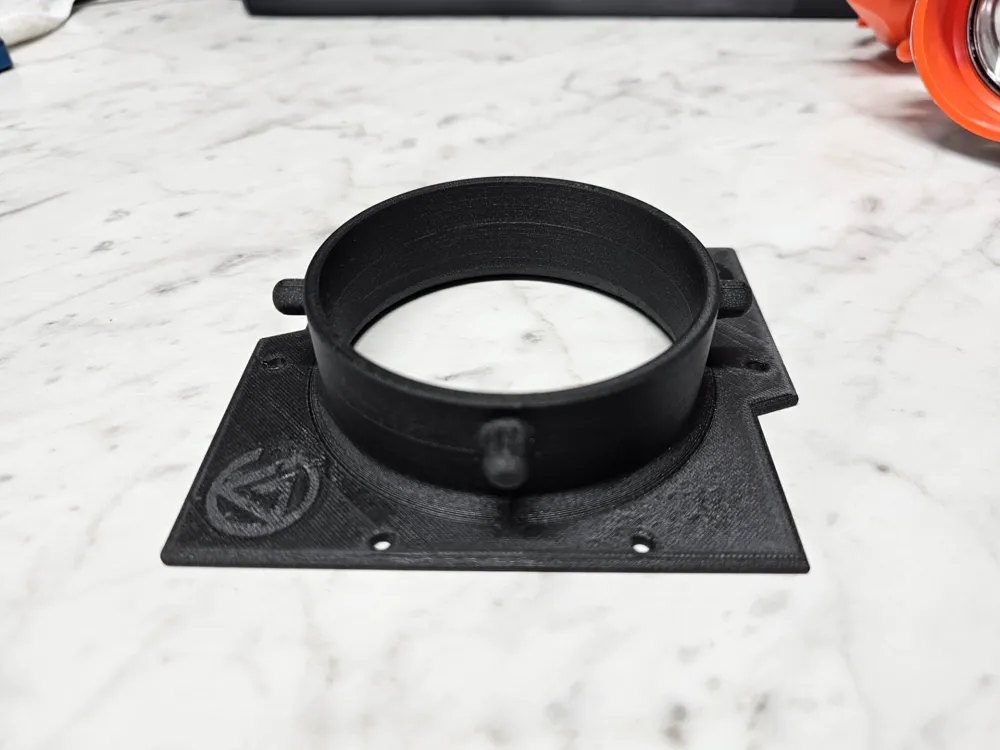

I wanted a Camco Rhino hose- compatible exhaust flange that would exit center and work with an AMS hub.
This model by itself will allow you to directly attach the tabbed hoses that come in the Camco kit. = (RhinoFLEX 20\u0027 Sewer Hose Kit w/4N1,Elbow, Caps 39741)(this style pipe is originally used for RV sewer drains)
I personally use the X-tool inline fan to aid in extracting fumes. I have uploaded models to adapt this exhaust flange>hose>inline fan.
this model does not require an inline fan to function.
My adapter may fit other pipe kits of similar style.

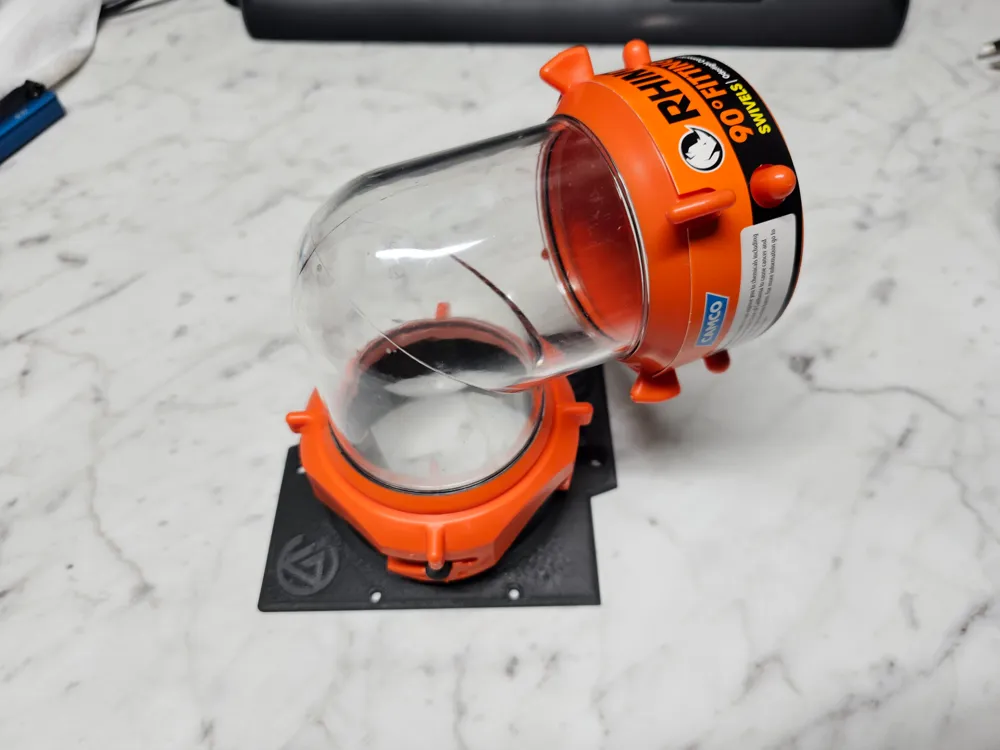

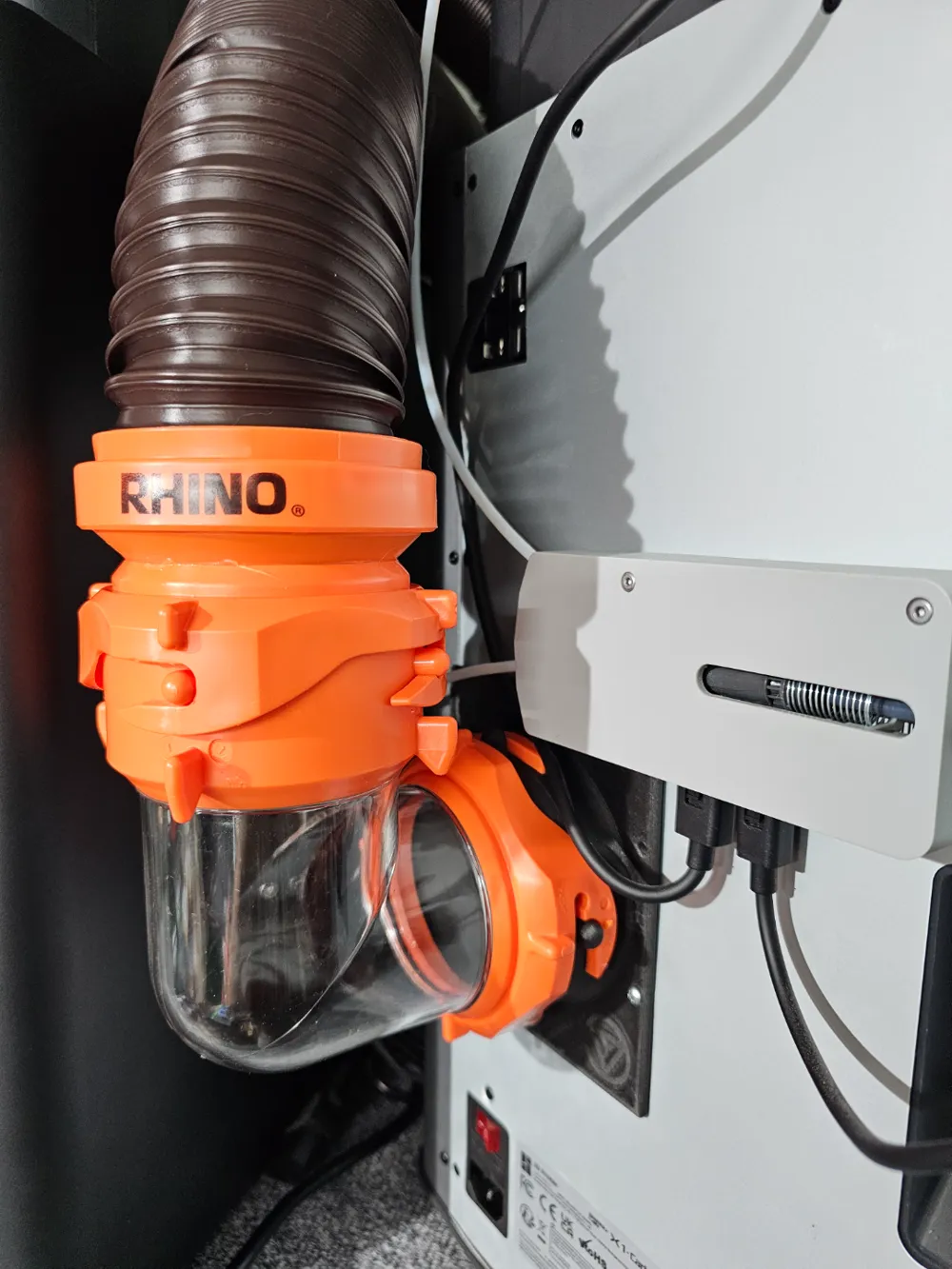

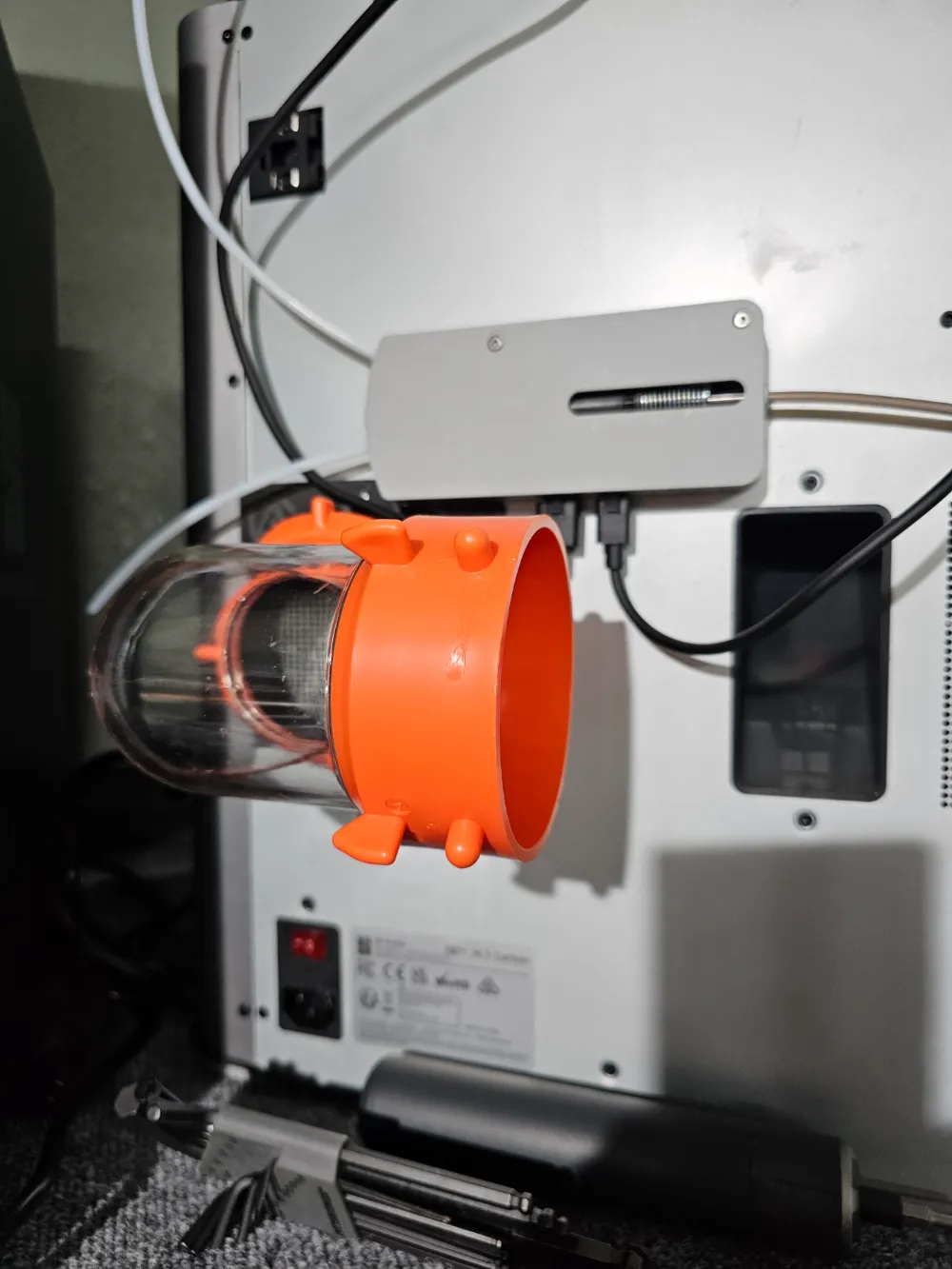

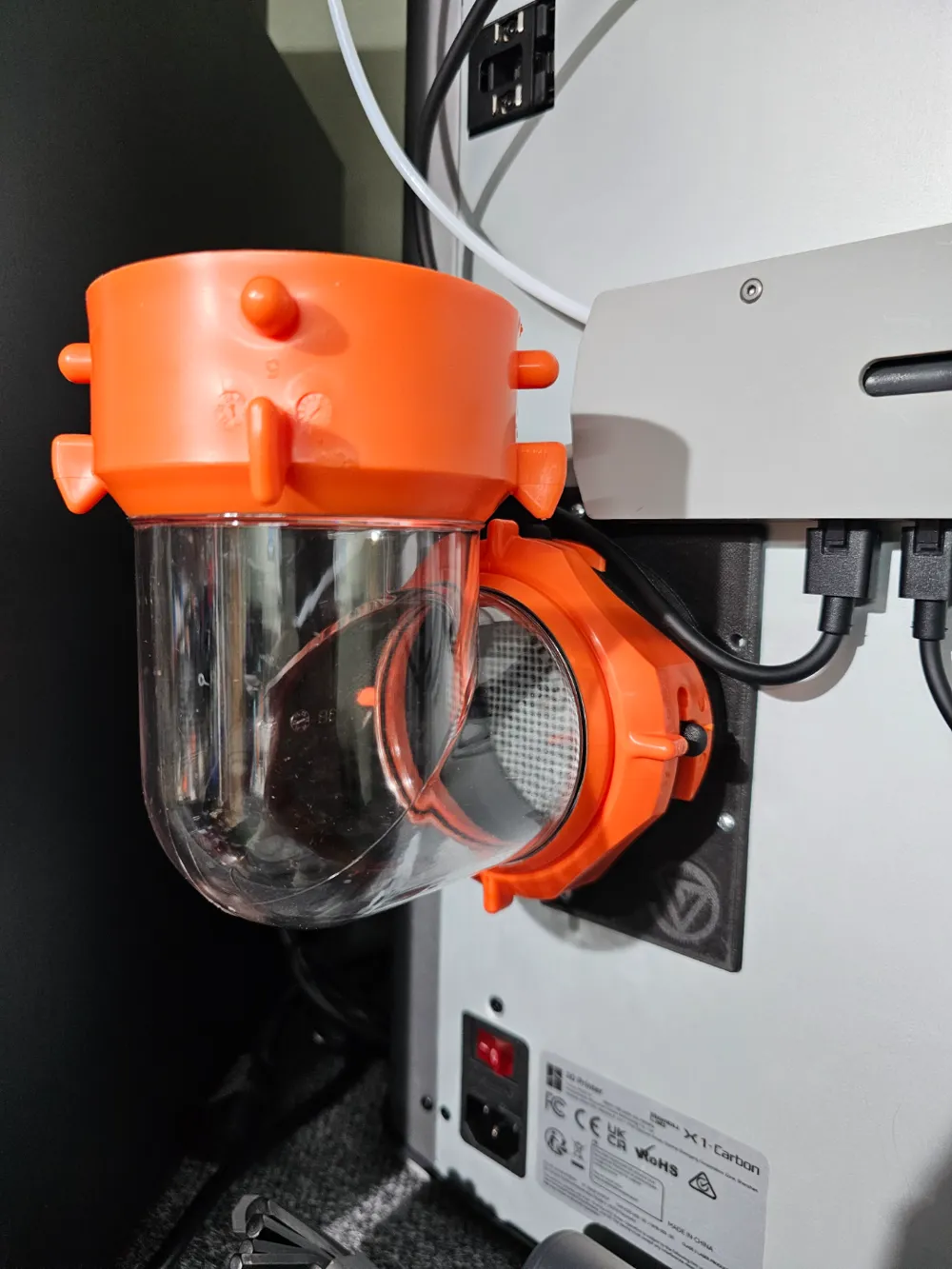

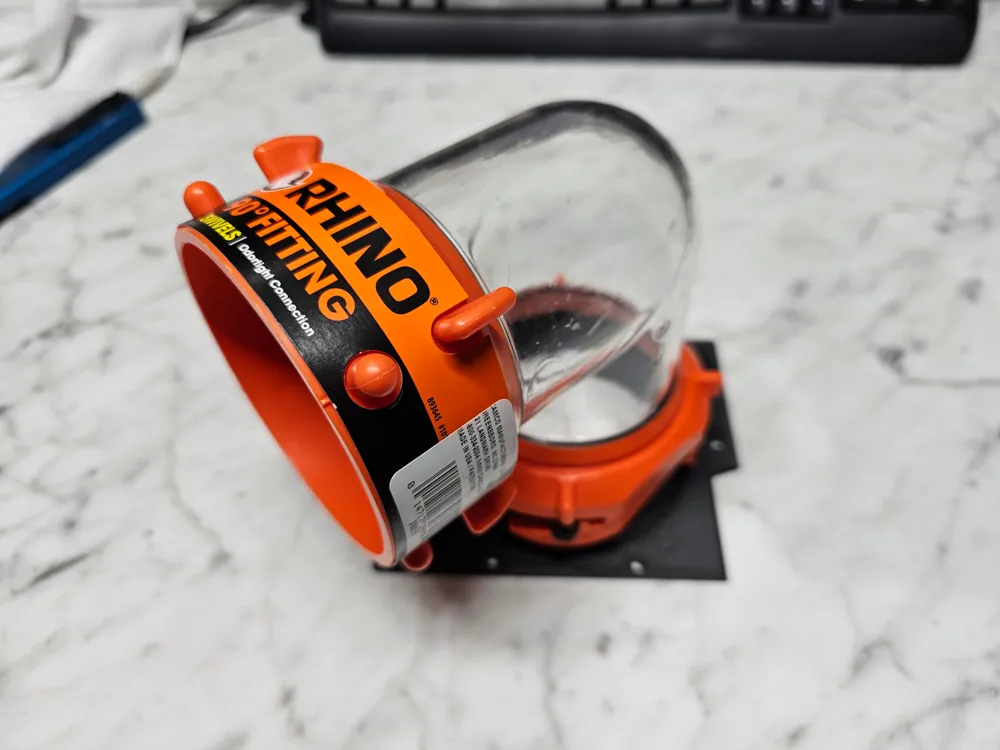

The exhaust flange is designed to exit center or 90* based on your fitting choice and works with AMS-Hub

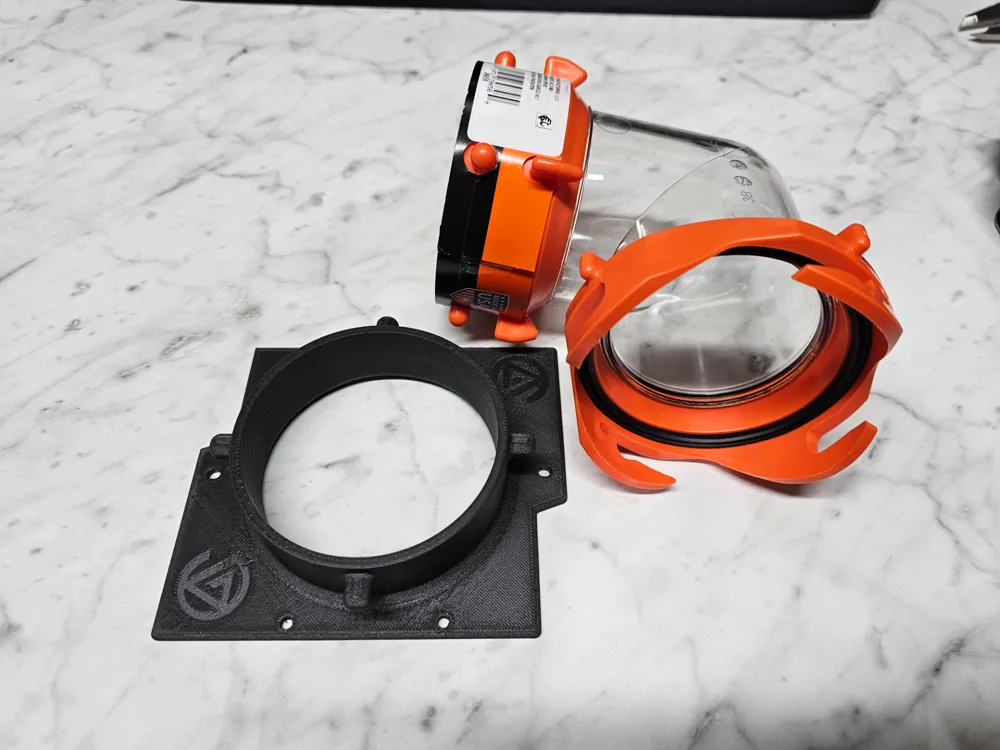

This adapter allows for easy twist-lock disconnection for cleaning or maintenance.

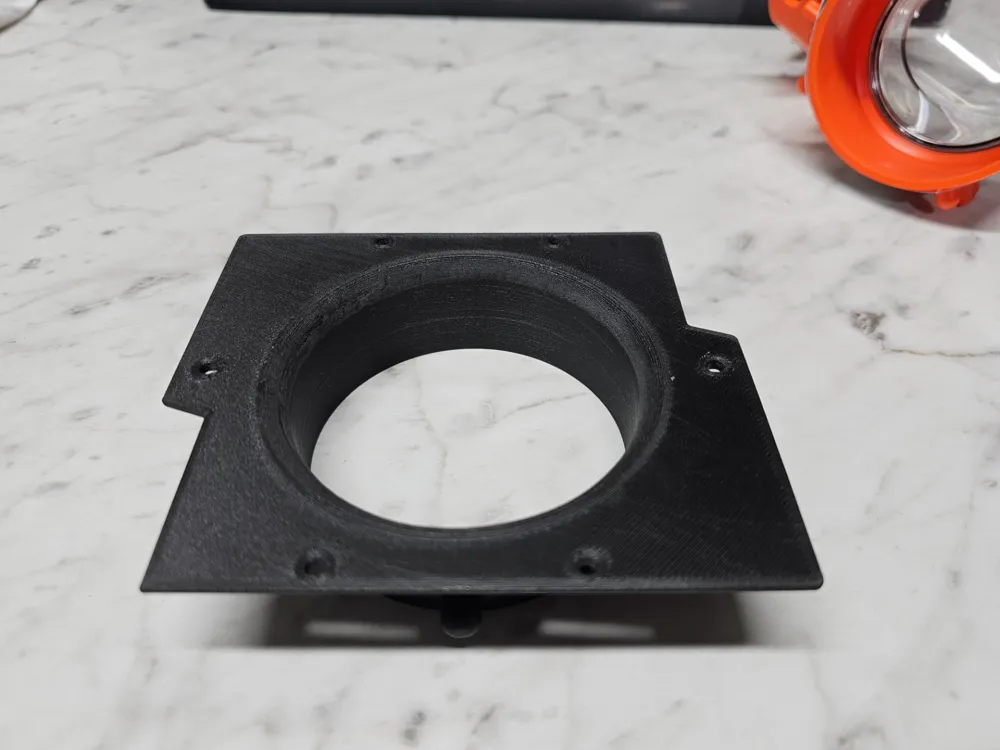

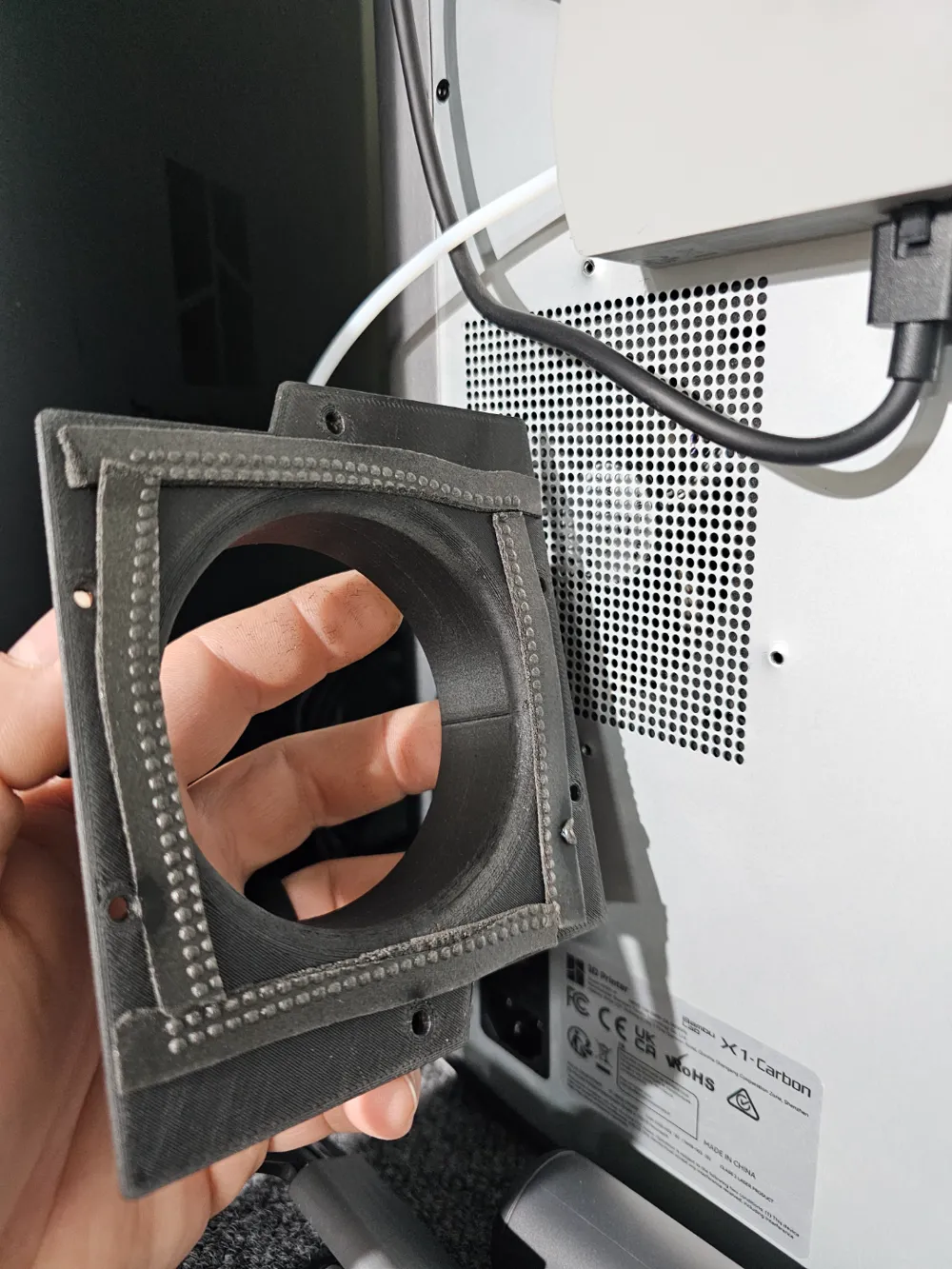

I used small adhesive window foam to seal against the printer, it Is not required but highly suggested.

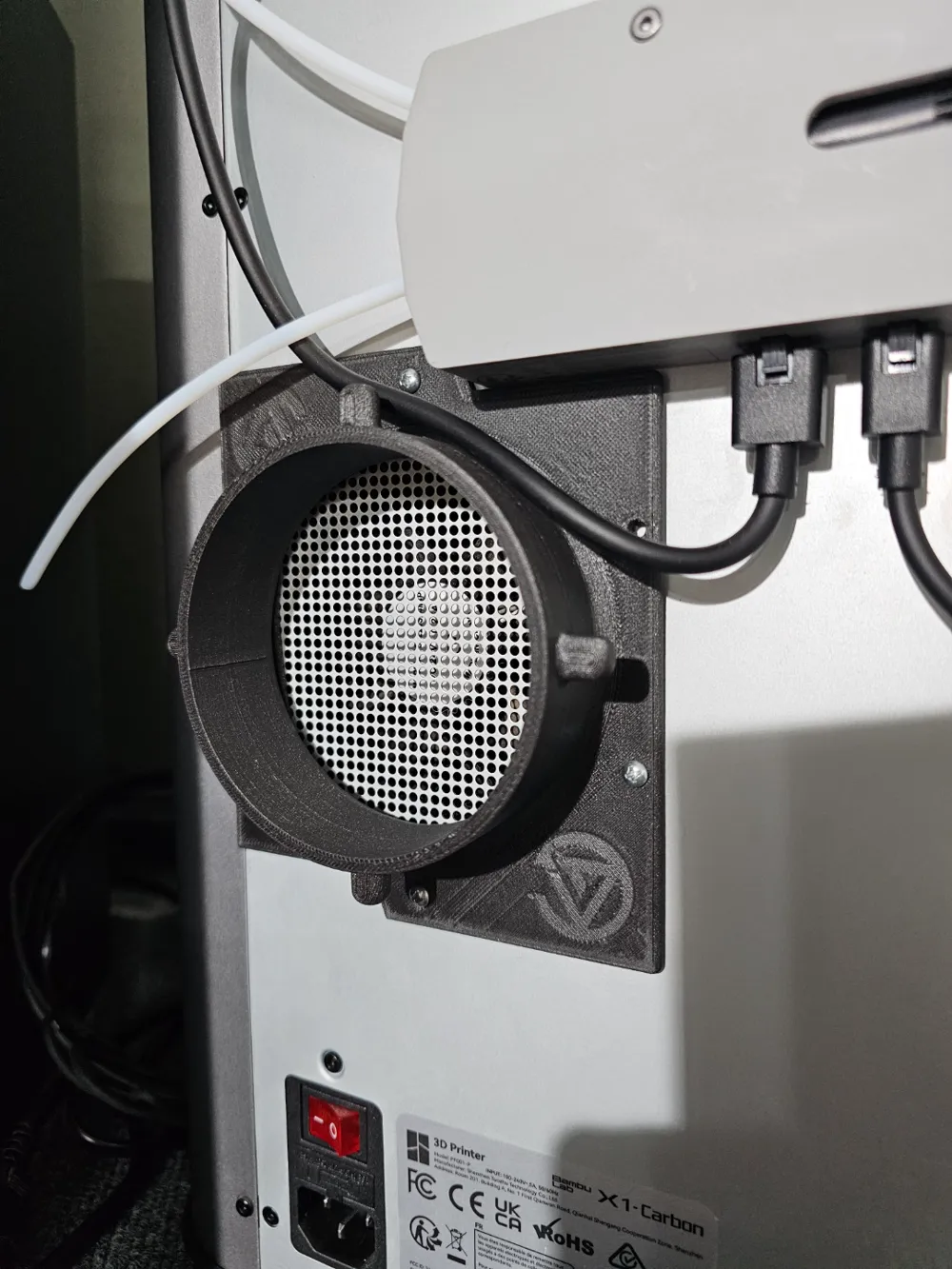

I used 3x metal pan head Phillips screws #4x3/8" and one M3x10 screw to replace the outer factory screw.
