Window Ventilation

Window Ventilation

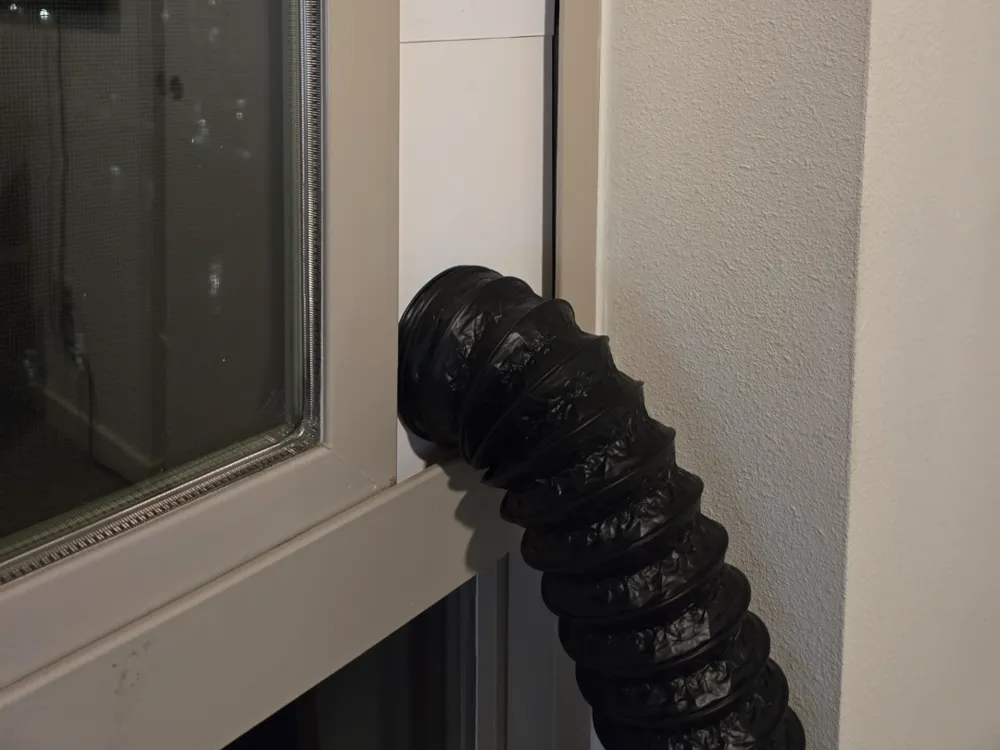

Window ventilation for safer printing in enclosed areas for use with 3" tubing from an enclosed 3d printer. This model allows for multiple-sized panels to fit the window entirely and combine exhaust from multiple 3d printers.

What I Used for Parts

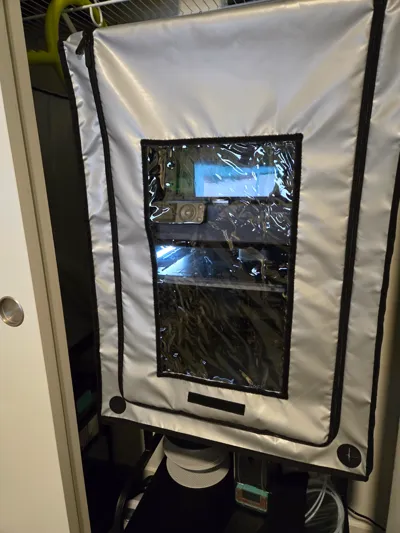

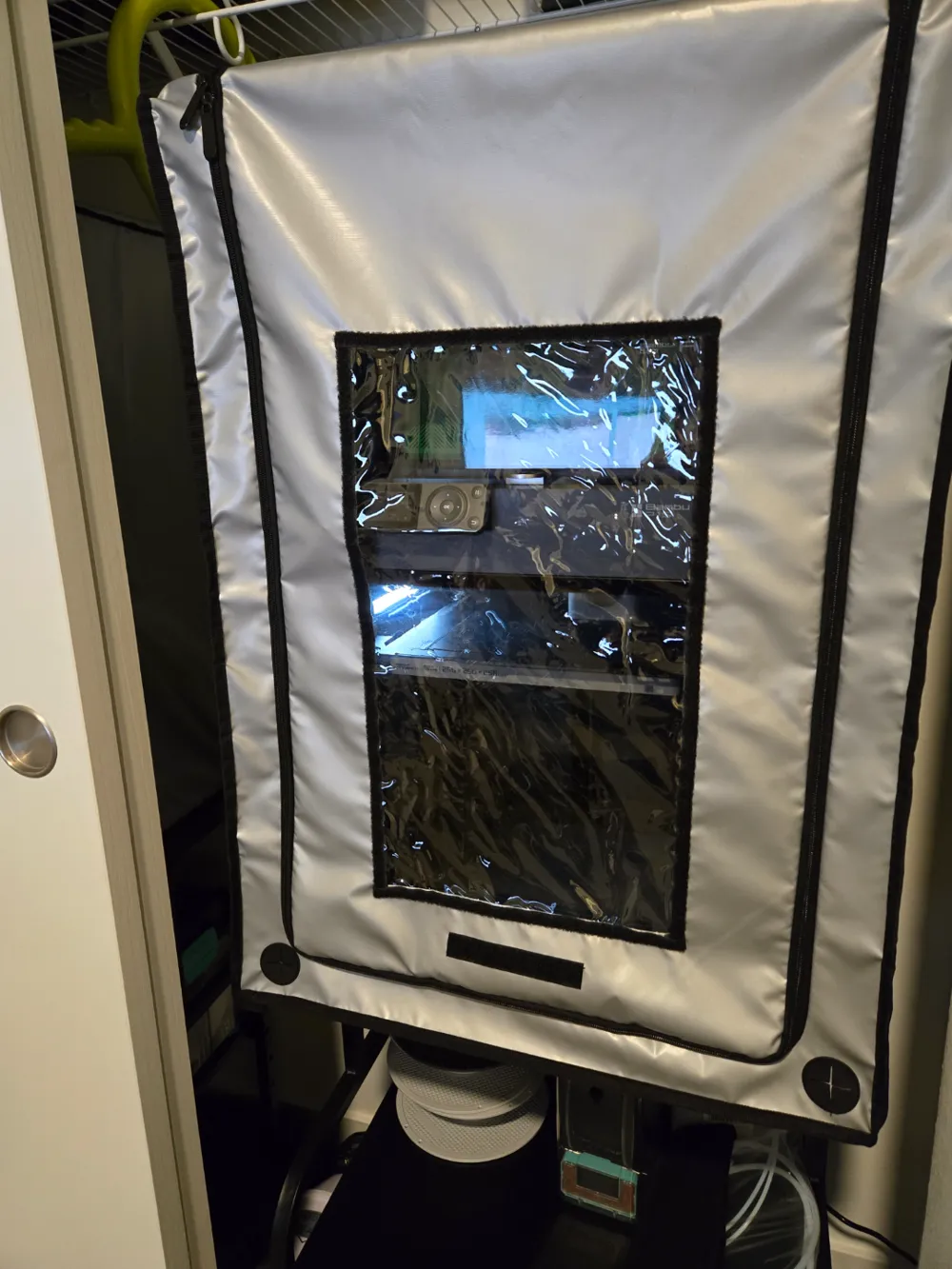

1. 3-in-1 Multifunctional 3d Printer Enclosure: https://www.amazon.com/dp/B0BMLKG9S4?ref=ppx_yo2ov_dt_b_fed_asin_title
2. Weather stripping for the panel sides in the window: https://www.amazon.com/dp/B0CWQ4SNCD?ref=ppx_yo2ov_dt_b_fed_asin_title

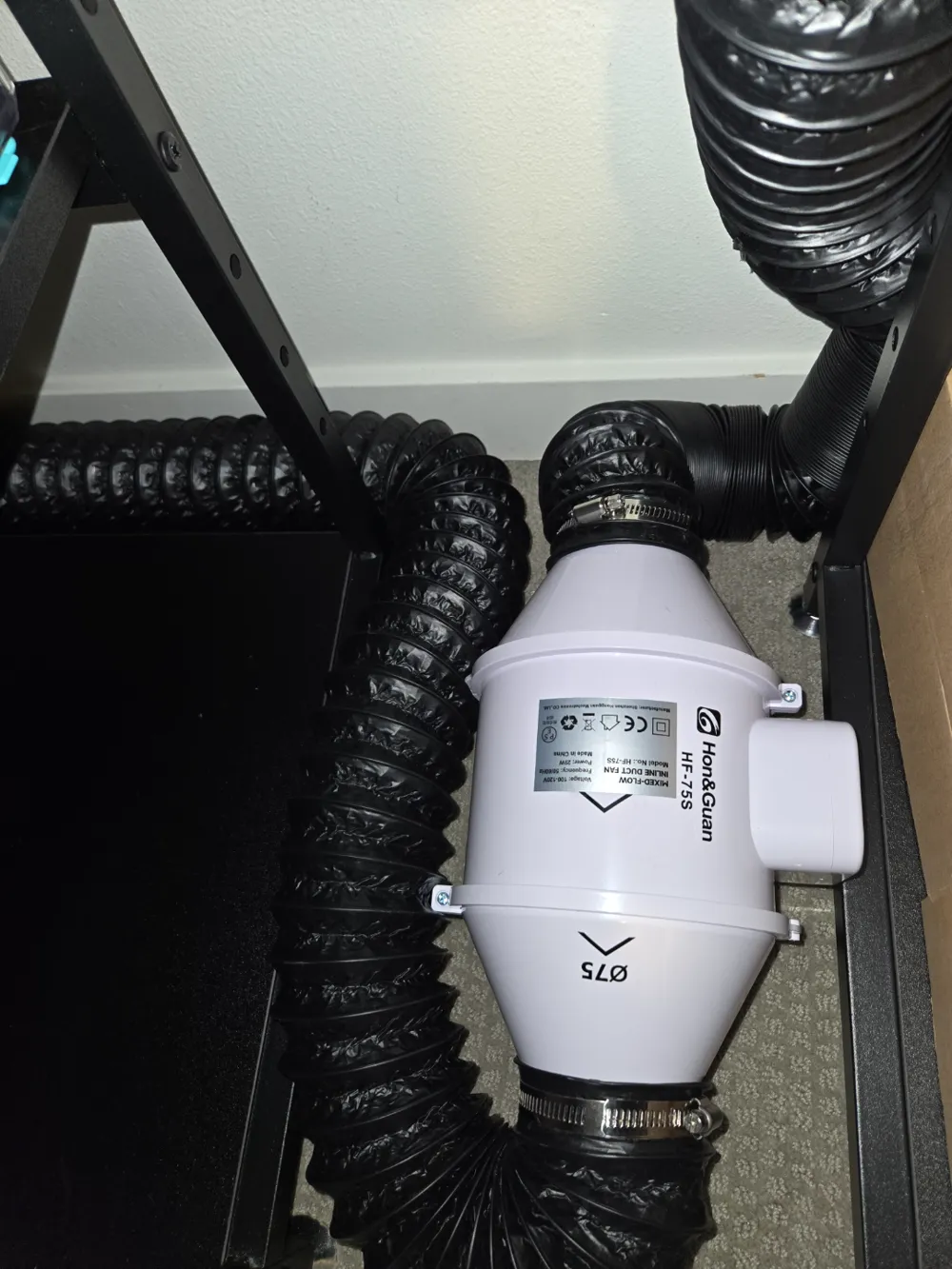

3. 3" Duct Fan: https://www.amazon.com/dp/B01MXVWT9O?ref=ppx_yo2ov_dt_b_fed_asin_title
4. 16' 3" Air Duct: https://www.amazon.com/dp/B07QK6FVNX?ref=ppx_yo2ov_dt_b_fed_asin_title
5. 8' 3" Air Duct: https://www.amazon.com/dp/B09WCY715H?ref=ppx_yo2ov_dt_b_fed_asin_title

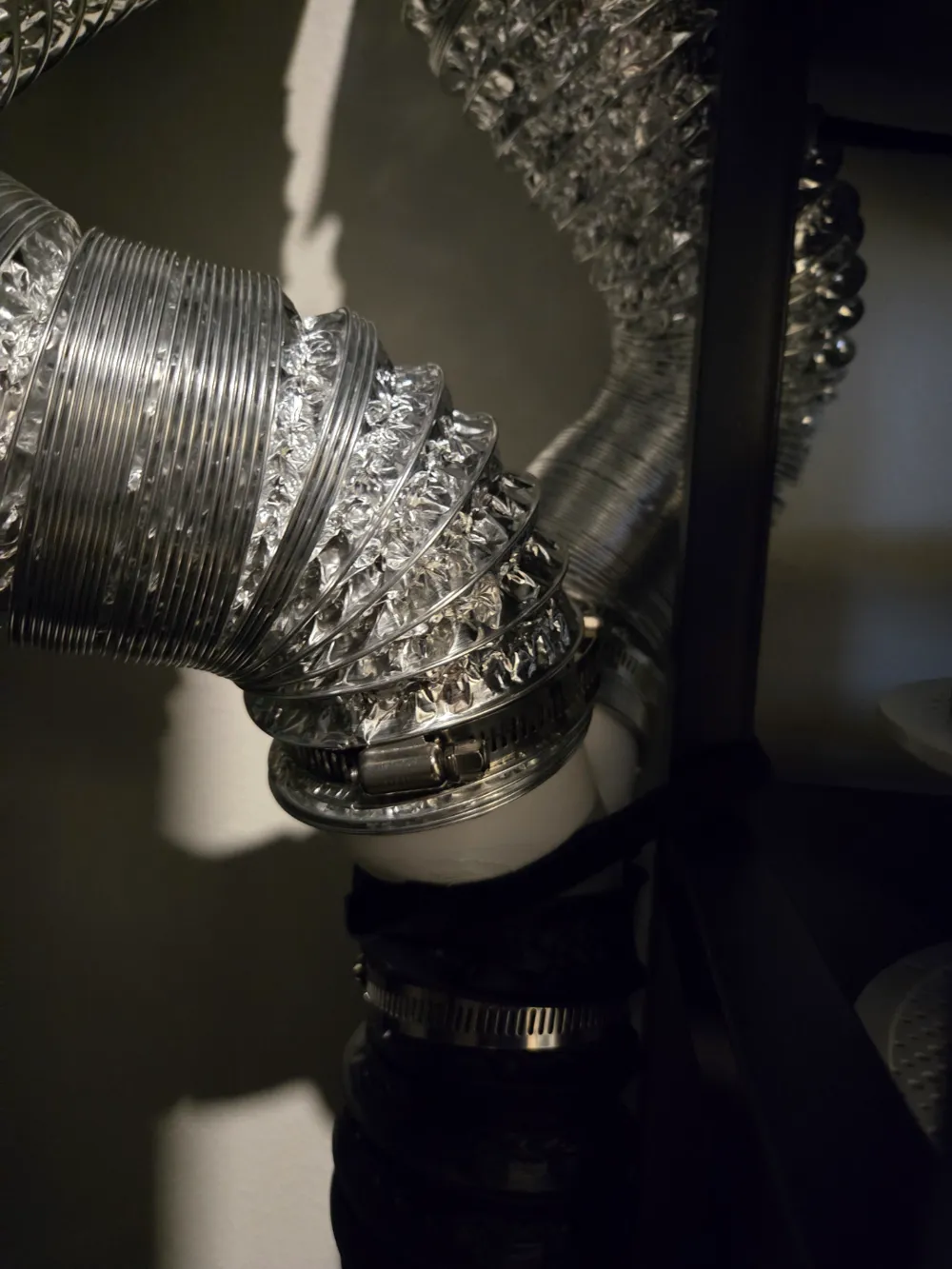

6. Additional 3" Duct Clamps: https://www.amazon.com/dp/B07PQDRFVH?ref=ppx_yo2ov_dt_b_fed_asin_title

Material to Use

For best results, consider using PETG for UV protection or ASA. If the window faces the sun or will be exposed to the elements, determine a suitable material to ensure it can endure.

Considerations

The P1S or X1C is ideal with an enclosure as the panels prevent the enclosure from being sucked into the print area. Additionally, the AMS allows for the enclosure to not interfere with the spools. Mounting a spool on the back with the enclosure and suction can cause issues.
