SampleBox
Print Profile(1)

0.28mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
4
2
0
0
9
0
Released
Description

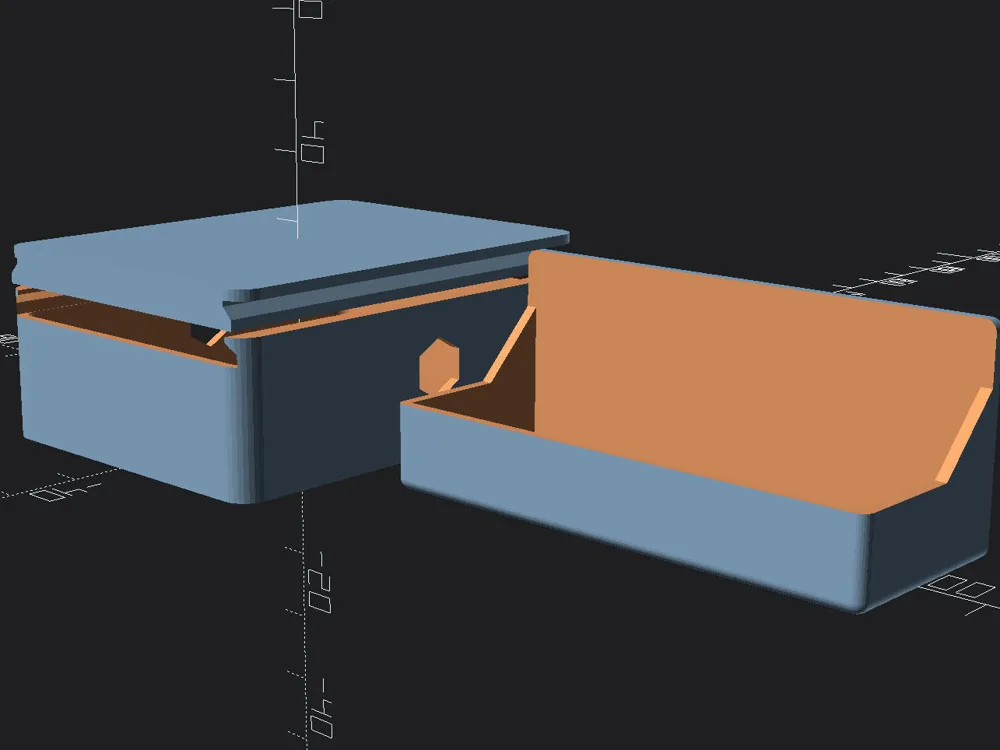

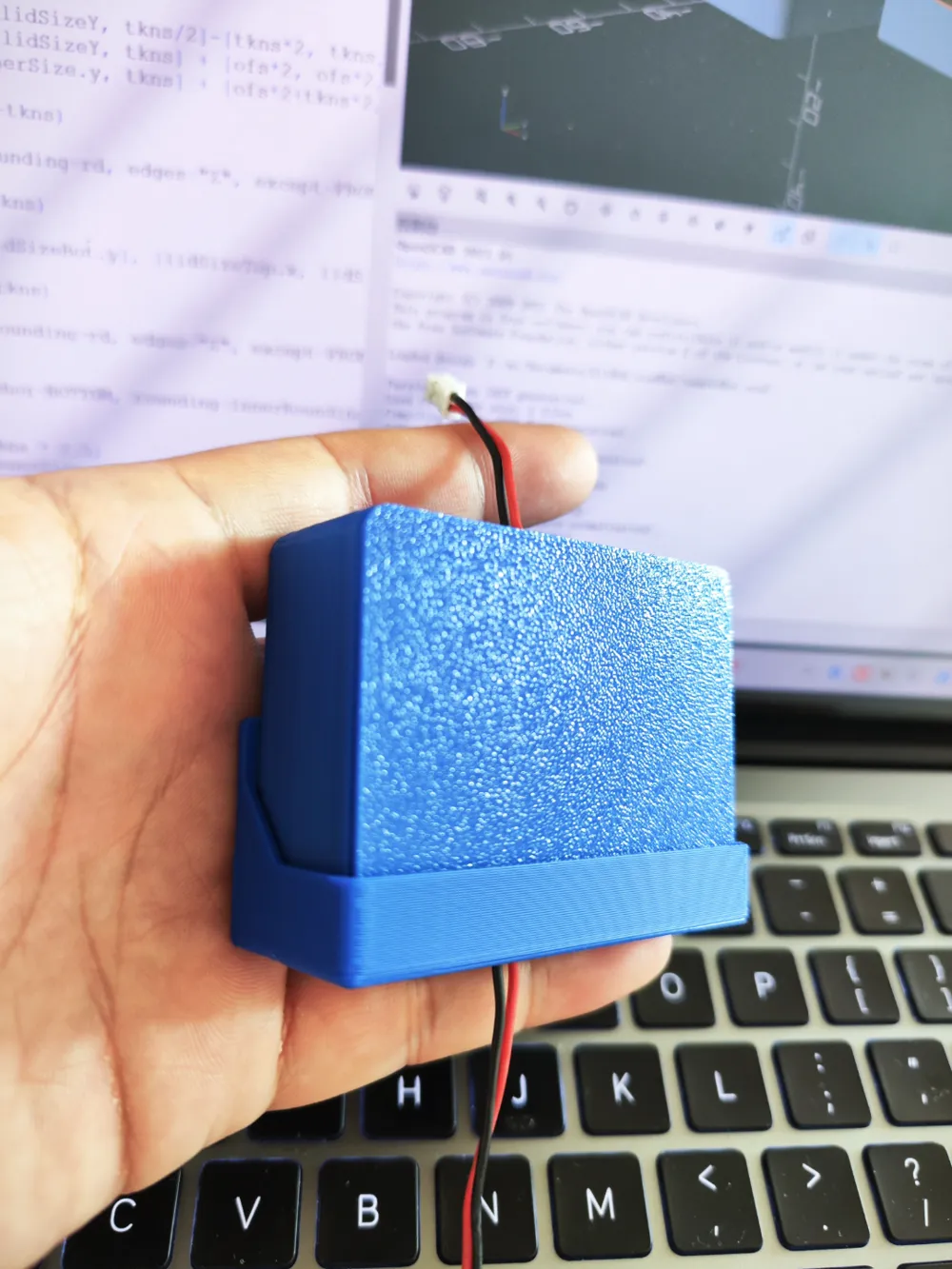

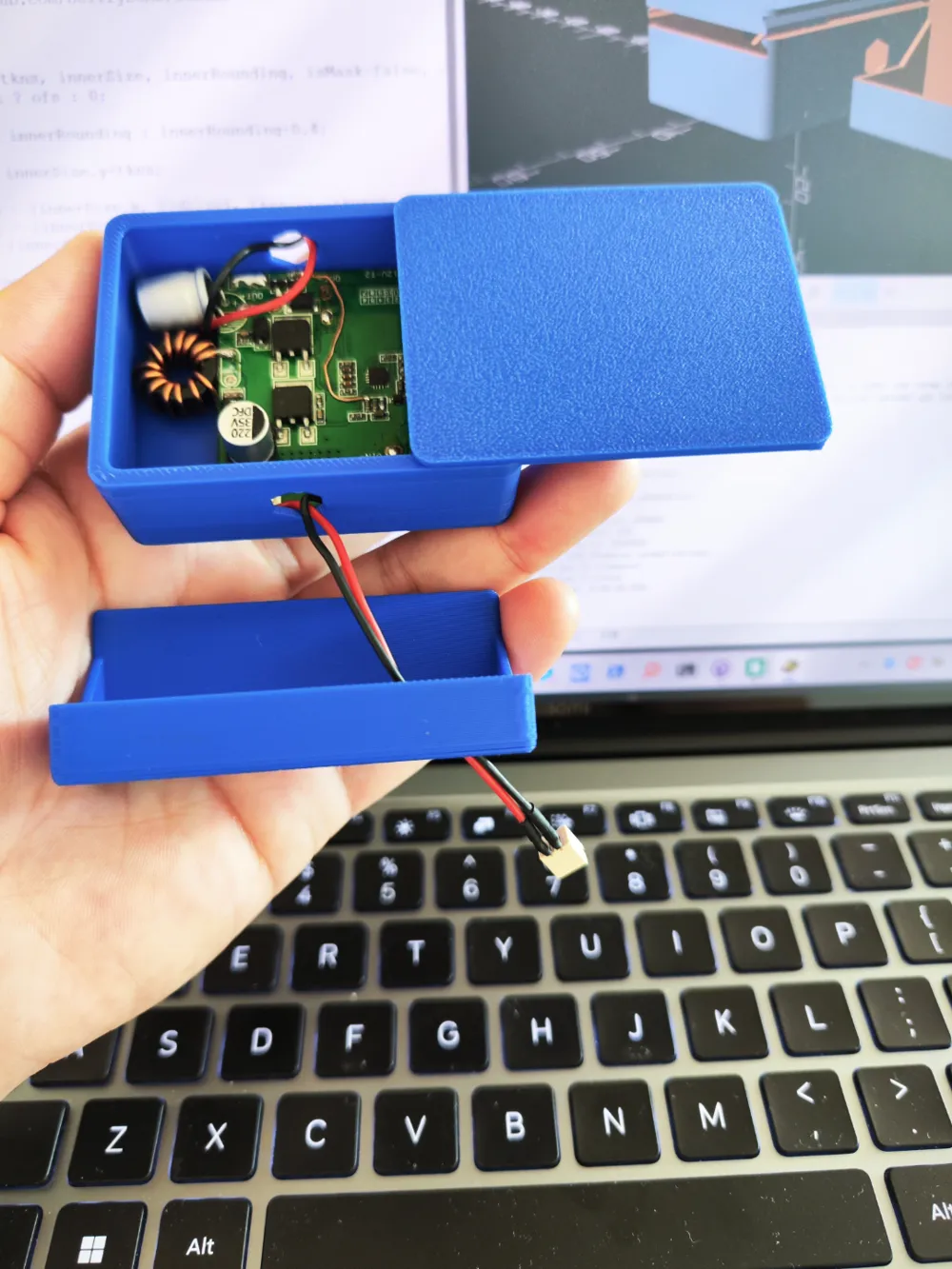

这是一个简单的盒子,可以自定义尺寸,只需指定内部尺寸即可自动生成合适的盒子
```
tkns=1.5;
innerRounding = 2;
ofs=0.1;
innerSize=[47.5, 62, 16];
boxHolderOfs = 0.5;
holePos = 34;
holeD = 9;
innerOfsSize = innerSize + [0.2, 0.2, 0.1];
boxSize= getBoxSize(tkns, innerOfsSize, ofs)+[0,0,0.1+tkns];
// 盖子
zmove(innerOfsSize.z+tkns+0.2+tkns*3)
boxLid(tkns, innerOfsSize, innerRounding, false, ofs);
// 盒子
difference() {
box(tkns, innerOfsSize, innerRounding, ofs);
// 开孔
ymove(-innerOfsSize.y/2+holePos)
zmove(tkns+6)
xcyl(d=holeD, l=boxSize.x+0.2, anchor=BOTTOM, $fn=6);
}
// 安装托盘
xmove(boxSize.y/2 + boxSize.x/2+10)
boxHolder([boxSize.y, boxSize.z, boxSize.x], tkns, boxHolderOfs);
```
