Strap Mount For Multimeter
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
2
2
0
0
0
0
Released
Description

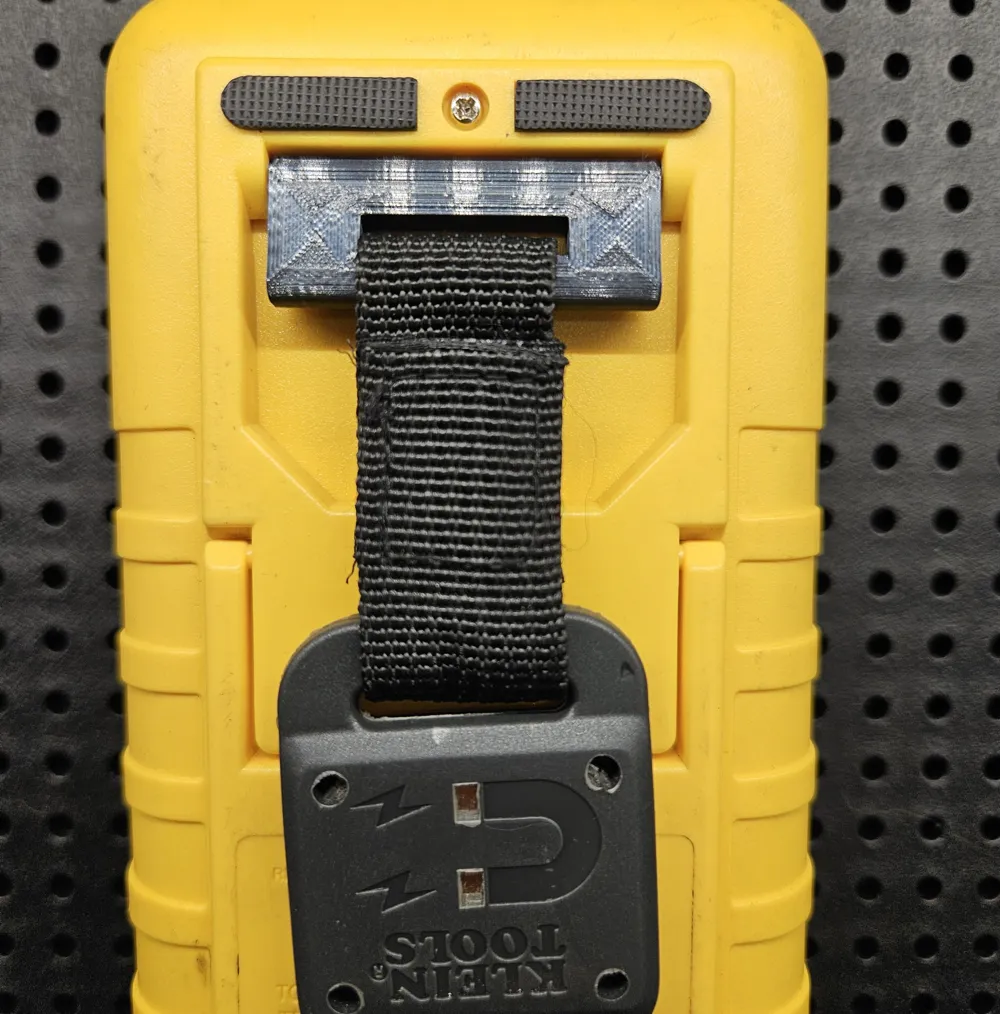

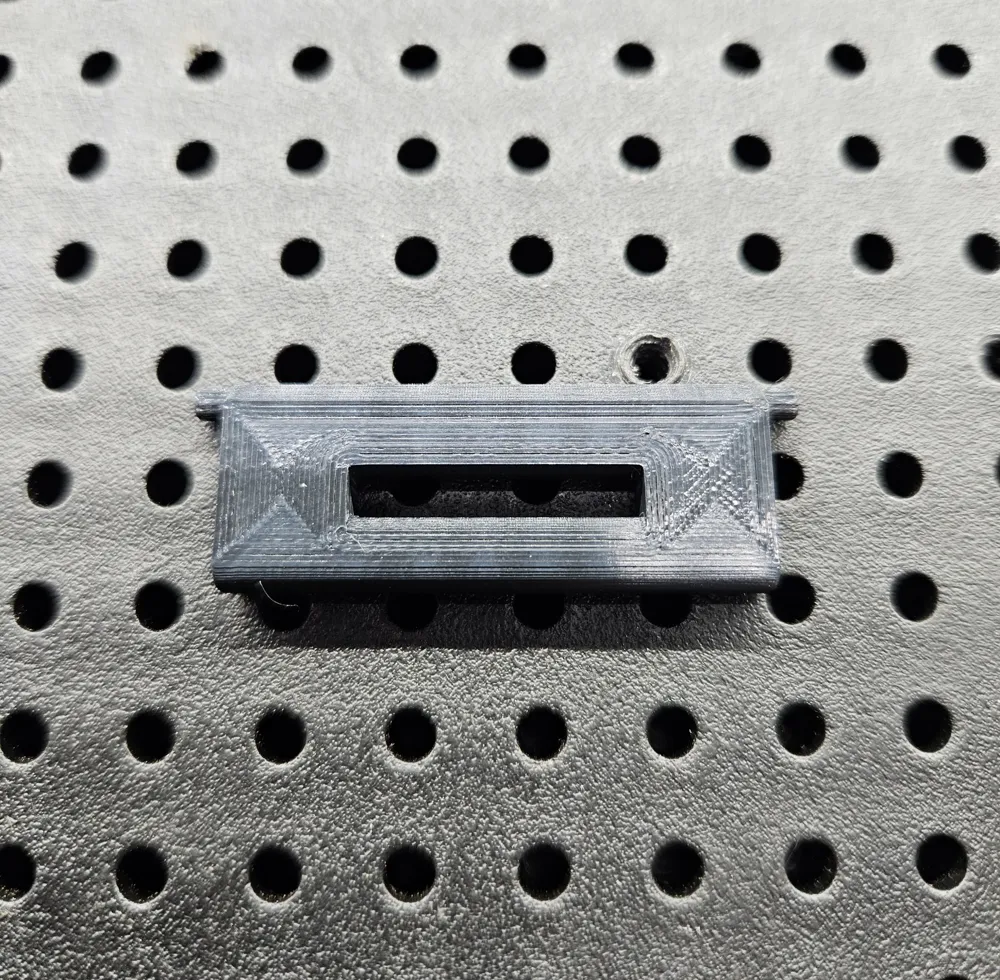

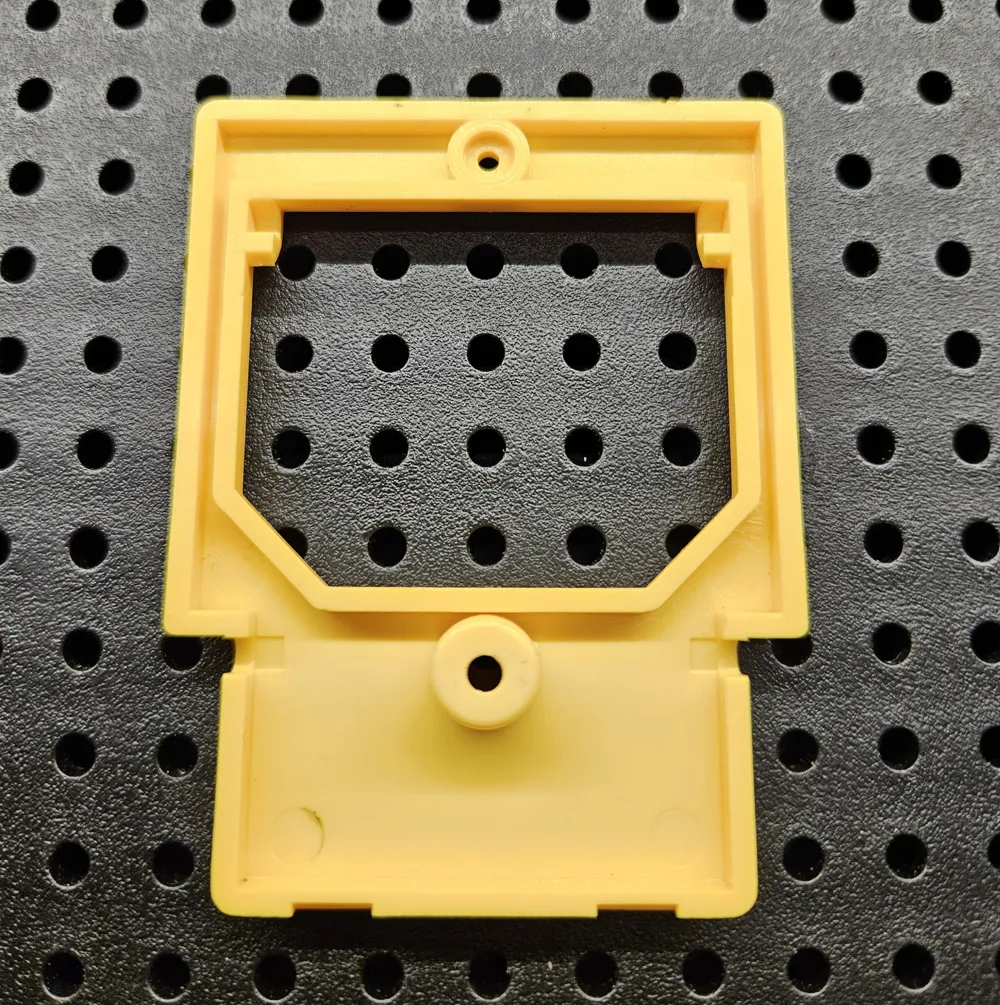

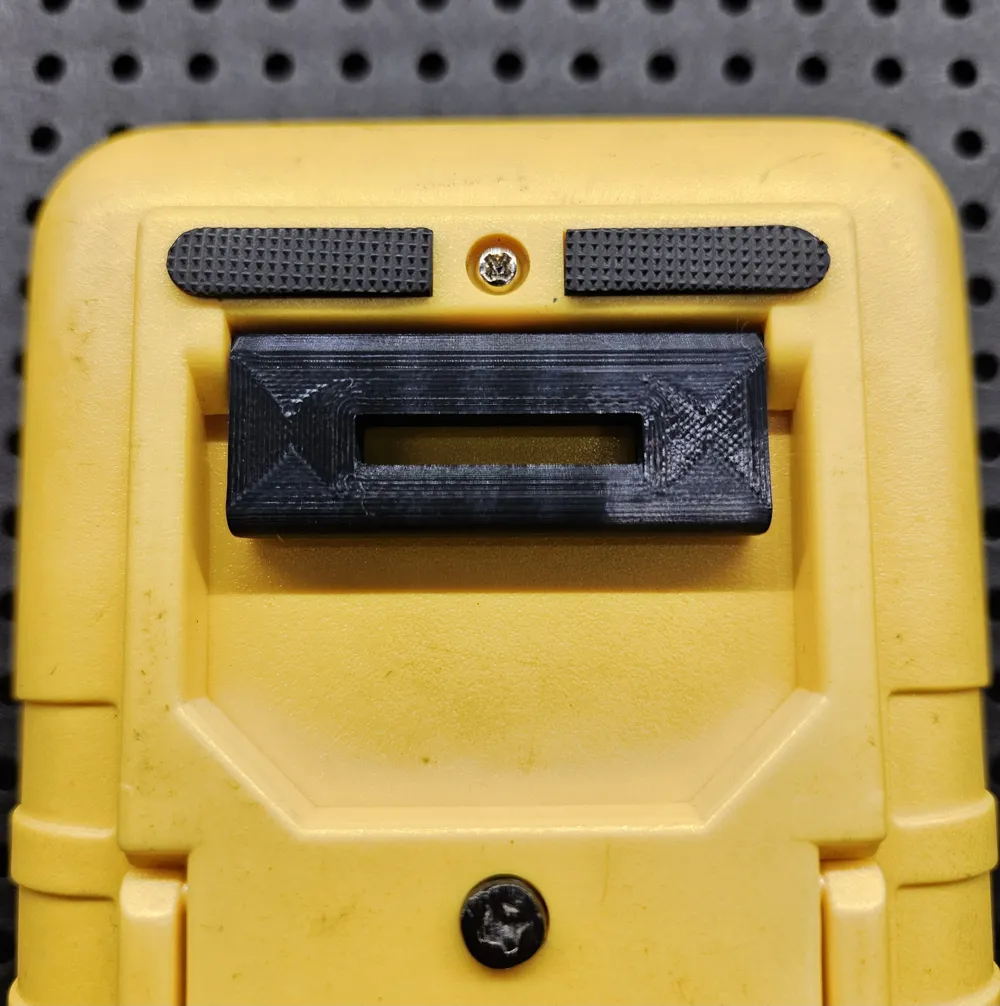

This is a Strap Mount for my A.W. SPERRY Techmaster DM-8400 that will also work with any Multimeter with a Similar Back (PDI 920 Automotive Meter). I made this because my Klein Multimeter has an available accessory, a magnet strap, I wanted my multimeter for work to have one as well but it didn't have any Strap Mount on it.
Any suggestions? Please let me know in the comments!
- Basic Print Settings
Material: PLA
Layer Height: 0.10mm
Infill: 25%
- Dimensions
Width: 46.4mm
Length: 16mm
Strap Hole: 21.5mm Wide x 3.5mm Thick. This is the maximum size strap that can fit.
