Python Enclosure Dual PC4-M6 M14 Plug

Python Enclosure M14 Plug for dual PC4-M6

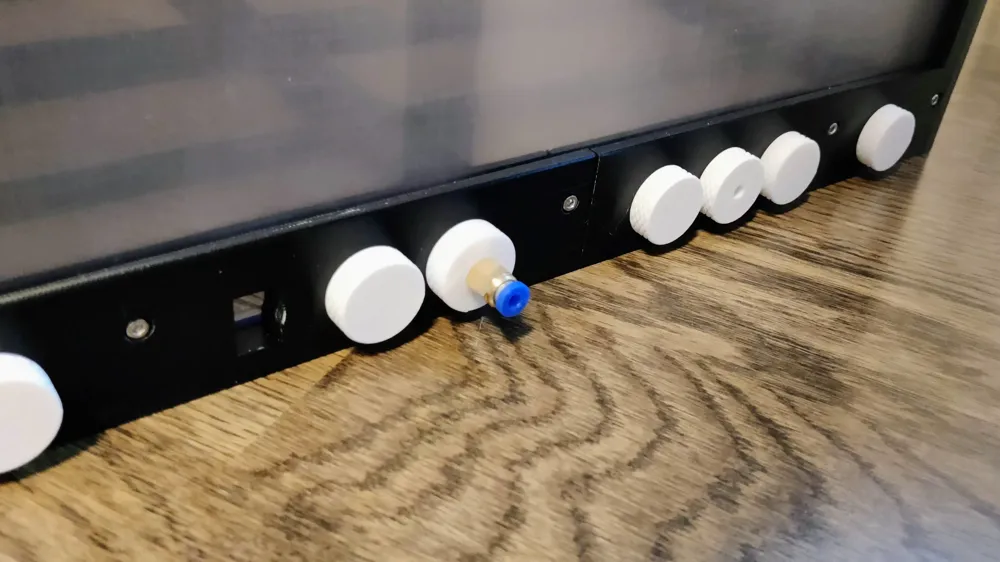

Remixed M14 plug/port for the back of the Python enclosure to mount dual PC4-M6 fittings (Inside and outside the enclosure)

This is so you can have one PTFE tube going from the AMS to the fitting on the inside. Then another PTFE tube from the outside of the enclosure to the printer.

You can use both blue and black capped fittings.

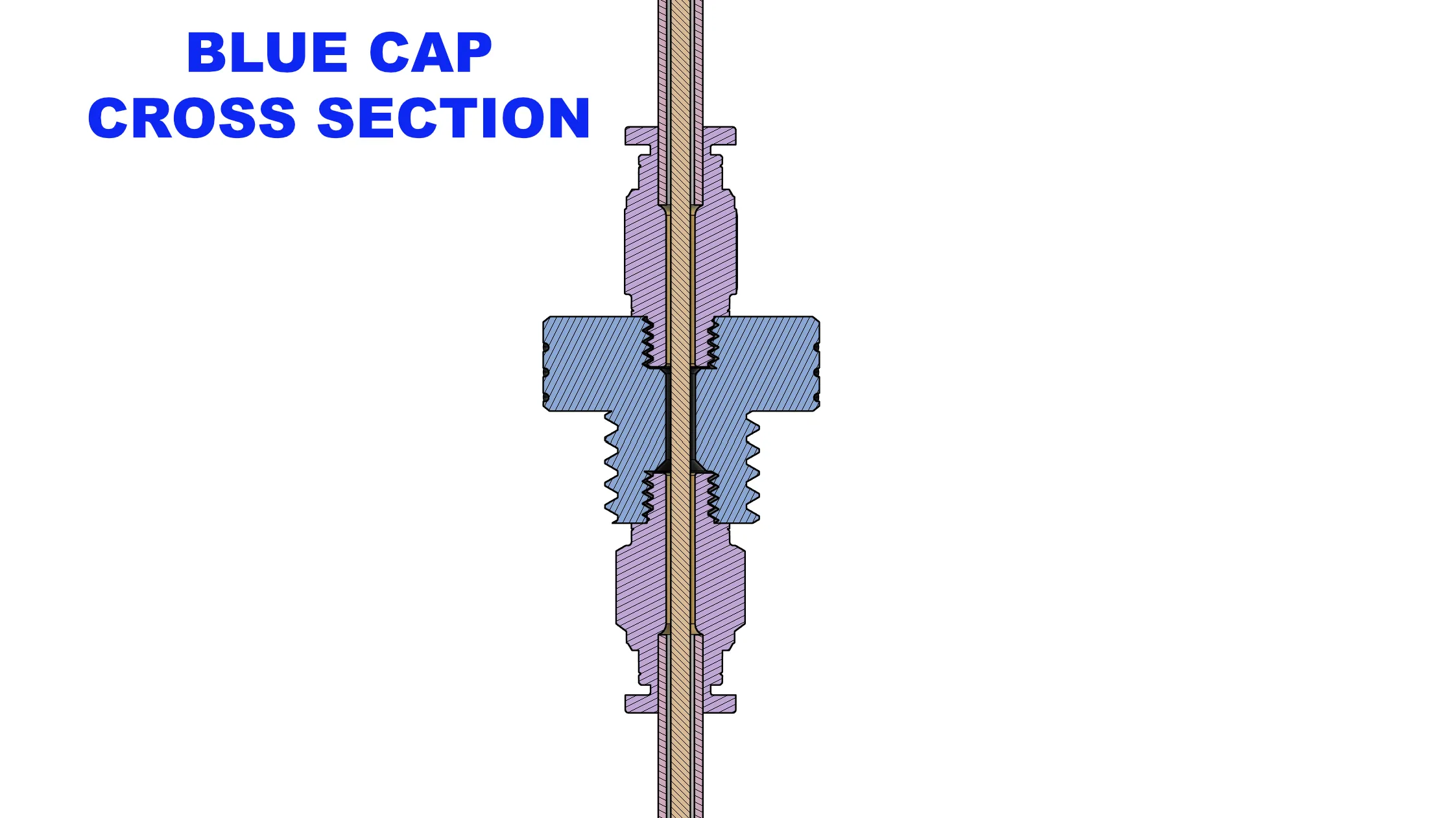

• Blue capped fittings have a stop inside the fitting so the tube can not pass all the way through.

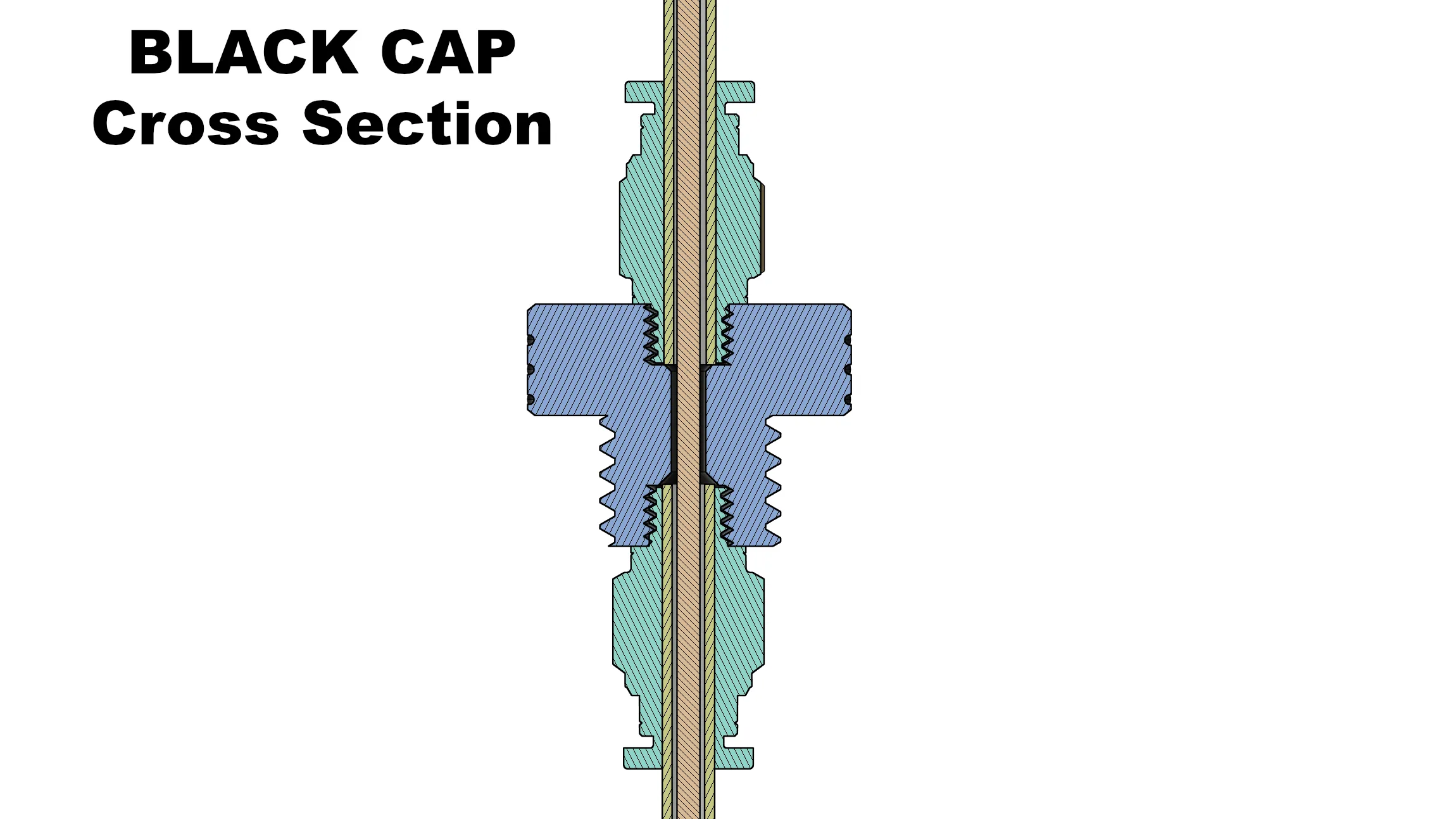

• Black capped fittings have a 4mm hole through so the tube can pass the whole way through.

Even if you use a black capped fitting there is a stop within the M14 plug where the tube will bottom out.
