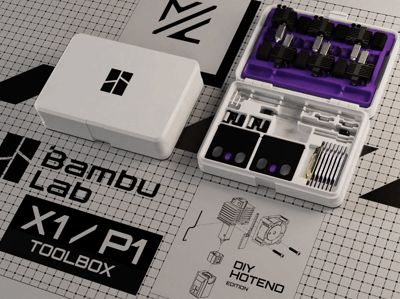

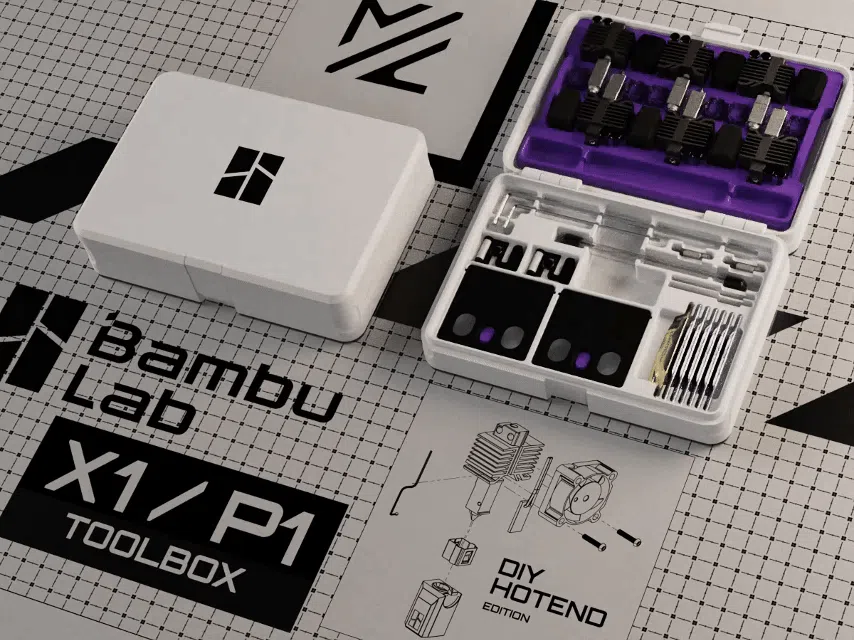

X1C - P1P - P1S TOOLBOX // Modular hotend edition

/ Print-in-place

This design is based on my earlier print-in-place box. This box is made to complete my print-in-place toolbox lineup. It has space for every component that comes with the printer and can accomodate smaller spare parts and hotend parts on a designated hotend tray.

THINGS TO KEEP IN MIND

When closing the latch, it reaches is designated ‘closed’ state by deforming. If you choose to print it from a more rigid material you might need to file it to reach perfect closing. If you print it from a more flexible material like PETG, your print should work without any filing. If you find closing difficult, file the surface shown below.
There are multiple overhangs where support used, but sometimes they are hard to spot. Pay attention to these places, because missing to remove support can cause headaches.

The small parts on the photo above you can see small latches for the container covers. You can insert them by slightly bending the container covers ( gently:D)

If you are printing the models on non-Bambulab printers please bare in mind the following:

Use support at the bottom part of the lock, at the inner cavity of the small enclosures lock and at the logo seating
Prevent using any support on the hinges and on the hinge of the lock.
Increase infill at the hinge section and its close proximity.

In case you have any feedback, feel free to share.
Im curious to see what you make of the model. If you print one please post a photo of it as an inspiration for others.
