No hardware, no supports.



The track wheels are movable, the side rocket launchers can be retracted and extended, the turret can rotate, the barrel can rotate, and the hatch can be opened.



The assembly steps are as follows:



1. Insert the cockpit into the main body of the tank



2. Close the rocket launcher cover, insert the rocket launcher from the inside of the track protection cover, and insert the headlights



3. Install the track protection cover to the main body of the tank, and insert the turret hinge part into the main body of the tank



4. Insert the turret entrance cover into the gun bay



5. Insert the gun bay into the radiator



6. Insert the radiator into the turret



7. Install the turret to the hinge



8. Insert the main gun barrel into the turret



9. Insert the small wheels into the small wheel module



10. Insert the tracks and the small wheel module into the main body of the tank



That's it!



If you like it, please give it a triple like and follow, fun assembly series, continuous updates!







Comment & Rating (81)

(0/5000)

Boosted

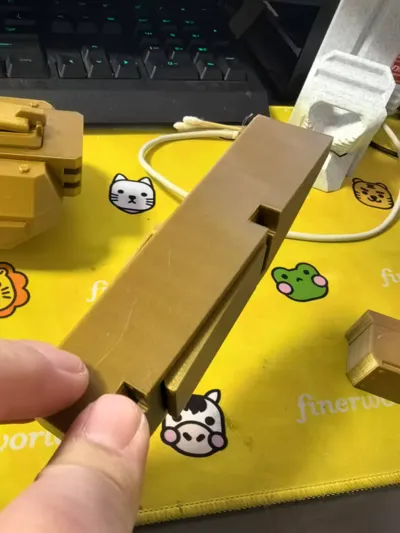

Printed using the dual color standard edition - too tight. Joints at the rocket launcher doors and barrel printed completely fused on my P1S using default settings with Bambu PLA Matte Gray. Does the "loose" version fix this? (Broke the RL door trying to force it) EDIT: My print failed because I shrank it (totally my fault)- Printed full size and everything works great! PSA: Don't shrink the tight tolerance version!
(Edited)
The designer has replied
1
Reply
The tightness depends on the expansion coefficient of the material, you can try a loose version with increased tolerances, if it is still too tight, you need to set the parameters of the hole compensation
0
Reply
Boosted
Replying to @YANGYANG0710 :
Thank you I'll give it a try. Looking forward to making this work!
0
Reply
Boosted
Replying to @YANGYANG0710 :
When I printed mine, I did shrink the print by about 15%. I suspect this is why my print failed - your tolerances are set for a larger size, and at a smaller size, the already tight gaps disappear? Also, similar to another user, I could not get the rocket launchers to fit through the track covers. I think your loose version may be more print friendly to the masses if it solves these problems.
(Edited)
0
Reply
Boosted
Print Profile
Dual-color, Two Spools Standard Edition (Updated October 29th)
Absolutely fantastic design and print! Very well designed, I love how everything goes together. The kids love this one. Thank you for your work and design
3
Reply
It's my pleasure~💕
0
Reply
I can't seem to fit the rocket launcher parts together, is this a printing issue
The designer has replied
Show original
1
Reply
Just use a lot of force
1
Reply
Replying to @YANGYANG0710 :
thankyou problem solved
1
Reply
Boosted
cool profile printed all parts except threads from 1st time. one thread made me nervous))) assembling tricky but interesting
The designer has replied
2
Reply
Cool~
0
Reply
CUTE! Need to reprint the other set of threads and maybe I can make some rockets to add into those launchers.
The designer has replied
1
Reply
so cool~thanks for boosting~
0
Reply
Print Profile
4-color, 4-plate version (Updated on October 29th)

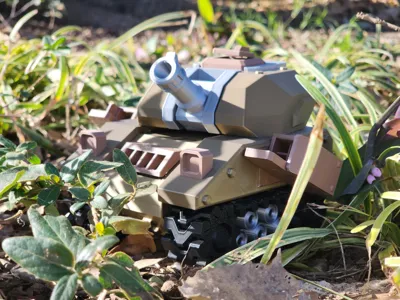

tried to do some unusual colors. went for like a dessert storm kind of look. the rocket pods wouldn't go thru the side holes of the body, so has to trim then open a mm maybe. no big deal. I get the cartoon look but I think even as a cartoon the barrel could be an inch longer. but I can't stretch it because the base would be out of shape to mount. but I still get the biggest kick out of these things. I love anything with tracks and your track system is brilliant.
1
Reply
you can edit the model in blender instead in bambu studio,thank you for liking my work~💕
0
Reply
Print Profile
Loose Version (Easy to Assemble)
Excellent
Show original
1
Reply
😘👍
0
Reply
Print Profile
Loose Version (Easy to Assemble)
Top! Printed with Bambu PLA Metal
Show original
1
Reply
cool~
0
Reply
Print Profile
A1 mini exclusive version, 2 plates with no scaling. (Updated on October 29th)
2
Reply
Cool~
0
Reply
Print Profile
Standard Version (Updated on October 29th)
perfekt
